PB341 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Mechanical and electronic products> switch> PB341

PB341: DescriptionPushbutton Switch, SPDT, Alternate, Quick Connect Terminal, Panel Mount-threaded,; CategoryMechanical and electronic products switch; File Size117KB，1 Pages; ManufacturerCarling Technologies; Environmental Compliance

Download Datasheet Parametric Compare View All

PB341 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	PB341	-	-	View	Buy Now

PB341 Overview

Pushbutton Switch, SPDT, Alternate, Quick Connect Terminal, Panel Mount-threaded,

PB341 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Carling Technologies
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	4 weeks
Actuator type	PLUNGER
body width	15.29 mm
body height	24.94 mm
Body length or diameter	28.58 mm
Contact (AC) maximum rated R load	15A@125VAC
Maximum contact current (AC)	15 A
Maximum contact voltage (AC)	125 V
Electrical life	50000 Cycle(s)
Installation features	PANEL MOUNT-THREADED
Maximum operating force	22.24 N
Maximum operating temperature	85 °C
Minimum operating temperature	32 °C
surface mount	NO
Switch action	ALTERNATE
switch function	SPDT
Switch type	PUSHBUTTON SWITCH
Termination type	QUICK CONNECT

Preview

Download Datasheet

View All

Carling

Technologies

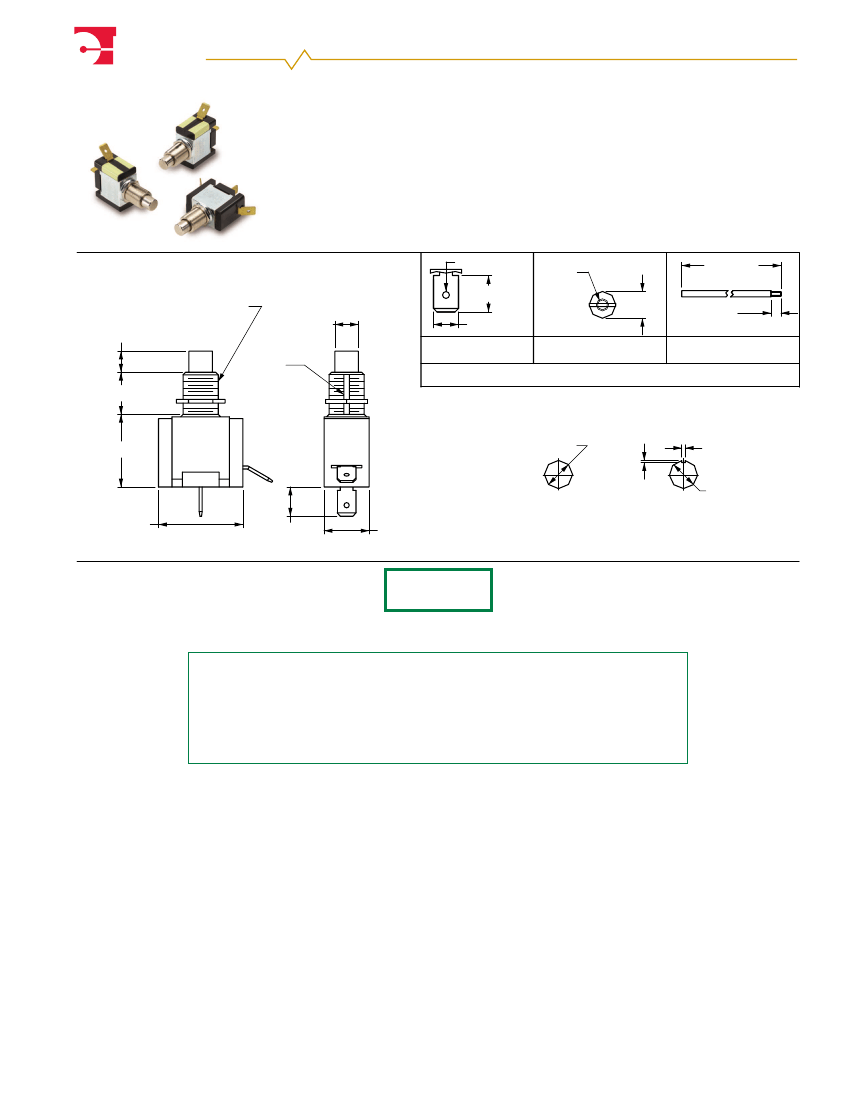

P-Series Pushbutton Switches

™

P-Series Pushbutton Switches

These rugged pushbutton-type switches feature interna-

tional approvals, ratings to 20A 125VAC and a heavy

actuation force (3-5 lbs. typical) which makes this switch

ideal for use as a “foot-pedal” switch. These switches

have become mainstays for canister Vacuum Cleaner

applications. The metal bushing and plunger construc-

tion enables this alternate action switch to withstand the

rigors of most any stringent pushbutton application.

Dielectric Strength

UL/CSA:

1000 - live to dead

metal parts & opposite polarity

TUV:

4000V - live to dead metal

parts; 1250V - opposite polarity

across open contacts

Electrical Life

50,000 cycles

Mechanical Life

100,000 cycles

Operating Temperature

0°F to 85°F (32°C to 85°C)

6.000[152.4]

.075[1.90] DIA

#6-32NC-2

THREAD

.365[9.27]

15/32-32UNS-2A

THREAD

.317[8.05] DIA

.283[7.18]

KEYWAY

.072[1.82]

.038[.965] DP

.562[14.27]

.250 TAB (Q.C.)

SCREW

(ASSEMBLED)

INTEGRATED WIRE LEAD

(no exposed conductors)

.250[6.35]

.270[6.86]

.500[12.70]

TERMINAL TYPE

.982[24.94]

.500[12.70] DIA

.062[1.57]

.038[.965]

MOUNTING HOLE

1.125[28.58]

.398[10.11]

.602[15.29]

WITH KEYWAY

.500[12.70] DIA

PA341

Part Number

1 PART NUMBER: SERIES/ACTUATOR/CIRCUITRY/RATING/TERMINATION

.250 tab

screw terminals

10A 250VAC, 15A 125VAC, 3/4 HP 120-240 VAC

ON-OFF

PA341

PA344

ON-ON

PB341

PB344

10A 250VAC, 20A 125VAC, 1 1/2 HP 120-240 VAC

ON-OFF

PA301

PA304

ON-ON

PB301

PB304

10A 250VAC, 15A 125VAC, 10(6)a 250 VACu, T85

ON-OFF

PA951

PA954

wire leads

PA345

PBA345

PA305

PB305

PA955

NOTES

Additional ratings available. Consult factory.

UL, CSA & TUV approved.

www.carlingtech.com

PB341 Related Products

	PB341	PA954	PB305	PBA345
Description	Pushbutton Switch, SPDT, Alternate, Quick Connect Terminal, Panel Mount-threaded,	Pushbutton Switch, SPST, Alternate, Screw Terminal, Panel Mount-threaded,	Pushbutton Switch, SPDT, Alternate, Wire Terminal, Panel Mount-threaded,	Pushbutton Switch, SPDT, Alternate, Wire Terminal, Panel Mount-threaded
Is it lead-free?	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to
Reach Compliance Code	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99
Actuator type	PLUNGER	PLUNGER	PLUNGER	PLUNGER
body width	15.29 mm	15.29 mm	15.29 mm	15.29 mm
body height	24.94 mm	24.94 mm	24.94 mm	24.94 mm
Body length or diameter	28.58 mm	28.58 mm	28.58 mm	28.58 mm
Contact (AC) maximum rated R load	15A@125VAC	15A@125VAC	20A@125VAC	15A@125VAC
Maximum contact current (AC)	15 A	15 A	20 A	15 A
Maximum contact voltage (AC)	125 V	125 V	125 V	125 V
Electrical life	50000 Cycle(s)	50000 Cycle(s)	50000 Cycle(s)	50000 Cycle(s)
Installation features	PANEL MOUNT-THREADED	PANEL MOUNT-THREADED	PANEL MOUNT-THREADED	PANEL MOUNT-THREADED
Maximum operating force	22.24 N	22.24 N	22.24 N	22.24 N
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	32 °C	32 °C	32 °C	32 °C
surface mount	NO	NO	NO	NO
Switch action	ALTERNATE	ALTERNATE	ALTERNATE	ALTERNATE
switch function	SPDT	SPST	SPDT	SPDT
Switch type	PUSHBUTTON SWITCH	PUSHBUTTON SWITCH	PUSHBUTTON SWITCH	PUSHBUTTON SWITCH
Termination type	QUICK CONNECT	SCREW	WIRE	WIRE
Maker	Carling Technologies	-	Carling Technologies	Carling Technologies
