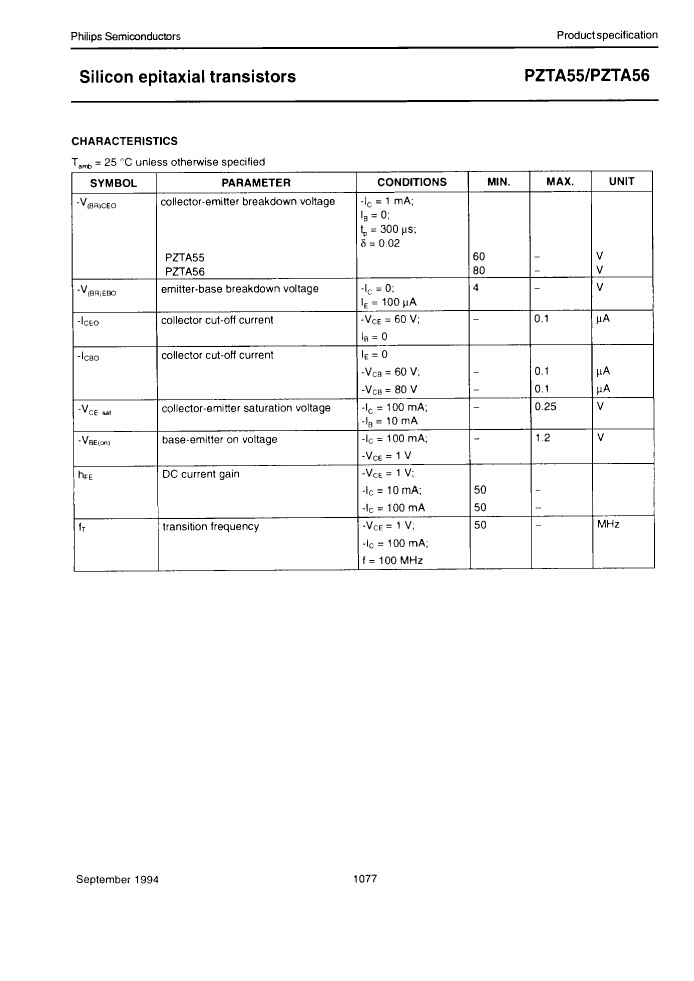

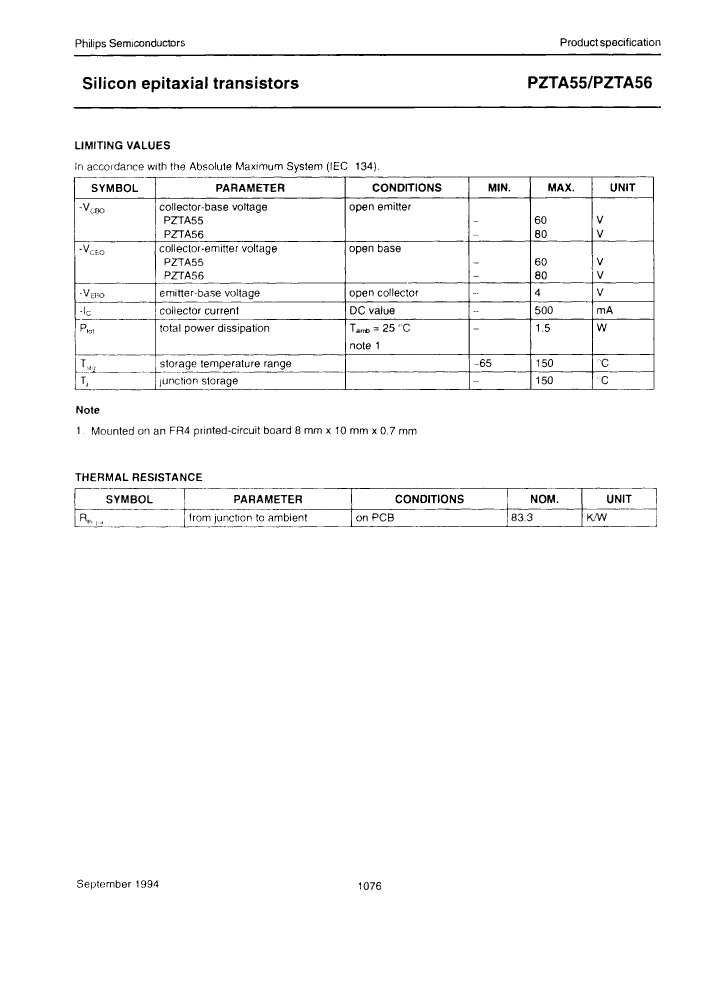

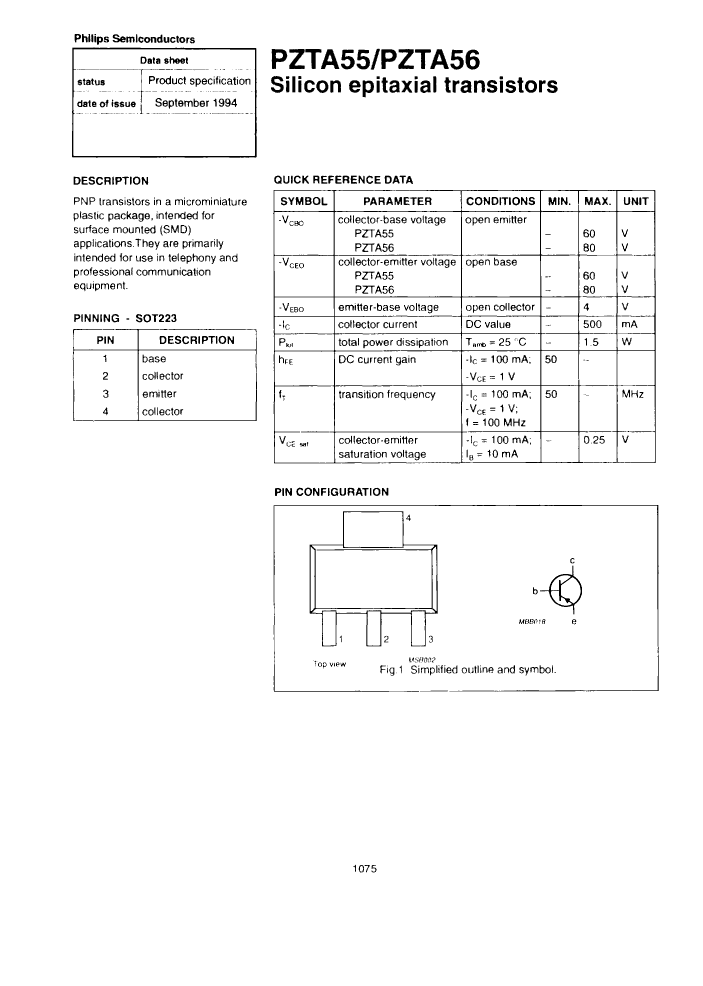

Preview

PZTA56-TAPE-13: DescriptionTRANSISTOR 0.5 A, 80 V, PNP, Si, POWER TRANSISTOR, BIP General Purpose Power; CategoryDiscrete semiconductor The transistor; File Size57KB，3 Pages; ManufacturerNXP; Websitehttps://www.nxp.com

Download Datasheet Parametric Compare View All

PZTA56-TAPE-13 Overview

TRANSISTOR 0.5 A, 80 V, PNP, Si, POWER TRANSISTOR, BIP General Purpose Power

PZTA56-TAPE-13 Parametric

Parameter Name	Attribute value
Maker	NXP
package instruction	SMALL OUTLINE, R-PDSO-G4
Reach Compliance Code	unknown
ECCN code	EAR99
Shell connection	COLLECTOR
Maximum collector current (IC)	0.5 A
Collector-emitter maximum voltage	80 V
Configuration	SINGLE
Minimum DC current gain (hFE)	50
JESD-30 code	R-PDSO-G4
Number of components	1
Number of terminals	4
Maximum operating temperature	150 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Polarity/channel type	PNP
Certification status	Not Qualified
surface mount	YES
Terminal form	GULL WING
Terminal location	DUAL
Transistor component materials	SILICON
Nominal transition frequency (fT)	50 MHz
VCEsat-Max	0.25 V

Preview

Download Datasheet

View All

PZTA56-TAPE-13 Related Products

	PZTA56-TAPE-13	PZTA55-TAPE-13	PZTA55-TAPE-7	PZTA56-TAPE-7
Description	TRANSISTOR 0.5 A, 80 V, PNP, Si, POWER TRANSISTOR, BIP General Purpose Power	TRANSISTOR 0.5 A, 60 V, PNP, Si, POWER TRANSISTOR, BIP General Purpose Power	TRANSISTOR 0.5 A, 60 V, PNP, Si, POWER TRANSISTOR, BIP General Purpose Power	TRANSISTOR 0.5 A, 80 V, PNP, Si, POWER TRANSISTOR, BIP General Purpose Power
Maker	NXP	NXP	NXP	NXP
package instruction	SMALL OUTLINE, R-PDSO-G4	SMALL OUTLINE, R-PDSO-G4	SMALL OUTLINE, R-PDSO-G4	SMALL OUTLINE, R-PDSO-G4
Reach Compliance Code	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99
Shell connection	COLLECTOR	COLLECTOR	COLLECTOR	COLLECTOR
Maximum collector current (IC)	0.5 A	0.5 A	0.5 A	0.5 A
Collector-emitter maximum voltage	80 V	60 V	60 V	80 V
Configuration	SINGLE	SINGLE	SINGLE	SINGLE
Minimum DC current gain (hFE)	50	50	50	50
JESD-30 code	R-PDSO-G4	R-PDSO-G4	R-PDSO-G4	R-PDSO-G4
Number of components	1	1	1	1
Number of terminals	4	4	4	4
Maximum operating temperature	150 °C	150 °C	150 °C	150 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE
Polarity/channel type	PNP	PNP	PNP	PNP
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
surface mount	YES	YES	YES	YES
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING
Terminal location	DUAL	DUAL	DUAL	DUAL
Transistor component materials	SILICON	SILICON	SILICON	SILICON
Nominal transition frequency (fT)	50 MHz	50 MHz	50 MHz	50 MHz
VCEsat-Max	0.25 V	0.25 V	0.25 V	0.25 V
