SN54S133FK datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> SN54S133FK

SN54S133FK: DescriptionNAND Gate, S Series, 1-Func, 13-Input, TTL, CQCC20, CERAMIC, CC-20; Categorylogic logic; File Size195KB，6 Pages; ManufacturerRochester Electronics; Websitehttps://www.rocelec.com/

Download Datasheet Parametric Compare View All

SN54S133FK Overview

NAND Gate, S Series, 1-Func, 13-Input, TTL, CQCC20, CERAMIC, CC-20

SN54S133FK Parametric

Parameter Name	Attribute value
Maker	Rochester Electronics
package instruction	QCCN,
Reach Compliance Code	unknown
series	S
JESD-30 code	S-CQCC-N20
length	8.89 mm
Logic integrated circuit type	NAND GATE
Number of functions	1
Number of entries	13
Number of terminals	20
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	QCCN
Package shape	SQUARE
Package form	CHIP CARRIER
propagation delay (tpd)	7 ns
Maximum seat height	2.03 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	TTL
Temperature level	MILITARY
Terminal form	NO LEAD
Terminal pitch	1.27 mm
Terminal location	QUAD
width	8.89 mm

Preview

Download Datasheet

View All

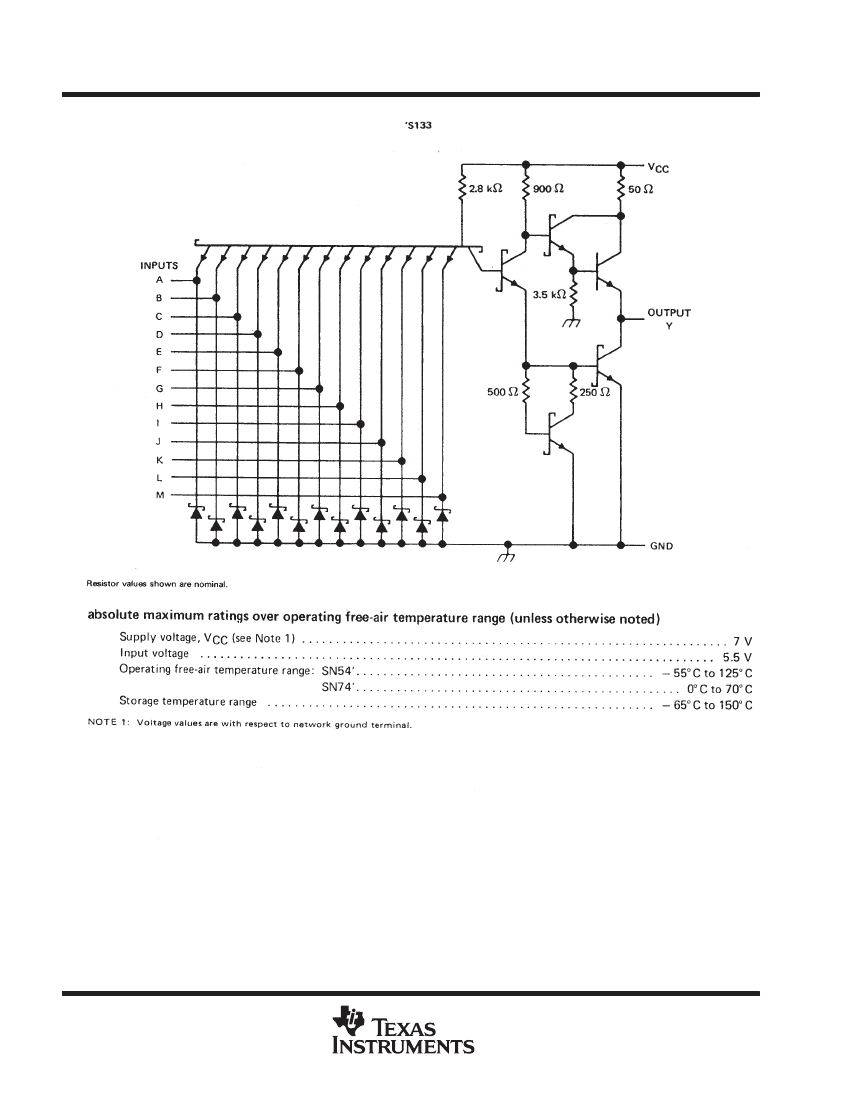

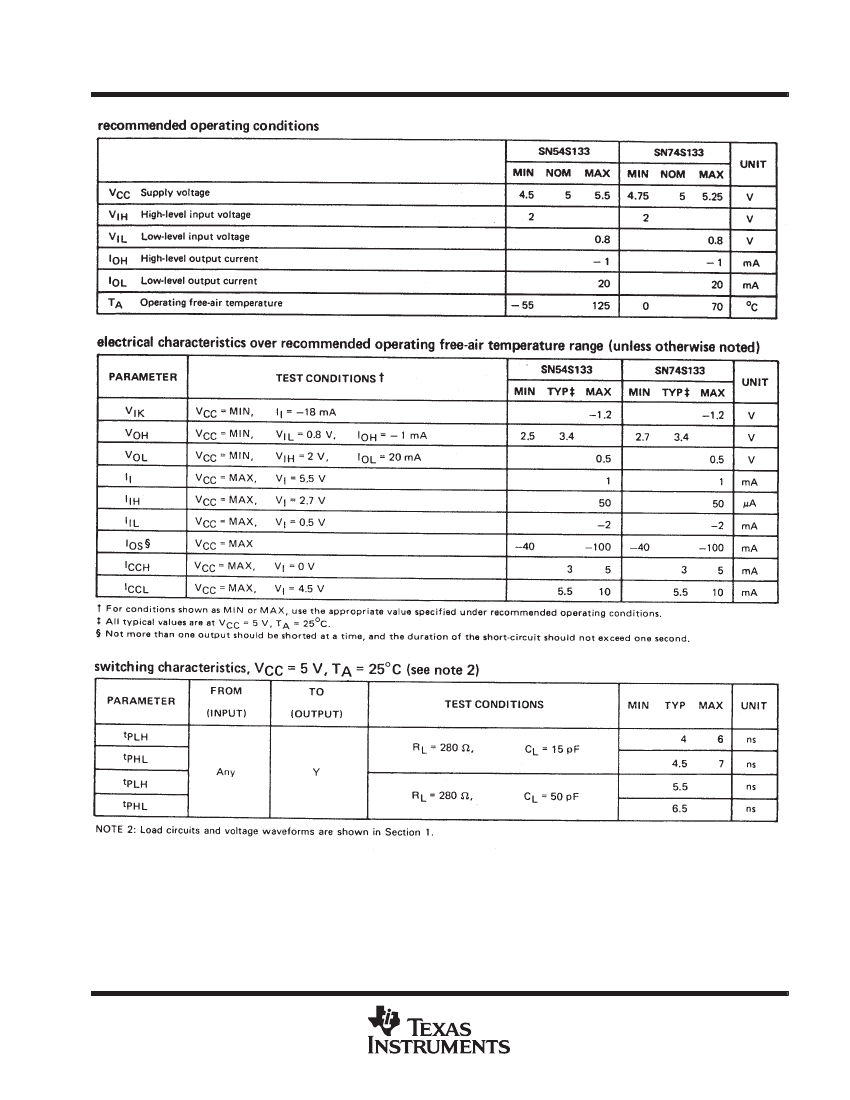

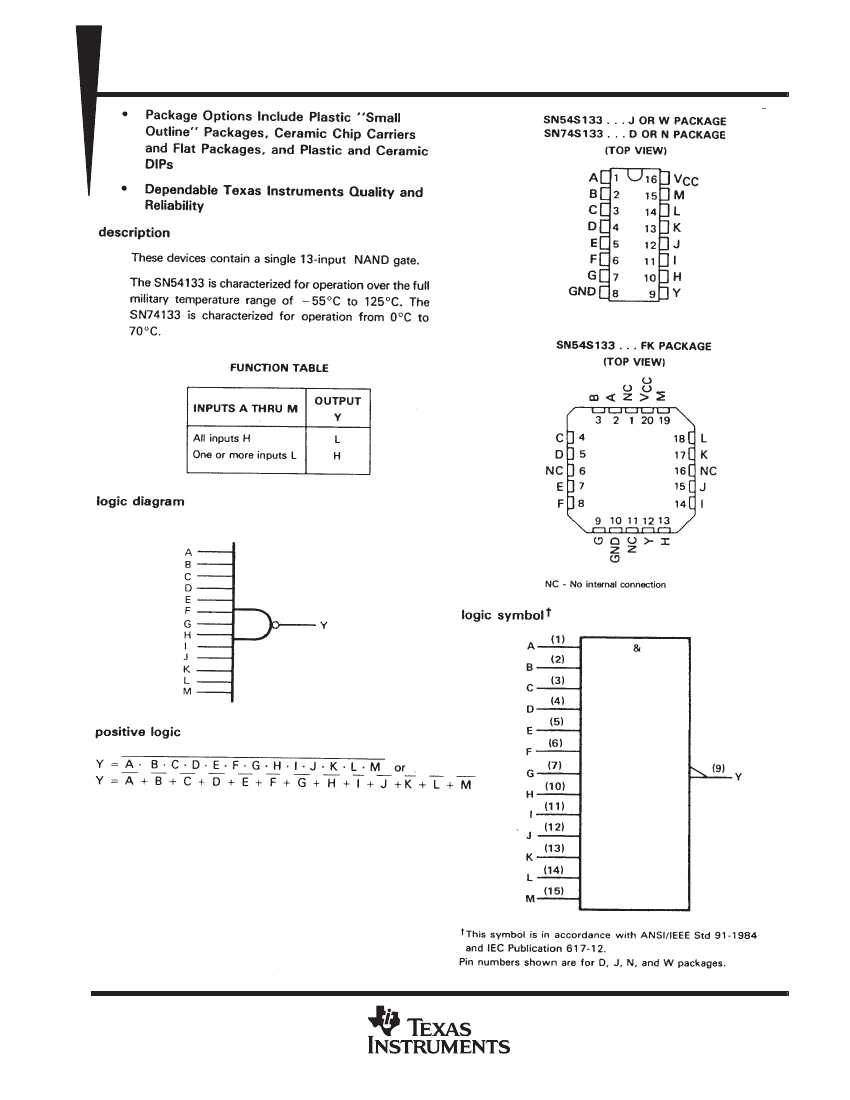

SN54S133, SN74S133

13-INPUT POSITIVE-NAND GATES

SDLS202 – DECEMBER 1983 – REVISED MARCH 1988

PRODUCTION DATA information is current as of publication date.

Products conform to specifications per the terms of Texas Instruments

standard warranty. Production processing does not necessarily include

testing of all parameters.

1988, Texas Instruments Incorporated

POST OFFICE BOX 655303

•

DALLAS, TEXAS 75265

IMPORTANT NOTICE

Texas Instruments and its subsidiaries (TI) reserve the right to make changes to their products or to discontinue

any product or service without notice, and advise customers to obtain the latest version of relevant information

to verify, before placing orders, that information being relied on is current and complete. All products are sold

subject to the terms and conditions of sale supplied at the time of order acknowledgement, including those

pertaining to warranty, patent infringement, and limitation of liability.

TI warrants performance of its semiconductor products to the specifications applicable at the time of sale in

accordance with TI’s standard warranty. Testing and other quality control techniques are utilized to the extent

TI deems necessary to support this warranty. Specific testing of all parameters of each device is not necessarily

performed, except those mandated by government requirements.

CERTAIN APPLICATIONS USING SEMICONDUCTOR PRODUCTS MAY INVOLVE POTENTIAL RISKS OF

DEATH, PERSONAL INJURY, OR SEVERE PROPERTY OR ENVIRONMENTAL DAMAGE (“CRITICAL

APPLICATIONS”). TI SEMICONDUCTOR PRODUCTS ARE NOT DESIGNED, AUTHORIZED, OR

WARRANTED TO BE SUITABLE FOR USE IN LIFE-SUPPORT DEVICES OR SYSTEMS OR OTHER

CRITICAL APPLICATIONS. INCLUSION OF TI PRODUCTS IN SUCH APPLICATIONS IS UNDERSTOOD TO

BE FULLY AT THE CUSTOMER’S RISK.

In order to minimize risks associated with the customer’s applications, adequate design and operating

safeguards must be provided by the customer to minimize inherent or procedural hazards.

TI assumes no liability for applications assistance or customer product design. TI does not warrant or represent

that any license, either express or implied, is granted under any patent right, copyright, mask work right, or other

intellectual property right of TI covering or relating to any combination, machine, or process in which such

semiconductor products or services might be or are used. TI’s publication of information regarding any third

party’s products or services does not constitute TI’s approval, warranty or endorsement thereof.

1999, Texas Instruments Incorporated

SN54S133FK Related Products

	SN54S133FK	SN54S133W
Description	NAND Gate, S Series, 1-Func, 13-Input, TTL, CQCC20, CERAMIC, CC-20	NAND Gate, S Series, 1-Func, 13-Input, TTL, CDFP16, CERAMIC, FP-16
Maker	Rochester Electronics	Rochester Electronics
package instruction	QCCN,	DFP,
Reach Compliance Code	unknown	unknown
series	S	S
JESD-30 code	S-CQCC-N20	R-CDFP-F16
length	8.89 mm	10.2 mm
Logic integrated circuit type	NAND GATE	NAND GATE
Number of functions	1	1
Number of entries	13	13
Number of terminals	20	16
Maximum operating temperature	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED
encapsulated code	QCCN	DFP
Package shape	SQUARE	RECTANGULAR
Package form	CHIP CARRIER	FLATPACK
propagation delay (tpd)	7 ns	7 ns
Maximum seat height	2.03 mm	2.03 mm
Maximum supply voltage (Vsup)	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V
surface mount	YES	YES
technology	TTL	TTL
Temperature level	MILITARY	MILITARY
Terminal form	NO LEAD	FLAT
Terminal pitch	1.27 mm	1.27 mm
Terminal location	QUAD	DUAL
width	8.89 mm	6.73 mm
