PLAD30KP10 thru PLAD30KP400CA, e3
30kW Surface Mount Transient
Voltage Suppressor
SCOTTSDALE DIVISION
DESCRIPTION
These Microsemi 30 kW Transient Voltage Suppressors (TVSs)
are designed for applications requiring protection of voltage-
sensitive electronic devices that may be damaged by harsh or
severe voltage transients including lightning per IEC61000-4-5
and class levels with various source impedances described
herein. This series is available in 10 to 400 volt Standoff
Voltages (V
WM
) in both unidirectional and bi-directional with either
5% or 10% tolerances of the Breakdown Voltage (V
BR
).
Microsemi also offers numerous other TVS products to meet
higher or lower power demands and special applications.
IMPORTANT:
For the most current data, consult
MICROSEMI’s
website:
http://www.microsemi.com

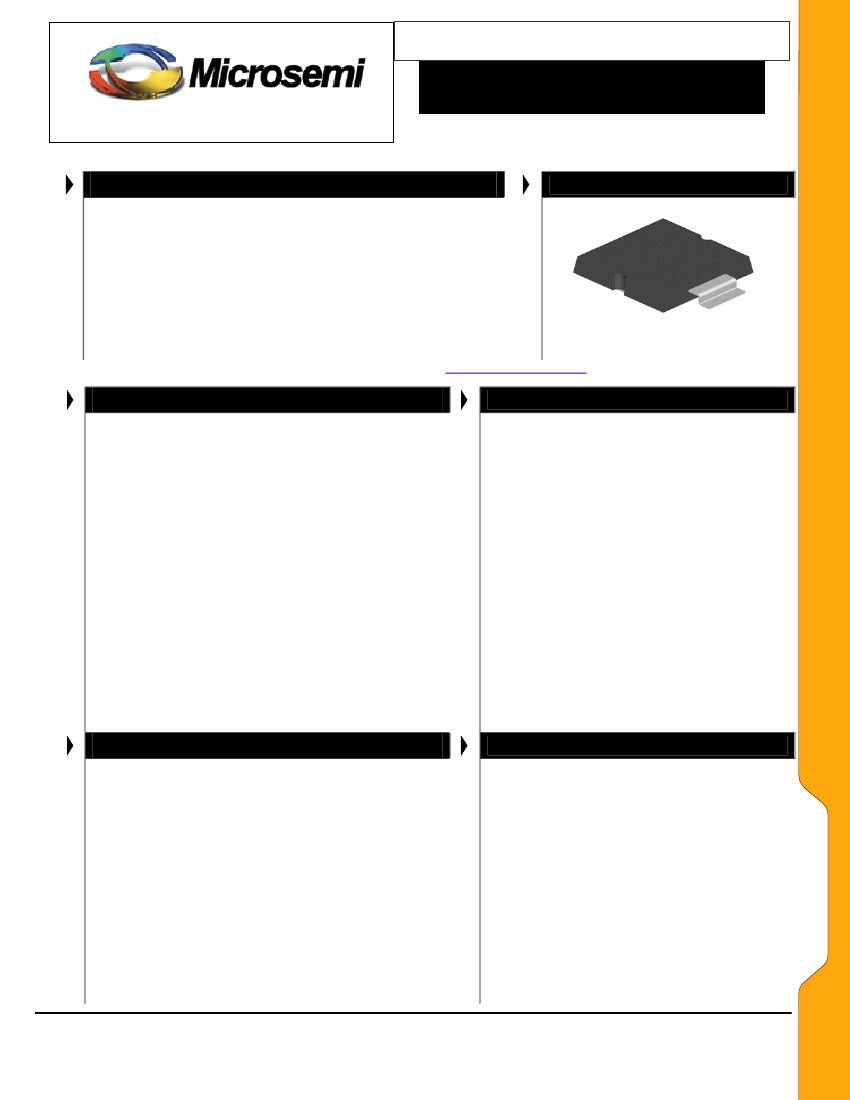

APPEARANCE
WWW .
Microsemi
.C
OM
FEATURES
•
•
•
•
•
Available in both Unidirectional and Bidirectional
construction (Bidirectional with C or CA suffix)
Selections for 10 to 400 volt Standoff Voltages V
WM

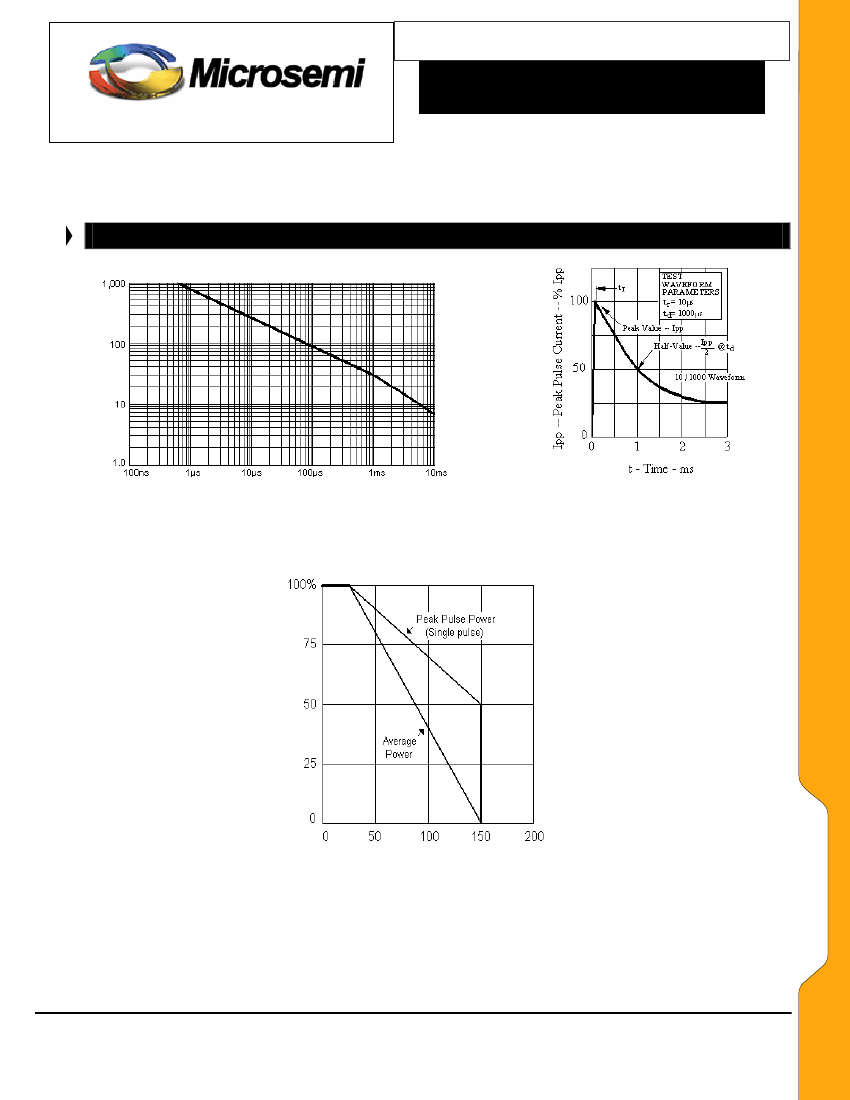

Suppresses transients up to 30 kW @ 10/1000 µs and 200
kW @ 8/20 µs (see Figure 1)
Fast response
Optional 100%
screening for avionics grade
is available
by adding MA prefix to part number for added 100%
temperature cycle -55
o
C to +125
o
C (10X) as well as surge
(3X) and 24 hours HTRB with post test V
Z
& I
R
(in the
operating direction for unidirectional or both directions for
bidirectional)
Options for screening in accordance with MIL-PRF-19500
for JAN, JANTX, JANTXV, and JANS are available by
adding MQ, MX, MV, or MSP prefixes respectively to part
numbers.
Moisture classification is Level 1 with no dry pack required
per IPC/JEDEC J-STD-020B
RoHS Compliant devices available by adding an “e3” suffix
•
•
•
APPLICATIONS / BENEFITS
Protection from switching transients and induced RF
Protection from ESD, and EFT per IEC 61000-4-2 and
IEC 61000-4-4
Secondary lightning protection per IEC61000-4-5 with
42 Ohms source impedance:
Class 1,2,3,4: PLAD30KP10 - PLAD30KP400A or CA
Class 5: PLAD30KP10 - PLAD30KP400A or CA (short
distance)
Class 5: PLAD30KP10 - PLAD30KP220A or CA (long
distance)
Secondary lightning protection per IEC61000-4-5 with
12 Ohms source impedance:
Class 1,2, 3: PLAD30KP10 to PLAD30KP400A or CA
Class 4: PLAD30KP10 to PLAD30KP220A or CA
Secondary lightning protection per IEC61000-4-5 with 2
Ohms source impedance:
Class 2: PLAD30KP10 to PLAD30KP400A or CA
Class 3: PLAD30KP10 to PLAD30KP220A or CA
Class 4: PLAD30KP10 to PLAD30KP110A or CA
•
•
•
•
•
MAXIMUM RATINGS
•
•
•
•
•
Peak Pulse Power dissipation at 25
º
C: 30,000 watts at
10/1000
μs
(also see Figures 1 and 2)
Impulse repetition rate (duty factor): 0.05%
t
clamping
(0 volts to V
(BR)
min.): < 100 ps theoretical for
unidirectional and < 5 ns for bidirectional
Operating & Storage temperature: -65
º
C to +150
º
C
Thermal resistance: 0.5
º
C/W junction to case, or 50
º
C/W
junction to ambient when mounted on FR4 PC board with
recommended mounting pad with 1 oz Cu (see last page)
Steady-State Power dissipation: 250 watts at T
c
= 25
o
C,
or 2.5 watts at T
A
= 25
º
C when mounted on FR4 PC
board as described for thermal resistance above
Forward Surge: 1500 Amps (theoretical) at 8.3 ms half-
sine wave for unidirectional devices only
Solder temperatures: 260
º
C for 10 s (maximum)
•
•
MECHANICAL AND PACKAGING
CASE: Void-free transfer molded thermosetting
epoxy body meeting UL94V-0
FINISH: Tin-Lead or RoHS Compliant annealed
matte-Tin plating readily solderable per MIL-
STD-750, method 2026
MARKING: Body marked with part number
POLARITY: Band denotes cathode.
Bidirectional not marked for polarity
WEIGHT: 1.7-2.0 grams (approximate)
TAPE & REEL option: Standard per EIA-296
for axial package (add “TR” suffix to part
number)

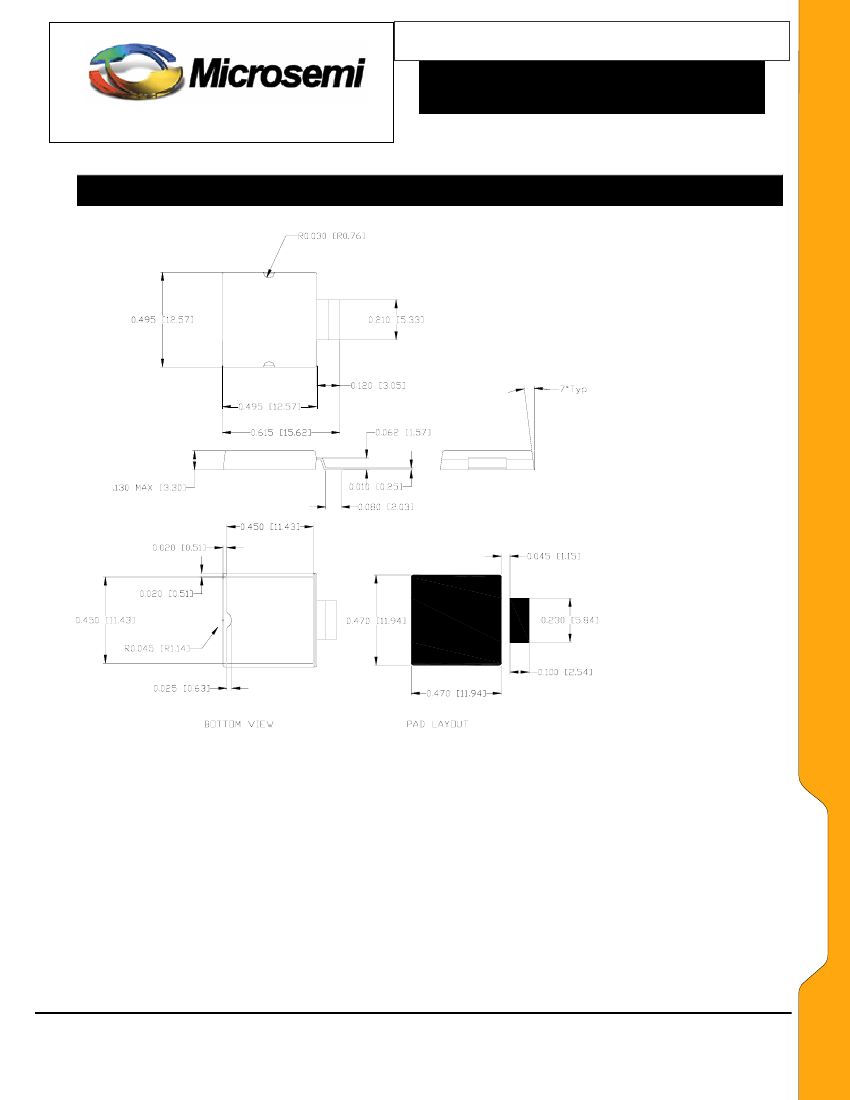

See package dimension on last page
PLAD30KP10 thru 400CA, e3
•
•
•
•
•
•
•
•
Copyright
©
2006
7-19-2006 Rev C
Microsemi
Scottsdale Division
8700 E. Thomas Rd. PO Box 1390, Scottsdale, AZ 85252 USA, (480) 941-6300, Fax: (480) 947-1503
Page 1
