MTA406P datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Mechanical and electronic products> switch> MTA406P

MTA406P: DescriptionToggle Switch, 4PDT, On-off-on, Latched, 6A, 6VDC, Solder Terminal, Lever Actuator, Through Hole-straight, ROHS COMPLIANT; CategoryMechanical and electronic products switch; File Size2MB，2 Pages; ManufacturerKnitter-switch; Websitehttp://www.knitter-switch.com/; Environmental Compliance

Download Datasheet Parametric View All

MTA406P Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	MTA406P	-	-	View	Buy Now

MTA406P Overview

Toggle Switch, 4PDT, On-off-on, Latched, 6A, 6VDC, Solder Terminal, Lever Actuator, Through Hole-straight, ROHS COMPLIANT

MTA406P Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Knitter-switch
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Actuator angle	24 deg
Executor completed	CHROME
Actuator length	0.413 inch
Actuator material	COPPER ALLOY
Actuator type	LEVER
Other features	UL APPROVED, ROHS COMPLIANT
body width	13 mm
body height	11.5 mm
Body length or diameter	22.6 mm
Casing diameter	0.236 inch
Nozzle length	0.315 inch
Casing type	M6X0.75
Contact (AC) maximum rated R load	6A@125VAC
Maximum contact current (AC)	6 A
Maximum contact current (DC)	6 A
Contact (DC) maximum rated R load	6A@6VDC
Contact function	ON-OFF-ON
Contact resistance	0.02 mΩ
Maximum contact voltage (AC)	125 V
Maximum contact voltage (DC)	6 V
Dielectric withstand voltage	1500VAC V
Electrical life	300000 Cycle(s)
Shell material	STAINLESS STEEL
Insulation resistance	1000000000 Ω
insulator material	DIALLYL PHTHALATE
Installation features	THROUGH HOLE-STRAIGHT
Maximum operating temperature	140 °C
Minimum operating temperature	-45 °C
seal	WATER PROOF
Solderability	HAND
surface mount	NO
Switch action	LATCHED
switch function	4PDT
Switch type	TOGGLE SWITCH
Terminal length	0.157 inch
Terminal material	BRASS
Termination type	SOLDER

Preview

Download Datasheet

View All

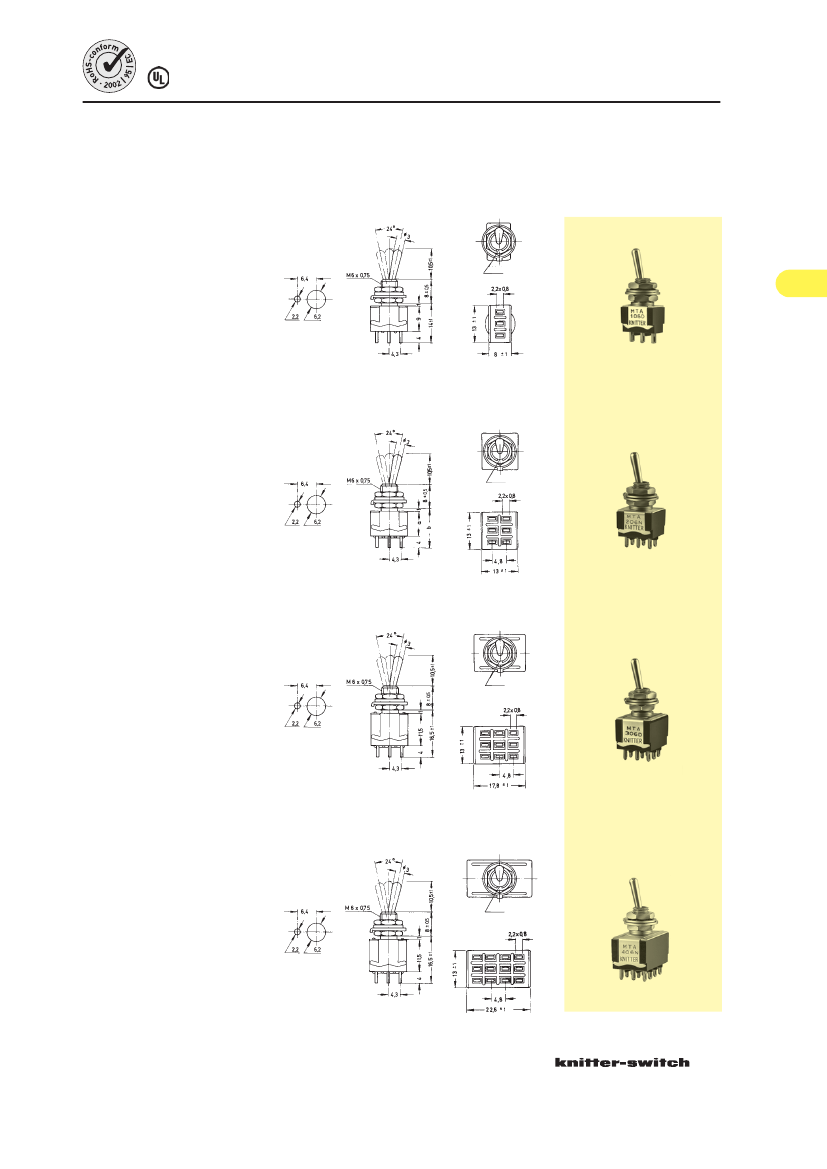

Miniature Toggle Switches

Specifications:

Contact rating:

250 V AC, 3 A / 125 V AC, 6 A

30 V DC, 4 A / 12 V DC, 5 A

6 V DC, 6 A

< 10 mΩ

> 1000 MΩ at 500 V DC

1500 V, 50 Hz for the duration of 1 minute

– 45° to + 140° C

minimum 300 000 operations

coin silver (common contact copper alloy, silver-plated)

also available gold-plated, version B and G (see page 4)

solder tags, copper alloy silver-plated

further terminal versions see page 8

case: diallyle-phthalate, meets UL 94 V–0, black

lever: chromium-plated, metal parts: nickel-plated

bushing M 6 x 0,75 with locking plate, key 9 mm

hand-soldering – max.: 60 W, 3 sec, 420º C

auto-soldering – max.: 5 sec, 270º C

Contact resistance:

Insulation resistance:

Dielectric strength:

Operating temperature:

Mechanical life:

Contacts:

Terminals:

Material:

Mounting:

Soldering conditions:

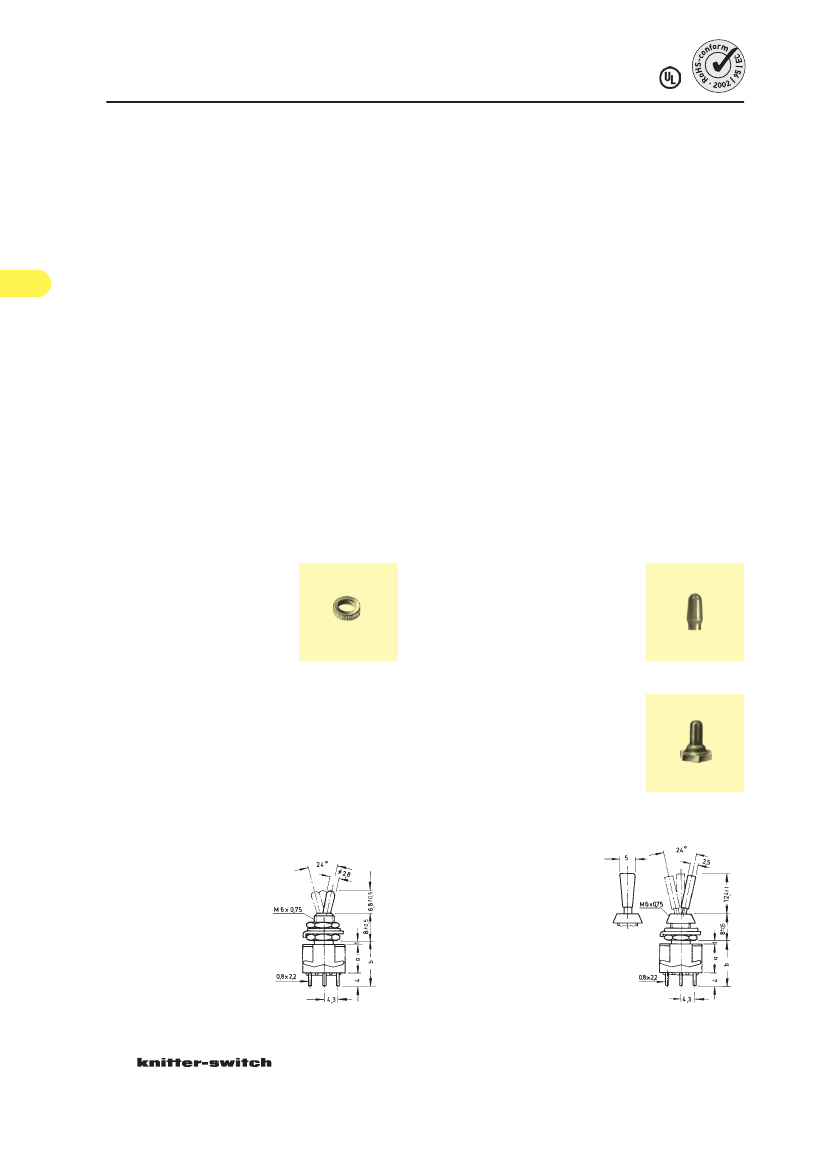

Accessories:

Plastic caps (height 11,5 mm)

orange

blue

black

green

grey

yellow

red

white

C 1103

C 1104

C 1105

C 1106

C 1107

C 1108

C 1109

C 1110

Knurled nut, nickel-plated

M 6 x 0,75,

8 mm

R 675

Waterproof sealing caps (height 14,3 mm)

black

ET 102

Waterproof sealing cap with mounting screw

Special levers:

Miniature toggle switches

with short lever

Miniature toggle switches

with flat lever and

special decorative nut

Series MTF

Series MTM

12 |
