LPH-A-100SMYGA

Description
Board Stacking Connector, 100 Contact(s), 2 Row(s), Male, Straight, Surface Mount Terminal,
CategoryThe connector    The connector
File Size65KB,1 Pages
ManufacturerHonda Tsushin Kogyo Co., Ltd.
Download Datasheet Parametric View All

LPH-A-100SMYGA Overview

Board Stacking Connector, 100 Contact(s), 2 Row(s), Male, Straight, Surface Mount Terminal,

LPH-A-100SMYGA Parametric

Parameter NameAttribute value
MakerHonda Tsushin Kogyo Co., Ltd.
Reach Compliance Codeunknown
Connector typeBOARD STACKING CONNECTOR
Contact point genderMALE
DIN complianceNO
Filter functionNO
IEC complianceNO
MIL complianceNO
Plug informationLPH-A100SFYGA
Mixed contactsNO
Installation methodSTRAIGHT
Installation typeBOARD
Number of rows loaded2
OptionsGENERAL PURPOSE
Terminal pitch0.6 mm
Termination typeSURFACE MOUNT
Total number of contacts100

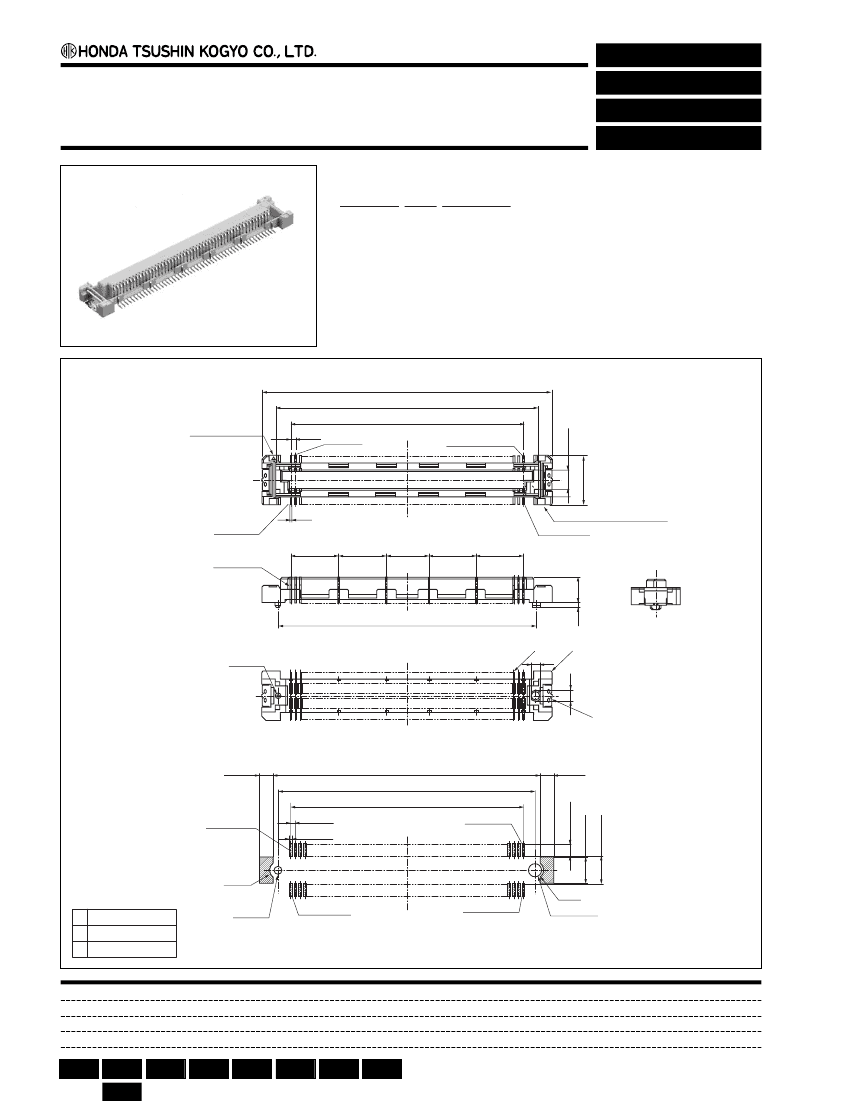

0.6 mm Pitch Connector
Stacking straight SMT type male connector for PCBs
LPH-A100SMYGA
Configuration of product Part No.
For PCBs
Straight SMT
Mini PCI Standard
LPH-A 100 SMYGA
Series name
No. of contacts: 100
Form of contact
36.7
32
0.6x49=29.4
POS.#1
POS.#50
2.42
100
POS.#1 mark
0.6
HONDA JAPAN 0 4 9
0.15
POS.#51
Ground
contact
No. of contacts is marked.
POS.#100
6
6
5.4
6
6
3.25
32.6
ø0.7
1
1.4
0.6
6.2
±0.05
±0.05
±0.05
±0.05
±0.05
1.65
33.8
32.6
29.4
0.6
0.3
±0.03
±0.03
1.65
±0.05
3.3
±0.05
R1
Components
Insulator
Contacts
Hold downs
ø0.9
R1
±0.05
POS.#51
POS.#100
ø1.6
PCB dimensions for reference purposes
(Connector mounted face)
Mating connectors:
LPH-A100SFYGA (stacking height: 4 mm)
LPH-A100SFYG1A (stacking height: 6 mm)
DIP
SMT
Press-in
IDC
Wire
Soldering Crimping wrapping
Others
3.6
±0.05
POS.#1
POS.#50
1.5MIN.
