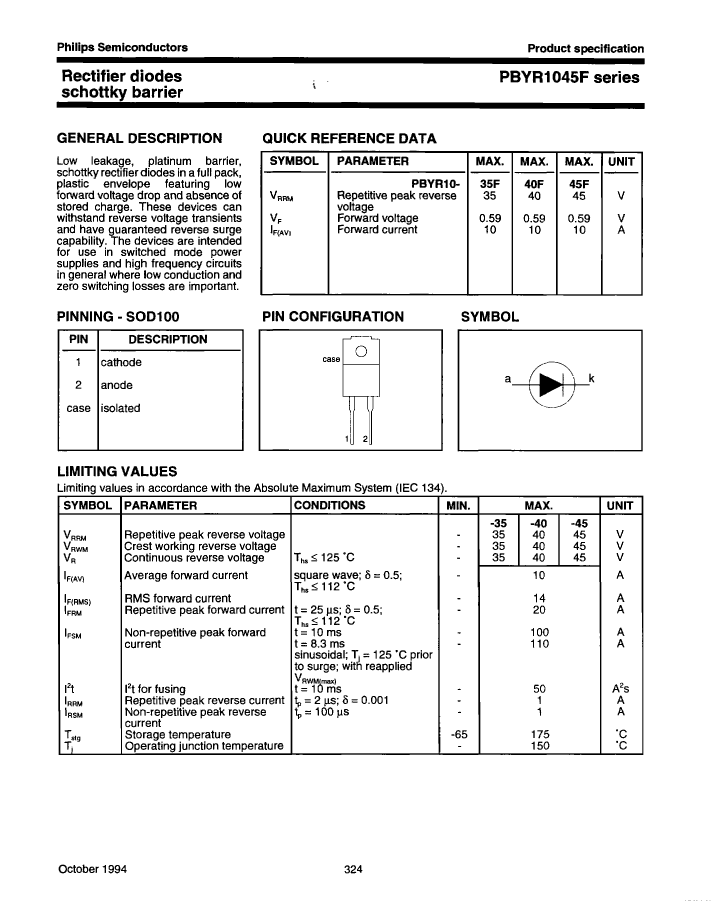

PBYR10-35F datasheet, PDF - EEWORLD Datasheet

PBYR10-35F: Description10A, 35V, SILICON, RECTIFIER DIODE; CategoryDiscrete semiconductor diode; File Size89KB，3 Pages; ManufacturerNXP; Websitehttps://www.nxp.com

Download Datasheet Parametric Compare View All

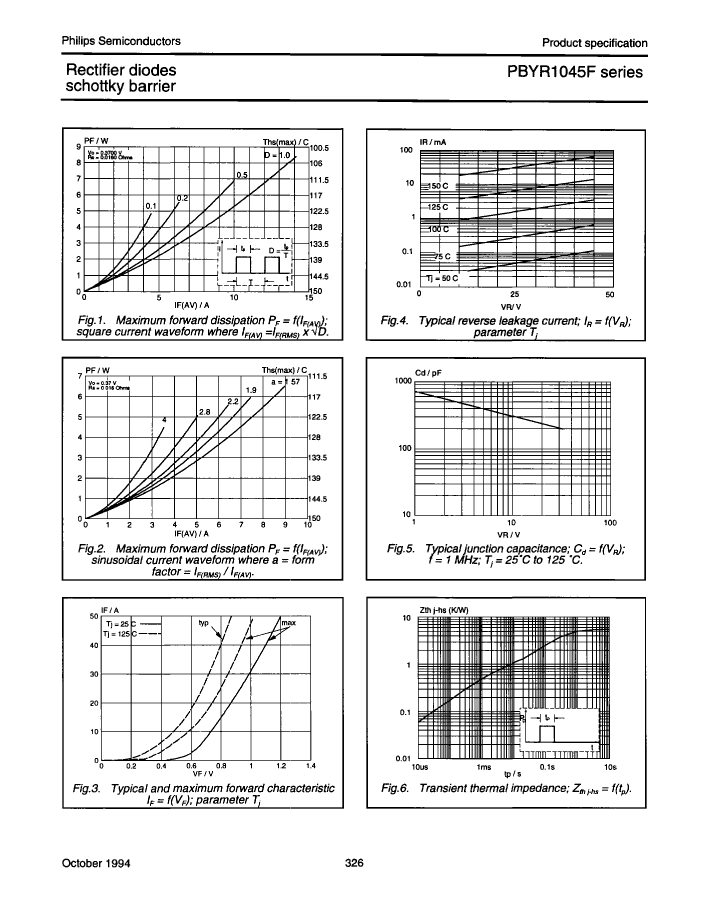

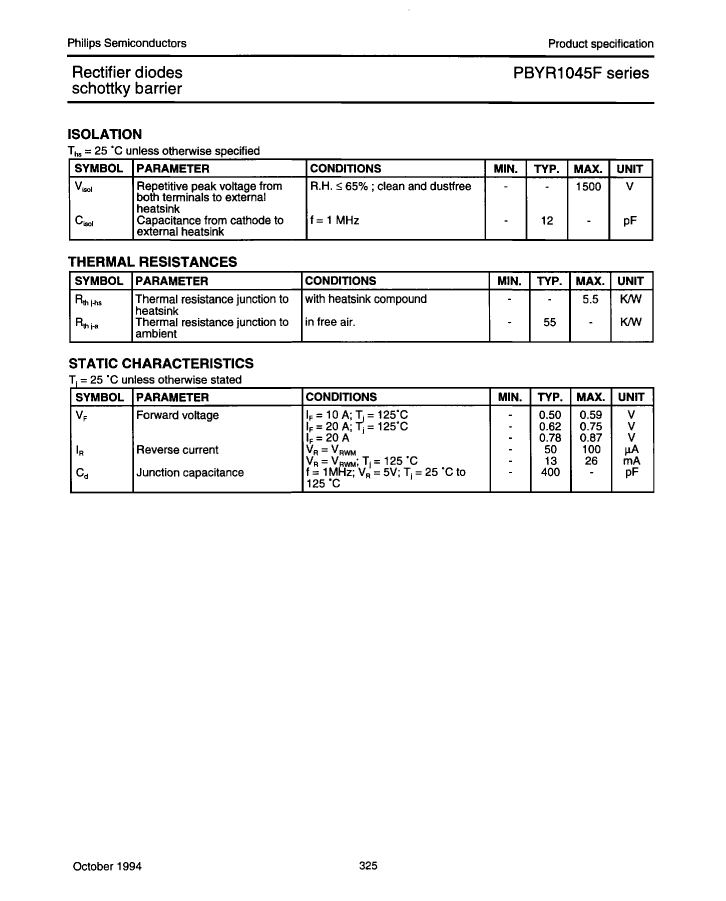

PBYR10-35F Overview

10A, 35V, SILICON, RECTIFIER DIODE

Parameter Name	Attribute value
Maker	NXP
package instruction	R-PSFM-T2
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	WITHSTAND REVERSE VOLTAGE TRANSIENTS, SURGE CAPABILITY
application	GENERAL PURPOSE
Shell connection	ISOLATED
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
JESD-30 code	R-PSFM-T2
Maximum non-repetitive peak forward current	110 A
Number of components	1
Phase	1
Number of terminals	2
Maximum output current	10 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	35 V
surface mount	NO
technology	SCHOTTKY
Terminal form	THROUGH-HOLE
Terminal location	SINGLE

	PBYR10-35F	PBYR10-40F	PBYR10-45F
Description	10A, 35V, SILICON, RECTIFIER DIODE	DIODE 10 A, 40 V, SILICON, RECTIFIER DIODE, Rectifier Diode	DIODE 10 A, 45 V, SILICON, RECTIFIER DIODE, Rectifier Diode
Reach Compliance Code	unknown	unknown	unknown
Other features	WITHSTAND REVERSE VOLTAGE TRANSIENTS, SURGE CAPABILITY	WITHSTAND REVERSE VOLTAGE TRANSIENTS, SURGE CAPABILITY	WITHSTAND REVERSE VOLTAGE TRANSIENTS, SURGE CAPABILITY
application	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Shell connection	ISOLATED	ISOLATED	ISOLATED
Configuration	SINGLE	SINGLE	SINGLE
Diode component materials	SILICON	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE
JESD-30 code	R-PSFM-T2	R-PSFM-T2	R-PSFM-T2
Maximum non-repetitive peak forward current	110 A	110 A	110 A
Number of components	1	1	1
Phase	1	1	1
Number of terminals	2	2	2
Maximum output current	10 A	10 A	10 A
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT
Certification status	Not Qualified	Not Qualified	Not Qualified
Maximum repetitive peak reverse voltage	35 V	40 V	45 V
surface mount	NO	NO	NO
technology	SCHOTTKY	SCHOTTKY	SCHOTTKY
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal location	SINGLE	SINGLE	SINGLE
Maker	NXP	-	NXP
package instruction	R-PSFM-T2	R-PSFM-T2	-
Is it Rohs certified?	-	incompatible	incompatible
Humidity sensitivity level	-	1	1
Peak Reflow Temperature (Celsius)	-	225	225
Maximum time at peak reflow temperature	-	NOT SPECIFIED	NOT SPECIFIED
