PPR41212 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> PPR41212

PPR41212: DescriptionRectifier Diode, 1 Phase, 12A, Silicon, DO-4,; CategoryDiscrete semiconductor diode; File Size120KB，1 Pages; ManufacturerMicrosemi; Websitehttps://www.microsemi.com

Download Datasheet Parametric Compare View All

PPR41212 Overview

Rectifier Diode, 1 Phase, 12A, Silicon, DO-4,

PPR41212 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Microsemi
package instruction	O-MUPM-D1
Reach Compliance Code	unknown
ECCN code	EAR99
application	GENERAL PURPOSE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
JEDEC-95 code	DO-4
JESD-30 code	O-MUPM-D1
JESD-609 code	e0
Maximum non-repetitive peak forward current	250 A
Phase	1
Number of terminals	1
Maximum output current	12 A
Package body material	METAL
Package shape	ROUND
Package form	POST/STUD MOUNT
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Maximum reverse recovery time	3 µs
surface mount	NO
Terminal surface	TIN LEAD
Terminal form	SOLDER LUG
Terminal location	UPPER
Maximum time at peak reflow temperature	NOT SPECIFIED

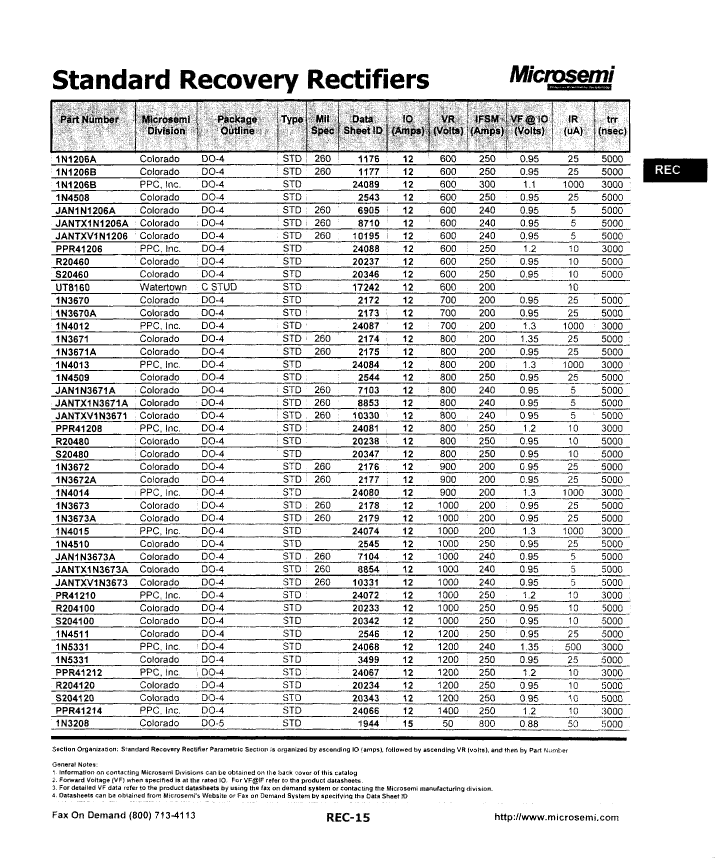

Preview

Download Datasheet

View All

PPR41212 Related Products

	PPR41212	1N4013	1N4012	128LMX160M2ED	1N4015	PPR41208	PPR41214	PPR41206
Description	Rectifier Diode, 1 Phase, 12A, Silicon, DO-4,	Rectifier Diode, 1 Phase, 12A, Silicon, DO-4,	Rectifier Diode, 1 Phase, 12A, Silicon, DO-4,	SNAP-IN / SNAP MOUNT	Rectifier Diode, 1 Phase, 12A, Silicon, DO-4,	Rectifier Diode, 1 Phase, 12A, Silicon, DO-4,	Rectifier Diode, 1 Phase, 12A, Silicon, DO-4,	Rectifier Diode, 1 Phase, 12A, Silicon, DO-4,
package instruction	O-MUPM-D1	O-MUPM-D1	O-MUPM-D1	-	O-MUPM-D1	O-MUPM-D1	O-MUPM-D1	O-MUPM-D1
Reach Compliance Code	unknown	compli	compli	-	compli	compliant	unknown	unknown
application	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	-	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Diode component materials	SILICON	SILICON	SILICON	-	SILICON	SILICON	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	-	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE
JEDEC-95 code	DO-4	DO-4	DO-4	-	DO-4	DO-4	DO-4	DO-4
JESD-30 code	O-MUPM-D1	O-MUPM-D1	O-MUPM-D1	-	O-MUPM-D1	O-MUPM-D1	O-MUPM-D1	O-MUPM-D1
JESD-609 code	e0	e0	e0	-	e0	-	e0	e0
Maximum non-repetitive peak forward current	250 A	200 A	200 A	-	200 A	250 A	250 A	250 A
Phase	1	1	1	-	1	1	1	1
Number of terminals	1	1	1	-	1	1	1	1
Maximum output current	12 A	12 A	12 A	-	12 A	12 A	12 A	12 A
Package body material	METAL	METAL	METAL	-	METAL	METAL	METAL	METAL
Package shape	ROUND	ROUND	ROUND	-	ROUND	ROUND	ROUND	ROUND
Package form	POST/STUD MOUNT	POST/STUD MOUNT	POST/STUD MOUNT	-	POST/STUD MOUNT	POST/STUD MOUNT	POST/STUD MOUNT	POST/STUD MOUNT
Certification status	Not Qualified	Not Qualified	Not Qualified	-	Not Qualified	-	Not Qualified	Not Qualified
Maximum reverse recovery time	3 µs	3 µs	3 µs	-	3 µs	3 µs	3 µs	3 µs
surface mount	NO	NO	NO	-	NO	NO	NO	NO
Terminal surface	TIN LEAD	TIN LEAD	TIN LEAD	-	TIN LEAD	-	TIN LEAD	TIN LEAD
Terminal form	SOLDER LUG	SOLDER LUG	SOLDER LUG	-	SOLDER LUG	SOLDER LUG	SOLDER LUG	SOLDER LUG
Terminal location	UPPER	UPPER	UPPER	-	UPPER	UPPER	UPPER	UPPER
