DIOTEC ELECTRONICS CORP
18020 Hobart Blvd., Unit B
Gardena, CA 90248 U.S.A
Tel.: (310) 767-1052 Fax: (310) 767-7958
Data Sheet No. TVSP6-1A
FEATURES
MECHANICAL SPECIFICATION
R
PROPRIETARY
SOFT GLASS
JUNCTION
PASSIVATION FOR SUPERIOR RELIABILITY AND
PERFORMANCE
VOID FREE VACUUM DIE SOLDERING FOR MAXIMUM
MECHANICAL STRENGTH AND HEAT DISSIPATION
600 Watt peak power capability on 10/1000
µ
S waveform
ACTUAL SIZE OF
DO-41 PACKAGE

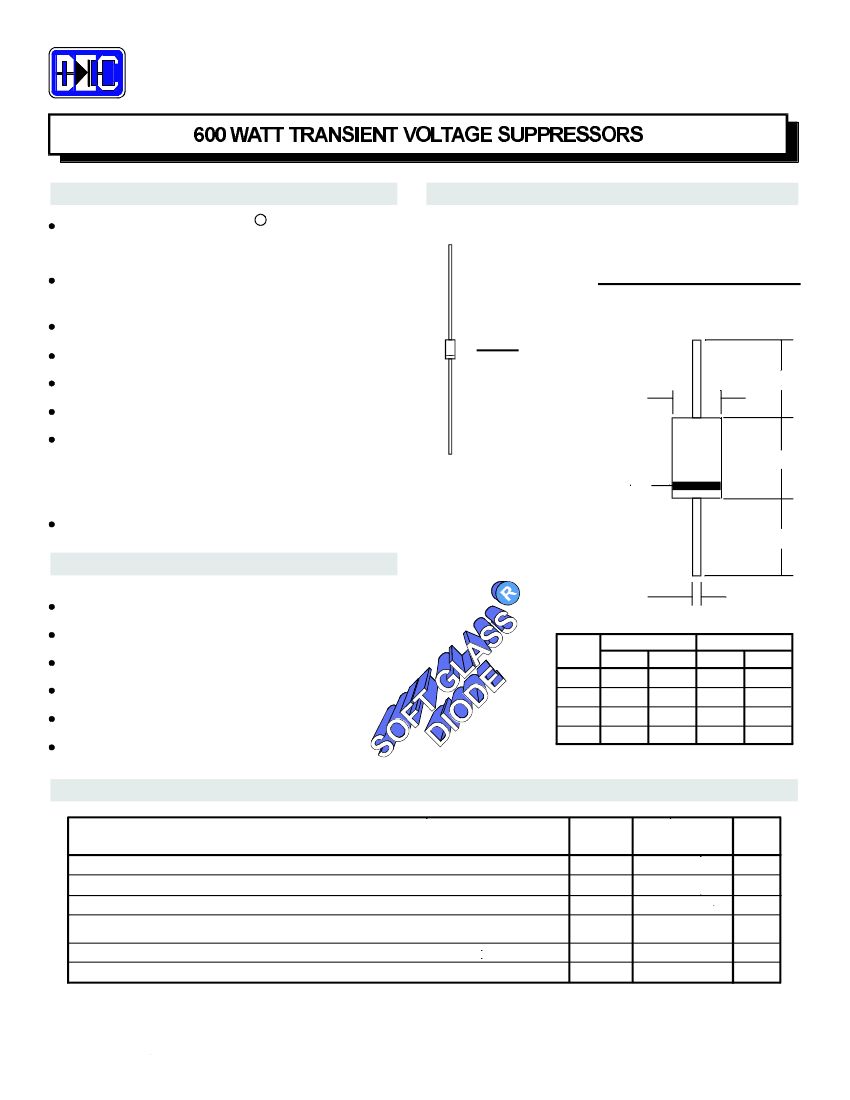

SERIES P6KE6.8 - P6KE400CA
DO - 41
Excellent clamping capability
Repetition rate (Duty Cycle): 0.01%
BD (Dia)
LL
Low incremental surge resistance
Fast response time (0 to BV Volts)
Unidirectional
- typically less than 1pS
Bidirectional
- typically less then 5nS
Typical Reverse Leakage (I
D
) less than 1
µ
A above 10 Volts
LL
BL
Color Band
Denotes
Cathode
MECHANICAL DATA
Case: JEDEC DO-41 molded epoxy (UL Flammability Rating 94V-O)
Terminals: Plated Axial Leads
Sym
Soldering: Per MIL-STD 202 Method 208 guaranteed
Mounting Position: Any
Polarity: Color band denotes cathode
Weight: 0.012 Ounces (0.34 Grams)
BL
BD
LL
LD
LD (Dia)
Minimum
In
mm
0.160
0.103
1.00
0.028
4.1
2.6
25.4
0.71
Maximum
In
mm
0.205
0.107
0.034
5.2
2.7
0.86
MAXIMUM RATINGS & ELECTRICAL CHARACTERISTICS
Ratings at 25 °C ambient temperature unless otherwise specified. Resistive or inductive load.
PARAMETER (TEST CONDITIONS)
Peak Pulse Power Dissipation on 10/1000
µ
S Waveform (Note 1, Fig 1)
Peak Pulse Current on 10/1000mS Waveform (Note 1, Fig 1)
Steady State Power Dissipation at T
L
= 75 C With Lead Length =0.375" (9.5mm) (Note 2)
Peak Forward Surge Current (8.3mS Single Half Sine Wave Superimposed
on Rated Load - JEDEC Method) Unidirectional Only. (Note 2)
Maximum Instantaneous Forward Voltage at 50A; Unidirectional Only (Note 2)
Junction Operating & Storage Temperature Range
O
SYMBOL
P
PPM
I
PPM
P
M(AV)
I
FSM
V
F
T
J
,T
STG
RATINGS
Minimum 600
See Table 1
5.0
100
3.5
-65 to +175
UNITS
WATTS
AMPS
WATTS
AMPS
VOLTS
°C/W
Notes:
o
1) Non-Repetitive Current Pulse Per Fig. 3 and Derated Above T
A
=25 C Per Fig 2.
2
2
2) Mounted on Copper Leaf Area of 1.58 in (40mm ) Per Fig 5.
3) 8.3mS Single Half Sine Wave or Equivalent Square Wave. Duty Cycle =4 Pulses Per Minute Maximum.
K1
DIOTEC ELECTRONICS CORP.
18020 Hobart Blvd., Unit B
Gardena, CA 90248 U.S.A
Tel.: (310) 767-1052 Fax: (310) 767-7958
Data Sheet No. TVSP6-2A
600 WATT TRANSIENT VOLTAGE SUPPRESSORS
RATINGS AND CHARACTERISTIC CURVES FOR SERIES P6KE6.8 - P6KE400CA
100
Non-Reptitive Pulse
Waveform Shown in
Figure 3
T
A
=25
O
C
10
1.0
0.1
0.1
µ
1.0µS
10µS
100µS
1.0mS
10mS
Pulse Width, td (Sec)

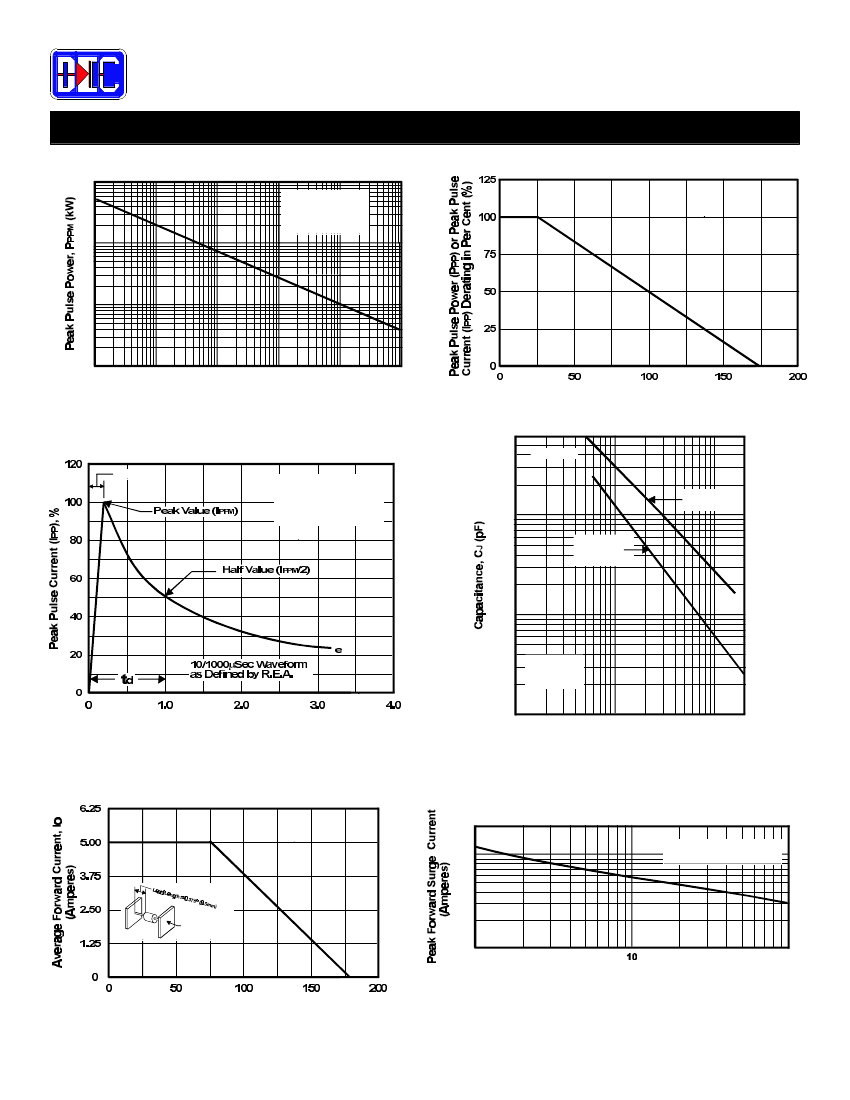

FIGURE 1. PEAK PULSE POWER RATING CURVE
6000
Ambient Temperature, T
A
(
o
C)
FIGURE 2. PULSE DERATING CURVE
T
J
= 25
O
C
t=10
µ
S
T
A
=25
O
C
Pulse Width (td) is defined
as the point where the
peak current decays to
50% of I
PPM
Measured at
Zero Bias
1000
Measured at
Standoff
Voltage (V
WM
)
100
-kt
T
J
=25
O
C
f=1.0 Mhz
V
SIG
=50mV
P-P
Time, t (mS)
FIGURE 3. PULSE WAVEFORM
10
1.0
10
100
200
Breakdown Voltage (V
BR
), Volts
FIGURE 4. TYPICAL JUNCTION CAPACITANCE-UNIDIRECTIONAL
200
100
8.3mS Single Half Sine Wave
JEDEC METHOD
40mmx40mmx1mm
CopperHeatSinks
(1.58"x1.58"x0.40")
10
1
100
Lead Temperature, T
L
(
o
C)
FIGURE 5. STEADY STATE POWER DERATING CURVE
Number of Cycles at 60Hz
FIGURE 6. MAXIMUM NON-REPETITIVE PEAK FORWARD
SURGE CURRENT - UNIDIRECTIONAL
K2
4.97bgppd300
DIOTEC ELECTRONICS CORP.
18020 Hobart Blvd., Unit B
Gardena, CA 90248 U.S.A
Tel.: (310) 767-1052 Fax: (310) 767-7958
Data Sheet No. TVSP6-3A
600 WATT TRANSIENT VOLTAGE SUPPRESSORS
RATINGS AND CHARACTERISTIC CURVES FOR SERIES P6KE6.8 - P6KE400CA
FOR BIDIRECTIONAL APPLICATIONS:
USE "C" OR "CA" FOR TYPES P6KE6.8-PKE440.
FOR EXAMPLE: P6KE6.8C OR P6KE400CA.
ELECTRICAL CHARACTERISTICS APPLY IN BOTH DIRECTIONS.
MAX.
TEMPERATURE
COEFFICIENT
OF V
(BR)
(%
O
C)
BREAKDOWN VOLTAGE (V
BR
)
(NOTE 1)
PART
NO.
MIN
VOLTS
MAX
@ I
T
(mA)
V
WM
(VOLTS)
MAX. I
D
@ V
WM
(
µ
A)
(Note 3)
MAX. I
PPM
(AMPS)
(Note 2)
V
C
@ I
PPM
(VOLTS)
*P6KE6.8
*P6KE6.8A
*P6KE7.5
*P6KE7.5A
*P6KE8.2
*P6KE8.2A
*P6KE9.1
*P6KE9.1A
*P6KE10
*P6KE10A
*P6KE11
*P6KE11A
*P6KE12
*P6KE12A
*P6KE13
*P6KE13A
*P6KE15
*P6KE15A
*P6KE16
*P6KE16A
*P6KE18
*P6KE18A
*P6KE20
*P6KE20A
*P6KE22
*P6KE22A
*P6KE24
*P6KE24A
*P6KE27
*P6KE27A
*P6KE30
*P6KE30A
*P6KE33
*P6KE33A
*P6KE36
*P6KE36A
*P6KE39
*P6KE39A
*P6KE43
*P6KE43A
*P6KE47
*P6KE47A
6.12
6.45
6.75
7.13
7.38
7.79
8.19
8.65
9.00
9.50
9.90
10.5
10.8
11.4
11.7
12.4
13.5
14.3
14.4
15.2
16.2
17.1
18.0
19.0
19.8
20.9
21.6
22.8
24.3
25.7
27.0
28.5
29.7
31.4
32.4
34.2
35.1
37.1
38.7
40.9
42.3
44.7
7.48
7.14
8.25
7.88
9.02
8.61
10.0
9.55
11.0
10.5
12.1
11.6
9.40
13.2
12.6
14.3
13.7
16.5
15.8
17.6
16.8
19.8
18.9
22.0
21.0
24.2
23.1
26.4
25.2
29.7
28.4
33.0
31.5
36.3
34.7
39.6
37.8
42.9
41.0
47.3
45.2
51.7
49.4
10
10
10
10
10
10
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
5.50
5.80
6.05
6.40
6.63
7.02
7.37
7.78
8.10
8.55
8.92
9.40
9.72
10.2
10.5
11.1
12.1
12.8
12.9
13.6
14.5
15.3
16.2
17.1
17.8
18.8
19.4
20.5
21.8
23.1
24.3
25.6
26.8
28.2
29.1
30.8
31.6
33.3
34.8
36.8
38.1
40.2
1000
1000
500
500
200
200
50
50
10
10
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
56
57
51
53
48
50
44
45
40
41
37
38
35
36
32
33
27
28
26
27
23
24
21
22
19
20
17
18
15
16
14
14.4
12.6
13.2
11.6
12.0
12
10.6
11.2
9.6
10.1
8.9
9.3
10.8
10.5
11.7
11.3
12.5
12.1
13.8
13.4
15.0
14.5
16.2
15.6
17.3
16.7
19.0
18.2
22.0
21.2
23.5
22.5
26.5
25.2
29.1
27.7
31.9
30.6
34.7
33.2
39.1
37.5
43.5
41.4
47.7
45.7
52.0
49.9
56.4
53.9
61.9
59.3
67.8
64.8
0.057
0.057
0.061
0.061
0.065
0.065
0.068
0.068
0.073
0.073
0.075
0.075
0.078
0.078
0.061
0.081
0.084
0.084
0.086
0.086
0.088
0.088
0.090
0.090
0.092
0.092
0.094
0.094
0.096
0.096
0.097
0.097
0.098
0.098
0.099
0.099
0.100
0.100
0.101
0.101
0.101
0.101
Table Symbols:
1. V
(BR)
measured after I
T
applied for 300
µ
S, I
T
=square wave pulse or equivalent
2. Surge current waveform per Figure 3 and derate per Figure 2.
3. For Bidirectional types with V
R
of 10 Volts and less, the I
P
limit is doubled
4. All Terms and Symbols are consistant with ANSI/IEEE C62.35
I
D
- Reverse Leakage Current
I
PPM
- Maximum Peak Pulse Current
I
T
- Test Current (To Determine V
BR
)
mA - Milliamperes
Max. - Maximum
Min - Minimum
V
(BR)
- Breakdown Voltage
V
C
- Clamping Voltage
V
WM
- Reverse Standoff Voltage
% - Per Cent
o
C - Degrees Celsius
K3
