70563-0121 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> 70563-0121

Preview

70563-0121: Description17 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER; CategoryThe connector The connector; File Size221KB，3 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric Compare View All

70563-0121 Overview

17 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER

70563-0121 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Molex
package instruction	ROHS COMPLIANT
Reach Compliance Code	unknown
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD (30) OVER NICKEL (50)
Contact completed and terminated	Tin (Sn) - with Nickel (Ni) barrier
Contact point gender	MALE
Contact material	NOT SPECIFIED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e3
MIL compliance	NO
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	1
Options	GENERAL PURPOSE
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	17
UL Flammability Code	94V-0

Preview

Download Datasheet

View All

FEATURES AND SPECIFICATIONS

Features and Beneﬁts

s

Sizes 4 to 25 circuits

s

Larger pocket accepts interim clip with end-to-end stacked

connectors

s

Locking crown secures positive latch to header

s

Polarization slots guide front ribs of mating connector to

prevent pin damage

s

Surface Mount Compatible

Reference Information

Product Speciﬁcation: PS-70541

Packaging: Tube

UL File No.: E29179

CSA File No.: LR19980

Mates With: 70004

Designed In: Inches

Electrical

Voltage: 250V

Current: 3.0A

Contact Resistance: 15m

Ω

max.

Dielectric Withstanding Voltage: 1500V

Insulation Resistance: 1000 M

Ω

min.

Mechanical

Durability: Tin—25 cycles; Gold—50 cycles

Physical

Housing: Black glass-ﬁlled PCT, UL 94V-0

Contact: Phosphor Bronze, .025" square

Plating: See Table

Operating Temperature: -40 to +105˚C

2.54mm (.100") Pitch

SL

™

Wire-to-Board

Shrouded Header

70563

Single Row, .180" Pocket

Vertical

C

2.54mm (.100") Pitch

C-45

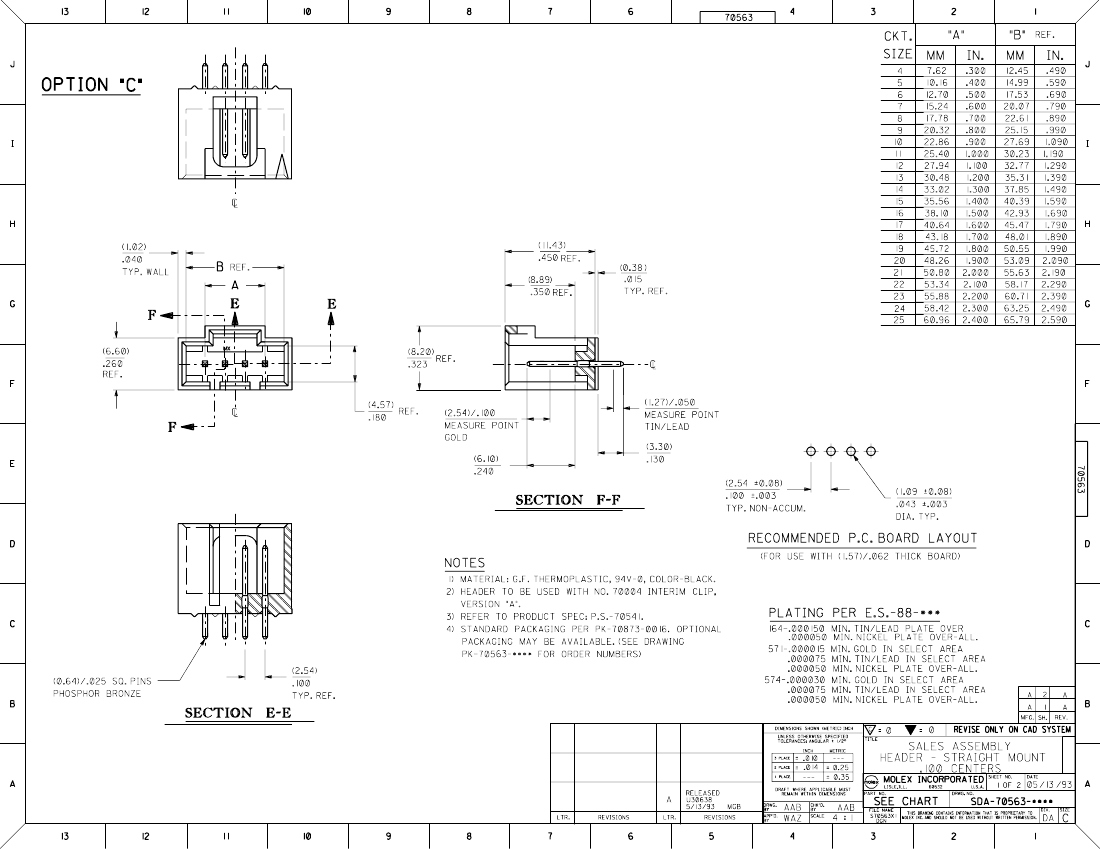

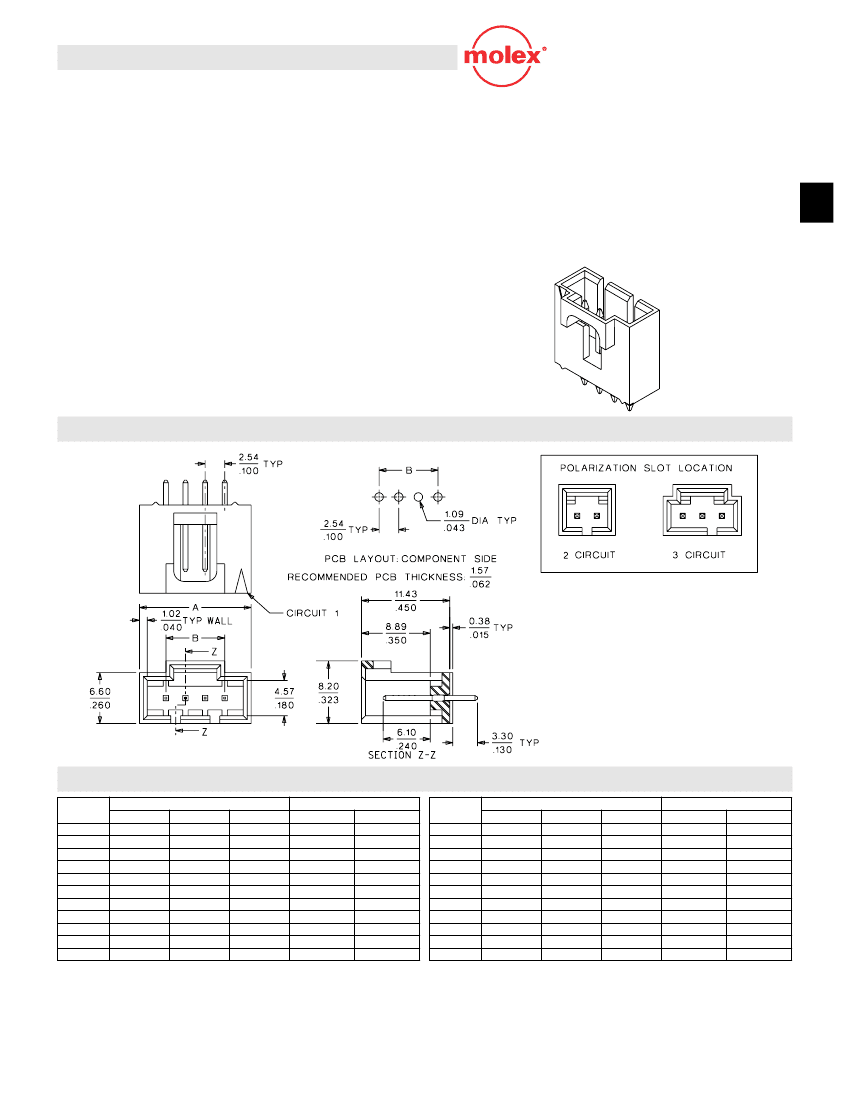

CATALOG DRAWING (FOR REFERENCE ONLY)

Not For Use With C-Grid III

™

Components

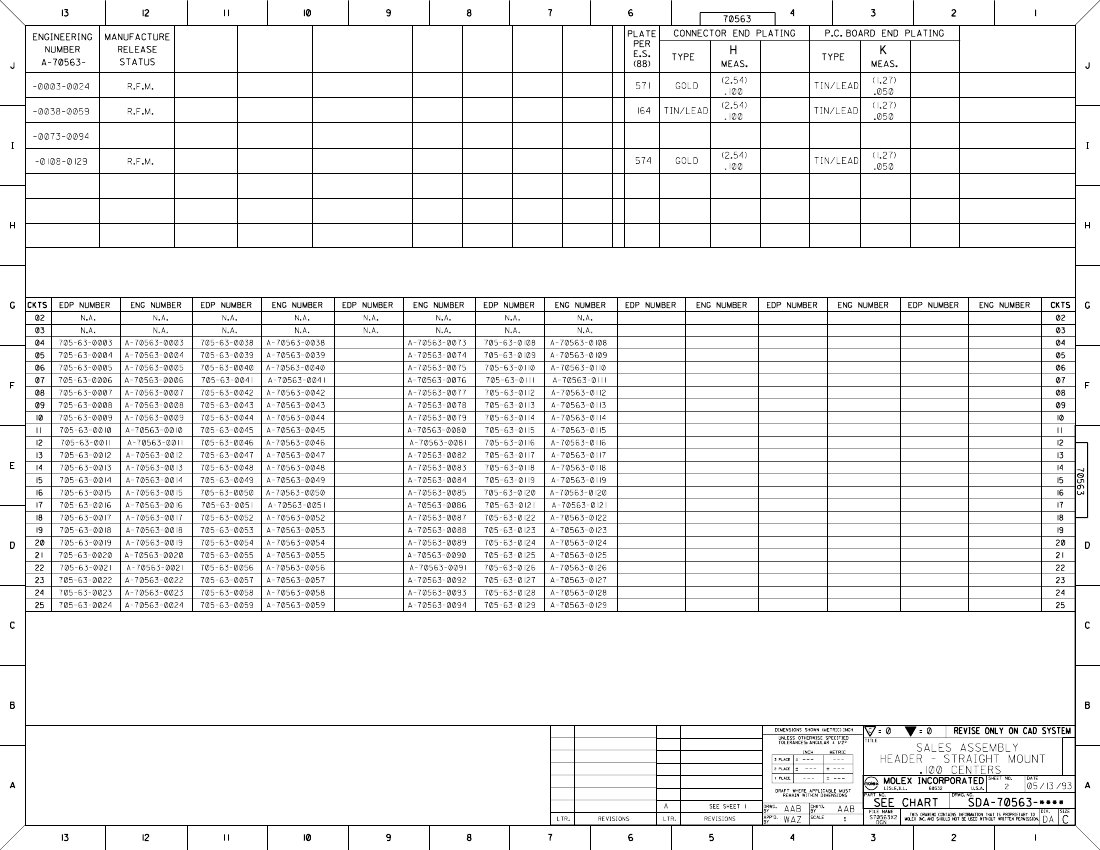

ORDERING INFORMATION AND DIMENSIONS

Circuits

4

5

6

7

8

9

10

11

12

13

14

Order No.

15

µ

" Min. Gold 30

µ

" Min. Gold 150

µ

" Tin/Lead

• 70563-0003

70563-0108

70563-0038

• 70563-0004

70563-0109

70563-0039

• 70563-0005

70563-0110

70563-0040

• 70563-0006

70563-0111

70563-0041

• 70563-0007

70563-0112

70563-0042

• 70563-0008

70563-0113

70563-0043

• 70563-0009

70563-0114

70563-0044

• 70563-0010

70563-0115

70563-0045

• 70563-0011

70563-0116

70563-0046

• 70563-0012

70563-0117

70563-0047

• 70563-0013

70563-0118

70563-0048

Dimension

14.49

17.03

19.59

22.11

24.65

27.19

29.73

32.27

34.81

37.35

39.89

A

(.570)

(.670)

(.770)

(.870)

(.970)

(1.070)

(1.170)

(1.270)

(1.370)

(1.470)

(1.570)

7.62

10.16

12.70

15.24

17.78

20.32

22.86

25.40

27.94

30.48

33.02

B

(.300)

(.400)

(.500)

(.600)

(.700)

(.800)

(.900)

(1.000)

(1.100)

(1.200)

(1.300)

Circuits

15

16

17

18

19

20

21

22

23

24

25

Order No.

15

µ

" Min. Gold 30

µ

" Min. Gold 150

µ

" Tin/Lead

• 70563-0014

70563-0119

70563-0049

• 70563-0015

70563-0120

70563-0050

• 70563-0016

70563-0121

70563-0051

• 70563-0017

70563-0122

70563-0052

• 70563-0018

70563-0123

70563-0053

• 70563-0019

70563-0124

70563-0054

• 70563-0020

70563-0125

70563-0055

• 70563-0021

70563-0126

70563-0056

• 70563-0022

70563-0127

70563-0057

• 70563-0023

70563-0128

70563-0058

• 70563-0024

70563-0129

70563-0059

Dimension

42.43

44.97

47.51

50.05

52.59

55.13

57.67

60.21

62.75

65.29

67.83

A

(1.670)

(1.770)

(1.870)

(1.970)

(2.070)

(2.170)

(2.270)

(2.370)

(2.470)

(2.570)

(2.670)

35.56

38.10

40.64

43.18

45.72

48.26

50.80

53.34

55.88

58.42

60.96

B

(1.400)

(1.500)

(1.600)

(1.700)

(1.800)

(1.900)

(2.000)

(2.100)

(2.200)

(2.300)

(2.400)

• US Standard Product, available through Molex franchised distributors

MX01

70563-0121 Related Products

	70563-0121	70563-0055	70563-0056	70563-0057	70563-0119	70563-0127
Description	17 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER	21 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER	22 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER	23 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER	15 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER	23 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER
Is it lead-free?	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to
Maker	Molex	Molex	Molex	Molex	Molex	Molex
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	GOLD (30) OVER NICKEL (50)	TIN (150) OVER NICKEL	TIN (150) OVER NICKEL (50)	TIN (150) OVER NICKEL	GOLD (30) OVER NICKEL (50)	GOLD (30) OVER NICKEL
Contact completed and terminated	Tin (Sn) - with Nickel (Ni) barrier	TIN (150) OVER NICKEL	Tin (Sn) - with Nickel (Ni) barrier	TIN (150) OVER NICKEL	Tin (Sn) - with Nickel (Ni) barrier	TIN (75) OVER NICKEL
Contact point gender	MALE	MALE	MALE	MALE	MALE	MALE
DIN compliance	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO
JESD-609 code	e3	e3	e3	e3	e3	e3
MIL compliance	NO	NO	NO	NO	NO	NO
Mixed contacts	NO	NO	NO	NO	NO	NO
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of rows loaded	1	1	1	1	1	1
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	17	21	22	23	15	23
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0
Contact material	NOT SPECIFIED	PHOSPHOR BRONZE	-	PHOSPHOR BRONZE	NOT SPECIFIED	PHOSPHOR BRONZE
