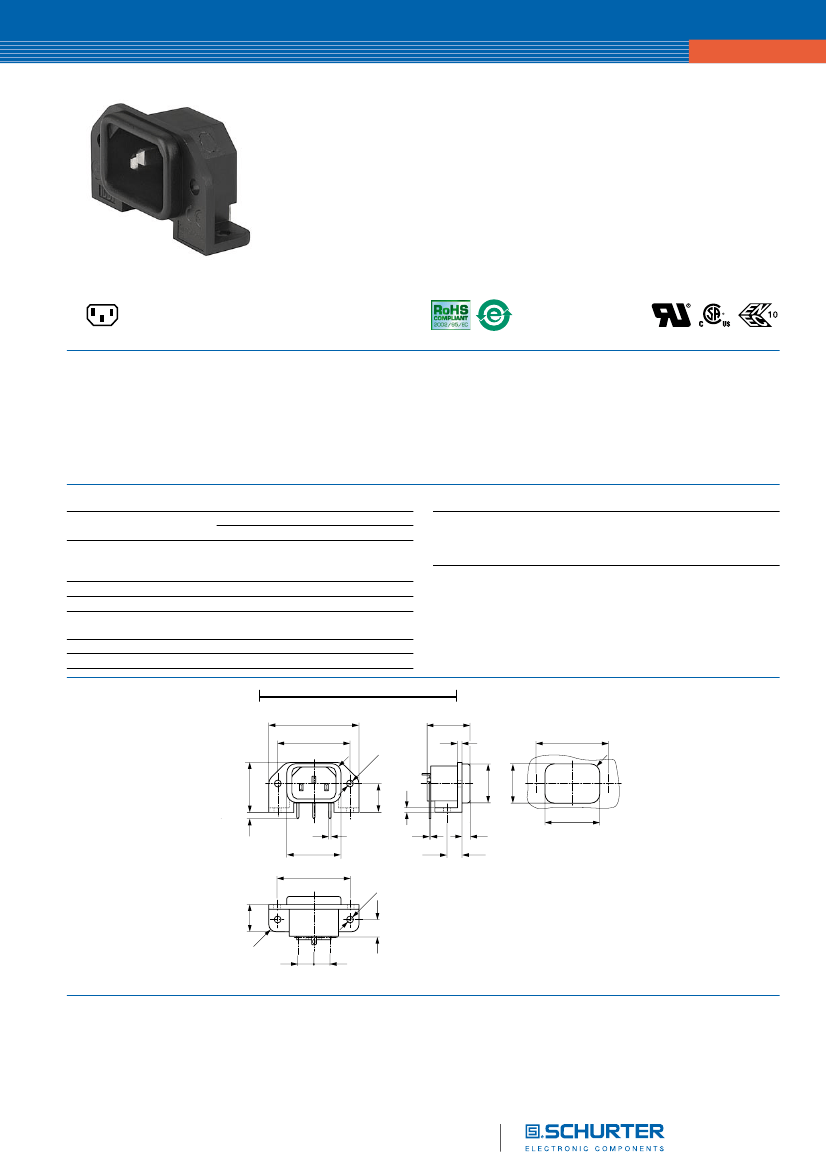

IEC Appliance Inlet C14, Screw-on Mounting, Rear Side, PCB Terminal
00
C14
70° C
Description
- Panel Mount:
Screw-on from rear side
- Appliance Inlet, Pin temperature 70 °C, Protection class I
- For PCB mounting
References
Weblinks
General Product Information
Approvals, RoHS, CHINA-RoHS, Mating Connectors, Distributor-Stock-
Check, Accessories
Approvals
- VDE License Number: 40011871
- UL License Number: E96454
- CSA License Number: 27324
Technical Data
Ratings IEC
Ratings UL/CSA
Dielectric Strength
10 A / 250 VAC; 50 Hz
15 A / 250 VAC; 60 Hz
> 3 kVAC between L-N
> 1.5 kVAC between L/N-PE
(1 min/50 Hz)
-25 °C to 70 °C
from front side IP 20 acc. to IEC 60529
Suitable for appliances with protection
class 1 acc. to IEC 61140
Solder terminal straight
UL 94V-0
Appliance Inlet
C14 acc. to IEC/EN 60320-1
UL 498, CSA C22.2 no. 42 (for cold
conditions) pin-temperature 70 °C, 10 A,
Protection Class 1
Allowable Operation Temp.
Degree of Protection
Protection Class
Terminal
Material: Housing
Dimensions
50
40
5
8
R
3.
50 mm
23.8
2.5
40
R
5
ø
16
2.5
21.7
- 0
27.6
21.5
+0.2
30.2
- 0
3.5
1.3
30
40.64
3.
8
+0.2
0.8
8.25
4.5
15
ø
R
4
8.9 8.9
Lenght of the terminal please find at the order code configuration table
9.65

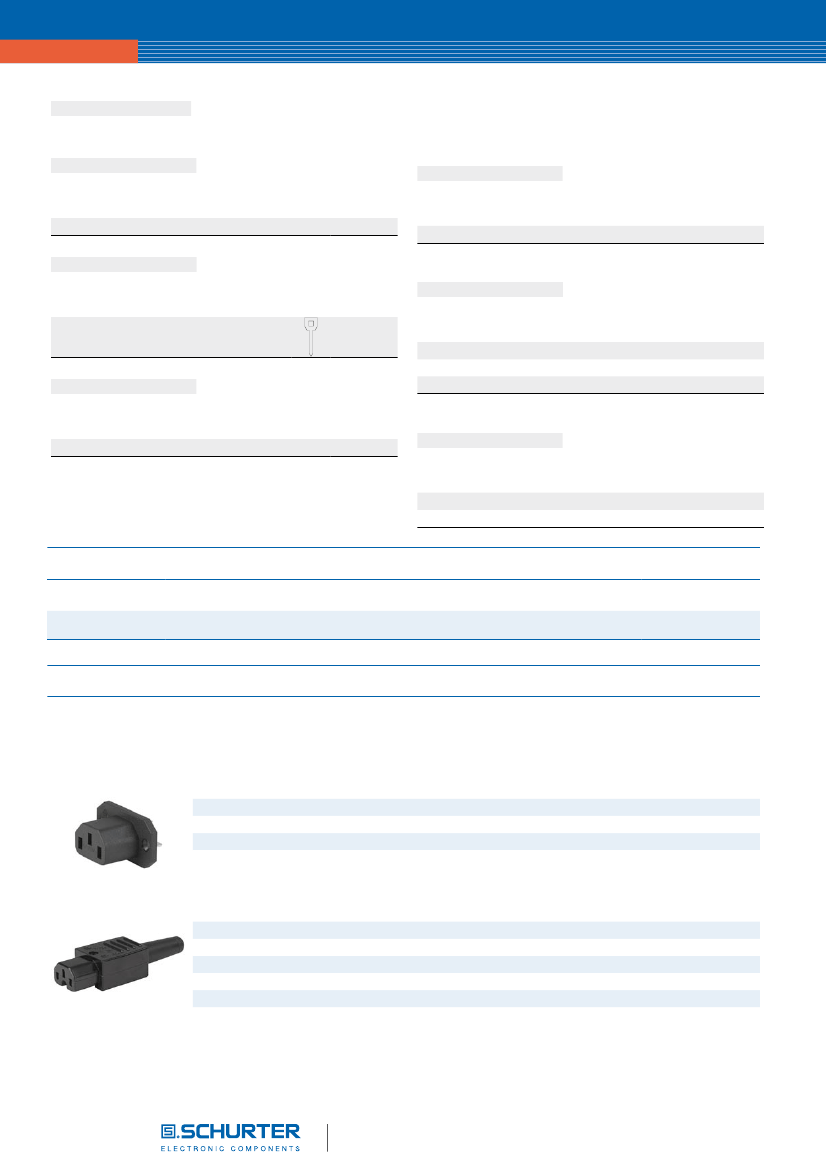

Connectors
00
www.schurter.com/pg07
Config. Code
Connectors (Inlets/Outlets)
Product Configurator
1001
|
-
|
H
|
-
|
A
|
B
|
C
|
0-
|
D
|
-
|
E
|
The characters are placeholders for the correspondingly keys of selections from the key tables.
1001
|
-
|
H
|
-
|
A
|
B
|
C
|
0-
|
D
|
-
|
E
|
= Type
Type
protection class 1
1001
|
-
|
H
|
-
|
A
|
B
|
C
|
0-
|
D
|
-
|
E
|
= Terminals
Configuration
key
X
Terminal Ground
PCB-terminal (long)
Symbols similar as in table A
Configuration
key
6
1001
|
-
|
H
|
-
|
A
|
B
|
C
|
0-
|
D
|
-
|
E
|
= Terminals
Terminal L
Configuration
key
4
1001
|
-
|
H
|
-
|
A
|
B
|
C
|
0-
|
D
|
-
|
E
|
= Color
Color
Configuration
key
A
B
D
PCB-terminal (standard)
jet black; RAL9005
silver grey; RAL7001
1001
|
-
|
H
|
-
|
A
|
B
|
C
|
0-
|
D
|
-
|
E
|
= Terminals
Terminal N
PCB-terminal (standard)
Symbols similar as in table A
pure white; RAL9010
standard color: black
Configuration
key
4
1001
|
-
|
H
|
-
|
A
|
B
|
C
|
0-
|
D
|
-
|
E
|
= Style
Style
flange with through holes
flange with through holes (special type)
Configuration
key
2
7
Variants
Config. Code
1001-X-4460-A-2
Description
1001, IEC Appliance Inlet C14, 70°C, version: 1, L: PCB-terminal (standard), N: PCB-terminal (standard), ground: PCB-terminal
(long), color: jet black; RAL9005, design: flange with through holes
Order Number
6162.0001
The listet variants should be available from stock Other versions on request www.schurter.com/contact
Packaging unit
50 Pcs
Mating Outlets/Connectors
Category / Description
Appliance Outlet Overview complete
IEC Appliance Outlet F, Screw-on Mounting, Front Side, Solder or Quick-connect Terminal
IEC Appliance Outlet F, Snap-in Mounting, Front Side, Solder or Quick-connect Terminal
IEC Appliance Outlet F or H, Screw-on Mounting, Front Side, Solder, PCB or Quick-connect Terminal
IEC Appliance Outlet F or H, Screw-on Mounting, Front Side, Solder or Quick-connect Terminal
Appliance Outlet further types to 1001
Connector Overview complete
IEC Connector C15, Rewireable, Straight
IEC Connector C15A, Rewireable, Straight
IEC Connector C15A, Rewireable, Straight
IEC Connector C15A, Rewireable, Angled
IEC Connector C13, Rewireable, Angled
Connector further types to 1001
0101
0102
0102-G
0112
4012
...
4787
4788
5091
5092
Connectors
Connectors (Inlets/Outlets)
www.schurter.com/pg07
00
Category / Description
Power Cord Overview complete
Power Cord with IEC Connector C13, Angled
Power Cord with IEC Connector C13, Angled
Power Cord with IEC Connector C13, Angled
Power Cord with IEC Connector C13, Angled
Power Cord with IEC Connector C13
Power Cord further types to 1001
Power Supply or Interconnection Cord Overview complete
Divers Power Supply and Interconnection Cords 10 A
Power Supply or Interconnection Cord further types to 1001
Kabelverbindung/10 A
0311
3011
3012
3013
3020
...
