1061-H-ABC0-D-E Overview

IEC Appliance Inlet C14, Snap-in Mounting, Front Side, Solder or Quick-connect or Screw-on Terminal

Preview

Download Datasheet

View All

Connectors (Inlets/Outlets)

www.schurter.com/pg07

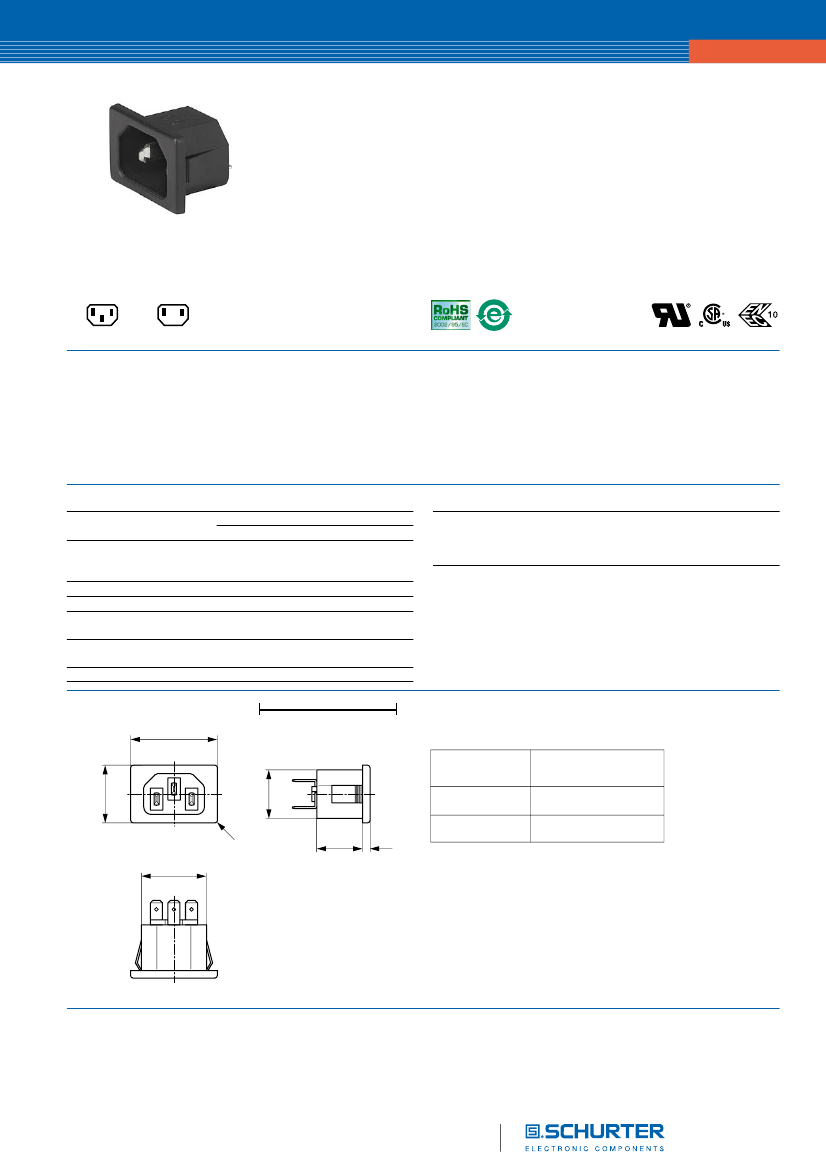

IEC Appliance Inlet C14, Snap-in Mounting, Front Side, Solder or Quick-connect or Screw-on Terminal

C14

70° C

C18

70° C

Description

- Panel Mount:

Snap-in version, Frontside

- Appliance Inlet, Pin temperature 70 °C, protection class I or II

- Alternative: protection class II version

References

Weblinks

General Product Information

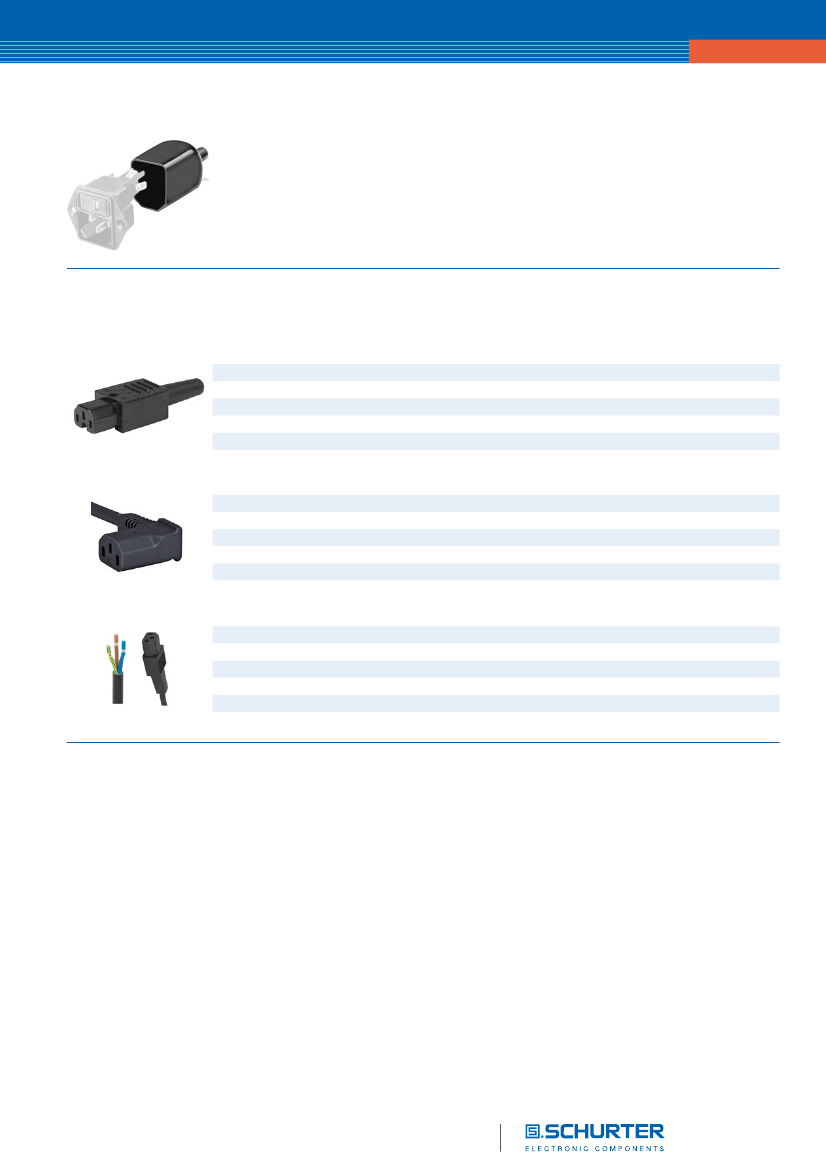

Approvals, RoHS, CHINA-RoHS, Mating Connectors, Distributor-Stock-

Check, Accessories

Approvals

- VDE License Number: 40011871

- UL License Number: E96454

- CSA License Number: 27324

Technical Data

Ratings IEC

Ratings UL/CSA

Dielectric Strength

10 A / 250 VAC; 50 Hz

15 A / 250 VAC; 60 Hz

> 3 kVAC between L-N

> 1.5 kVAC between L/N-PE

(1 min/50 Hz)

-25 °C to 70 °C

from front side IP 20 acc. to IEC 60529

Suitable for appliances with protection

class 1 or 2 acc. to IEC 61140

Snap-in version

1.6 - 2.0 mm

UL 94V-0

Appliance Inlet

C14 acc. to IEC/EN 60320-1

UL 498, CSA C22.2 no. 42 (for cold

conditions) pin-temperature 70 °C, 10 A,

Protection Class 1 or 2

Allowable Operation Temp.

Degree of Protection

Protection Class

Panel Thickness s

Material: Housing

Dimensions

34.6

34.6 mm

Wandstärke

panel thickness

19.3

0.8 -1.5 mm

1.6 - 2.0 mm

Ausbruchmaße

panel cutout

28.8

29.6

+0.2

x 19.4

+0.2

18.2

Lenght of the terminal please find at the order code configuration table
