ZDAAE26SOL2-AB-146-A191 datasheet, PDF

Datasheet> All Categories > The connector> The connector> ZDAAE26SOL2-AB-146-A191

ZDAAE26SOL2-AB-146-A191: DescriptionD Subminiature Connector, 26 Contact(s), Female, Solder Terminal, Receptacle, ROHS COMPLIANT; CategoryThe connector The connector; File Size49KB，1 Pages; ManufacturerITT; Websitehttp://www.ittcannon.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

ZDAAE26SOL2-AB-146-A191 Overview

D Subminiature Connector, 26 Contact(s), Female, Solder Terminal, Receptacle, ROHS COMPLIANT

ZDAAE26SOL2-AB-146-A191 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	ITT
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Body/casing type	RECEPTACLE
Connector type	D SUBMINIATURE CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
insulator material	GLASS FILLED POLYETHYLENE
MIL compliance	NO
Mixed contacts	NO
Installation type	BOARD AND PANEL
Options	GENERAL PURPOSE
Shell material	STEEL
Housing size	2/A
Termination type	SOLDER
Total number of contacts	26
UL Flammability Code	94V-0

Preview

Download Datasheet

View All

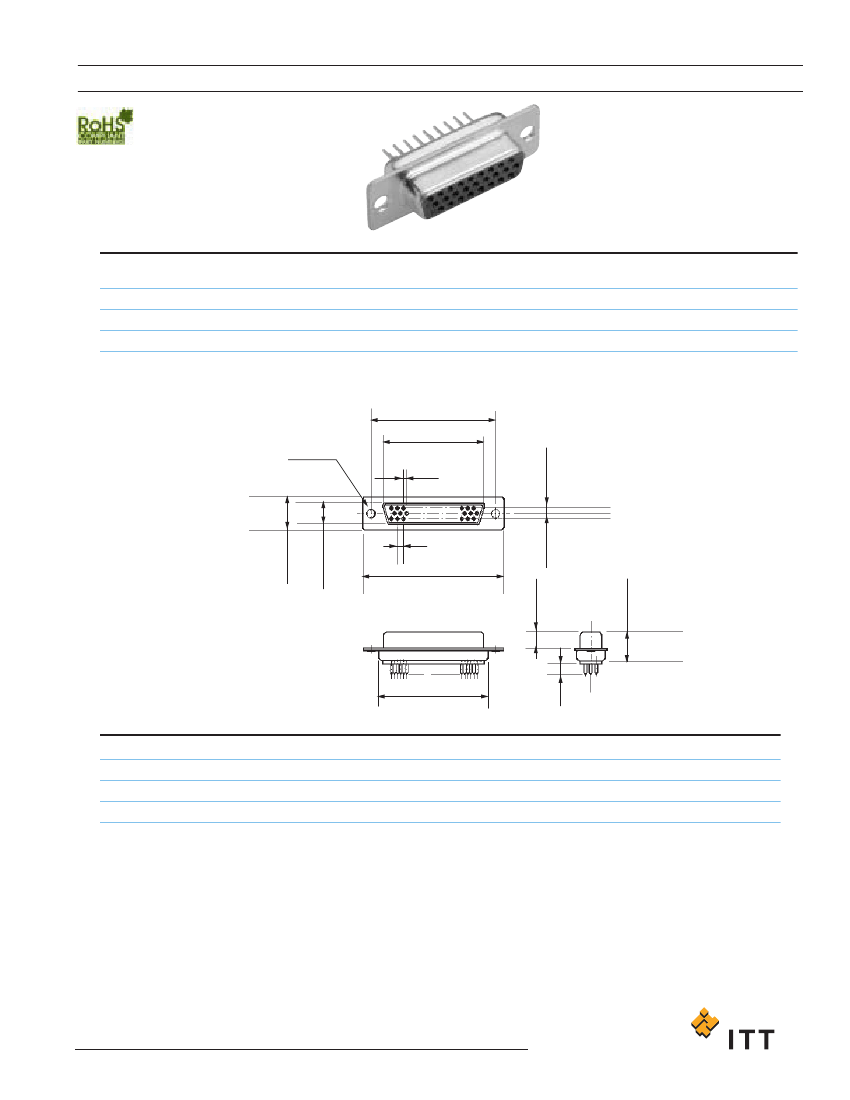

Cannon ZD Connectors

Receptacle 15 – 26 – 44 - 62 contacts

ZD*A OL2 High density, straight PCB

Designation

Shell size /

Arrangement

E / 15

A / 26

B / 44

C / 62

Through

hole

ZDEA15SOL2

ZDAA26SOL2

ZDBA44SOL2

ZDCA62SOL2

Captive nut

4 - 40 2B

ZDEAE15SOL2

ZDAAE26SOL2

ZDBAE44SOL2

ZDCAE62SOL2

Screwlock

4 - 40 2B

ZDEAE15SOL2-AB

ZDAAE26SOL2-AB

ZDBAE44SOL2-AB

ZDCAE62SOL2-AB

Boardlock and

thread 4 - 40 2B

ZDEAE15SOL2-146

ZDAAE26SOL2-146

ZDBAE44SOL2-146

ZDCAE62SOL2-146

Boardlock and

screwlock 4 - 40 2B

ZDEAE15SOL2-AB-146

ZDAAE26SOL2-AB-146

ZDBAE44SOL2-AB-146

ZDCAE62SOL2-AB-146

Note:

Class 2 - Add suffix A191 Example: ZDEA15SOL2-A191

+0,15

Ø3,05 -0,05

1,98± 0,05

6,10 ±0,25

1,98± 0,05

1 2,55 ± 0,38

7,9 0 ± 0,25

Shell

•

A ± 0,13

24,99

33,32

47,04

63,50

G ± 0,25

16,33

24,66

38,38

54,84

C ± 0,38

30,89

39,10

53,09

69,40

D ± 0,25

19,28

27,51

41,30

57,71

4,32

11,00±0,25

E ± 0,05

1,145

F ± 0,05

2,29

Mounting options, page 38

PCB hole pattern, page 35

Panel cutout, page 39

Dimensions shown in mm

Specifications and dimensions subject to change

www.ittcannon.com

ZDAAE26SOL2-AB-146-A191 Related Products

	ZDAAE26SOL2-AB-146-A191	ZDBAE44SOL2-146-A191	ZDBAE44SOL2-A191	ZDBAE44SOL2-AB-A191	ZDEAE15SOL2-AB-146-A191	ZDBAE44SOL2-AB-146-A191	ZDCAE62SOL2-AB-146-A191	ZDEAE15SOL2-146-A191	ZDAAE26SOL2-146-A191
Description	D Subminiature Connector, 26 Contact(s), Female, Solder Terminal, Receptacle, ROHS COMPLIANT	D Subminiature Connector, 44 Contact(s), Female, Solder Terminal, Receptacle, ROHS COMPLIANT	D Subminiature Connector, 44 Contact(s), Female, Solder Terminal, Receptacle, ROHS COMPLIANT	D Subminiature Connector, 44 Contact(s), Female, Solder Terminal, Receptacle, ROHS COMPLIANT	D Subminiature Connector, 15 Contact(s), Female, Solder Terminal, Receptacle, ROHS COMPLIANT	D Subminiature Connector, 44 Contact(s), Female, Solder Terminal, Receptacle, ROHS COMPLIANT	D Subminiature Connector, 62 Contact(s), Female, Solder Terminal, Receptacle, ROHS COMPLIANT	D Subminiature Connector, 15 Contact(s), Female, Solder Terminal, Receptacle, ROHS COMPLIANT	D Subminiature Connector, 26 Contact(s), Female, Solder Terminal, Receptacle, ROHS COMPLIANT
Is it lead-free?	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to
package instruction	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE
Connector type	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR
Contact to complete cooperation	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
Contact material	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
DIN compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO
empty shell	NO	NO	NO	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO
insulator material	GLASS FILLED POLYETHYLENE	GLASS FILLED POLYETHYLENE	GLASS FILLED POLYETHYLENE	GLASS FILLED POLYETHYLENE	GLASS FILLED POLYETHYLENE	GLASS FILLED POLYETHYLENE	GLASS FILLED POLYETHYLENE	GLASS FILLED POLYETHYLENE	GLASS FILLED POLYETHYLENE
MIL compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO
Mixed contacts	NO	NO	NO	NO	NO	NO	NO	NO	NO
Installation type	BOARD AND PANEL	BOARD AND PANEL	BOARD AND PANEL	BOARD AND PANEL	BOARD AND PANEL	BOARD AND PANEL	BOARD AND PANEL	BOARD AND PANEL	BOARD AND PANEL
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Shell material	STEEL	STEEL	STEEL	STEEL	STEEL	STEEL	STEEL	STEEL	STEEL
Housing size	2/A	3/B	3/B	3/B	1/E	3/B	4/C	1/E	2/A
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	26	44	44	44	15	44	62	15	26
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0
