Cord Sets
www.schurter.com/pg07_2

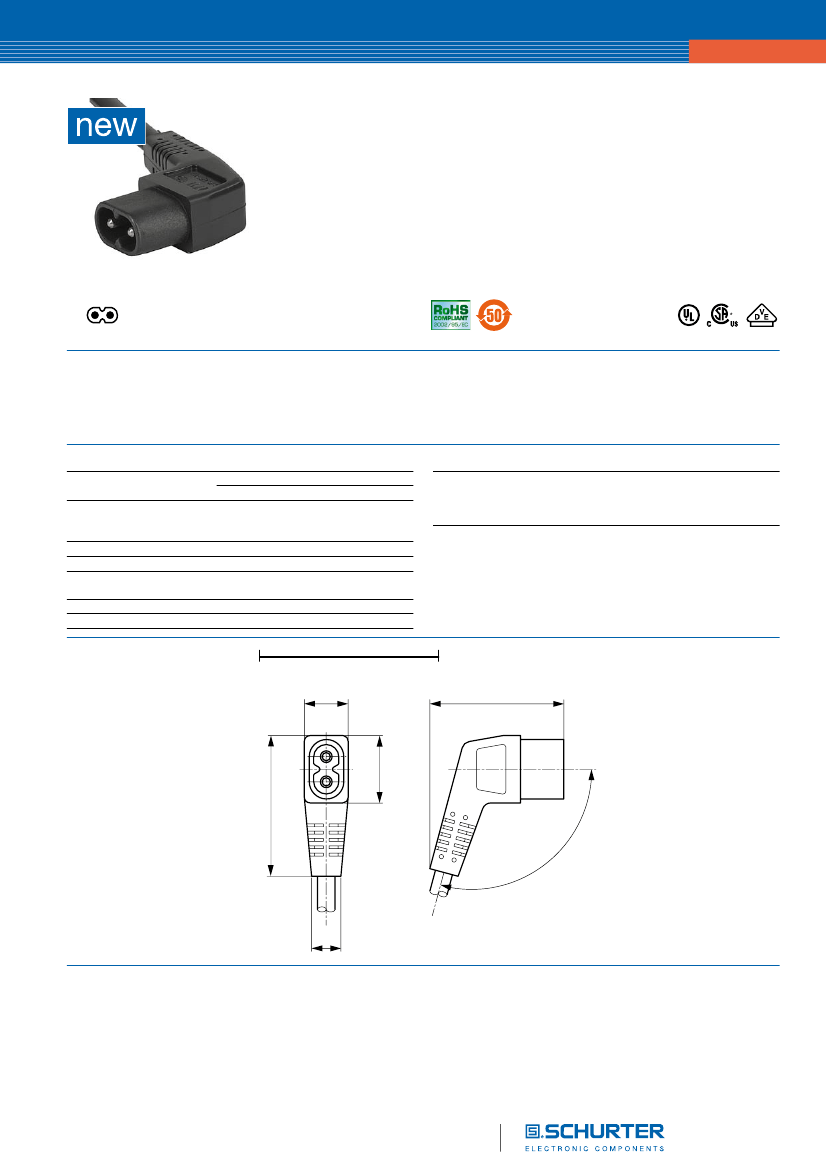

Interconnection Cord with IEC Plug C, Angled 70°C
27
C
70° C
Description
Approvals
Interconnection Cord, Protection class II, Pin temperature 70 °C, Cable
- VDE License Number: 40005801
- UL License Number: E45116
- CSA License Number: 1020530
References
Weblinks
General Product Information
Approvals, RoHS, CHINA-RoHS, Mating Connectors, e-Store,
Distributor-Stock-Check, Accessories
Technical Data
Ratings IEC
Ratings UL/CSA
Dielectric Strength
2.5 A / 250 VAC; 50 Hz
2.5 A / 250 VAC; 60 Hz
> 4 kVDC between L-N
> 2 kVAC between L/N-PE
(1 min/50 Hz)
-25 °C to 70 °C
from front side IP 20 acc. to IEC 60529
Suitable for appliances with protection
class 2 acc. to IEC 61140
moulded
PVC, black or grey
Plug
C acc. to IEC/EN 60320-1
UL 498, CSA C22.2 no. 42 (for cold
conditions) pin-temperature 70 °C,
2.5 A, Protection Class 2
Allowable Operation Temp.
Degree of Protection
Protection Class
Terminal
Material: Housing
Dimensions
15
45.5 mm
45.5
48.1
23
10
5˚
10
Connectors
27
www.schurter.com/pg07_2
Config. Code
2711
|
-
|
R
|
-
|
Type
|
-
|
D
|
-
|
Length
|
The characters are placeholders for the correspondingly keys of selections from the key tables.
Typ steht für die Dose bzw. 2. Seite, Länge ist die Leitungslänge in mm.
Cord Sets
Product Configurator
2711
|
-
|
R
|
-
|
Type
|
-
|
D
|
-
|
Length
|
= cord type
cord type
H03VV-F 2x0,75mm2
H03VVH2-F 2x0,75mm2
H05VV-F 2x0,75mm2
H05VVH2-F 2x0,75mm2
SVT 2x18AWG
Cord definition is detailed in general product information
XXX
Configuration
key
A
B
D
E
M
2711
|
-
|
R
|
-
|
Type
|
-
|
D
|
-
|
Length
|
= Color
Color
jet black; RAL9005
silver grey; RAL7001
standard color: black
Configuration
key
A
B
2711
|
-
|
R
|
-
|
Type
|
-
|
D
|
-
|
Length
|
= Cord length
Cord length
zzzz, 000500, 001000, 001500, 002000, 002500, 003000, 005000
Cord length in mm
2711
|
-
|
R
|
-
|
Type
|
-
|
D
|
-
|
Length
|
= Cord end 2
Cord end 2
zzzz,
2510, 2511, 4810

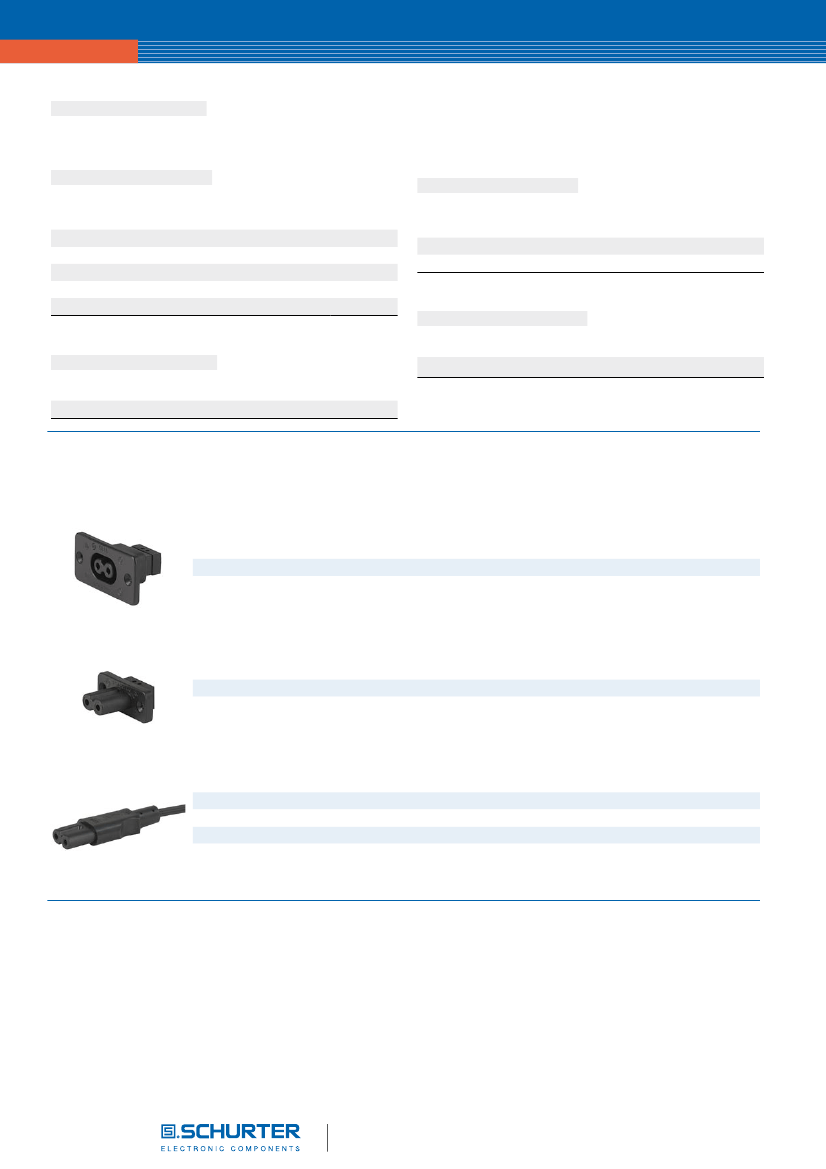

Mating Outlets/Connectors
Category / Description
Appliance Outlet Overview complete
IEC Appliance Outlet D, Screw-on Mounting, Front Side, Solder Terminal
Appliance Outlet further types to 2711
5088
Connector Overview complete
IEC Appliance Outlet D, Screw-on Mounting, Front Side, Solder Terminal
IEC Appliance Outlet D, insert Mounting, Solder Terminal
Connector further types to 2711
5084
5086
Power Cord Overview complete
Power Cord with IEC Connector C7, Straight 70°C
Power Cord with IEC Connector C7, Angled
Power Cord with IEC Plug C7, Angled
Power Cord with IEC Connector C7, Straight 70°C
Power Cord further types to 2711
2510
2511
2514
4810
2
The specifications, descriptions and illustrations indicated in this document are based on
Connectors
current information. All content is subject to modifications and amendments.
