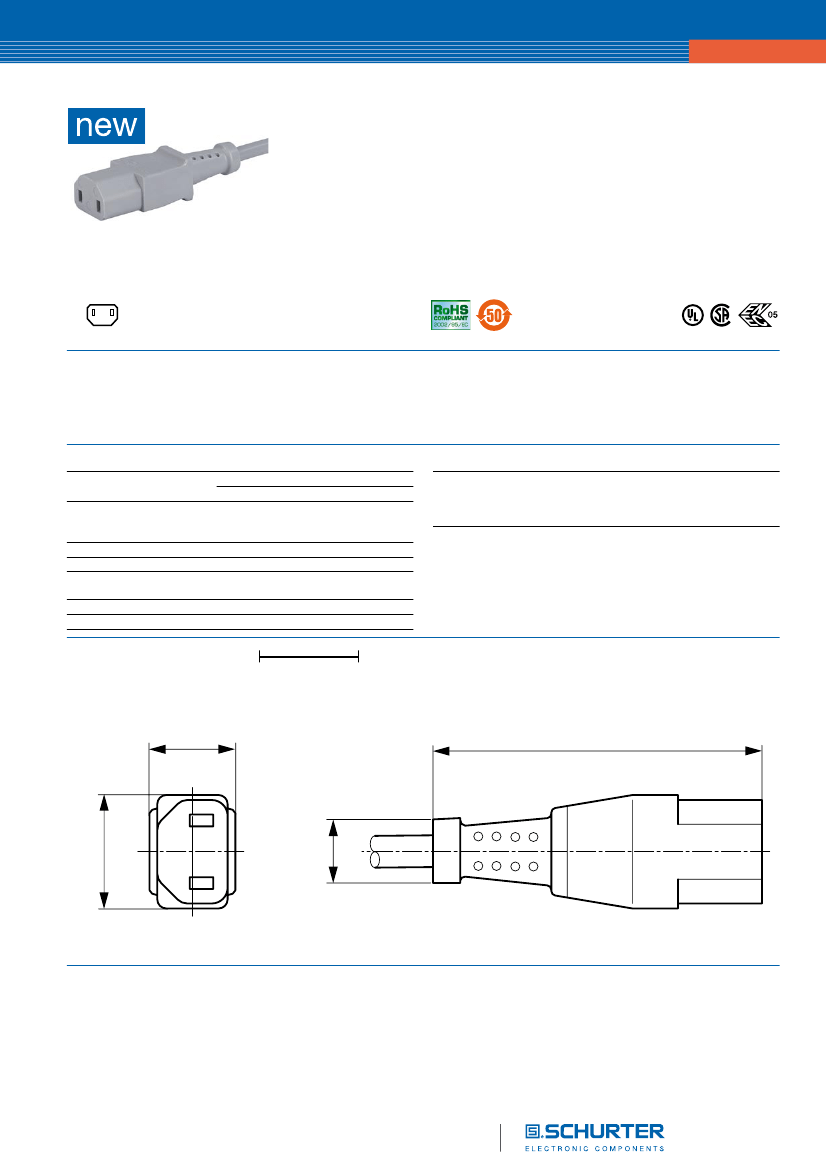

Power Cord with IEC Connector C17, Straight
330
C17
70° C
Description
Approvals
Power Supply Cord / Interconnection Cord, Protection class II, Pin tem-
perature 70 °C, Cable
- UL License Number: E45116
- CSA License Number: 27325
References
Weblinks
General Product Information
Approvals, RoHS, CHINA-RoHS, Mating Connectors, e-Store,
Distributor-Stock-Check, Accessories
Technical Data
Ratings IEC
Ratings UL/CSA
Dielectric Strength
10 A / 250 VAC; 50 Hz
15 A / 250 VAC; 60 Hz
> 3 kVDC between L-N
> 1.5 kVAC between L/N-PE
(1 min/50 Hz)
-25 °C to 70 °C
from front side IP 20 acc. to IEC 60529
Suitable for appliances with protection
class 2 acc. to IEC 61140
moulded
PVC, black or grey
25 mm
Connector
C17 acc. to IEC/EN 60320-2-2
UL 498, CSA C22.2 no. 42 (for cold
conditions) pin-temperature 70 °C, 10 A,
Protection Class 2
Allowable Operation Temp.
Degree of Protection
Protection Class
Terminal
Material: Housing
Dimensions
18.8
72
ø 14
25
Connectors
330
www.schurter.com/pg07_2
Config. Code
Type
|
-
|
R
|
-
|
3130
|
-
|
D
|
-
|
Length
|
The characters are placeholders for the correspondingly keys of selections from the key tables.
Typ is placed for the connector type on the second end, length is the cord length in mm.
Cord Sets
Product Configurator
Type
|
-
|
R
|
-
|
3130
|
-
|
D
|
-
|
Length
|
= Cord end 2
Cord end 2
zzzz,
2225, 2228, 2343, 4121, 419C, 4190, 4191, 607B, 608B, 609B
Type
|
-
|
R
|
-
|
3130
|
-
|
D
|
-
|
Length
|
= Color
Color
jet black; RAL9005
silver grey; RAL7001
standard color: black
Configuration
key
A
D
F
M
XXX
Configuration
key
A
B
Type
|
-
|
R
|
-
|
3130
|
-
|
D
|
-
|
Length
|
= cord type
cord type
H03VV-F 2x0,75mm2
H05VV-F 2x0,75mm2
H05VV-F 2x1,0mm2
SVT 2x18AWG
Cord definition is detailed in general product information
Type
|
-
|
R
|
-
|
3130
|
-
|
D
|
-
|
Length
|
= Cord length
Cord length
zzzz, 000500, 001000, 001500, 002000, 002500, 003000, 005000
Cord length in mm

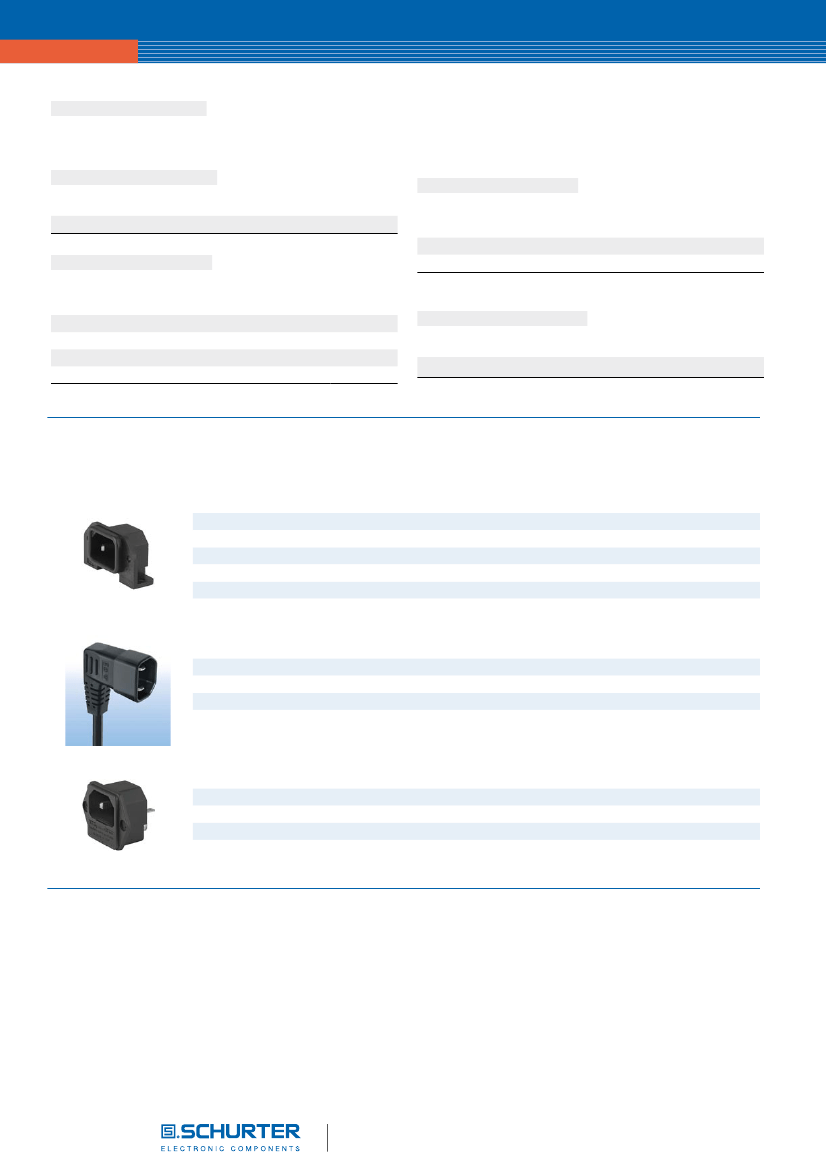

Mating Inlets/Plugs
Category / Description
Appliance Inlet Overview complete
IEC Appliance Inlet C18, Screw-on Mounting, Rear Side, PCB Terminal
IEC Appliance Inlet C18, Snap-in Mounting, Front Side, Solder or Quick-connect or Screw-on Terminal
IEC Appliance Inlet C18, Screw-on Mounting, Front Side, Solder or Quick-connect, PCB or Screw Terminal
IEC Appliance Inlet C18, Screw-on Mounting, Front Side, Solder or Quick-connect, PCB or Screw Terminal
IEC Appliance Inlet C18, Screw-on Mounting, Front or Rear Side, Solder or Quick-connect Terminal
Appliance Inlet further types to 3130
1005
6015
6065
6066
6102-3
...
Interconnection Cord Overview complete
Interconnection Cord with IEC Plug G, Angled
Interconnection Cord with IEC Plug G, Angled
Interconnection Cord with IEC Plug G, Straight
Interconnection Cord further types to 3130
607B
608B
609B
Power Entry Module Overview complete
IEC Appliance Inlet C18 with Fuseholder 1-pole
IEC Appliance Inlet C18 with Fuseholder 1- or 2-pole
IEC Appliance Inlet C18 with Fuseholder 1-pole
Power Entry Module further types to 3130
1065
1066
6202
2
