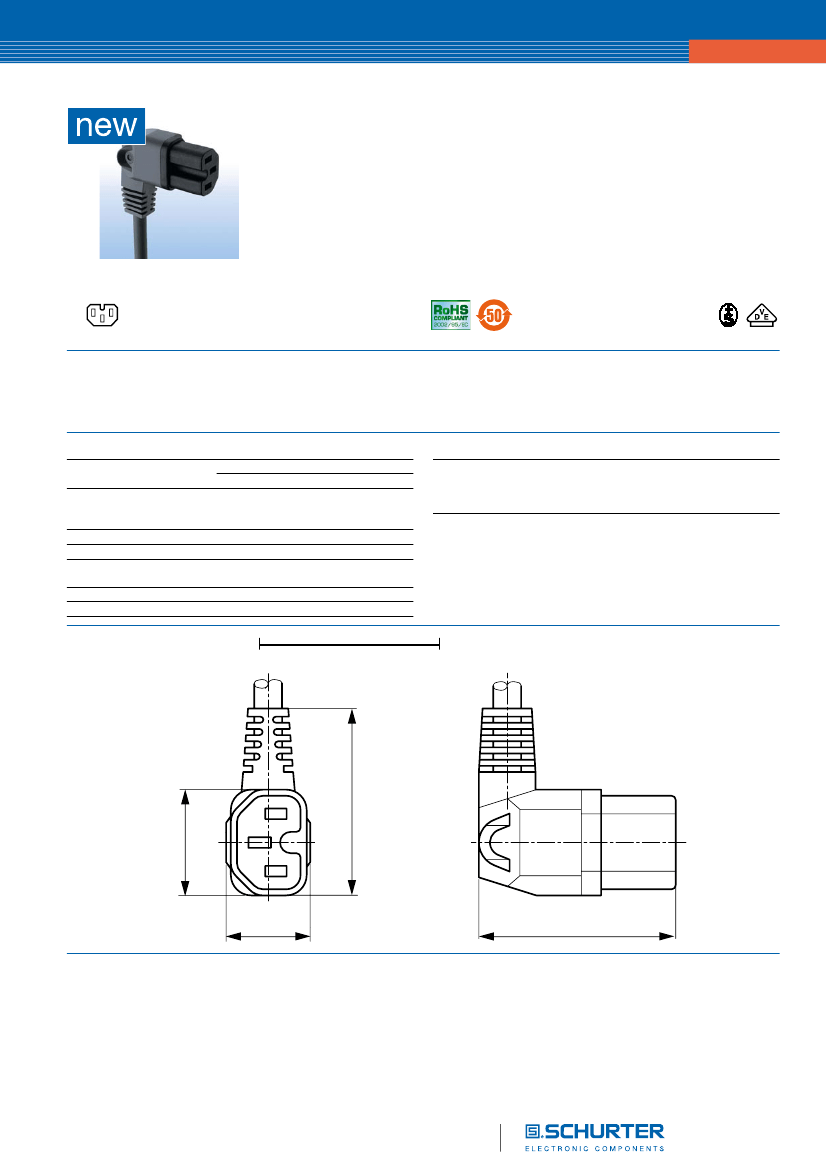

Power Cord with IEC Connector C15, Angled, 120°C
3368
C15
120° C
Description
Approvals
Power Supply Cord / Interconnection Cord,
- Protection class I, Pin temperature 120 °C, Cable
- VDE License Number: 62323
References
Weblinks
General Product Information
Approvals, RoHS, CHINA-RoHS, Mating Connectors, e-Store,
Distributor-Stock-Check, Accessories
Technical Data
Ratings IEC
Ratings UL/CSA
Dielectric Strength
10 A / 250 VAC; 50 Hz
15 A / 250 VAC; 60 Hz
> 2 kVDC between L-N
> 2 kVAC between L/N-PE
(1 min/50 Hz)
-25 °C to 70 °C
from front side IP 20 acc. to IEC 60529
Suitable for appliances with protection
class 1 acc. to IEC 61140
moulded
PVC, black or grey
Connector
C15 acc. to IEC/EN 60320-2-2
UL 498, CSA C22.2 no. 42 (For hot
conditions) pin-temperature 120 °C,
10 A, Protection Class 1
Allowable Operation Temp.
Degree of Protection
Protection Class
Terminal
Material: Housing
Dimensions
45.6 mm
25.8
20.5
45.6
48
Connectors
3368
www.schurter.com/pg07_2
Config. Code
Type
|
-
|
R
|
-
|
3368
|
-
|
D
|
-
|
Length
|
The characters are placeholders for the correspondingly keys of selections from the key tables.
Typ is placed for the connector type on the second end, length is the cord length in mm.
Cord Sets
Product Configurator
Type
|
-
|
R
|
-
|
3368
|
-
|
D
|
-
|
Length
|
= Cord end 2
Cord end 2
zzzz,
2343, 422U, 4250, 4310, 4321, 4370
Type
|
-
|
R
|
-
|
3368
|
-
|
D
|
-
|
Length
|
= Color
Color
jet black; RAL9005
standard color: black
Configuration
key
H
XXX
Configuration
key
A
Type
|
-
|
R
|
-
|
3368
|
-
|
D
|
-
|
Length
|
= cord type
cord type
H05RR-F 3G0,75mm2
Cord definition is detailed in general product information
Type
|
-
|
R
|
-
|
3368
|
-
|
D
|
-
|
Length
|
= Cord length
Cord length
000500, 001000, 001500, 002000, 002500, 003000, 005000
Cord length in mm

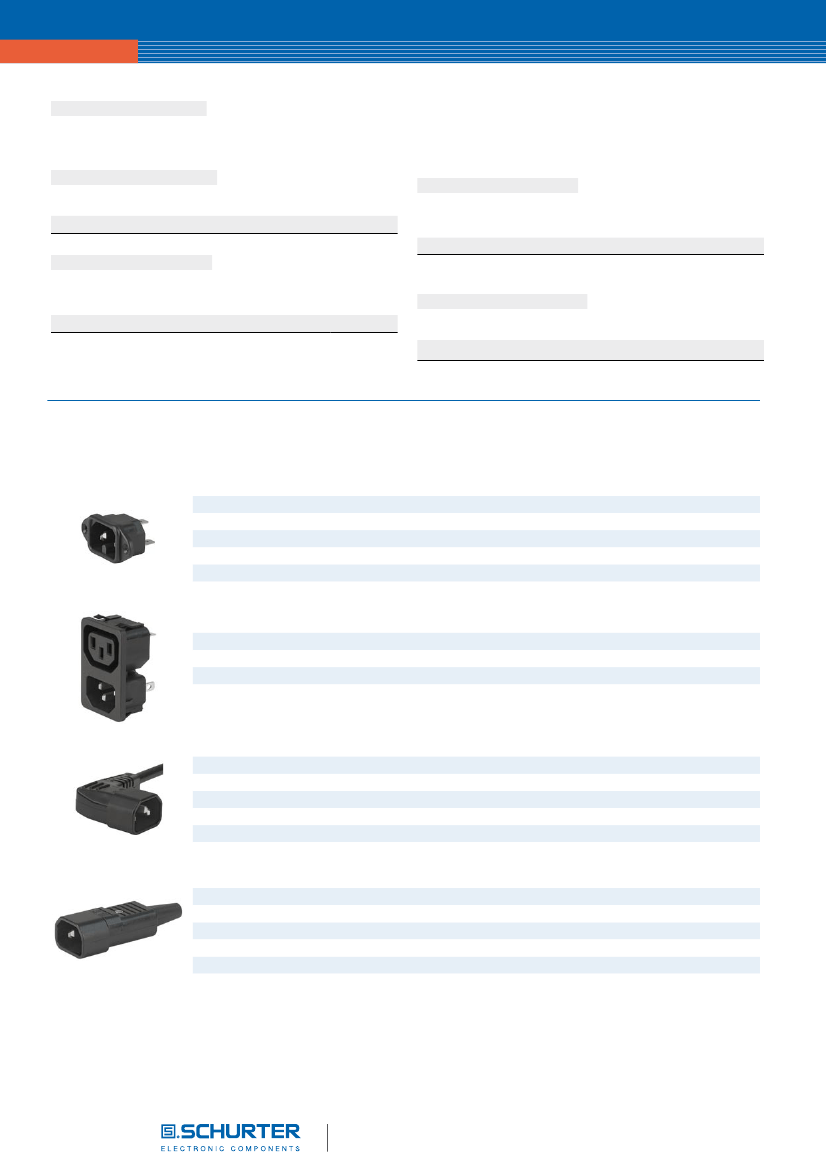

Mating Inlets/Plugs
Category / Description
Appliance Inlet Overview complete
IEC Appliance Inlet C16, Screw-on Mounting, Front Side, Quick-connect or Screw-on Terminal
IEC Appliance Inlet C16, Screw-on Mounting, Front Side, Quick-connect or Screw-on Terminal
IEC Appliance Inlet C16, Screw-on Mounting, Front or Rear Side, Quick-connect or Screw-on Terminal
IEC Appliance Inlet C16, Screw-on Mounting, Front Side, Screw-on Terminal
IEC Appliance Inlet C16, Snap-in Mounting, Front Side, Quick-connect Terminal
Appliance Inlet further types to 3368
Distribution Unit Overview complete
Distribution Unit for Snap-in Mounting with 1 IEC Appliance Inlet C14 and 1 Appliance Outlet F
Distribution Unit with 1 IEC Appliance Inlet C14 or Power Cord, 4 IEC Appliance Outlets F and Extra Components
Distribution Unit with 1 IEC Appliance Inlet C14 and 2 Appliance Outlets F, Shuttered
Distribution Unit with 1 IEC Appliance Inlet C14 and 4 Appliance Outlets F
Distribution Unit further types to 3368
Interconnection Cord Overview complete
Interconnection Cord with IEC Plug E, Angled
Interconnection Cord with IEC Plug E, Angled
Interconnection Cord with IEC Plug E, Straight
Interconnection Cord with IEC Plug G, Angled
Interconnection Cord with IEC Plug G, Angled
Interconnection Cord further types to 3368
Plug Overview complete
IEC Plug E, Cord Connector (Rewireable), Straight, max. cable Diameter 8.5 mm
IEC Plug E, Cord Connector (Rewireable), Angled, max. Cable Diameter 10 mm
IEC Plug E, Cord Connector (Rewireable), Straight, max. Cable Diameter 10 mm
IEC Plug E, Cord Connector (Rewireable), Angled, max. Cable Diameter 10 mm
IEC Plug E, Cord Connector (Rewireable), Straight
Plug further types to 3368
4732
4733
4735
4736
9009
...
0607
0608
0609
607B
608B
...
0712
4740
4741
4747
0161
0161-Y
0163
0164
0165
...
2
Connectors
Cord Sets
www.schurter.com/pg07_2
3368
Category / Description
Power Entry Module Overview complete
IEC Appliance Inlet C14 or C18 with Fuseholder 1-pole
IEC Appliance Inlet C14 or C18 with Fuseholder 1- or 2-pole
IEC Appliance Inlet C18 with Fuseholder 1-pole
IEC Appliance Inlet C18 with Fuseholder 1- or 2-pole
IEC Appliance Inlet C14 with Fuseholder 1- or 2-pole
Power Entry Module further types to 3368
Power Entry Module with line filter Overview complete
IEC Appliance Inlet C14 with Filter
IEC Appliance Inlet C14 with Filter, Circuit Breaker TA45
IEC Appliance Inlet C14 with Filter, Fuseholder 1-pole
IEC Appliance Inlet C14 with Filter, Fuseholder 1- or 2-pole
IEC Appliance Inlet C14 with Filter, Fuseholder 2-pole
Power Entry Module with line filter further types to 3368
5110
5145
5200
5220
8843-8
...
1062
1064
1065
1066
1092
...
