Cord Connectors (rewireable)
www.schurter.com/pg07b
IEC Connector C13, Rewireable, Angled
402
C13
70° C
Description
- Connector:
Screwing cable terminal, Pin temperature 70 °C, Protection class
I, Cable
- Note: Please order pvc strain relief seperately, mating strain reliefs
please find under accessories.
References
Weblinks
General Product Information
Approvals, RoHS, CHINA-RoHS, Mating Connectors, e-Store,
Distributor-Stock-Check, Accessories
Approvals
- VDE License Number: 40010002
- UL License Number: E45115
- CSA License Number: 1612079
Technical Data
Ratings IEC
Ratings UL/CSA
Dielectric Strength
10 A / 250 VAC; 50 Hz
15 A / 250 VAC; 60 Hz
> 3 kVAC between L-N
> 1.5 kVAC between L/N-PE
(1 min/50 Hz)
-25 °C to 70 °C
from front side IP 20 acc. to IEC 60529
Suitable for appliances with protection
class 1 acc. to IEC 61140
Screw Clamp
UL 94V-0
Connector
C13 acc. to IEC/EN 60320-2-2
UL 498, CSA C22.2 no. 42 (for cold
conditions) pin-temperature 70 °C, 10 A,
Protection Class 1
Allowable Operation Temp.
Degree of Protection
Protection Class
Terminal
Material: Housing

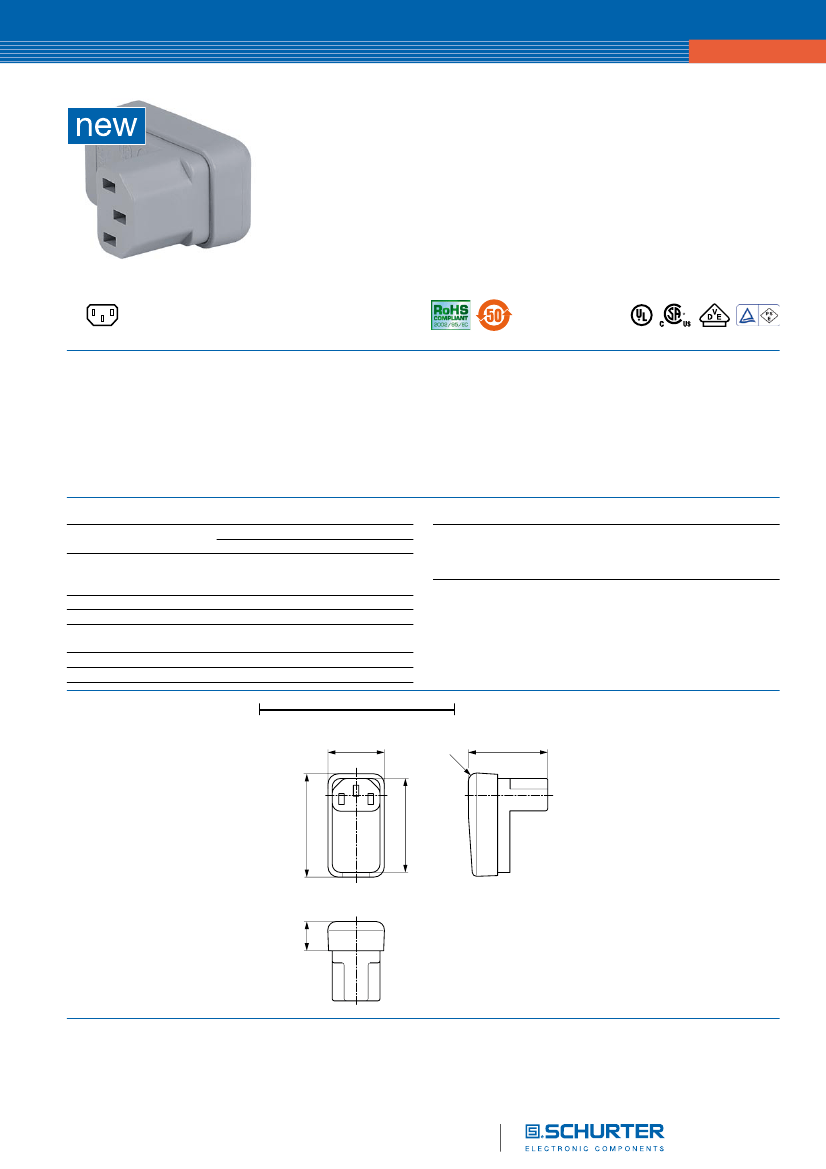

Dimensions
27
49.5 mm
38
R
4
49.5
14
45
Connectors
402
www.schurter.com/pg07b
Config. Code
Cord Connectors (rewireable)
Product Configurator
4012
|
-
|
H
|
-
|
A
|
B
|
C
|
0-
|
D
|
-
|
E
|
J
|
The characters are placeholders for the correspondingly keys of selections from the key tables.
4012
|
-
|
H
|
-
|
A
|
B
|
C
|
0-
|
D
|
-
|
E
|
J
|
= Type
Type
protection class 1
4012
|
-
|
H
|
-
|
A
|
B
|
C
|
0-
|
D
|
-
|
E
|
J
|
= Color
Configuration
key
X
Color
jet black; RAL9005
silver grey; RAL7001
pure white; RAL9010
Configuration
key
A
standard color: black
Configuration
key
A
B
D
4012
|
-
|
H
|
-
|
A
|
B
|
C
|
0-
|
D
|
-
|
E
|
J
|
= Terminals
Terminal L
screw terminal
4012
|
-
|
H
|
-
|
A
|
B
|
C
|
0-
|
D
|
-
|
E
|
J
|
= Style
Style
for cord assembly
4012
|
-
|
H
|
-
|
A
|
B
|
C
|
0-
|
D
|
-
|
E
|
J
|
= Terminals
Terminal N
screw terminal
Symbols similar as in table A
Configuration
key
8
Configuration
key
A
4012
|
-
|
H
|
-
|
A
|
B
|
C
|
0-
|
D
|
-
|
E
|
J
|
= Condition
Condition
assembled
Configuration
key
1
2
4012
|
-
|
H
|
-
|
A
|
B
|
C
|
0-
|
D
|
-
|
E
|
J
|
= Terminals
Terminal Ground
screw terminal
Symbols similar as in table A
Configuration
key
A
disassembled
Variants
Config. Code
4012-X-AAA0-A-81
4012-X-AAA0-B-81
Description
4012, IEC Connector, C13, 70°C, version: 1, L: screw terminal, N: screw terminal, ground: screw terminal, color: jet black;
RAL9005, design: for cord assembly, condition:assembled
4012, IEC Connector, C13, 70°C, version: 1, L: screw terminal, N: screw terminal, ground: screw terminal, color: silver grey;
RAL7001, design: for cord assembly, condition:assembled
Order Number
4310.0019
4310.0020
The listet variants should be available from stock Other versions on request www.schurter.com/contact
Packaging unit
Accessories
50 Pcs
Description

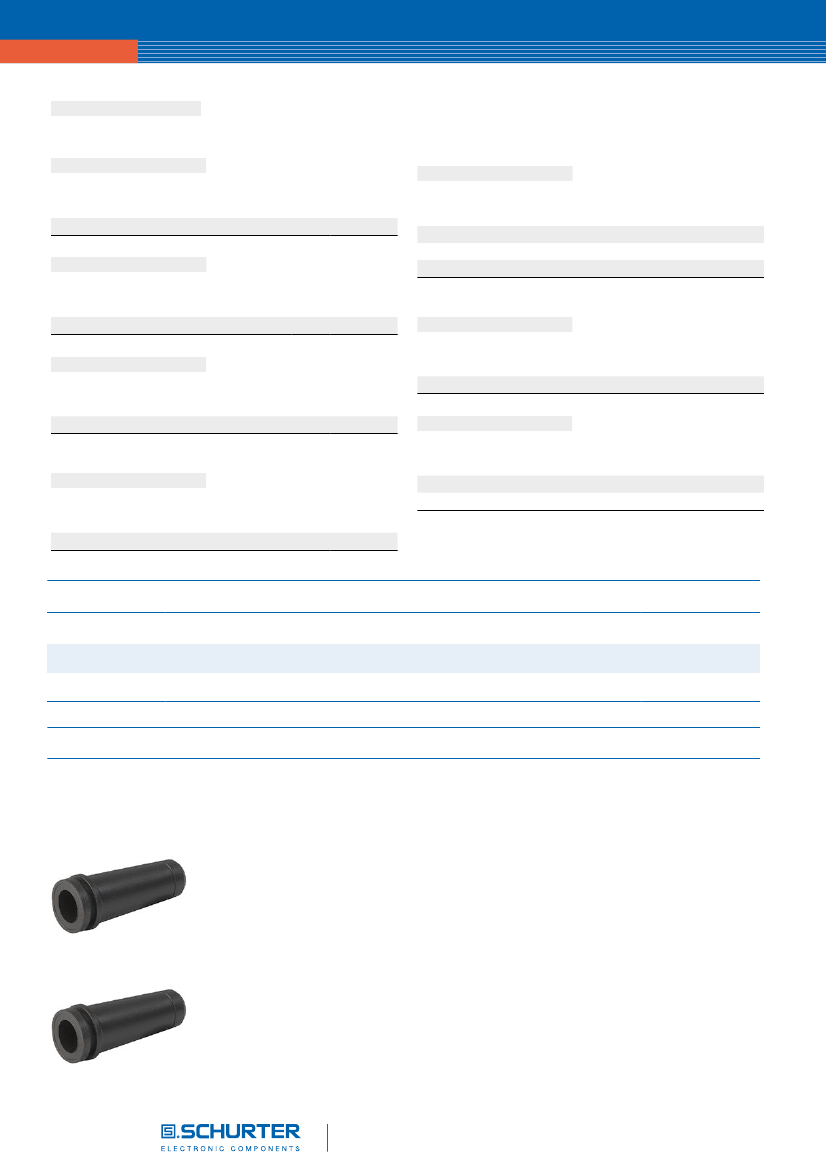

HN 14.111
PVC Strain Relief
HN 14.48
PVC Strain Relief
2
Connectors
Cord Connectors (rewireable)
www.schurter.com/pg07b
402
HN 14.49
PVC Strain Relief

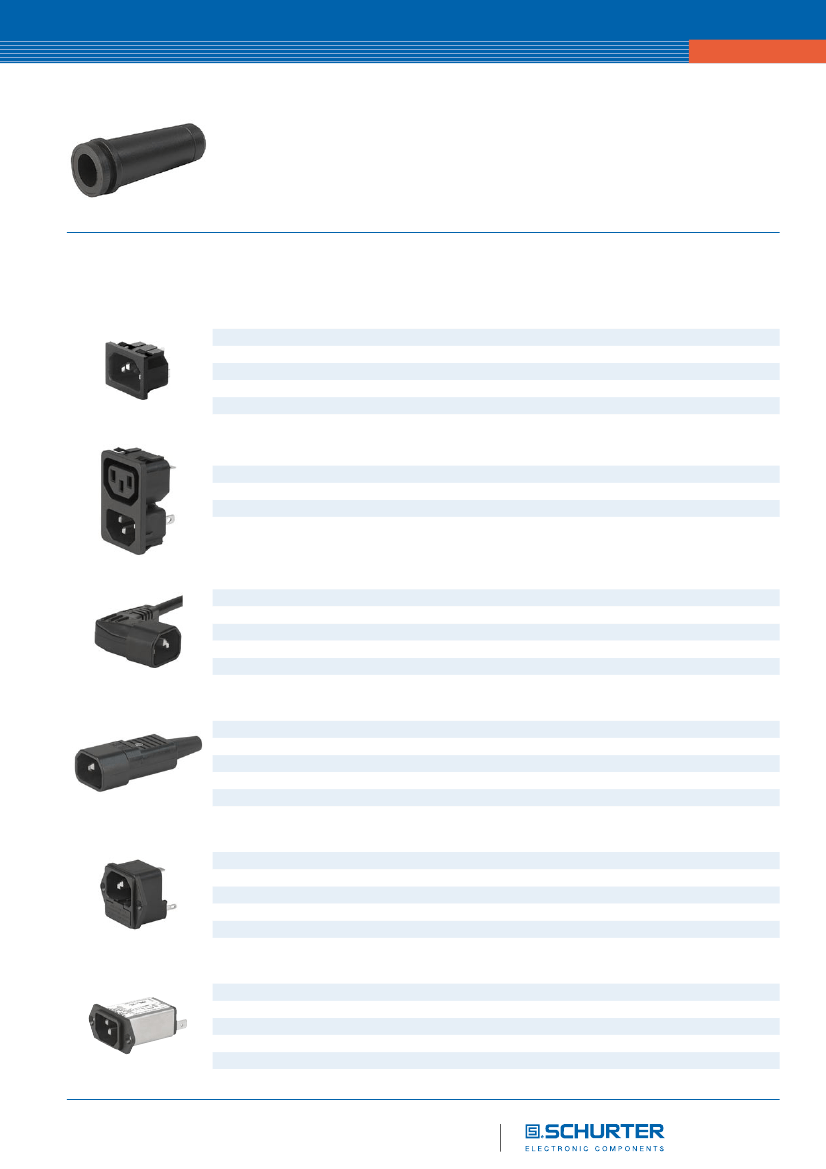

Mating Inlets/Plugs
Category / Description
Appliance Inlet Overview complete
IEC Appliance Inlet C14, Snap-in Mounting, Front Side, Solder or Quick-connect Terminal
IEC Appliance Inlet C14, Screw-on Mounting, Rear Side, PCB Terminal
IEC Appliance Inlet C18, Screw-on Mounting, Rear Side, PCB Terminal
IEC Appliance Inlet C14, Snap-in Mounting, Front Side, Solder or Quick-connect or Screw-on Terminal
IEC Appliance Inlet C18, Snap-in Mounting, Front Side, Solder or Quick-connect or Screw-on Terminal
Appliance Inlet further types to 4012
Distribution Unit Overview complete
Distribution Unit for Snap-in Mounting with 1 IEC Appliance Inlet C14 and 1 Appliance Outlet F
Distribution Unit with 1 IEC Appliance Inlet C14 or Power Cord, 4 IEC Appliance Outlets F and Extra Components
Distribution Unit with 1 IEC Appliance Inlet C14 and 2 Appliance Outlets F, Shuttered
Distribution Unit with 1 IEC Appliance Inlet C14 and 4 Appliance Outlets F
Distribution Unit further types to 4012
Interconnection Cord Overview complete
Interconnection Cord with IEC Plug E, Angled
Interconnection Cord with IEC Plug E, Angled
Interconnection Cord with IEC Plug E, Straight
Interconnection Cord with IEC Plug G, Angled
Interconnection Cord with IEC Plug G, Angled
Interconnection Cord further types to 4012
Plug Overview complete
IEC Plug E, Cord Connector (Rewireable), Straight, max. cable Diameter 8.5 mm
IEC Plug E, Cord Connector (Rewireable), Angled, max. Cable Diameter 10 mm
IEC Plug E, Cord Connector (Rewireable), Straight, max. Cable Diameter 10 mm
IEC Plug E, Cord Connector (Rewireable), Angled, max. Cable Diameter 10 mm
IEC Plug E, Cord Connector (Rewireable), Straight
Plug further types to 4012
Power Entry Module Overview complete
IEC Appliance Inlet C14 or C18 with Fuseholder 1-pole
IEC Appliance Inlet C14 or C18 with Fuseholder 1- or 2-pole
IEC Appliance Inlet C18 with Fuseholder 1-pole
IEC Appliance Inlet C18 with Fuseholder 1- or 2-pole
IEC Appliance Inlet C14 with Fuseholder 1- or 2-pole
Power Entry Module further types to 4012
Power Entry Module with line filter Overview complete
IEC Appliance Inlet C14 with Filter
IEC Appliance Inlet C14 with Filter, Circuit Breaker TA45
IEC Appliance Inlet C14 with Filter, Fuseholder 1-pole
IEC Appliance Inlet C14 with Filter, Fuseholder 1- or 2-pole
IEC Appliance Inlet C14 with Filter, Fuseholder 2-pole
Power Entry Module with line filter further types to 4012
5110
5145
5200
5220
8843-8
...
1062
1064
1065
1066
1092
...
4732
4733
4735
4736
9009
...
0607
0608
0609
607B
608B
...
0712
4740
4741
4747
0711
1001
1005
6010
6015
...
