PBYR25-20CT datasheet, PDF - EEWORLD Datasheet

PBYR25-20CT: Description15A, 20V, SILICON, RECTIFIER DIODE, TO-220AB; CategoryDiscrete semiconductor diode; File Size100KB，5 Pages; ManufacturerNXP; Websitehttps://www.nxp.com

Download Datasheet Parametric Compare View All

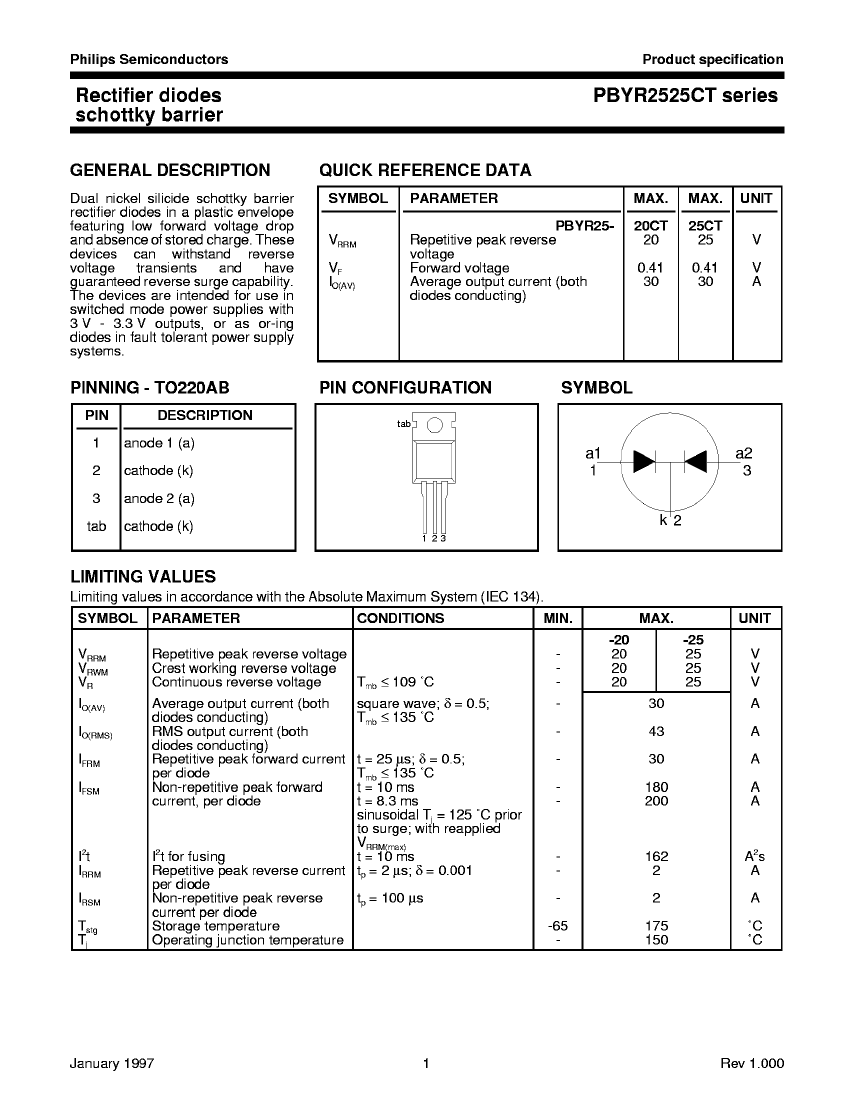

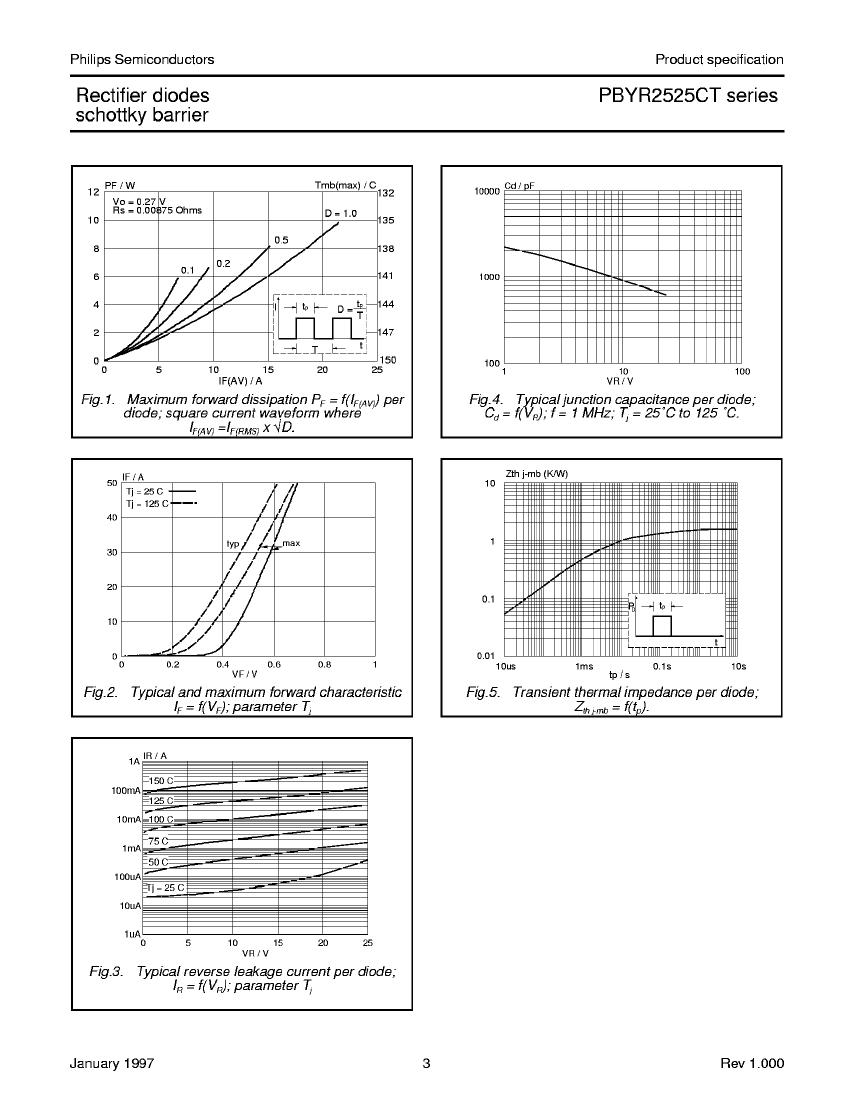

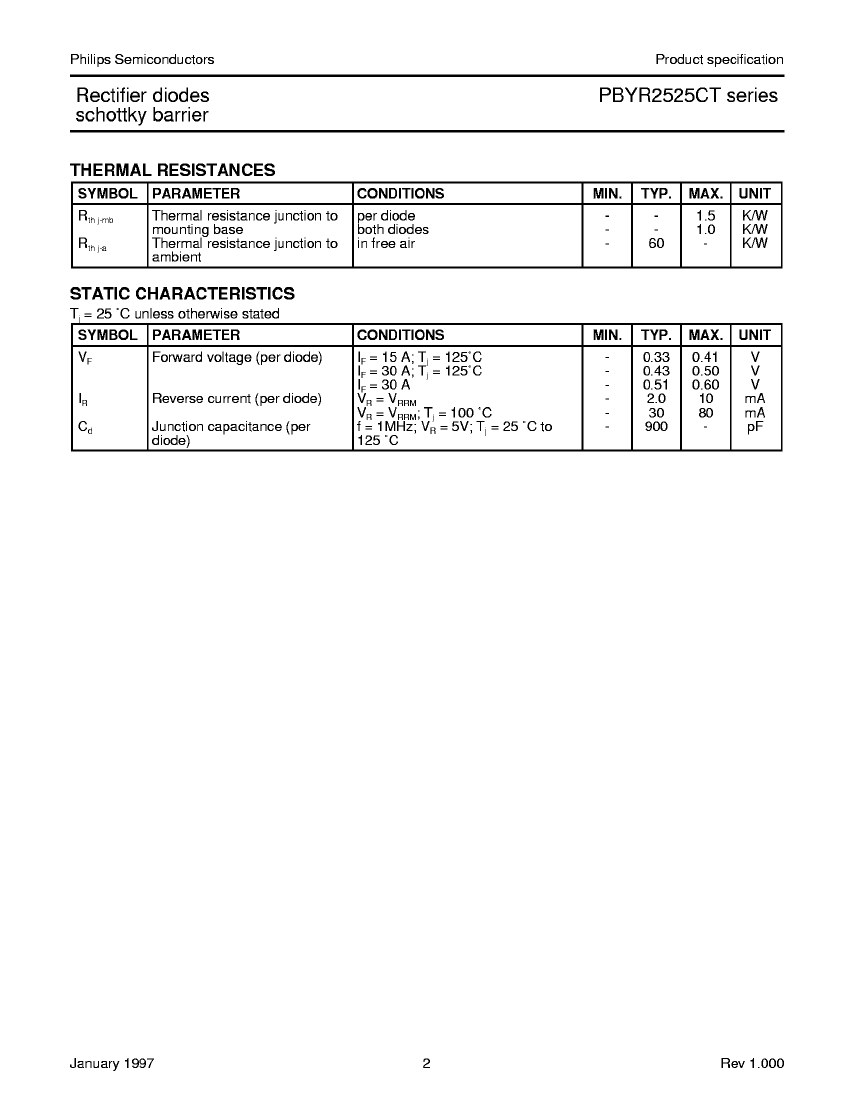

PBYR25-20CT Overview

15A, 20V, SILICON, RECTIFIER DIODE, TO-220AB

Parameter Name	Attribute value
Maker	NXP
package instruction	R-PSFM-T3
Reach Compliance Code	unknown
ECCN code	EAR99
application	GENERAL PURPOSE
Shell connection	CATHODE
Configuration	COMMON CATHODE, 2 ELEMENTS
Diode component materials	SILICON
Diode type	RECTIFIER DIODE

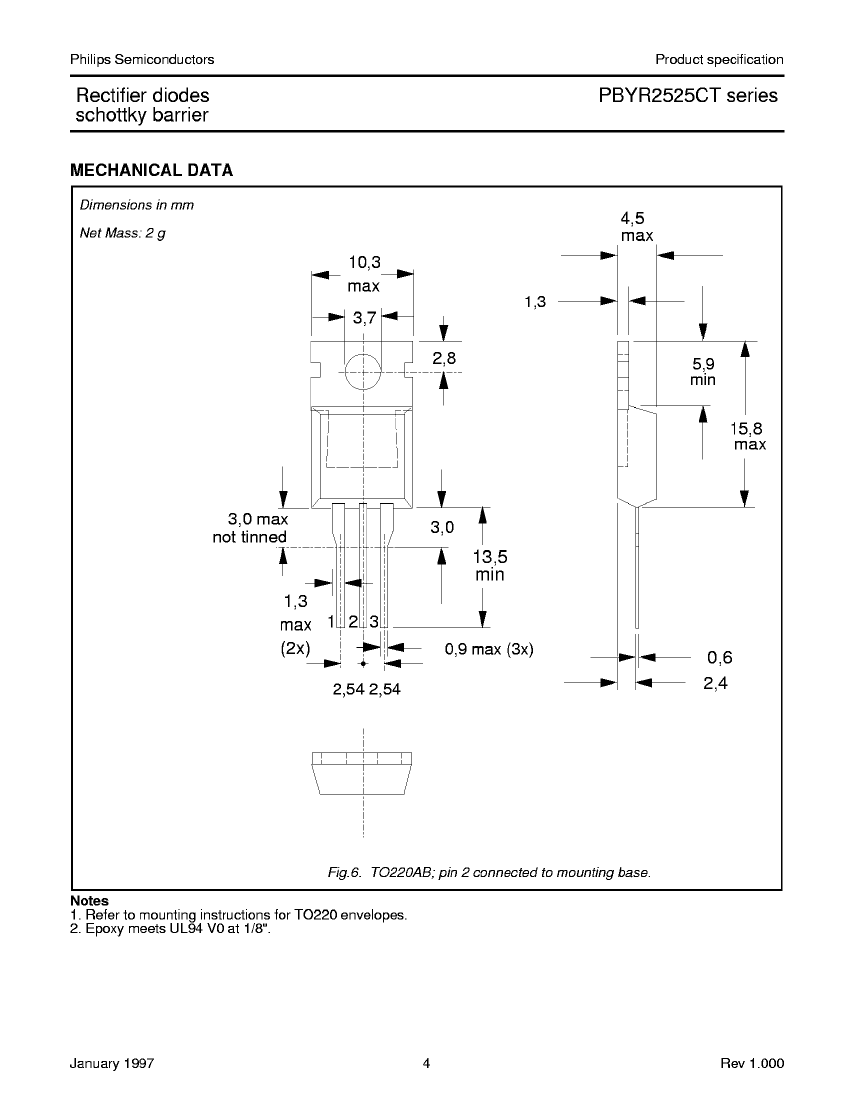

JEDEC-95 code	TO-220AB
JESD-30 code	R-PSFM-T3
Maximum non-repetitive peak forward current	200 A
Number of components	2
Phase	1
Number of terminals	3
Maximum output current	15 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	20 V
surface mount	NO
technology	SCHOTTKY
Terminal form	THROUGH-HOLE
Terminal location	SINGLE

	PBYR25-20CT	PBYR25-25CT
Description	15A, 20V, SILICON, RECTIFIER DIODE, TO-220AB	15A, 25V, SILICON, RECTIFIER DIODE, TO-220AB
Maker	NXP	NXP
Reach Compliance Code	unknown	unknow
ECCN code	EAR99	EAR99
application	GENERAL PURPOSE	GENERAL PURPOSE
Shell connection	CATHODE	CATHODE
Configuration	COMMON CATHODE, 2 ELEMENTS	COMMON CATHODE, 2 ELEMENTS
Diode component materials	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE
JEDEC-95 code	TO-220AB	TO-220AB
JESD-30 code	R-PSFM-T3	R-PSFM-T3
Maximum non-repetitive peak forward current	200 A	200 A
Number of components	2	2
Phase	1	1
Number of terminals	3	3
Maximum output current	15 A	15 A
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR
Package form	FLANGE MOUNT	FLANGE MOUNT
Certification status	Not Qualified	Not Qualified
Maximum repetitive peak reverse voltage	20 V	25 V
surface mount	NO	NO
technology	SCHOTTKY	SCHOTTKY
Terminal form	THROUGH-HOLE	THROUGH-HOLE
Terminal location	SINGLE	SINGLE
