PTZ3.6B
THRU
PTZ36B
1 Watt
Zener Diode
3.6 to 36 Volts
DO-214AC
(SMA)( LEAD
FRAME)
H
Features
•
•
•
•
•
•
Small surface mounting type.
Voltage regulation and voltage limiting
High surge withstand level.
1W of power can be obtained despite compact size.
Lead Free Finish/RoHS Compliant(Note 1) ("P" Suffix designates
RoHS Compliant. See ordering information)
Case Material: Molded Plastic. UL Flammability
Classification Rating 94V-0
and MSL Rating 1
Maximum Ratings
Parameter
Symbol
P
Tj
Tstg
Limits
1
Unit
W
Power dissipation
∗
Junction temperature
Storage temperature
∗
Mounting
J
150
−55~+150
°C
°C
density of other power components should be taken into consideration
when laying out the
pattern.
A
C
Notes:1.High Temperature Solder Exemption Applied, see EU Directive Annex 7.
E
F
G
D
B
DIMENSIONS
INCHES
MIN
.079
.050
.002
---
.030
.065
.189
.157
.090
MM
MIN
2.00
1.27
.05
---
.76
1.65
4.80
4.00
2.25
DIM
A
B
C
D
E
F
G
H
J
MAX
.096
.064
.008
.02
.060
.091
.220
.181
.115
MAX
2.44
1.63
.20
.51
1.52
2.32
5.59
4.60
2.92
NOTE
SUGGESTED SOLDER
PAD LAYOUT
0.085 ”
MA X
0.058 ” MI N
0.05
MI N
Revision:
2
www.mccsemi.com
1 of 4
2008/03/21
PTZ3.6B THRU PTZ36B
MCC
Micro Commercial Components
TM
Electrical characteristics
Zener voltage subdivision
Type
VZ
(V)
Operating resistance
Z
Z
(
Reverse current
I
R
(µA)
Min.
Max.
Iz(mA)
Max.
Iz(mA)
Max. V
R
(V)
Z3.6B
1.0
40
15
40
20
PTZ 3.6B
3.600
4.000
PTZ 3.9B
3.900
4.400
40
15
40
20
1.0
Z3.9B
PTZ 4.3B
4.300
4.800
40
15
40
20
1.0
Z4.3B
4.700
5.200
40
10
40
20
1.0
PTZ
4.7B
Z4.7B
PTZ
5.1B
5.100
5.700
40
8
40
20
1.0
Z5.1B
PTZ
5.6B
5.600
6.300
40
8
40
20
1.5
Z5.6B
Z6.2B
6.200
7.000
40
6
40
20
3.0
PTZ
6.2B
PTZ
6.8B
6.800
7.700
40
6
40
20
3.5
Z6.8B
PTZ
7.5B
7.500
8.400
40
4
40
20
4.0
Z7.5B
8.200
9.300
40
4
40
20
5.0
PTZ
8.2B
Z8.2B
PTZ
9.1B
9.100
10.20
40
6
40
20
6.0
Z9.1B
PTZ
10B
10.00
11.20
40
6
40
10
7.0
Z10B
11.00
12.30
20
8
20
10
8.0
PTZ
11B
Z11B
PTZ
12B
12.00
13.50
20
8
20
10
9.0
Z12B
Z13B
PTZ
13B
13.30
15.00
20
10
20
10
10.0
Z15B
14.70
16.50
20
10
20
10
11.0
PTZ
15B
PTZ
16B
16.20
18.30
20
12
20
10
12.0
Z16B
PTZ
18B
18.00
20.30
20
12
20
10
13.0
Z18B
20.00
22.40
PTZ
20B
20
14
20
10
15.0
Z20B
PTZ
22B
22.00
24.50
10
14
10
10
17.0
Z22B
24.00
27.60
10
14
10
10
19.0
PTZ
24B
Z24B
PTZ
27B
27.00
30.80
10
16
10
10
21.0
Z27B
PTZ
30B
30.00
34.00
10
18
10
10
23.0
Z30B
33.00
37.00
10
18
10
10
25.0
PTZ
33B
Z33B
PTZ
36B
36.00
40.00
1
0
20
10
10
27.0
Z36B
Notes) 1. The Zener voltage is measured 40ms after power is supplied.
2. The operating resistances (Zz, Zzk) are measured by superimposing a minute alternating current on
the regulated current (Iz).
)
Ω
Marking
Revision:
2
www.mccsemi.com
2 of 4
2008/03/21
TPZ3.6B THRU TPZ36B
MCC
Micro Commercial Components
RISE IN DIODE A SURFACE TEMPERATURE (°C)
10mm
TM
z
(OHFWULFDO FKDUDFWHULVWLF FXUYHV
Glass epoxy substrate
32
×
30
×
1.6 (mm)
POWER DISSIPATION : Pd (mn)
1000
800
600
400
200
0
Ceramic substrate
82×30×1.0 (mm)
1.5W
A
A
1.0W
100
1.0W
100
0.5W
Individual part
(not mounted)
0.5W
Alumina substrate
114
×
124
×
1.6
0
25
50
87.5 100
150
200
0
1
(Units : mm)
10
MOUNTING QUANTITY (pcs/substrate)
100
0
Glass epoxy
substrate
144×220×1.6
(Units : mm)
1
10
100
AMBIENT TEMPERATURE : Ta (°C)
MOUNTING QUANTITY (pcs/substrate)

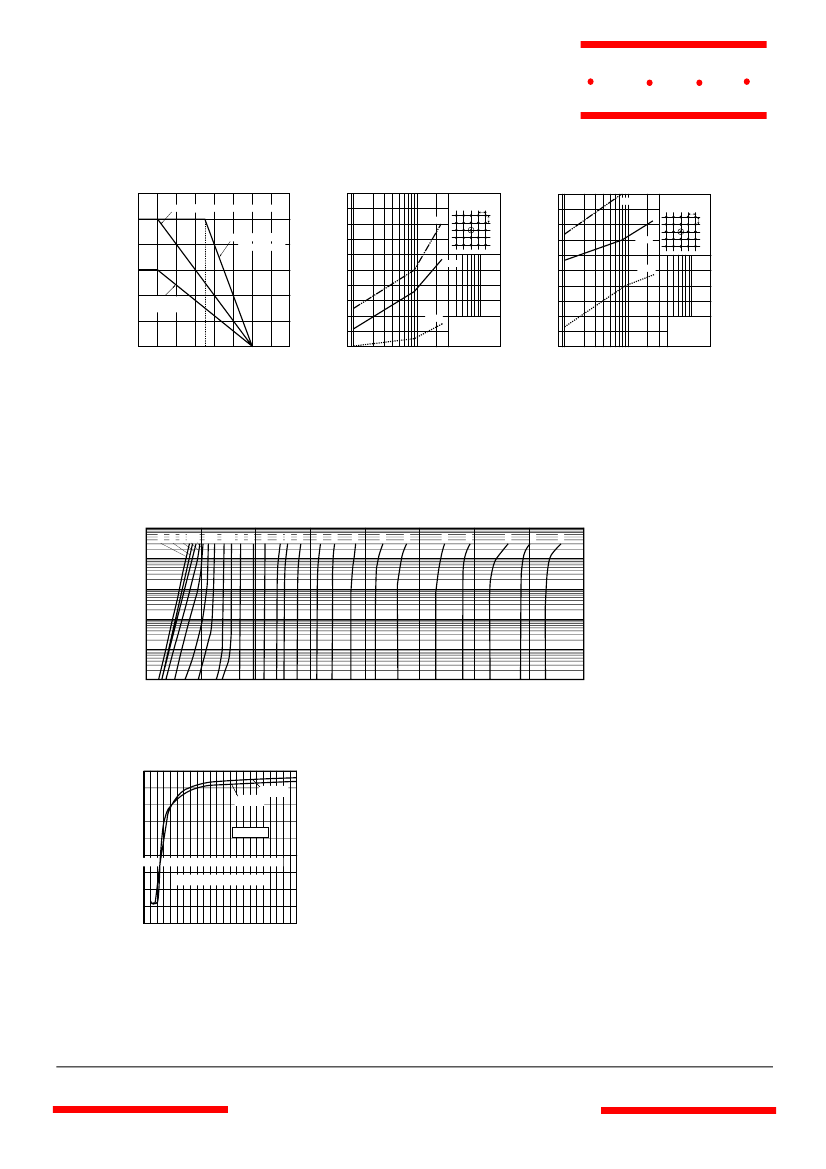

Fig.1 Derating curve
Fig.2 Rise in surface temperature
Fig.3 Rise in surface temperature
100m
5.6
6.2
6.8
7.5
8.2
3.6
3.9
4.3
4.7
5.1
9.1
10
11
12
13
15
16
18
20
22
24
27
30
33
36
ZENER CURRENT : I
Z
(A)
10m
1m
100µ
10µ
1µ
0
5
10
15
20
ZENER VOLTAGE : V
Z
(V)
25
30
35
40
Fig.4 Zener voltage characteristics
TEMP. COEFFICIENT CHARACTERISTICS (% /
°C)
0.10
0.08
0.06
0.04
0.02
0.00
0
−0.02
−0.04
−0.06
−0.08
10
20
125-25°C
Iz=20mA
Iz=40mA
30
40
ZENER VOLTAGE : Vz (V)
Fig.5 Zener voltage -
temp.coefficient characteristics
Revision:
2
www.mccsemi.com
3 of 4
2008/03/21
10mm
Mounting position
15mm
RISE IN DIODE A SURFACE TEMPERATURE (°C)
1200
200
200
1.5W
Mounting position
15mm
MCC
Micro Commercial Components
TM
Ordering Information
Device
(Part Number)-TP
Packing
Tape&Reel;7.5Kpcs/Reel
***IMPORTANT NOTICE***
Micro Commercial Components Corp
.
reserves the right to make changes without further notice to any
product herein to make corrections, modifications , enhancements , improvements , or other changes .
Micro Commercial Components Corp
.
does not assume any liability arising out of the application or
use of any product described herein; neither does it convey any license under its patent rights ,nor
the rights of others . The user of products in such applications shall assume all risks of such use
and will agree to hold
Micro Commercial Components Corp
.
and all the companies whose
products are represented on our website, harmless against all damages.
***APPLICATIONS DISCLAIMER***
Products offer by
Micro Commercial Components Corp
.
are not intended for use in Medical,
Aerospace or Military Applications.
www.mccsemi.com
Revision:
2
4 of 4
2008/03/21
