HMC649LP6 / 649LP6E
v03.1011
GaAs MMIC 6-BIT DIGITAl
PhAse shIfTer, 3 - 6 Ghz
Typical Applications
the hMC649lP6(e) is ideal for:
features
low rMs Phase error: 3°
low insertion loss: 8 dB
high linearity: +44 dBm
Positive Control logic
360° Coverage, lsB = 5.625°
28 lead QfN leadless sMt Package: 36mm
2
Phase shifters - Digital - sMt
• EW Receivers
• Weather & Military Radar
• Satellite Communications
• Beamforming Modules
• Phase Cancellation

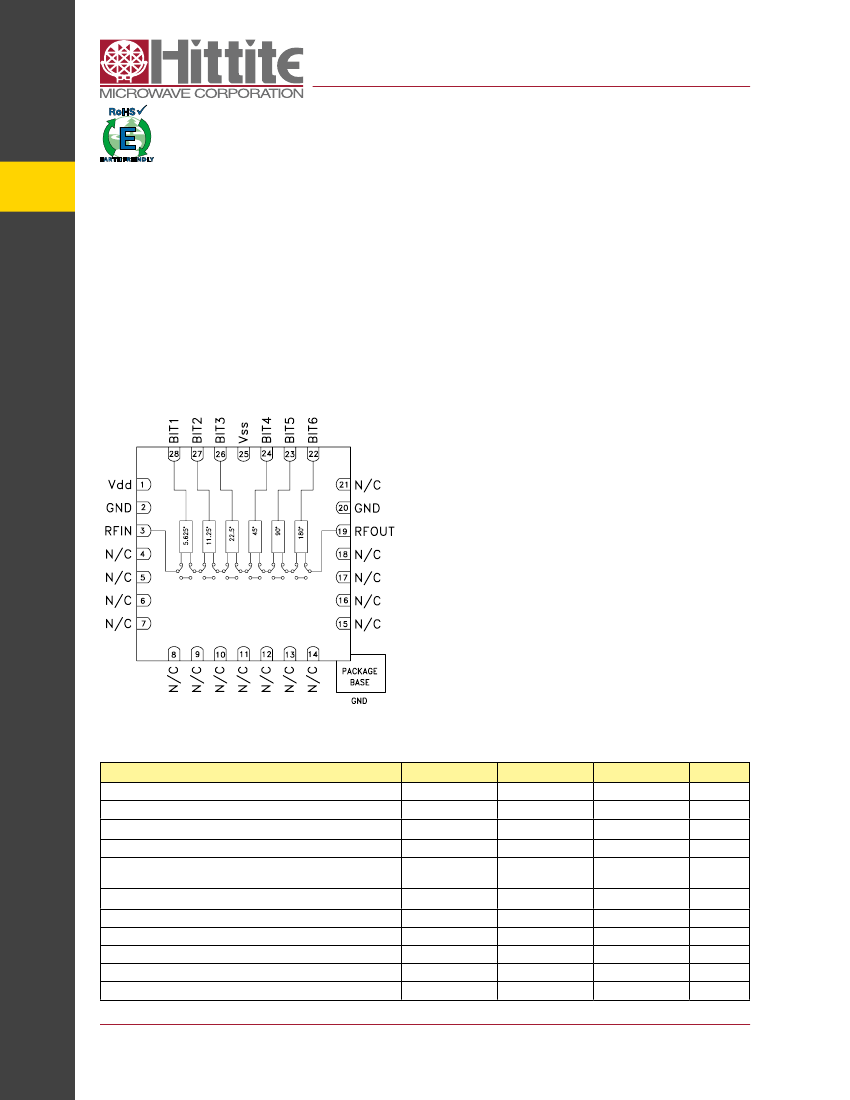

functional Diagram
General Description
the hMC649lP6(e) is a 6-bit digital phase shifter
which is rated from 3 - 6 ghz, providing 360 degrees
of phase coverage, with a lsB of 5.625 degrees. the
hMC649lP6(e) features very low rMs phase error
of 3 degrees and extremely low insertion loss vari-
ation of ±0.5 dB across all phase states. this high
accuracy phase shifter is controlled with positive
control logic of 0/+5V. the hMC649lP6(e) is housed
in a compact 6x6 mm plastic leadless sMt package
and is internally matched to 50 Ohms with no external
components.
electrical specifications
Parameter
frequency range
insertion loss*
input return loss*
Output return loss*
Phase error*
rMs Phase error
insertion loss Variation*
input Power for 1 dB Compression
input third Order intercept
Control Voltage Current
Bias Voltage Current
*Note: Major states shown
T
A
= +25° C, Vss= -5V, Vdd= +5V , Control Voltage= 0/ +5V, 50 Ohm system
Min.
3
8
13
10
3.0 - 5.5 ghz
5.5 - 6.0 ghz
±5
-10
3
±0.5
29
44
35
5
250
15
+15 / -25
+15 / -32
typ.
Max.
6
10.5
Units
ghz
dB
dB
dB
deg
deg
deg
dB
dBm
dBm
µa
ma
0-1
For price, delivery and to place orders: Hittite Microwave Corporation, 20 Alpha Road, Chelmsford, MA 01824
Phone: 978-250-3343
Fax: 978-250-3373
Order On-line at www.hittite.com
Application Support: Phone: 978-250-3343 or apps@hittite.com
HMC649LP6 / 649LP6E
v03.1011
GaAs MMIC 6-BIT DIGITAl
PhAse shIfTer, 3 - 6 Ghz

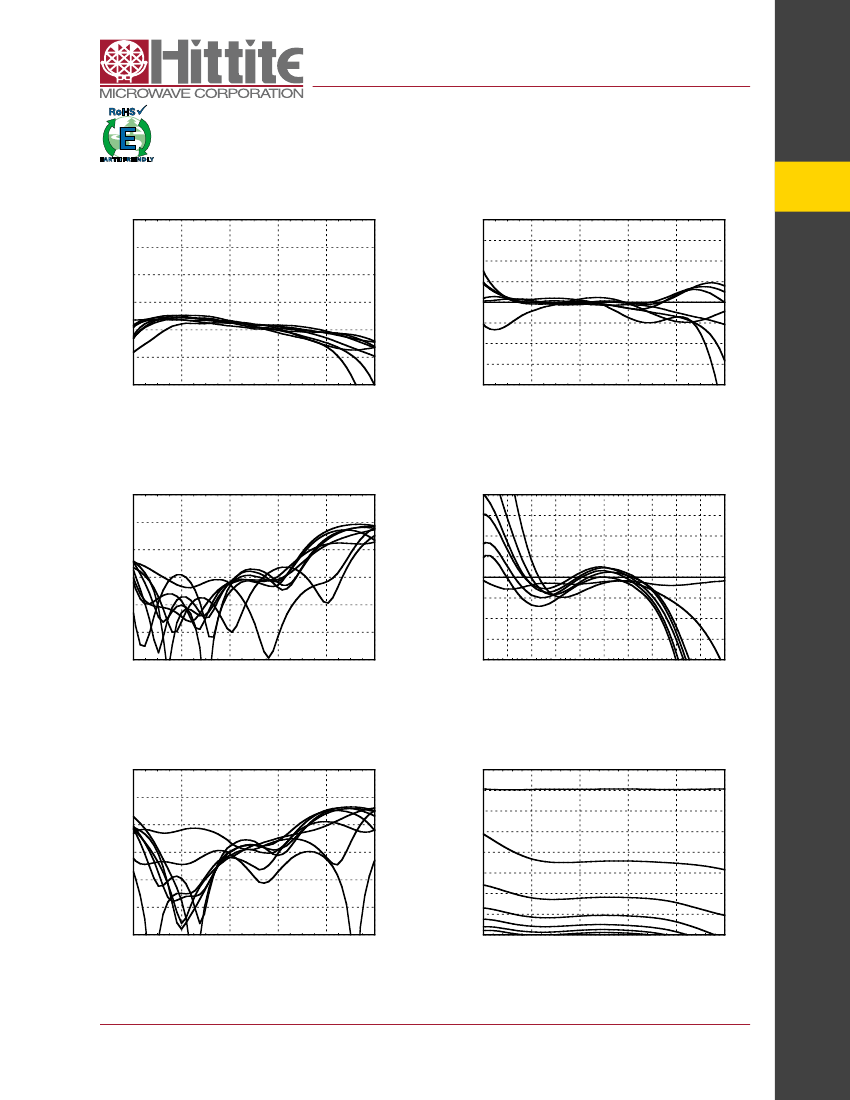

Insertion loss, Major states Only
0
-2
INSERTION LOSS (dB)
-4
-6
-8
-10
-12
2
3
4
5
6
7
FREQUENCY (GHz)
Normalized loss, Major states Only
4
2
1
0
-1
-2
-3
-4
2
3
4
5
6
7
FREQUENCY (GHz)
Input return loss, Major states Only
0
-5
RETURN LOSS (dB)
-10
-15
-20
-25
-30
2
3
4
5
6
7
FREQUENCY (GHz)
Phase error, Major states Only
20
15
PHASE ERROR (degrees)
10
5
0
-5
-10
-15
-20
2
2.5
3
3.5
4
4.5
5
5.5
6
6.5
7
FREQUENCY (GHz)
Output return loss, Major states Only
0
-5
RETURN LOSS (dB)
-10
-15
-20
-25
-30
2
3
4
5
6
7
FREQUENCY (GHz)
relative Phase shift
Major states Including All Bits
400
RELATIVE PHASE SHIFT (degrees)
350
300
250
200
150
100
50
0
2
3
4
5
6
7
FREQUENCY (GHz)
For price, delivery and to place orders: Hittite Microwave Corporation, 20 Alpha Road, Chelmsford, MA 01824
Phone: 978-250-3343
Fax: 978-250-3373
Order On-line at www.hittite.com
Application Support: Phone: 978-250-3343 or apps@hittite.com
0-2
Phase shifters - Digital - sMt
3
NORMALIZED LOSS (dB)
HMC649LP6 / 649LP6E
v03.1011
GaAs MMIC 6-BIT DIGITAl
PhAse shIfTer, 3 - 6 Ghz

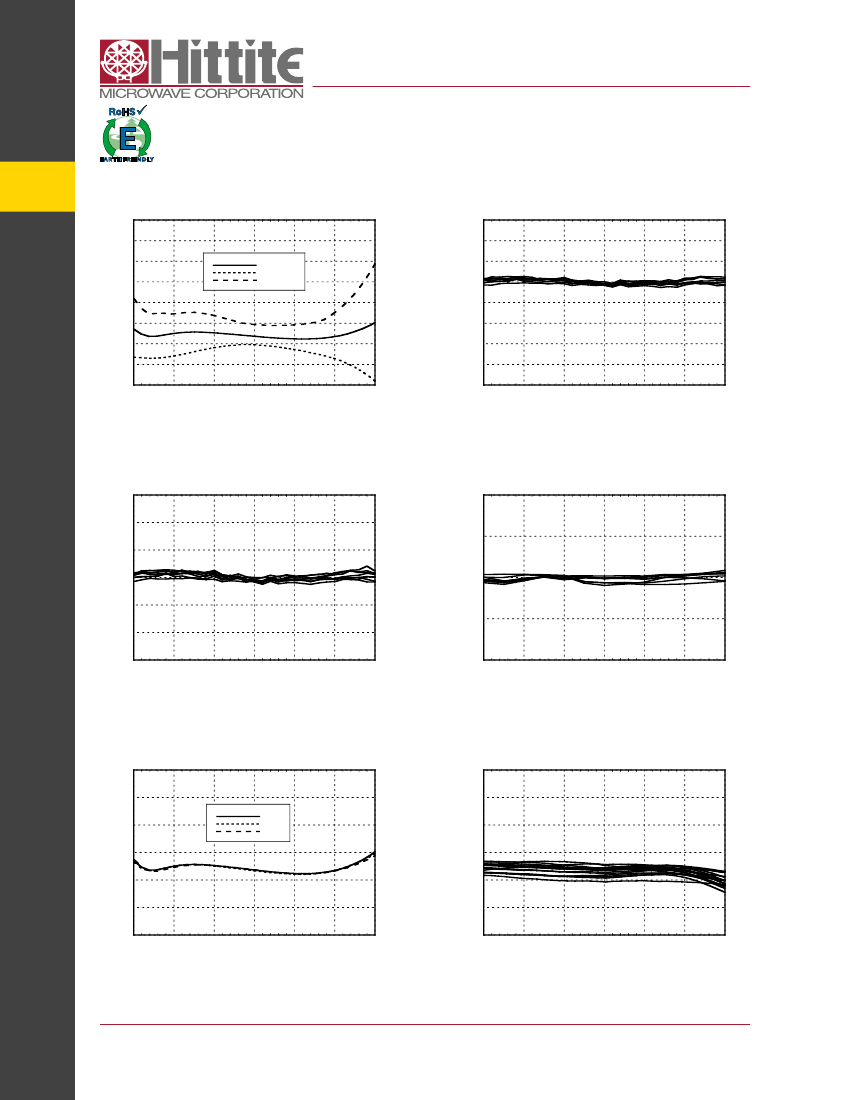

relative Phase shift,
rMs, Average, Max, All states
30
RELATIVE PHASE SHIFT (degrees)
Input IP3, Major states Only
60
55
Phase shifters - Digital - sMt
25
20
15
10
5
0
-5
-10
3
3.5
4
4.5
5
5.5
6
FREQUENCY (GHz)
RMS
AVERAGE
MAX
50
IP3 (dBm)
45
40
35
30
25
20
3
3.5
4
4.5
5
5.5
6
FREQUENCY (GHz)
Input IP2, Major states Only
120
110
Input P1dB, Major states Only
40
35
P1dB (dBm)
3
3.5
4
4.5
5
5.5
6
100
IP2 (dBm)
90
80
70
60
FREQUENCY (GHz)
20
3
3.5
4
4.5
5
5.5
6
FREQUENCY (GHz)
30
25
rMs Phase error vs. Temperature
20
RELATIVE PHASE SHIFT (degrees)
15
10
5
0
-5
-10
3
3.5
4
4.5
5
5.5
6
FREQUENCY (GHz)
+25C
+85C
-40C
Insertion loss vs. Temperature,
Major states Only
0
-2
INSERTION LOSS (dB)
-4
-6
-8
-10
-12
3
3.5
4
4.5
5
5.5
6
FREQUENCY (GHz)
0-3
For price, delivery and to place orders: Hittite Microwave Corporation, 20 Alpha Road, Chelmsford, MA 01824
Phone: 978-250-3343
Fax: 978-250-3373
Order On-line at www.hittite.com
Application Support: Phone: 978-250-3343 or apps@hittite.com
HMC649LP6 / 649LP6E
v03.1011
GaAs MMIC 6-BIT DIGITAl
PhAse shIfTer, 3 - 6 Ghz

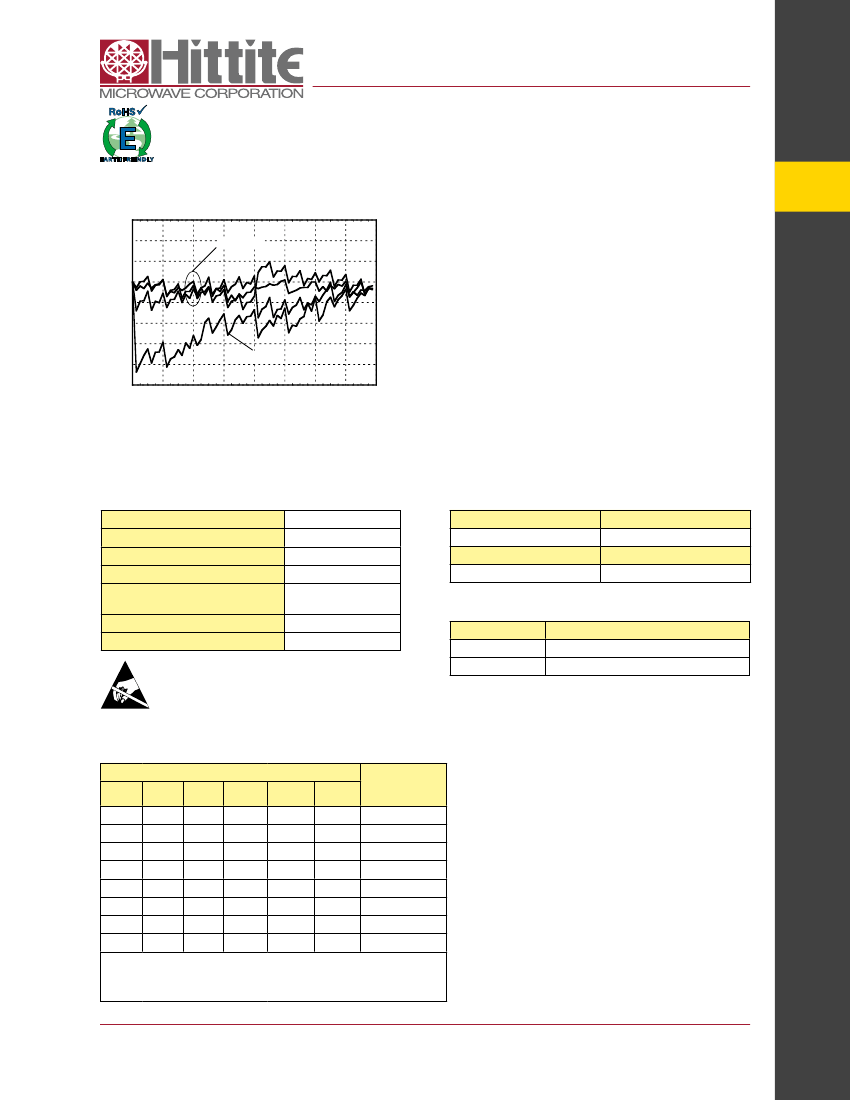

Phase error vs. state
15
3, 4, 5 GHz
5
0
-5
-10
-15
-20
-25
0
45
90
135
180
225
270
315
360
STATE (degrees)
6 GHz
Absolute Maximum ratings
input Power (rfiN)
Bias Voltage range (Vdd)
Bias Voltage range (Vss)
Channel temperature (tc)
thermal resistance
(channel to ground paddle)
storage temperature
Operating temperature
32 dBm (t= +85 °C)
-0.2 to +12V
+0.2 to -12V
150 °C
160 °C/W
-65 to +150 °C
-40 to +85 °C
Bias Voltage & Current
Vdd
5.0
Vss
-5.0
idd
5.4ma
iss
5.4ma
Control Voltage
state
low (0)
high (1)
Bias Condition
0 to 0.2 Vdc
Vdd ±0.2 Vdc @ 35 µa typ.
eleCtrOstatiC seNsitiVe DeViCe
OBserVe haNDliNg PreCaUtiONs
Truth Table
Control Voltage input
Bit 1
0
1
0
0
0
0
0
1
Bit 2
0
0
1
0
0
0
0
1
Bit 3
0
0
0
1
0
0
0
1
Bit 4
0
0
0
0
1
0
0
1
Bit 5
0
0
0
0
0
1
0
1
Bit 6
0
0
0
0
0
0
1
1
Phase shift
(Degrees)
rfiN - rfOUt
reference*
5.625
11.25
22.5
45.0
90.0
180.0
354.375
any combination of the above states will provide a phase shift approxi-
mately equal to the sum of the bits selected.
*reference corresponds to monotonic setting
For price, delivery and to place orders: Hittite Microwave Corporation, 20 Alpha Road, Chelmsford, MA 01824
Phone: 978-250-3343
Fax: 978-250-3373
Order On-line at www.hittite.com
Application Support: Phone: 978-250-3343 or apps@hittite.com
0-4
Phase shifters - Digital - sMt
10
PHASE ERROR (degrees)
HMC649LP6 / 649LP6E
v03.1011
GaAs MMIC 6-BIT DIGITAl
PhAse shIfTer, 3 - 6 Ghz

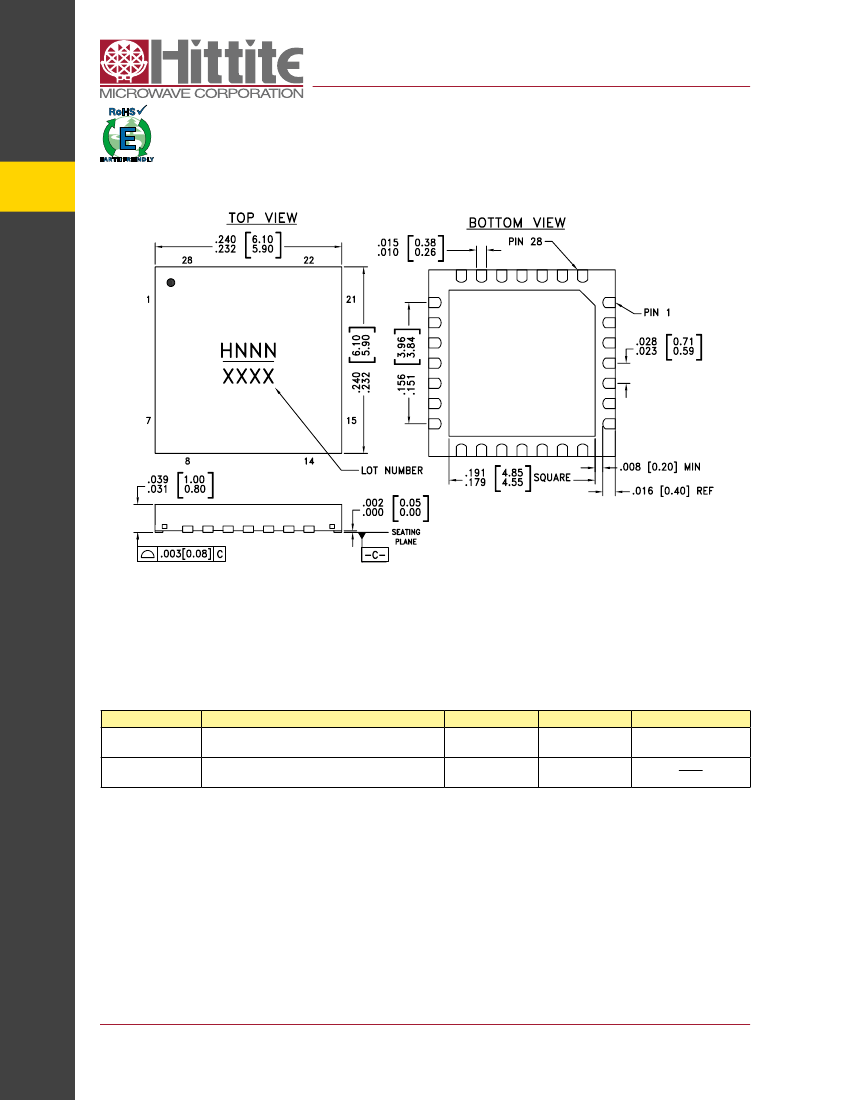

Outline Drawing
Phase shifters - Digital - sMt
NOtes:
1. leaDfraMe Material: COPPer allOY
2. DiMeNsiONs are iN iNChes [MilliMeters].
3. DiMeNsiON DOes NOt iNClUDe MOlDflash Of 0.15mm Per siDe.
4. DiMeNsiON DOes NOt iNClUDe MOlDflash Of 0.25mm Per siDe.
5. all grOUND leaDs MUst Be sOlDereD tO PCB rf grOUND.
6. ClassifieD as MOistUre seNsitiVitY leVel (Msl) 1.
Package Information
Part Number
hMC649lP6
hMC649lP6e
Package Body Material
low stress injection Molded Plastic
rohs-compliant low stress injection Molded Plastic
lead finish
sn/Pb solder
100% matte sn
Msl rating
Msl1
Msl1
[1]
Package Marking
[3]
h646
XXXX
h649
XXXX
[2]
[1] Max peak reflow temperature of 235 °C
[2] Max peak reflow temperature of 260 °C
[3] 4-Digit lot number XXXX
0-5
For price, delivery and to place orders: Hittite Microwave Corporation, 20 Alpha Road, Chelmsford, MA 01824
Phone: 978-250-3343
Fax: 978-250-3373
Order On-line at www.hittite.com
Application Support: Phone: 978-250-3343 or apps@hittite.com
