A3012-230-010-70-Z datasheet, PDF

Datasheet> All Categories > The connector> The connector> A3012-230-010-70-Z

A3012-230-010-70-Z: DescriptionTelecom and Datacom Connector, 6 Contact(s), Male, Right Angle, Solder Terminal, Locking, Receptacle; CategoryThe connector The connector; File Size210KB，1 Pages; ManufacturerSMP Technology Inc.

Download Datasheet Parametric View All

A3012-230-010-70-Z Overview

Telecom and Datacom Connector, 6 Contact(s), Male, Right Angle, Solder Terminal, Locking, Receptacle

A3012-230-010-70-Z Parametric

Parameter Name	Attribute value
Maker	SMP Technology Inc.
Reach Compliance Code	unknown
Other features	ROHS COMPLIANT
Board mount options	SPLIT BOARD LOCK
body width	0.5 inch
subject depth	0.809 inch
body length	0.6 inch
Body/casing type	RECEPTACLE
Connector type	TELECOM AND DATACOM CONNECTOR
Contact to complete cooperation	AU ON NI
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
Contact resistance	20 mΩ
Contact style	TELCOM, MODULAR
Dielectric withstand voltage	1000VAC V
Durability	500 Cycles
Insulation resistance	500000000 Ω
insulator material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
Manufacturer's serial number	A3012
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of ports	1
Maximum operating temperature	90 °C
Minimum operating temperature	-25 °C
PCB contact pattern	STAGGERED
Plating thickness	10u inch
Rated current (signal)	1.5 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.128 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	6

Preview

Download Datasheet

View All

ELECTRICAL:

CURRENT RATING: 1.5A Min.

CONTACT RESISTANCE:

< 20 Milliohm Max.

INSULATION RESISTANCE:

> 500 Megaohm Min.

DIELECTRIC WITHSTANDING VOLTAGE:

1000V (rms) AC for 1 Minute

OPERATING TEMPERATURE: -25° C to +90° C

HOW TO ORDER:

MATERIAL:

INSULATOR: PBT 20% Glass Filled (UL94V-0)

SPRING WIRE: 0.45mm Thickness Phosphor Bronze

Gold Plating Over Nickel

CONTACT PLATING: Gold Plating on Contact Area

Sn-Pb or Gold on Solder Area, all over 50u" Nickel

DURABILITY: 500 Mating Cycles Min.

Rev

0 Issued

A Revised for RoHS Compliance

NUMBER OF POSITIONS:

SHIELD:

1 - 4 POS

3 - 8 POS

0 - NON SHIELDED

2 - 6 POS

NUMBER OF CONTACTS:

1 - 2 CON

3 - 6 CON

NUMBER OF PORTS:

2 - 4 CON

4 - 8 CON

KEYING OPTION:

0 - W/ OUT KEY

1 - W/ KEY

Drawn

A.M.

B.S.

Checked

S.M.

Approved

S.M.

Date

10/14/03

08/25/08

RoHS

PLATING OVERALL:

COMPLIANT

0 - FULL Au FLASH

1 - 10u" Au

FLANGE:

2 - 15u" Au

0 - NO FLANGE

3 - 30u" Au

1 - FLANGE

SELECTIVE PLATING:

6 - Au FLASH CONTACT AREA/TIN TAIL

7 - 10u" Au CONTACT AREA/TIN TAIL

8 - 15u" Au CONTACT AREA/TIN TAIL

9 - 30u" Au CONTACT AREA/TIN TAIL

SMP TECHNOLOGY, INC.

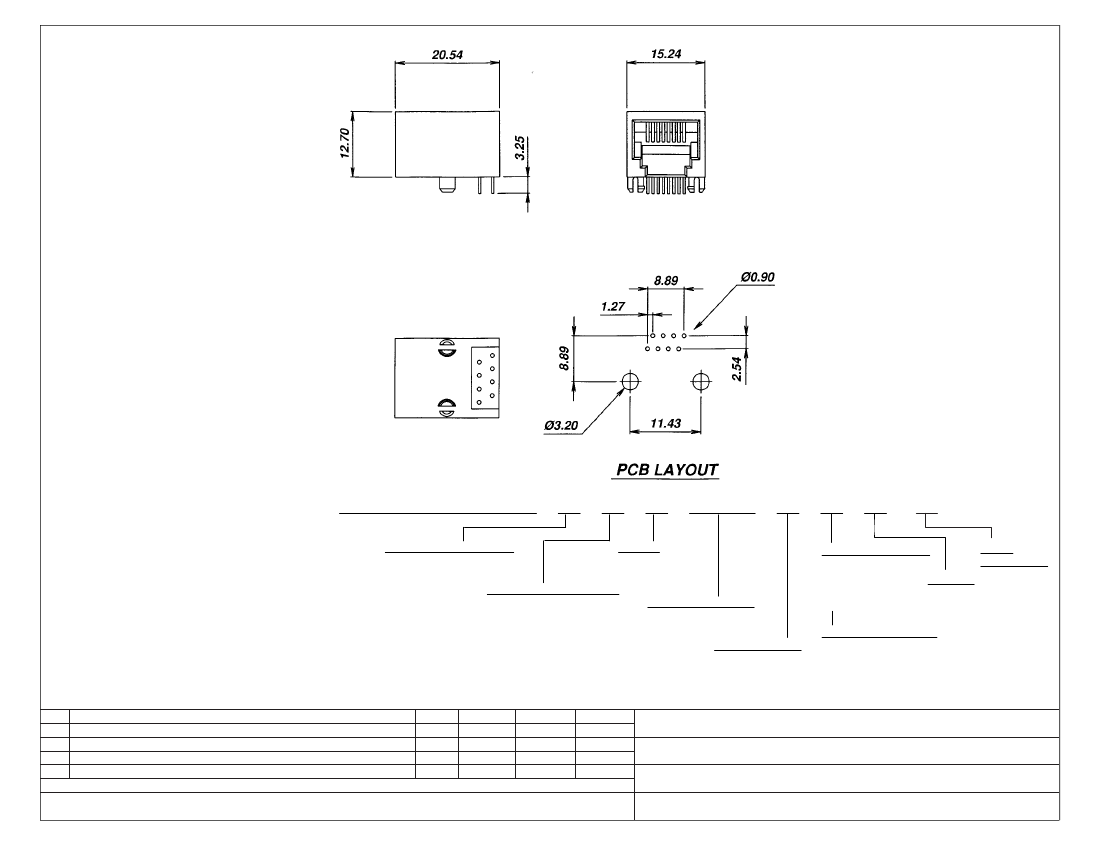

Modular Jack, RJ45, Single Port, Unshielded, Side Entry

TOL. DEC.

.XX +/- 0.25

.XXX +/- .13

.XXXX +/- .05

ANGLE +.45 / -.15

UNIT: mm

P/N: A3012-340-010-XX-Z

Pg: 1
