H1027NLT datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power management> transformer> H1027NLT

H1027NLT: DescriptionDatacom Transformer, 10/100 BASE-TX Application(s), 1:1; 1:1, ROHS COMPLIANT; CategoryPower management transformer; File Size179KB，4 Pages; ManufacturerPulse Electronics; Environmental Compliance

Download Datasheet Parametric Compare View All

H1027NLT Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	H1027NLT	-	-	View	Buy Now

H1027NLT Overview

Datacom Transformer, 10/100 BASE-TX Application(s), 1:1; 1:1, ROHS COMPLIANT

H1027NLT Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Pulse Electronics
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	HEIGHT DIM INCLUDES TERMINALS ALSO
application	10/100 BASE-TX
high	5.84 mm
Insulation voltage	1500 V
length	28.58 mm
Installation features	SURFACE MOUNT
Number of functions	2
Maximum operating temperature	70 °C
Minimum operating temperature

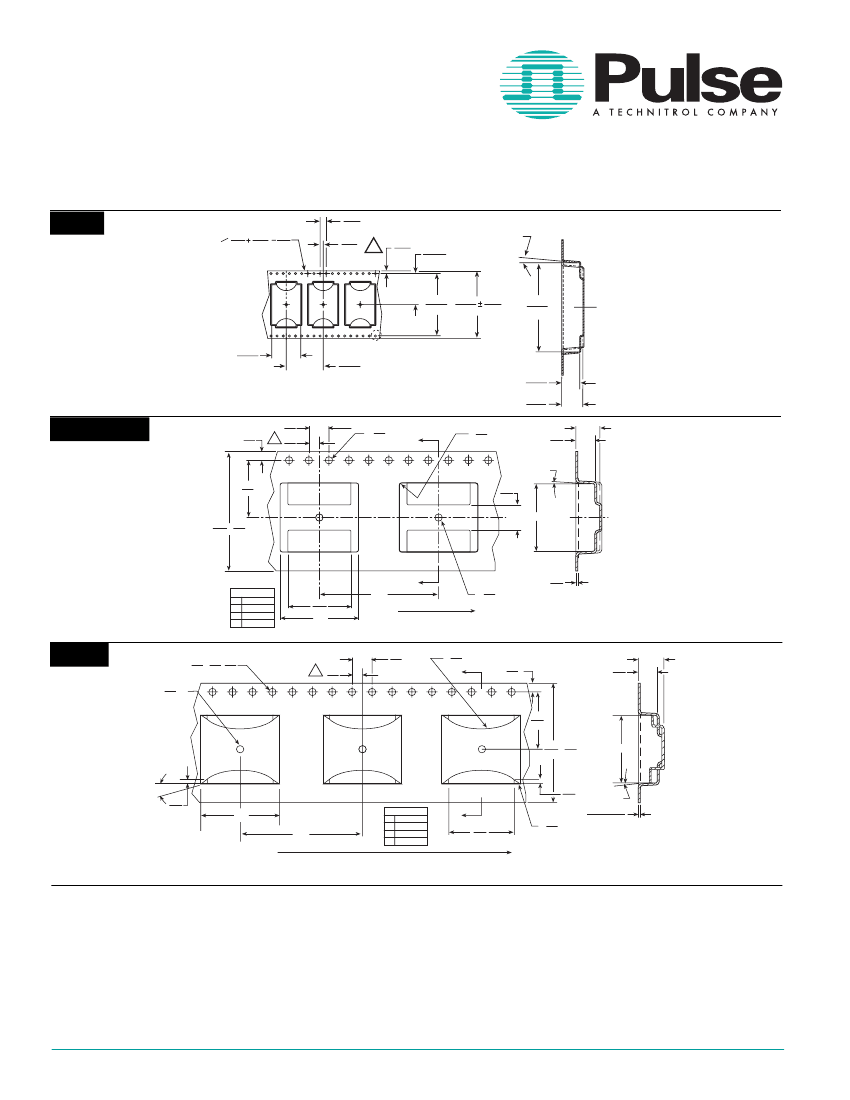

method of packing	TAPE & REEL
physical size	L28.58XB12.32XH5.84 (mm)
Primary inductance	350 µH
surface mount	YES
Transformer type	DATACOM TRANSFORMER
Turns ratio (Np:Ns)	1:1; 1:1
width	12.32 mm

Preview

Download Datasheet

View All

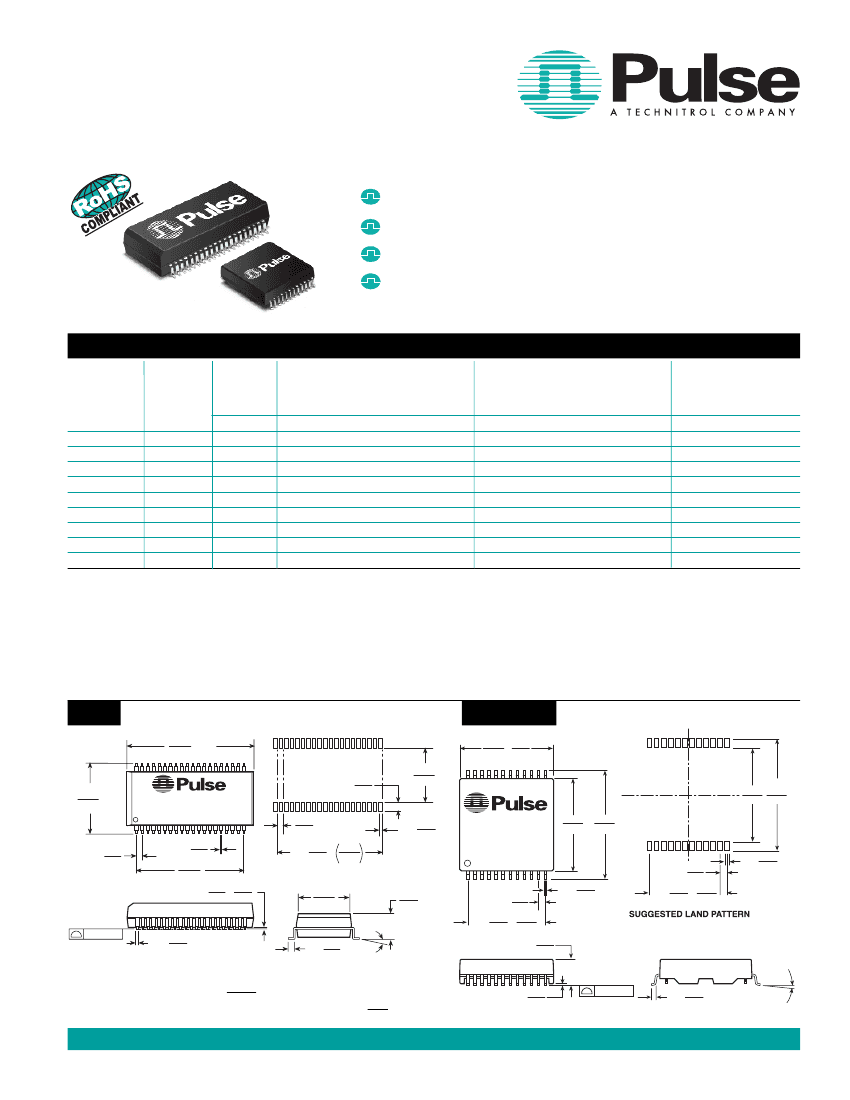

10/100BASE-TX DUAL PORT

TRANSFORMER MODULES

For Use with Transceivers Requiring

1:1 Transmit and Receive Turns Ratios

RoHS-5 peak reflow temperature rating 235°C

RoHS-6 peak reflow temperature rating 245°C

°°

Meets IEEE 802.3 specification

Some models offer AutoMDIX capability

Electrical Specifications @ 25°C — Operating Temperature 0°C to 70°C

RoHS-6

Compliant

Part

Number

H1026NL

H1027NL

H1028NL

H1049 NL

H1114 NL

H1200NL

H1174 NL

H1270NL

2, 6a

HX1294NL

2, 3, 6a

RoHS-5

Compliant

Part

Number

H1026

H1027

H1028

⎯

H1114

⎯

H1174

H1270

2, 6a

HX1294

2, 3, 6c

Insertion

Loss

(dB TYP)

0.1-100MHz

-0.5

-1.2

-1.0

-1.2

2-30MHz

-21

-16

-18

-16

Return Loss

(dB MIN)

40MHz

-17

-14

-14.4

-16

-14

50MHz 60-80MHz

-14.5

-12

-14.5

-12

-14.5

-12

-14.5

-12

-13

-12

-13

-12

-14

-12

-14

-12

-13.5

-10

1MHz

-65

-50

-60

-55

Crosstalk

(dB TYP)

30MHz

-55

-45

60MHz

-45

-40

100MHz

-35

Differential to

Common Mode

Rejection

(dB TYP)

1-60MHz

-40

-53

-45

-37

-45

-30

60-200MHz

-30

-40

-35

-33

-35

-20

All models

meet input/output breakdown (Hipot) of 1500 Vrms.

Suitable

for AutoMDIX applications.

Operating Temperature

-40°C to +85°C.

RoHS-5:

Product does not contain 5 out of the 6 banned substances

specified in the RoHS directive (product contains lead in applications

considered solder).

5. RoHS-6:

Product does not contain 5 out of the 6 banned substances

specified in the RoHS directive. Some internal connections may

cotain lead in high-temperature solder (solder alloys containing more

than 85% lead).

6. MSL

= Moisture Sensitivity Level

a=1 b=2 c=3 d=4.

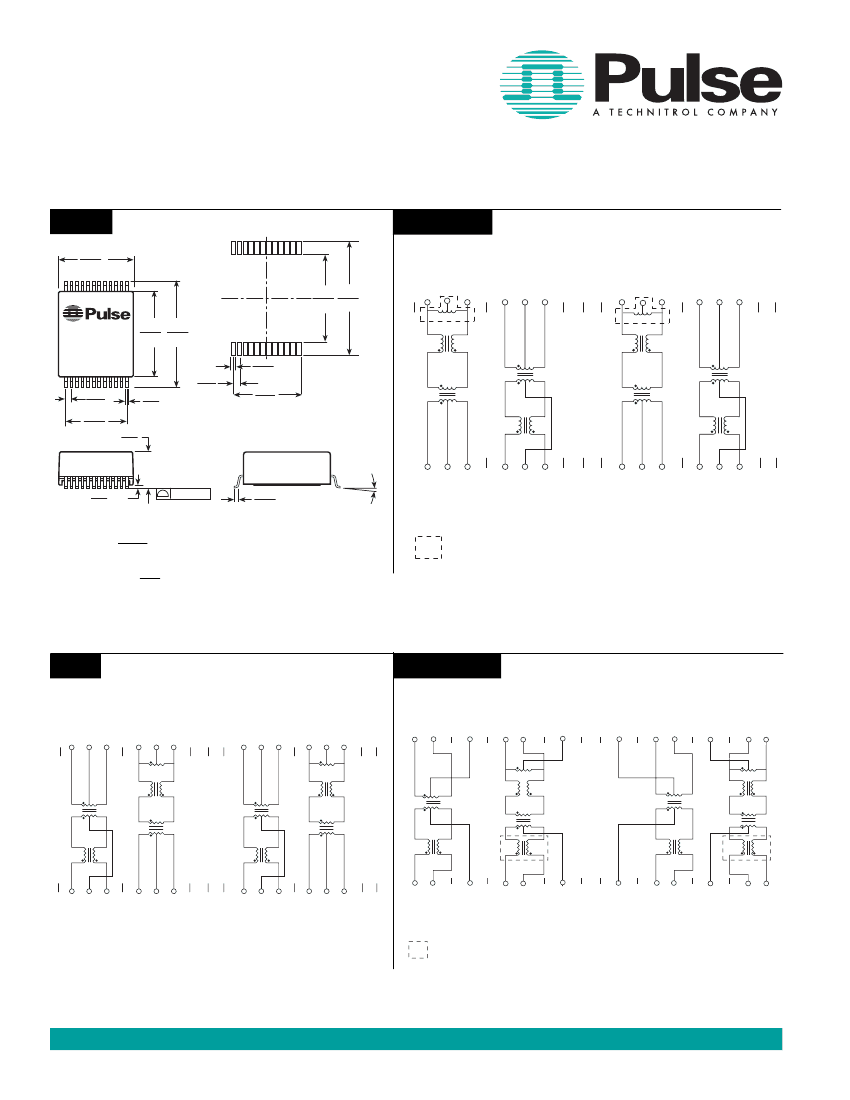

Mechanicals

H1XXX

1.125 MAX

28,58

.090

2,29

.480

12,19

H1174/H1270

.515 ± .005

13,08 0,13

40X

.640 MAX

16,26

H1XXX

DATE CODE

COUNTRY OF ORIGIN

40X

.018

0,46

.950

24,13

.010 .005

0,25 0,13

.050

1,27

.520 .620

13,21 15,75

40X

.030

0,77

H1174 / H1270

DATE CODE

COUNTRY OF ORIGIN

.500

12,70

.590

14,99

24X

.025

0,64

.050

19X

1,27

19X .050 = .950

1,27

24,13

SUGGESTED PAD LAYOUT

.485

12,32

0° 8°

.230 MAX

5,84

.004/0,10

40 Surfaces

40X

.024

0,61

.039

0,99

.039 .429

11X

0,99 10,90

.145

3,68

24X .015

0,38

.039

0,99

.039 .429

11X

0,99 10,90

40X

.045

1,14

24X 0°- 8°

Dimensions:

Inches

Unless otherwise specified, all tolerances are ± .010

0,25

.010

0,25

.004/0,10

24 Surfaces

24X

.025

0,64

USA 858 674 8100

•

Germany 49 7032 7806 0

•

Singapore 65 6287 8998

•

Shanghai

86 21 32181071

•

China 86 755 33966678

•

Taiwan 886 3 4643715

www.pulseeng.com

H322.J (7/08)
