Frequency Synthesizer
DESCRIPTION

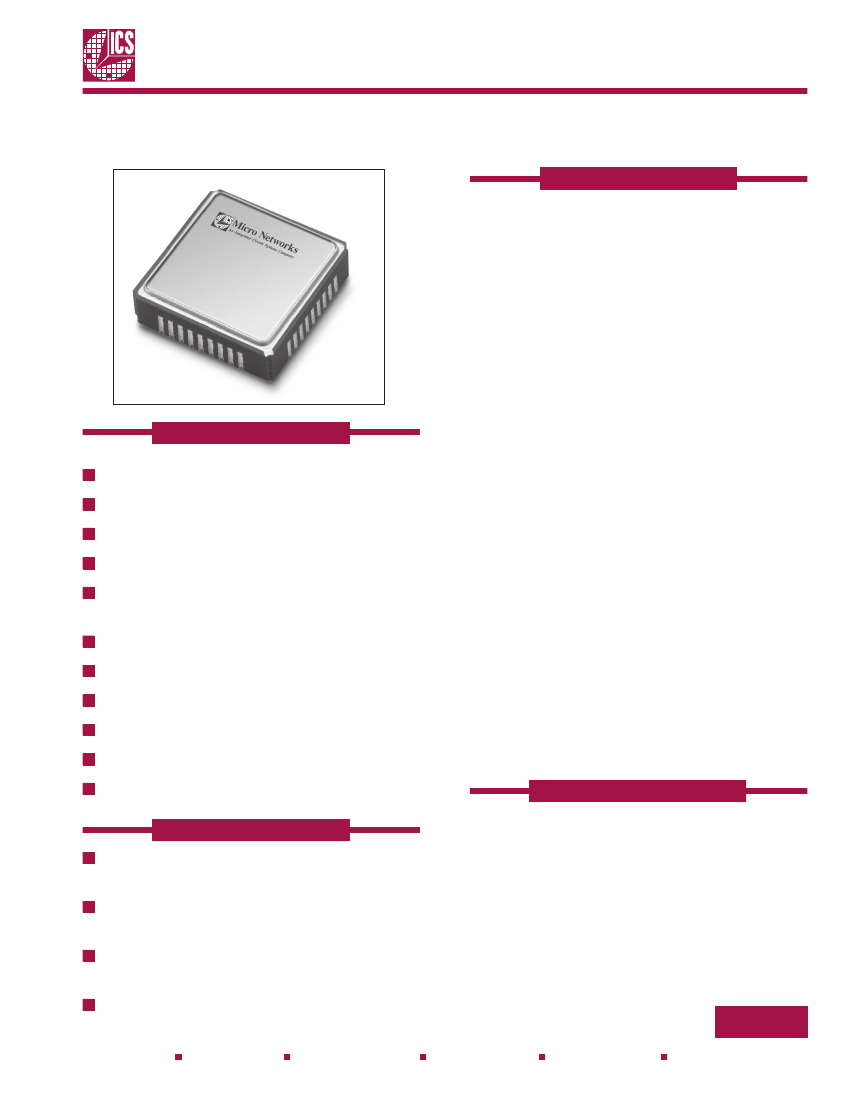

The M2006-01 integrates a high performance Phase Locked
Loop (PLL) with a Voltage Controlled SAW Oscillator (VCSO)
to provide a low jitter Frequency Synthesizer in a 9mm x
9mm surface mount package.
The internal high “Q” SAW filter provides low jitter signal
performance and determines the output frequency of the
VCSO.
Selecting between two differential LVPECL clocks or one
single-ended LVCMOS / LVTTL clock provides the input
reference signal to the Frequency Translator. The maximum
input frequency is 700MHz.
The M2006-01 will default to a multiplying factor of 32 on
power-up. The multiplying factor can be changed by serially
programming the input and feedback dividers via the
configuration logic.
A differential LVPECL signal provides the output clock for
the device. A second differential output which can be
programmed to divide the output frequency by a factor of 4
is also available. The output frequency can be momentarily
increased or decreased to add or subtract one net output
clock cycle by asserting the ADD_CLK or DROP_CLK
inputs, respectively.
An external loop filter sets the PLL bandwidth which can be
optimized to provide jitter attenuation of the input reference
clock. A phase slope limiting feature, which reduces phase
build-out in order to meet GR-253 MTIE upon an input
transient, can be manually selected by asserting the PSL
input. The phase slope limiting feature is automatically
activated whenever a new input reference clock is selected.
The frequency agility, bandwidth control, and phase slope
limiting features make the M2006-01 ideal for use as a clock
jitter attenuator, frequency translator, and clock frequency
generator in OC-3 through OC-192 applications.
FEATURES
Output Clock Frequency up to 700MHz
Intrinsic Jitter <1ps rms (12kHz - 50MHz)
Automatic Phase Slope Limiting
Dual Differential Inputs
Input Compatible with LVPECL, LVDS,
HSTL, SSTL, etc.
Triple Input MUX
Configurable Input and Feedback Dividers
Tunable Loop Filter Response
Two Differential LVPECL outputs
Single 3.3V Supply
Small 9mm x 9mm SMT Package
APPLICATIONS
ABSOLUTE MAX RATINGS
Inputs, V
I
:
................................................. -0.5 to V
CC
+0.5V
Output, V
O
: ................................................. -0.5 to V
CC
+0.5V
Supply Voltage, V
CC
: ......................................................... 4.6 V
Storage Temperature, T
STO
: ............................ -45°C to +100°C
Stresses beyond those listed under Absolute Maximum Ratings may cause
permanent damage to the device. These ratings are stress specifications only.
Functional operation of product at these conditions or any conditions beyond
those listed in the
DC Characteristics
or
AC Characteristics
is not implied.
Exposure to absolute maximum rating conditions for extended periods may
affect product reliability.
SONET / SDH / 10GbE System
Synchronization
Add / Drop Muxes, Access and Edge
Switches
Line Card System Clock Cleaner /
Translator
Optical Module Clock Cleaner / Translator
Micro Networks
324 Clark Street
Worcester, MA 01606
ISO 9001
Registered
tel: 508-852-5400
1
fax: 508-852-8456
www.micronetworks.com
Micro Networks
An Integrated Circuit Systems Company
FUNCTIONAL BLOCK DIAGRAM
The internal PLL will adjust the VCSO output
frequency to be M (feedback divider) divided by R
(input divider) times the selected input reference clock
frequency. Note that the ratio of M/R times input
frequency must be such that it falls within the “lock”
range of the VCSO. The M divider (10-bits) can be
programmed for a maximum value of 1023 and a
minimum value of 4. The R divider (9-bits) can be set
to a maximum value of 511 and a minimum value of 1.
There are two differential LVPECL outputs (Fout 0,
Fout 1) which operate at the VCSO frequency. When
P1 is HIGH the Fout 1 output will operate at 1/4 the
VCSO frequency and when P1 is LOW Fout 1 output
operates at the VCSO frequency.
The relationship between the VCSO frequency, the M
and R dividers, and the input REF_CLK is defined as
follows:
F VCSO = F REF_CLK x M / R
On power-up the R and M dividers are set to 1 and
32, respectively.
The input reference clock is selected from DIF_CLK 0,
DIF_CLK 1, or REF_CLK by selecting the appropriate
REF_SEL 0 and REF_SEL 1 inputs. When a new
reference is selected the M2006-01 will automatically
R
LOOP
C
LOOP
M2006-01
Preliminary Specifications
switch to the “phase slope limiting” mode to control
the phase build-out of the output clocks.
The ADD_CLK and DROP_CLK inputs increments or
decrements the M (feedback) divider for one phase
detector cycle. This results in a momentary increase or
decrease in output frequency and an extra or missing
output clock cycle relative to the input reference clock.
The "phase slope limiter" is used to ensure MTIE
compliance. The PSL input provides manual control.
When PSL is HIGH, the output phase slope is limited by
changing the phase detector gain to a non-linear function.
.
The M2006-01 is serially programmed via a 3 wire interface.
Refer to the timing diagram below (labeled "SERIAL
PROGRAMMING") for the following explanation.
Serial operation begins at point "(a)", when S_LOAD is LOW;
the shift register is loaded one bit at-a-time by sampling
the S_DATA bits with the rising edge of S_CLOCK.
Divider load
occurs at point "(b)" , when S_LOAD transitions
from LOW to HIGH; all of the data in the shift register is
loaded into the R and M dividers.
Latch
occurs at point "(c)", on the HIGH-to-LOW transition of
S_LOAD; divider values will not be affected by serial input.
(If S_LOAD is held HIGH, any S_DATA input is passed directly
to the R and M dividers on each rising edge of S_CLOCK.)
R
POST
C
POST
C
POST
External
Loop Filter
Components
R
LOOP
C
LOOP
OP_OUT
R
POST
nOP_OUT
nVC
VC
M2006-01
MUX
OP_IN
Phase
Detector
nOP_IN
DIF_REF0
nDIF_REF0
DIF_REF1
nDIF_REF1
REF_CLK
REF_SEL1:0
2
R
IN
SAW Delay Line
00
R Divider
R = 1-511
Power-Up
Default = 1
R
IN
01
1X
Loop Filter
Amplifier
Phase
Shifter
VCSO
M Divider
M = 3-1024
Power-Up Default = 32
S_DATA
S_CLOCK
S_LOAD
FOUT0
nFOUT0
P Divider
P = 1 ( P1 = 0 )
or 4 ( P1 = 1 )
Serial
Configuration
Register
FOUT1
nFOUT1
PSL
ADD_CLK
DROP_CLK
P1
SERIAL PROGRAMMING
S_DATA
T2
T1
T0
R8
R7
R6
R5
R4
R3
R2
R1
R0
M9
M8
M7
M6
M5
M4
M3
M2
M1
M0
S_CLOCK
S_LOAD
(a)
(b) (c)
Note: T1 and T0, which are used for test automation, must be set to 0. T2 is set to 1 for normal bandwidth, 0 for narrow bandwidth.
Micro Networks
324 Clark Street
Worcester, MA 01606
tel: 508-852-5400
2
fax: 508-852-8456
www.micronetworks.com
Micro Networks
An Integrated Circuit Systems Company
FUNCTIONAL DESCRIPTION
LOOP FILTER
FIGURE 2
Rloop
Cloop
M2006-01
Preliminary Specifications
The M2006-01 requires the use of an external loop
filter via the provided filter pins. Due to the
differential design, the implementation requires two
identical RC filters as shown in Figure 2.
Rpost
Cpost
Cpost
Rloop
Cloop
Rpost
TABLE 1. EXAMPLE OF LOOP FILTER VALUES
PLL
Bandwidth
330Hz
Damping
Factor
2.0
R loop
C loop
R post
C post
3.9KΩ
12KΩ
24KΩ
2.2µF
.22µF
.1µF
20kΩ
20kΩ
20kΩ
250pF
250pF
250pF
1015Hz
1975Hz
2.0
2.7
Input Reference Frequency = 19.44MHz; VCSO Frequency = 622.0800MHz
Micro Networks
324 Clark Street
Worcester, MA 01606
tel: 508-852-5400
3
fax: 508-852-8456
www.micronetworks.com
Micro Networks
An Integrated Circuit Systems Company
PIN DESCRIPTIONS
TABLE 2
Pin Number
1, 2, 3
4, 9
5, 8
6, 7
10, 14, 26
11, 19, 33
12, 13
15, 16
17
18
Name
GND
OP_IN, nOP_IN
nOP_OUT, OP_OUT
nVC, VC
GND
Vcc
FOUT1, nFOUT1
FOUT0, nFOUT0
P1
S_CLOCK
I/O
Configuration
GND
Analog I/O
Analog I/O
Input
GND
Power
Output
Unterminated
Output
Unterminated
Input
Pull - down
Input
Pull - down
M2006-01
Preliminary Specifications
20
21
22, 29
S_DATA
S_LOAD
REF_SEL1, REF_SEL0
Input
Input
Input
Pull - down
Pull - down
Pull - down
23
24
25
27
28
30
NDIF_CLK0
DIF_CLK0
REF_CLK
NDIF_CLK1
DIF_CLK1
ADD_CLK
Input
Input
Input
Input
Input
Input
Pull - up
Pull - down
Pull - down
Pull - up
Pull - down
Pull - down
31
DROP_CLK
Input
Pull - down
32
PSL
Input
Pull - down
34, 35, 36
Micro Networks
DNC
324 Clark Street
Worcester, MA 01606
Description
Power Supply Ground
Used for external loop filter. See Figure 2.
Used for external loop filter. See Figure 2.
VCSO Differential Control Voltage Input Pair
Power Supply Ground
Positive Supply Pins
Differential output, 3.3V LVPECL levels.
Differential output, 3.3V LVPECL levels.
Determines the output divider value. LVCMOS / LVTTL
interface levels.
Clocks in serial data present at S_DATA input into the
shift register on the rising edge of S_CLOCK.
LVCMOS / LVTTL interface levels.
Shift register serial input. Data is sampled on the rising
edge of S_CLOCK. LVCMOS / LVTTL interface levels.
Controls transition of data from shift register into the
dividers. LVCMOS / LVTTL interface levels.
Selects between the different reference clock inputs as
the PLL reference source. LVCMOS / LVTTL interface
levels.
Inverting differential clock input.
LVCMOS / LVTTL interface levels.
Non-inverting differential clock input. LVCMOS / LVTTL
interface levels.
Reference clock input. LVCMOS / LVTTL interface
levels.
Inverting differential clock input. LVPECL levels.
Non-inverting differential clock input.
Increases the output frequency by one output clock
cycle for a given input clock cycle. The added clock
occurs during the next input clock period following the
rising edge of ADD_CLK. Only one output clock can be
added for each input reference clock cycle. LVCMOS /
LVTTL interface levels.
Decreases the output frequency by one output clock
cycle for a given input clock cycle. The deletion occurs
during the next input clock period following the rising
edge of DROP_CLK. Only one output clock can be
deleted for each input reference clock cycle. LVCMOS /
LVTTL interface levels.
Asserting PSL (phase slope limiter) causes a decrease
in the loop bandwidth by reducing the phase detector
gain. LVCMOS / LVTTL interface levels.
No connection. Internal test pins must be left floating.
fax: 508-852-8456
www.micronetworks.com
tel: 508-852-5400
4
Micro Networks
An Integrated Circuit Systems Company
PIN CHARACTERISTICS
TABLE 4
Symbol
C
IN
Parameter
Input Capacitance
Test Conditions
Min
Typical
M2006-01
Preliminary Specifications
Max
4
Units
pF
R
PULLUP
R
PULLDOWN
Input Pullup Resistor
Input Pulldown Resistor
51
51
kΩ
kΩ
SERIAL MODE FUNCTION
TABLE 5
Inputs
S_LOAD S_CLOCK
L
↑
S_DATA
Data
Conditions
Serial input mode. Shift register loads state of S_DATA on each rising clock of
S_CLOCK. (However, serial input does not affect the values in the R and M dividers.)
↑
↓
L
H
L
L
X
↑
Data
Data
X
Data
Entire contents of the shift register are passed (all at once) to the R and M dividers.
R and M divider values are latched.
Serial input does not affect the values in the R and M dividers.
Serial input affects dividers: S_DATA passed directly to R and M dividers as it is clocked.
Note: L = Low; H = High; X = Don't care;
↑
= Rising Edge Transition;
↓
= Falling Edge Transition
REFERENCE SELECT FUNCTION TABLE
TABLE 5C
Inputs
REF_SEL1 REF_SEL0
0
0
Reference
DIF_CLK0, nDIF_CLK0
0
1
1
X
DIF_CLK1, nDIF_CLK1
REF_CLK
Micro Networks
324 Clark Street
Worcester, MA 01606
tel: 508-852-5400
5
fax: 508-852-8456
www.micronetworks.com
京公网安备 11010802033920号
EEWORLD
