CS Current Detecting Chip Resistors
Surface Mount
Current Detecting
Chip Resistors
CS Surface Mount Current Detecting Resistors
Save Space and Weight
Preview

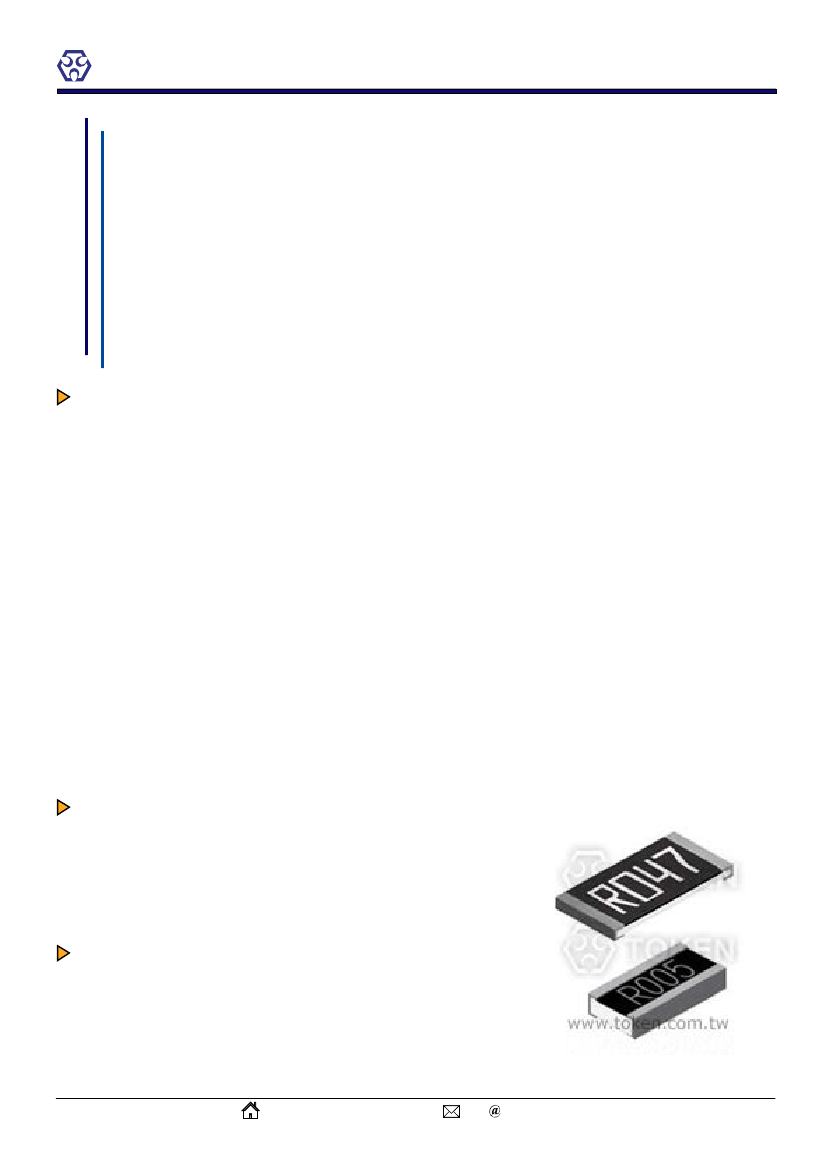

Token Electronics has launched the CS series, a family of ultra small low-value current-sense surface-mount
chip resistors. These smaller sizes save space on the circuit board, allowing the production of smaller and lighter
products.
The new series complements Token’s existing LRC Series, offering metal resistive film on ceramic construction
but providing increased choice for product designers in the form of more smaller sizes options of 0201, 0402,
0603, 0805, 1206, 2010, 2512, 1225, 3720, and 7520.
Designed for current detecting in power electronic systems, the fully RoHS compliant CS series is suitable for a
range of applications including the monitoring of power usage and battery life; and provision of output protection
for power supplies; as well as for a range of consumer and automotive products such as satellite navigation,
handheld PDAs and digital set-top boxes.
The series offers ohmic values as low as 1mΩ to minimise power consumption and has an ambient temperature
range of -55°C to +155°C.
Exhibiting a resistance range up to 1Ω and excellent heat dissipation qualities, the series offers designers
enhanced power handling capabilities and protection from the threat of localised heating, resulting in the
production of a more energy efficient product.
As demand continues to grow for reduced size, handheld and portable devices operating at low voltages,
designers will look to manufacturers to produce smaller and smaller current sense resistors. Token expects that
demand for its latest range of small size resistors will be high.
Contact us with your specific needs.
Features
- Low TCR ±50, ±100PPM/°C
- Resistance Values from 1mΩ to 1 Ω.
- 3W Power Rating in 1W size, 1225 Package.
- Long size Terminations with Higher Power Rating.
- High Purity Alumina Substrate for High Power Dissipation.
- Products with Pb-free Terminations Meet RoHS Requirments.
Applications
- Voltage Regulation Module (VRM).
- Portable Devices (PDA, Cell phone).
- Disk Driver, Switching Power Supply.
- Over Current Protection in Audio Application.
- DC-DC Converter, Battery Pack, Charger, Adaptor.
- Automotive Engine Control, Power Management Applications.
Version 2010
http://www.token.com.tw/
rfq token.com.tw
01 of 08
TOKEN
Item
Temperature Coefficient of
Resistance
Short Time Overload
CS Current Detecting Chip Resistors
Specification
As Spec
Test Method
MIL-STD-202F Method 304
+25/-55/+25/+125/+25°C
Environmental Characteristics
±(0.5% + 0.05Ω)
JIS-C-5202-5.5
ΔR±1% for high power rating
RCWV*2.5 or Max Overloading Voltage 5seconds
MIL-STD-202F Method 301
Dielectric Withstand Voltage by Type
Apply Max Overload Voltage for l minute
MIL-STD-202F Method 302
Insulation Resistance
>1000MΩ
Apply 100VDC for 1minute
MIL-STD-202F Method 107G
Thermal Shock
±(0.5% + 0.05Ω)
-55°C~150°C, 100cycles
MIL-STD-202F Method 108A
Load Life
±(1% + 0.05Ω)
RCWV, 70°C, 1.5 hours on ,
0.5 hours off , 1000~1048 hours
MIL-STD-202F Method 103B
humidity (Steady State)
±(0.5% + 0.05Ω)
40°C, 90~95%RH, RCWV 1.5 hours ON,
0.5 hours OFF, total 1000 ~ 1048 hours
JIS-C-5202-7.2
Resistance to dry heat
±(0.5% + 0.05Ω)
96hours @ +155°C without load
Low Temperature Operation
±(0.5% + 0.05Ω)
Bending Strength
Solderability
As Spec
95%min coverage
JIS-C-5202-7.1
1hour, -65°C followed by 45minutes of RCWV
JIS-C-5202-6.1.4
Bending Amplitude 3mm for 10seconds
MIL-STD-202F Method 208H
260°C±5°C, 2±0.5 (sec)
MIL-STD-202F Method 210E
260±5°C, 10±1 second
Resistance to Soldering Heat
±(0.5% + 0.05Ω)
Note: Storage Temperature: 25±3°C; Humidity: <80%RH

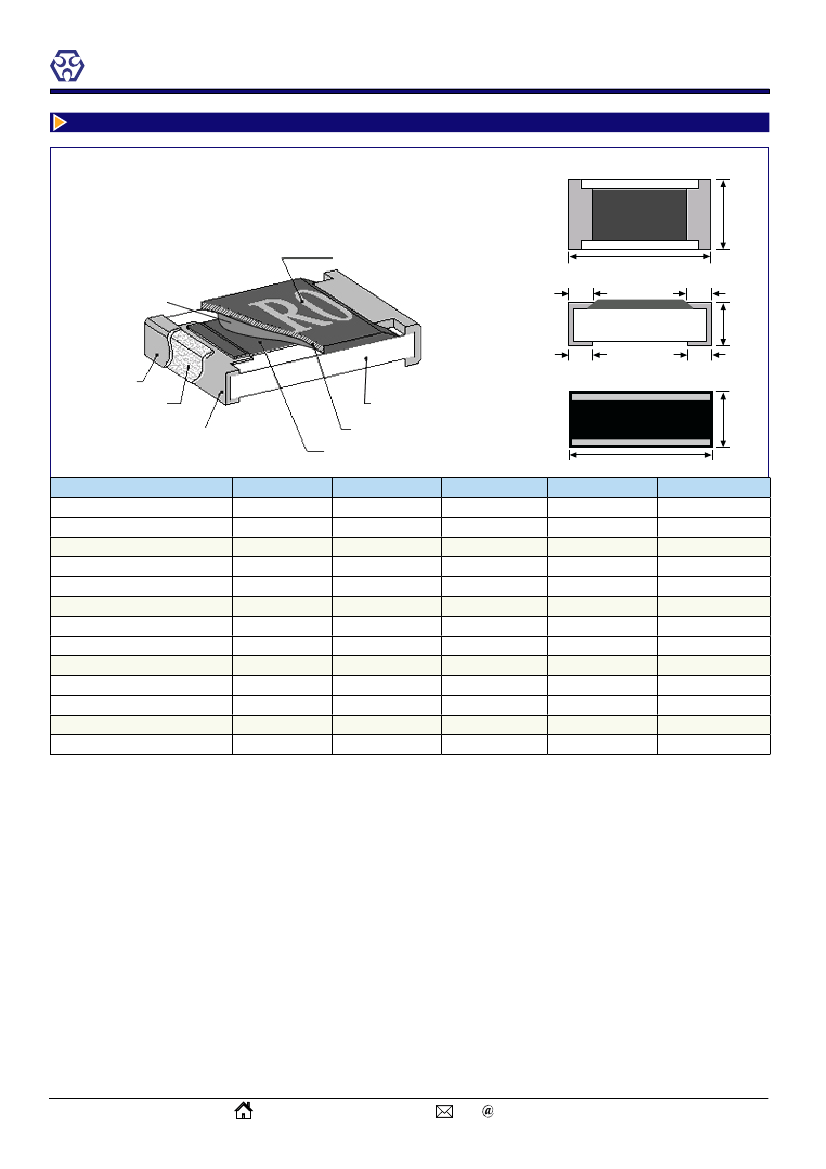

(CS) Marking for 0603
Marking
1R0
R10
R01
101
035
Value
1.000Ω
0.100Ω
0.010Ω
0.101Ω
0.035Ω
Version 2010
http://www.token.com.tw/
rfq token.com.tw
05 of 08
