HS9476J datasheet, PDF - EEWORLD Datasheet

HS9476J: DescriptionADC Subsystem, 16-Bit, 1 Func, Parallel, Word Access, DIP-32; CategoryAnalog mixed-signal IC converter; File Size420KB，8 Pages; ManufacturerAPI Technologies; Websitehttp://www.apitech.com/about-api

Download Datasheet Parametric Compare View All

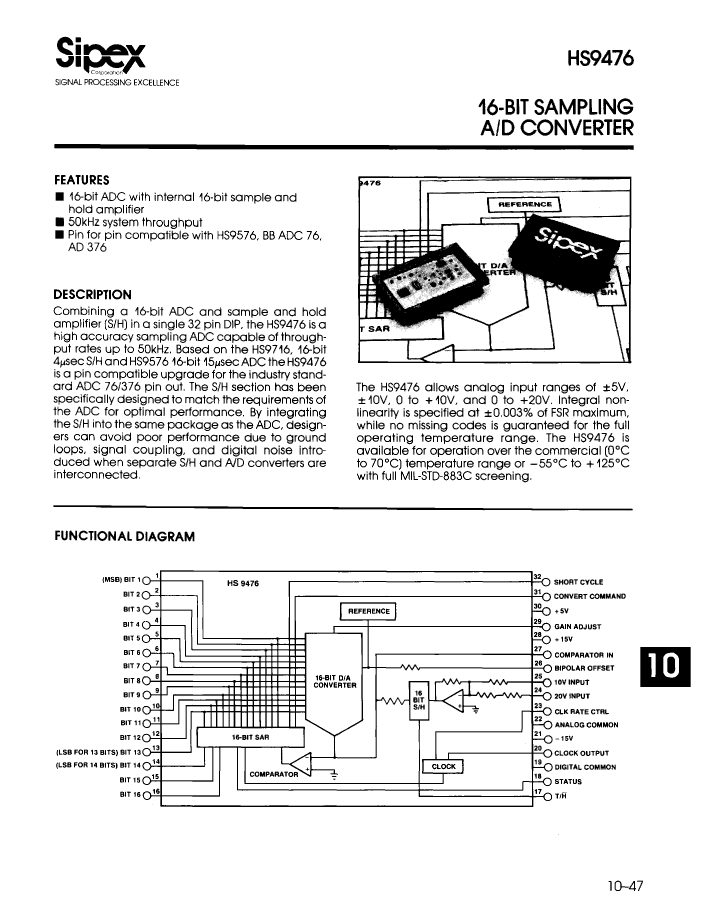

HS9476J Overview

ADC Subsystem, 16-Bit, 1 Func, Parallel, Word Access, DIP-32

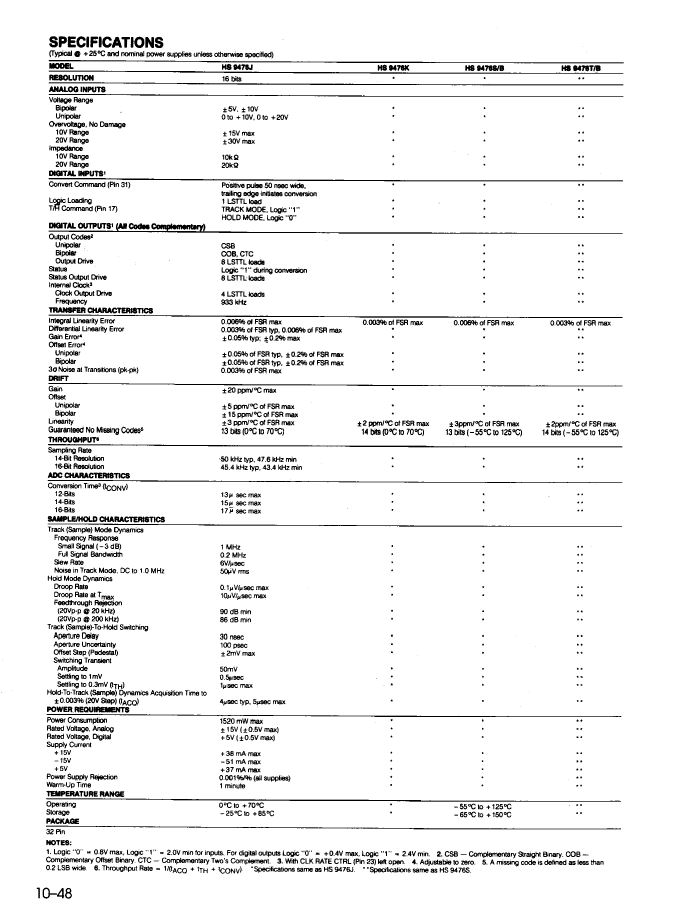

Parameter Name	Attribute value
Maker	API Technologies
package instruction	DIP,
Reach Compliance Code	compliant
Maximum analog input voltage	10 V
Minimum analog input voltage	-10 V
Maximum conversion time	17 µs
Converter type	ADC SUBSYSTEM
JESD-30 code	R-XDIP-T32
Maximum linear error (EL)	0.006%
Nominal negative supply voltage	-15 V
Number of digits	16
Number of functions	1
Number of terminals	32
Maximum operating temperature	70 °C
Minimum operating temperature
Output bit code	COMPLEMENTARY BINARY, COMPLEMENTARY 2\'S COMPLEMENT, COMPLEMENTARY OFFSET BINARY
Output format	PARALLEL, WORD
Package body material	UNSPECIFIED
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
Certification status	Not Qualified
Sampling rate	0.05 MHz
Sample and hold/Track and hold	SAMPLE
Maximum seat height	5.79 mm
Nominal supply voltage	15 V
surface mount	NO
Temperature level	COMMERCIAL
Terminal form	THROUGH-HOLE

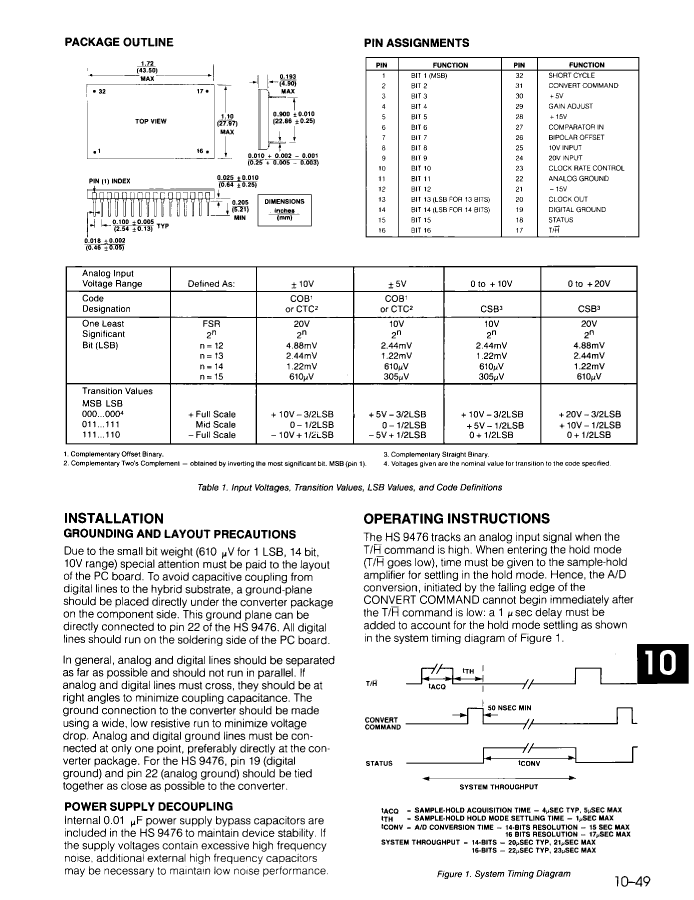

Terminal pitch	2.54 mm
Terminal location	DUAL
width	22.86 mm

	HS9476J
Description	ADC Subsystem, 16-Bit, 1 Func, Parallel, Word Access, DIP-32
Maker	API Technologies
package instruction	DIP,
Reach Compliance Code	compliant
Maximum analog input voltage	10 V
Minimum analog input voltage	-10 V
Maximum conversion time	17 µs
Converter type	ADC SUBSYSTEM
JESD-30 code	R-XDIP-T32
Maximum linear error (EL)	0.006%
Nominal negative supply voltage	-15 V
Number of digits	16
Number of functions	1
Number of terminals	32
Maximum operating temperature	70 °C
Output bit code	COMPLEMENTARY BINARY, COMPLEMENTARY 2\'S COMPLEMENT, COMPLEMENTARY OFFSET BINARY
Output format	PARALLEL, WORD
Package body material	UNSPECIFIED
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
Certification status	Not Qualified
Sampling rate	0.05 MHz
Sample and hold/Track and hold	SAMPLE
Maximum seat height	5.79 mm
Nominal supply voltage	15 V
surface mount	NO
Temperature level	COMMERCIAL
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
width	22.86 mm
