TOKEN
LPS Low Ohm Current Sensing Resistors
Low Ohm
Current Sensing
Resistors
Token (LPS) Family Offers A Variety of
Possibilities for Shunt-Resistors
Preview
Token’s current sense LPS family for shunt-resistors is
expected to gain wide acceptance in the worldwide market
as a result of offering a variety of possibilities.

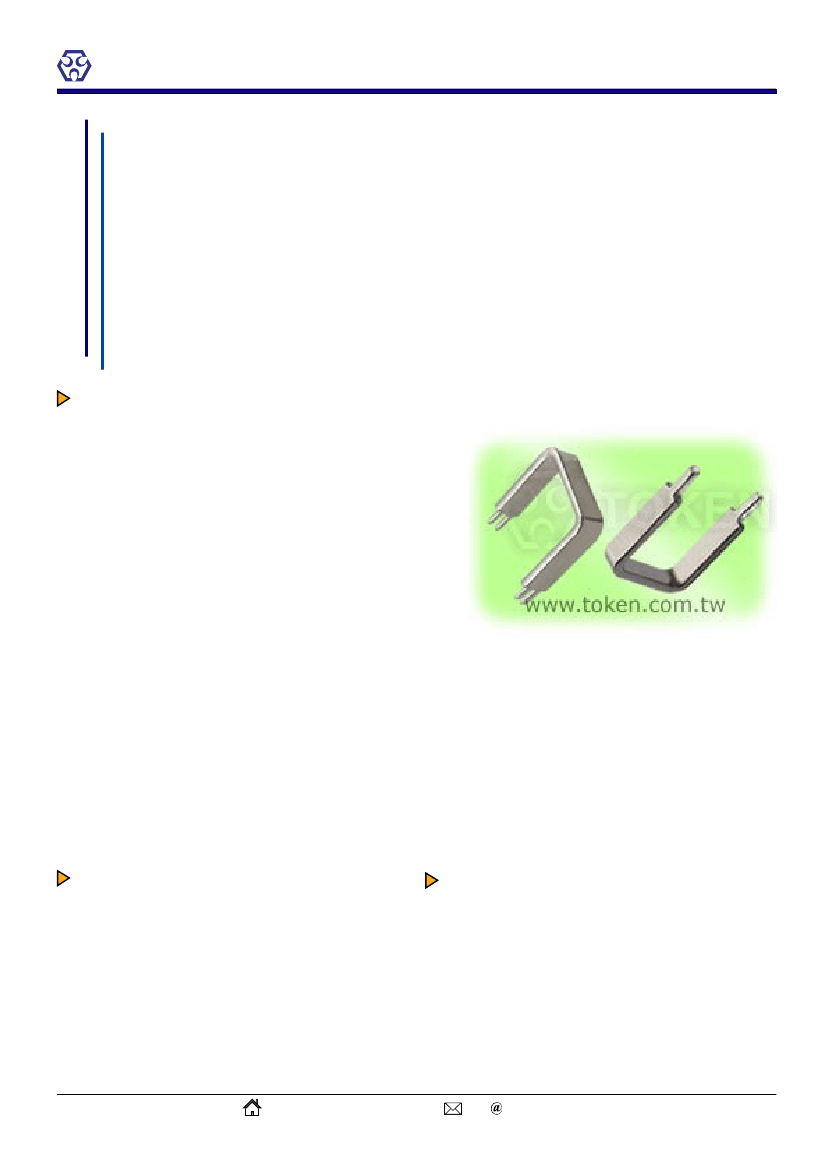

The U-shaped semi-customized LPS family for direct board
mounting is specified for current sensing, feedback, current
detective, supper low inductance, as well as surge and pulse
applications. LPS family Available in very low ohm
(0.002Ω ~ 0.05Ω) and high power (1W ~ 5W).
The dimensions of the semi-customized final unit is designed
in accordance with the applicational requirements of resistance
value and required power rating. Token’s LPS series can be
manufactured with 2 or 4 soldertags (terminals). The LPS type B with 2 soldertags (1 pin on each side) is a
standard part of LPS series and type A with 4 terminals (2 pin on each side) is used either for Kelvin connections
or for high current applications. Depending from the alloy material’s thickness, one terminal contact on each side
can carry up to 50A (A (Current) = (W (Power)/Ω (Resistance))1/2), so a 4-terminal part can carry 100A (ask
Token factory).
Operating temperature range is -50°C to 300°C with tolerances ±2%, ±5%, and ±10%.
Token will also produce low ohm resistor LPS series outside these specifications to meet customer requirements.
Contact us with your specific needs.
Features
- Radial leads.
- Non-inductance.
- Solderable Copper Leads.
- Lead (Pb)-free and RoHS compliant.
- ±2%, ±5%, ±10% standard tolerance.
- High stability bare metal element open air style.
Applications
- High power AC/DC detection.
- Automotive, Feedback System.
- Residual Battery Power Detection.
- Inverter and Switching Power Supplies
- CPU Drive Control, Power Tool Motor controls.
- Power Supply Shunt, Current Detective,
and Current Sensing.
Version 2010
http://www.token.com.tw/
rfq token.com.tw
01 of 03

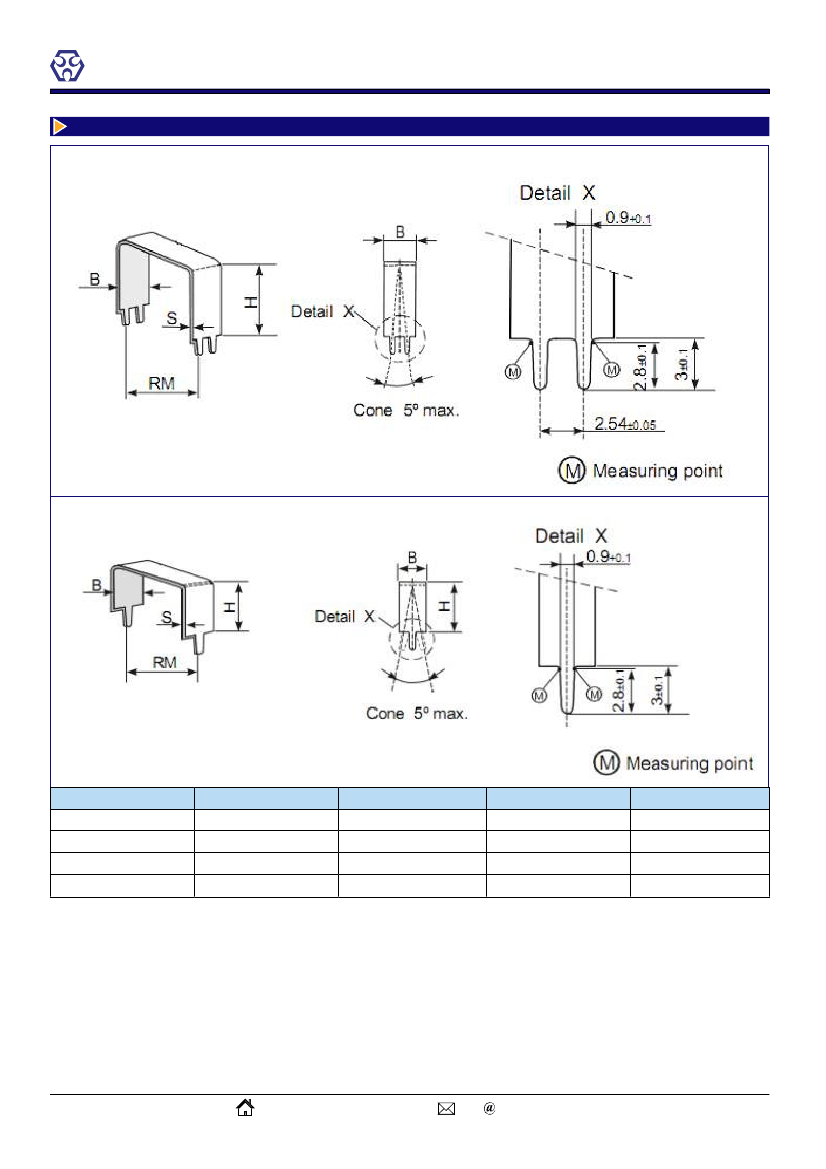

TOKEN
LPS Low Ohm Current Sensing Resistors
Specification
R002~R05
±2%, ±5%, ±10%
Upon request
Non insulated
Non insulated
70~300°C(0W)
55/155/21
-50~300°C
ΔR≤±2%R
ΔR≤±2%R
ΔR≤±0.5%R
None
None
ΔR≤±0.5%R typ.
Good tinning (≥ 90 % covered), no visible damage
Characteristic Specification
Test Items
Resistance range
Tolerances
Temperature coefficient
Insulation voltage
Insulation resistance
Derating, linear
Climatic category
Temperature range
Endurance (P70, 70°C, 1000 Hrs.)
Damp heat, steady state (40°C, 93% r.h., 56d)
Climatic sequence
Terminal strength
Terminal tensile strength
Resistance to soldering heat (350°C, 3.5s)
Solderability (Solder bath method 235±5°C, 2±0.5s)
How to Order
LPS359-008
B
3
R024
J
P
Part Number: LPS359-008, LPS359-009, LPS359-010, LPS359-011
Terminal Type
Code
A
Resistance Value (Ω)
Tolerance %
Code
Tolerance %
B
Rated power
Code
1
2
3
5
Code
4 Terminals
2 Terminals
Rated power
1 Watt
2
Watt
3 Watt
5 Watt
Resistance Value (Ω)
G
J
K
Package-Code
Code
±2%
±5%
±10%
Package-Code
P
Bulk
Resistance Value (Ω)
R002
R010
R022
R050
Version 2010
0.002Ω
0.010Ω
0.022Ω
0.050Ω
Back to 1st Page - Low Ohm Current Sensing Resistors (LPS)
http://www.token.com.tw/
rfq token.com.tw
03 of 03
