M55302-129-04: Description160 CONTACT(S), MALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, SOLDER; CategoryThe connector The connector; File Size111KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric Compare View All

M55302-129-04 Overview

160 CONTACT(S), MALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, SOLDER

M55302-129-04 Parametric

Parameter Name	Attribute value
Maker	TE Connectivity
Reach Compliance Code	unknown
Other features	STANDARD: MIL-C-55302
Connector type	BOARD CONNECTOR
Contact point gender	MALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
MIL compliance	YES
Manufacturer's serial number	M55302
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of rows loaded	3
Options	GENERAL PURPOSE
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	160

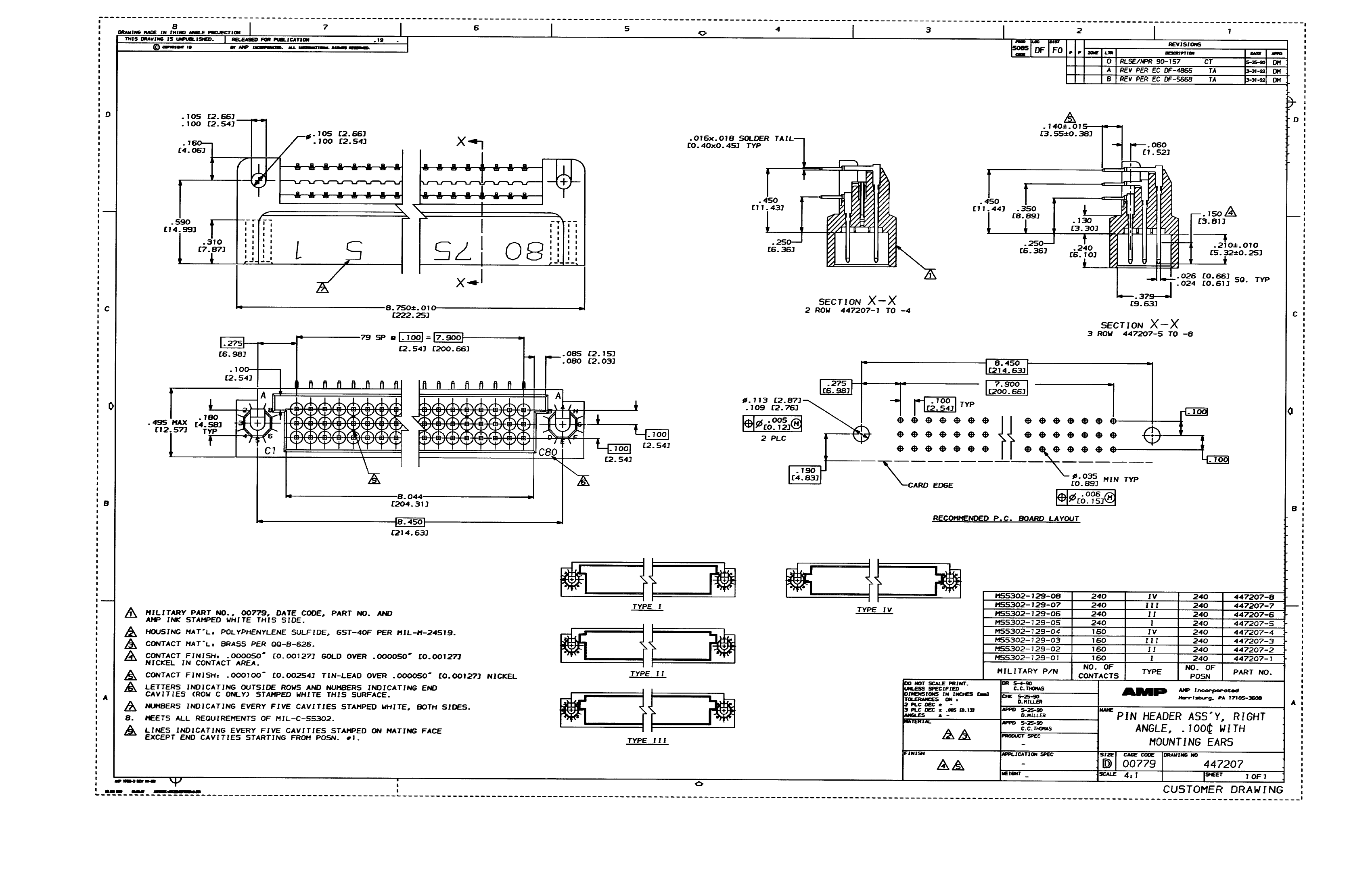

Preview

Download Datasheet

View All

M55302-129-04 Related Products

	M55302-129-04	M55302-129-01	M55302-129-02	BO2525HS1C207EN100	M55302-129-05	M55302-129-06	M55302-129-07	M55302-129-08
Description	160 CONTACT(S), MALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, SOLDER	160 CONTACT(S), MALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, SOLDER	160 CONTACT(S), MALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, SOLDER	Oven Controlled Crystal Oscillator	240 CONTACT(S), MALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, SOLDER	240 CONTACT(S), MALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, SOLDER	240 CONTACT(S), MALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, SOLDER	240 CONTACT(S), MALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, SOLDER
Reach Compliance Code	unknown	unknown	unknown	-	unknown	unknown	unknown	unknown
Other features	STANDARD: MIL-C-55302	STANDARD: MIL-C-55302	STANDARD: MIL-C-55302	-	STANDARD: MIL-C-55302	STANDARD: MIL-C-55302	STANDARD: MIL-C-55302	STANDARD: MIL-C-55302
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	-	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact point gender	MALE	MALE	MALE	-	MALE	MALE	MALE	MALE
DIN compliance	NO	NO	NO	-	NO	NO	NO	NO
Filter function	NO	NO	NO	-	NO	NO	NO	NO
IEC compliance	NO	NO	NO	-	NO	NO	NO	NO
MIL compliance	YES	YES	YES	-	YES	YES	YES	YES
Mixed contacts	NO	NO	NO	-	NO	NO	NO	NO
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	-	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD	-	BOARD	BOARD	BOARD	BOARD
Number of rows loaded	3	3	3	-	3	3	3	3
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	-	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	-	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Termination type	SOLDER	SOLDER	SOLDER	-	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	160	160	160	-	240	240	240	240
