DATA SHEET
ZENER DIODES
RD2.0S to RD150S
ZENER DIODES
200 mW 2-PIN SUPER MINI MOLD
DESCRIPTION
Type RD2.0S to RD150S series are 2 pin super mini

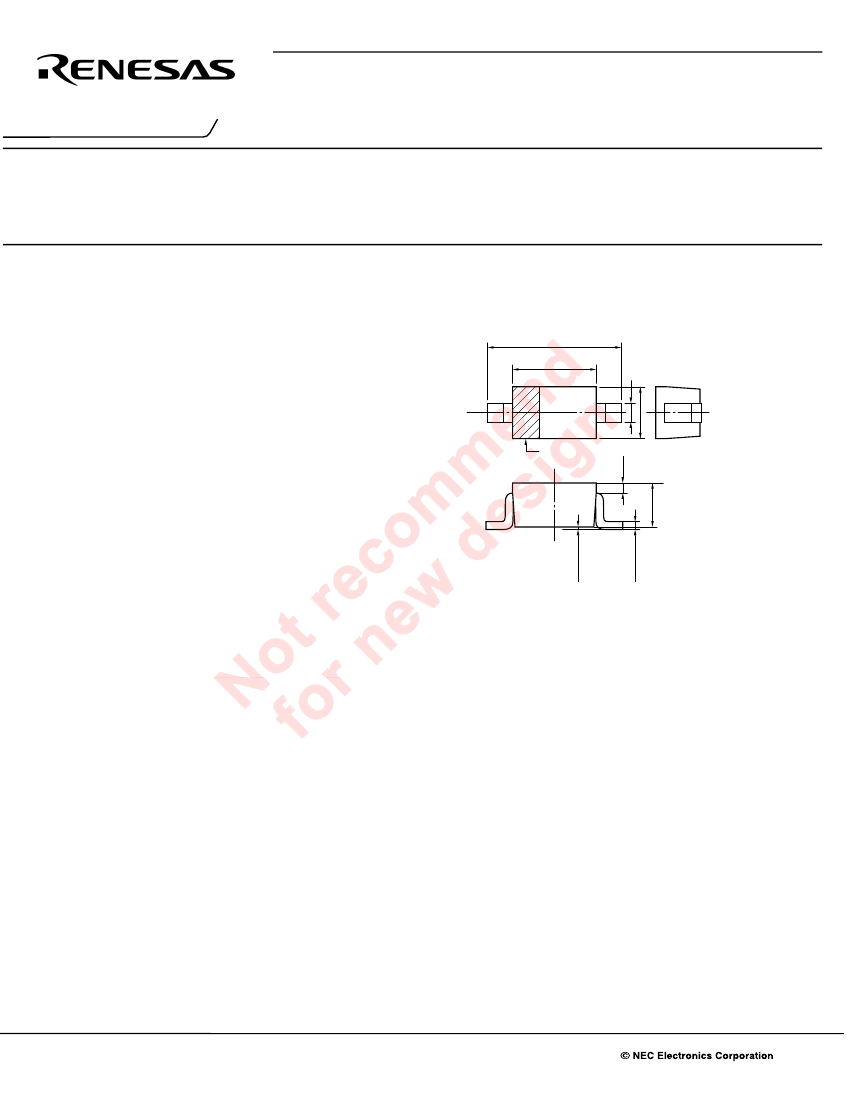

PACKAGE DRAWING (Unit: mm)
2.5±0.15
1.7±0.1
power dissipation of 200 mW.
FEATURES
•
Sharp breakdown characteristic
0.19
0.11
+0.05
−0.01
0.9±0.1
•
V
Z
: Applied E24 standard
Cathode
Indication
APPLICATIONS
Circuit for constant voltage, constant current, wave form
clipper, surge absorver, etc.
0±0.05
ABSOLUTE MAXIMUM RATINGS (T
A
= 25°C)
Power Dissipation
Forward Current
Reverse Surge Power
Junction Temperature
Storage Temperature
P
I
F
P
RSM
T
j
T
stg
200
100
85
150
–55 to +150
mW
mA
W
°C
°C
(at t = 10
μ
s/ 1 pulse) Show Fig.12
The information in this document is subject to change without notice. Before using this document, please
confirm that this is the latest version.
Not all products and/or types are available in every country. Please check with an NEC Electronics
sales representative for availability and additional information.
Document No.
D11444EJ6V0DS00 (6th edition)
Date Published August 2006 NS CP(K)
Printed in Japan
0.3±0.05
1.25±0.1
mold package zener diodes possessing an allowable
2003
The mark <R> shows major revised points.
The revised points can be easily searched by copying an "<R>" in the PDF file and specifying it in the "Find what:" field.
