Datasheet> All Categories > Wireless rf/communication> Radio frequency and microwave> BPF-2A-2250

Preview

BPF-2A-2250: DescriptionModulator, BIPhase, 1500MHz Min, 2500MHz Max, HERMETIC, 8 PIN; CategoryWireless rf/communication Radio frequency and microwave; File Size414KB，1 Pages; ManufacturerCrane Co.; Environmental Compliance

Download Datasheet Parametric Compare View All

BPF-2A-2250 Overview

Modulator, BIPhase, 1500MHz Min, 2500MHz Max, HERMETIC, 8 PIN

BPF-2A-2250 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Crane Co.
Reach Compliance Code	compliant
Other features	HIGH RELIABILITY
Characteristic impedance	50 Ω
Maximum input power (CW)	-3 dBm
modulation technology	BIPHASE
Maximum operating frequency	2500 MHz
Minimum operating frequency	1500 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
RF/Microwave Device Types	MODULATOR
Maximum voltage standing wave ratio	2

Preview

Download Datasheet

View All

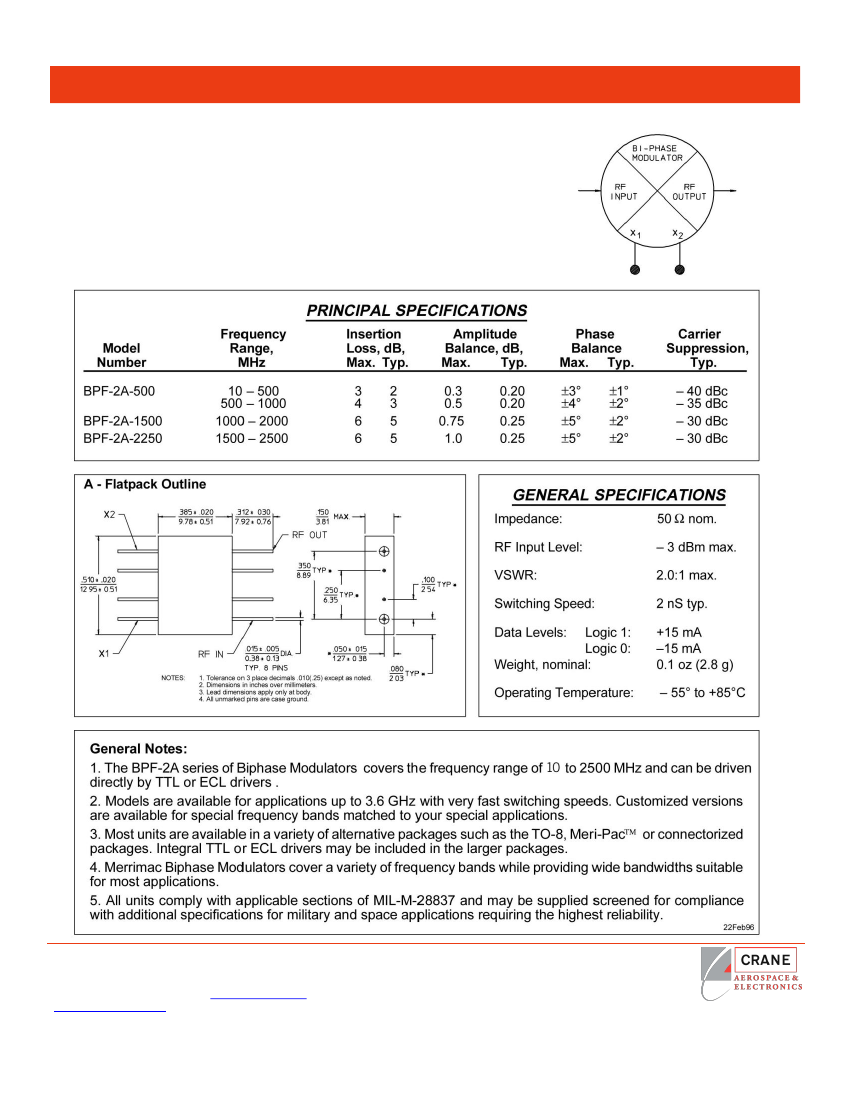

Crane Aerospace & Electronics Microwave Solutions

BPF-2A S

ERIES

, B

IPHASE

M

ODULATORS

TECHNICAL FEATURE

FEATURES



2 – 2500 MHz

ECL & TTL Compatible

Hi-Rel Hermetic Package

Crane Aerospace & Electronics

Microwave Solutions – Merrimac Industries

41 Fairfield Place, West Caldwell, NJ 07006

+ 1.973.575.1300 ext. 1309



mw@crane-eg.com

www.craneae.com/mw

BPF2A.doc. This revision supersedes all previous releases. All technical information is believed to be accurate, but no responsibility is assumed for errors. We

BPF-2A-2250 Related Products

	BPF-2A-2250	BPF-2A-1500	BPF-2A-500
Description	Modulator, BIPhase, 1500MHz Min, 2500MHz Max, HERMETIC, 8 PIN	Modulator, BIPhase, 1000MHz Min, 2000MHz Max, HERMETIC, 8 PIN	Modulator, BIPhase, 10MHz Min, 1000MHz Max, HERMETIC, 8 PIN
Is it Rohs certified?	conform to	conform to	conform to
Reach Compliance Code	compliant	compliant	compli
Other features	HIGH RELIABILITY	HIGH RELIABILITY	HIGH RELIABILITY
Characteristic impedance	50 Ω	50 Ω	50 Ω
Maximum input power (CW)	-3 dBm	-3 dBm	-3 dBm
modulation technology	BIPHASE	BIPHASE	BIPHASE
Maximum operating frequency	2500 MHz	2000 MHz	1000 MHz
Minimum operating frequency	1500 MHz	1000 MHz	10 MHz
Maximum operating temperature	85 °C	85 °C	85 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C
RF/Microwave Device Types	MODULATOR	MODULATOR	MODULATOR
Maximum voltage standing wave ratio	2	2	2
Maker	Crane Co.	-	Crane Co.
