BTW30-600 datasheet, PDF - EEWORLD Datasheet

BTW30-600: Description25A, 600V, SCR, TO-48; CategoryAnalog mixed-signal IC Trigger device; File Size51KB，1 Pages; ManufacturerSTMicroelectronics; Websitehttp://www.st.com/

Download Datasheet Parametric View All

BTW30-600 Overview

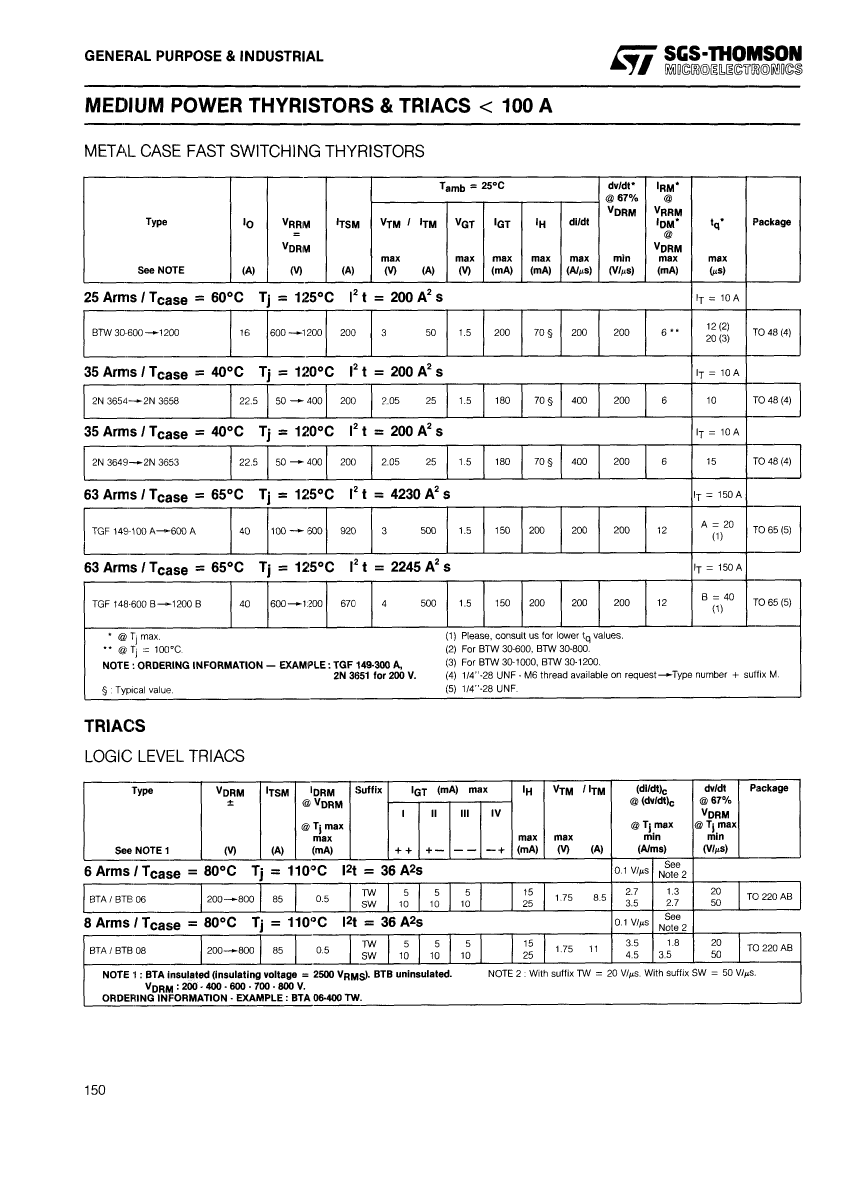

25A, 600V, SCR, TO-48

Parameter Name	Attribute value
Maker	STMicroelectronics
package instruction	POST/STUD MOUNT, O-MUPM-D2
Reach Compliance Code	compliant
Other features	FAST
Shell connection	ANODE
Nominal circuit commutation break time	12 µs
Configuration	SINGLE
Critical rise rate of minimum off-state voltage	200 V/us
Maximum DC gate trigger current	200 mA
Maximum DC gate trigger voltage	1.5 V
JEDEC-95 code	TO-48
JESD-30 code	O-MUPM-D2
Maximum leakage current	6 mA
On-state non-repetitive peak current	200 A
Number of components	1
Number of terminals	2
Maximum on-state current	25000 A
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
Package body material	METAL
Package shape	ROUND
Package form	POST/STUD MOUNT
Certification status	Not Qualified
Maximum rms on-state current	25 A
Maximum repetitive peak off-state leakage current	50 µA
Off-state repetitive peak voltage	600 V
Repeated peak reverse voltage	600 V
surface mount	NO
Terminal form	SOLDER LUG
Terminal location	UPPER
Trigger device type	SCR
