413590-1 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 413590-1

413590-1: DescriptionPANEL MOUNT, CABLE TERMINATED, FEMALE, BNC CONNECTOR, CRIMP, JACK; CategoryThe connector The connector; File Size275KB，12 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric Compare View All

413590-1 Overview

PANEL MOUNT, CABLE TERMINATED, FEMALE, BNC CONNECTOR, CRIMP, JACK

413590-1 Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknow
Other features	APPLICABLE CABLES: BELDEN 88241; RG 302/U; RG 62A/U
Body/casing type	JACK
Characteristic impedance	75 Ω
Connector type	RF BNC CONNECTOR
Contact completed and terminated	TIN LEAD OVER NICKEL
Contact point gender	FEMALE
Coupling type	BAYONET
DIN compliance	NO
Filter function	NO
IEC compliance	NO
Insertion loss	0.15 dB
insulator material	POLYETHYLENE
JESD-609 code	e0
MIL compliance	NO
Manufacturer's serial number	413590
Installation method	STRAIGHT
Installation type	CABLE
Maximum operating frequency	2 GHz
Options	GENERAL PURPOSE
Panel mounting	YES
Termination type	CRIMP
voltage standing wave ratio	1.3
Base Number Matches	1

Preview

Download Datasheet

View All

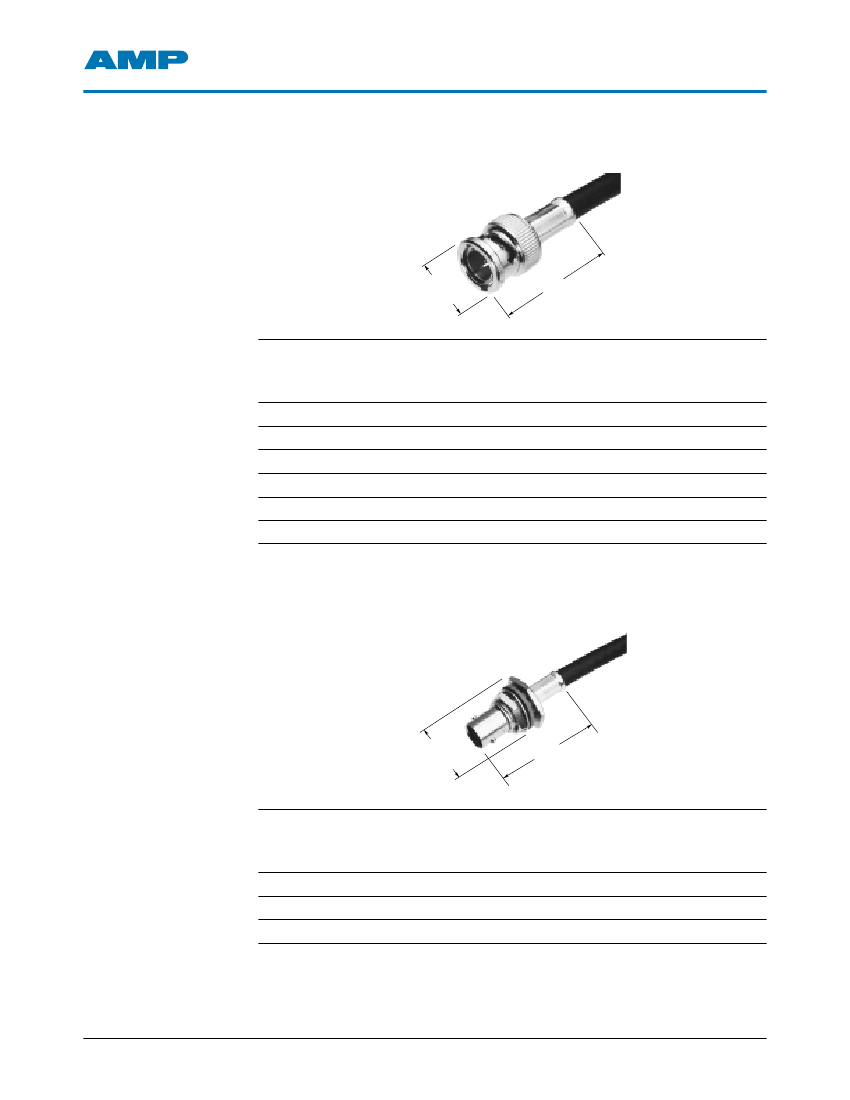

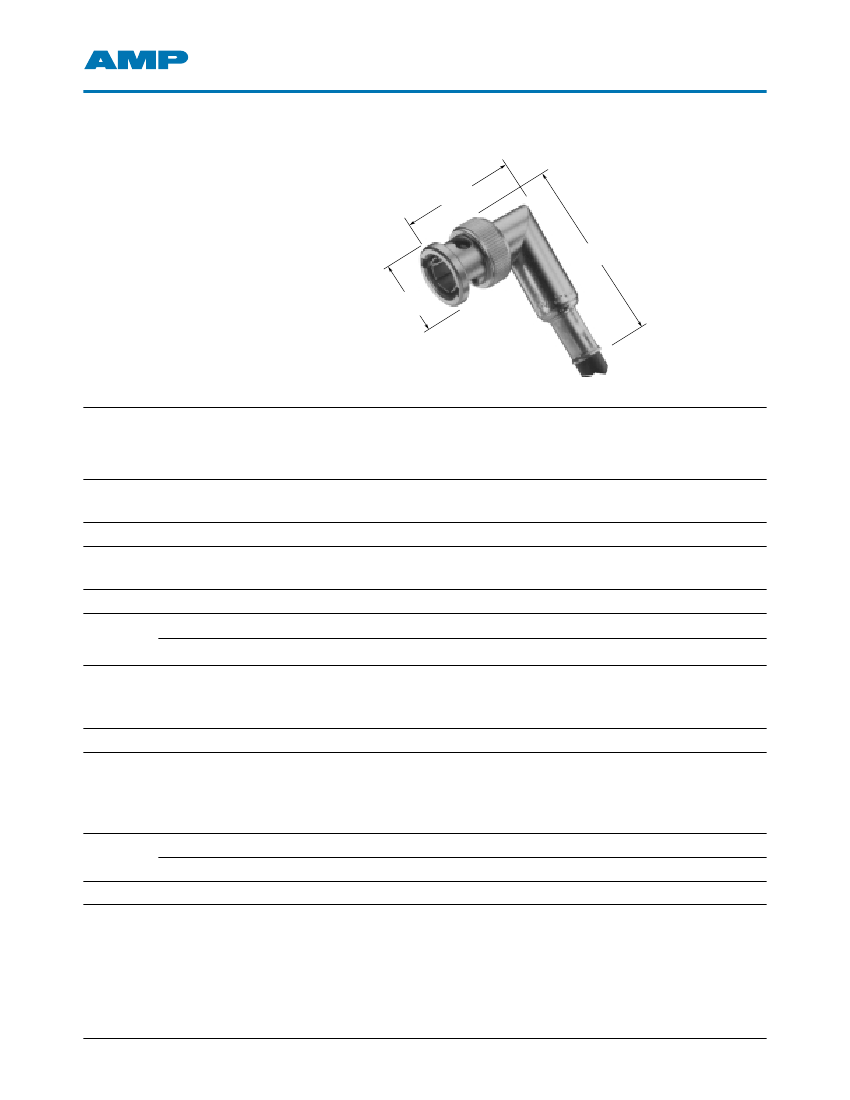

Catalog 1307191

Revised 10-00

RF Coax Connectors

BNC Connectors, 75 Ohm

Plugs, Crimp

These connectors have been designed

for optimum performance and have a

true 75 ohm impedance the complete

length of the connector. The crimp die

tooling listed below is different from the

equivalent 50 ohm connectors.

Hex and O Crimp

14.53

[.572]

Dia. Max.

Max.

Plugs

RG/U

Cable

Termination

Type

Center

Contact

Plating

Body

Plating

Dim.

Interchangeable

Dies for

PRO-CRIMPER

Hand Tool

354940-1 or

PRO-CRIMPER

Adapter 679304-1

58425-2

318451-2

58559-1

—

58425-2

58174-1

58425-2

58174-1

58425-1

58536-1

58558-1

—

58425-1

Interchangeable

Dies for Hand

Tool 69710-1

& 626 Pneu.

Head 318161-1

—

58248-3

—

58248-3

—

58248-2

—

Dielectric

Style

Part No.

179, 179A,

179B, 187,

187A, 161,

Belden 9221

179

Hex Crimp

O Crimp

Gold

Nickel

Polyethelene

Commercial

29.46

1.160

35.56

1.140

27.69

1.090

29.46

1.160

27.69

1.090

29.46

1.160

29.46

1.160

27.69

1.090

29.46

1.160

27.69

1.090

27.69

1.090

413589-8

221185-8

414858-2

414918-2

1,3

1-413589-0

1-221185-8

413589-4

413589-3

221185-3

413589-2

221185-2

414858-1

414918-1

2,3

413589-1

O Crimp

Gold

Nickel

Polyethelene

Economy

Hex Crimp

AT&T 735A

O Crimp

AT&T KS 19224 L2,

RD179 , Double Braid

Belden 8218

O Crimp

140, 210, 62, 62A,

62B, 59, 59A, 59B,

Belden 9291,

9209, 9269

59, 59A, 59B

302, Belden 89269,

88241, Hi-Temp 62A,

Times PL-62, Berk Tek

BTDC-59, BTDC-62

Belden 8212, 9104,

9112, 9167, 9240, 9259,

9266, Times FM-59,

(RG-59 Type

with 20 AWG C.C.)

Belden 9145,

AT&T 734A

Belden 9248,

9114

6, 6A

Belden 8281,

9141, 9231,

Western

Electric 724,

728, 3049

Comm/Scope

S59 Hec

Comm/Scope

F59 Hec-z

Belden

88281

Gold

Nickel

Polyethelene

Commercial

Hex Crimp

O Crimp

Gold

Nickel

Polyethelene

Economy

Hex Crimp

Gold

Nickel

Polyethelene

Commercial

29.46

1.160

29.46

1.160

27.69

1.090

29.46

1.160

27.69

1.090

25.65

1.010

37.85

1.490

29.46

1.160

28.45

1.120

28.96

1.140

28.96

1.140

27.69

1.090

Hex Crimp

O Crimp

Hex Crimp

O Crimp

Hex Crimp

O Crimp

Gold

Nickel

Polyethelene

Commercial

58425-1

58536-1

58425-1

58536-1

58538-1

58425-3

58538-1

58536-1

58538-1

—

58248-2

—

58248-1

—

58248-1

—

413589-9

221185-9

413589-7

1-221185-0

221185-1

221185-7

413589-5

221185-5

2-221185-9

3-221185-1

3-221185-3

Kit includes connector subassembly and ferrule only, center contact part no. 1-414724-0 supplied separately on strip.

Kit includes connector subassembly and ferrule only, center contact part no. 414724-4 supplied separately on strip.

Terminate with Amp-o-lectric terminating machine 220152-1 with applicator.

Technical Support Center/AMP FAX Service

1-800-522-6752 717-986-7777

Dimensions are in

millimeters over [inches]

www.amp.com/communications/com

Specifications

subject to change.

413590-1 Related Products

	413590-1	414918-2	413590-7	CFU-1215/8/5/3
Description	PANEL MOUNT, CABLE TERMINATED, FEMALE, BNC CONNECTOR, CRIMP, JACK	CABLE TERMINATED, MALE, BNC CONNECTOR, CRIMP, PLUG	PANEL MOUNT, CABLE TERMINATED, FEMALE, BNC CONNECTOR, CRIMP, JACK	Analog Circuit
Reach Compliance Code	unknow	unknown	unknown	unknown
Other features	APPLICABLE CABLES: BELDEN 88241; RG 302/U; RG 62A/U	APPLICABLE CABLE: RG 179/U	APPLICABLE CABLE: BELDEN 8218	-
Body/casing type	JACK	PLUG	JACK	-
Characteristic impedance	75 Ω	75 Ω	75 Ω	-
Connector type	RF BNC CONNECTOR	RF BNC CONNECTOR	RF BNC CONNECTOR	-
Contact completed and terminated	TIN LEAD OVER NICKEL	TIN LEAD OVER NICKEL	TIN LEAD OVER NICKEL	-
Contact point gender	FEMALE	MALE	FEMALE	-
Coupling type	BAYONET	BAYONET	BAYONET	-
DIN compliance	NO	NO	NO	-
Filter function	NO	NO	NO	-
IEC compliance	NO	NO	NO	-
Insertion loss	0.15 dB	0.15 dB	0.15 dB	-
insulator material	POLYETHYLENE	POLYETHYLENE	POLYETHYLENE	-
JESD-609 code	e0	e0	e0	-
MIL compliance	NO	NO	NO	-
Manufacturer's serial number	413590	414918	413590	-
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	-
Installation type	CABLE	CABLE	CABLE	-
Maximum operating frequency	2 GHz	2 GHz	2 GHz	-
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	-
Panel mounting	YES	NO	YES	-
Termination type	CRIMP	CRIMP	CRIMP	-
voltage standing wave ratio	1.3	1.3	1.3	-
Base Number Matches	1	1	1	-
