SCOCXOT-AR119.440MHZ datasheet, PDF

Datasheet> All Categories > Passive components> oscillator> SCOCXOT-AR119.440MHZ

SCOCXOT-AR119.440MHZ: DescriptionHCMOS Output Clock Oscillator; CategoryPassive components oscillator; File Size49KB，2 Pages; ManufacturerGolledge Electronics; Websitehttp://www.golledge.com/; Environmental Compliance

Download Datasheet Parametric View All

SCOCXOT-AR119.440MHZ Overview

HCMOS Output Clock Oscillator

SCOCXOT-AR119.440MHZ Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Golledge Electronics
Reach Compliance Code	compliant
Manufacturer's serial number	SCOCXOT
Oscillator type	HCMOS

Preview

Download Datasheet

View All

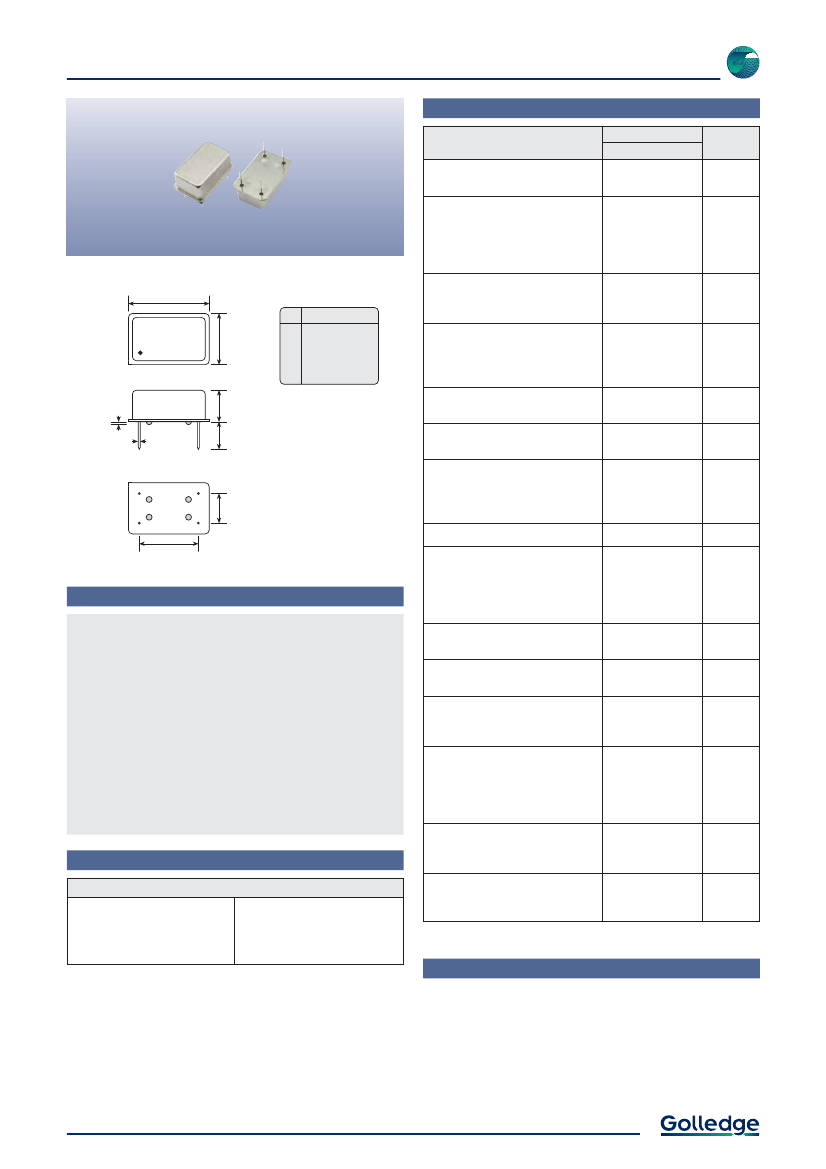

12V OCXO HCMOS Output Tight Stability

Specifications

SCOCXOT

Product

SCOCXOT

Option

Codes

Parameters

Frequency range:

10.0kHz ~ 54.0MHz

Frequency stability:

±0.3ppm max first year

±2.5ppm max in 10 years

±0.1ppm over V

±0.5V

±0.01ppm over 10% change in load

20.14

±0.08

12.52

±0.08

7.80

±0.20

6.35

±0.50

CONNECTION

Freq adjustment

Ground

Output

Supply

Short term stability:

1x10

-10

, 0.1 to 30s

5x10

-11

over 1s typ

Temperature stability:

±0.025ppm max, 0 to +60°C

±0.05ppm max, -20 to +70°C

±0.1ppm max, -40 to +85°C

Operable temperature range:

-40 to +85°C

Storage temperature range:

-65 to +125°C

Output waveform:

HCMOS compatible

‘0’=+0.4V

max,

‘1’=4.5V

min

40:60 max

Rise / fall times:

7ns / 7ns max

0.80

0.46Ø

7.62

15.24

Scale 1:1

Features

Frequency adjustment:

Control voltage (pin 1)

±4ppm min, 0.5V to 5.0V

Variable resistor (pins 1 to 7)

±4ppm min, 0 ~ 10k

Supply voltage (V

+12.0V (±0.5V)

Input current:

30mA max @ +30°C

45mA max @ -20°C

Warm up:

within spec after 60s @ 30°C

current 250mA max during 10s

Phase noise (typ @ 10MHz):

-90dBc/Hz @ 10Hz

-120dBc/Hz @ 100Hz

-130dBc/Hz @ 1kHz

-135dBc/Hz @ 10kHz

Shock & vibration:

2,000G, 0.3ms

½-sine

10.0 ~ 2,000Hz, 10G

Package:

Through hole 14 pin DIL

25x22mm SMD carrier PCB

Formed leads SMD

Standard.

Optional - Please specify required code(s) when ordering

Ultra high stability

Compact 14-pin DIL package (SMD optional)

12.0V supply voltage

HCMOS compatible output

Very fast warmup

Low power consumption

Wide temperature range available

Standard Frequencies

Frequencies in MHz

10.00000

12.80000

16.00000

16.38400

19.44000

20.00000

26.00000

40.00000

50.00000

52.00000

Ordering Information

Product name + option codes + frequency

eg:

SCOCXOT-AR1 10.0MHz

SCOCXOT-BV5 16.0MHz

Option code X (eg SCOCXOT/X) denotes a custom spec.

Tel:

+44 1460 256 100

06 Jul 2010

Fax:

+44 1460 256 101

E-mail:

sales@golledge.com

Web:

www.golledge.com
