MV-1606M datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> The signal circuit> MV-1606M

MV-1606M: DescriptionSingle-Ended Multiplexer, 1 Func, 16 Channel, CMOS, CDIP28, CERAMIC, DIP-28; CategoryAnalog mixed-signal IC The signal circuit; File Size134KB，3 Pages; ManufacturerDATEL Inc.

Download Datasheet Parametric Compare View All

MV-1606M Overview

Single-Ended Multiplexer, 1 Func, 16 Channel, CMOS, CDIP28, CERAMIC, DIP-28

MV-1606M Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	DATEL Inc.
Parts packaging code	DIP
package instruction	DIP, DIP28,.6
Contacts	28
Reach Compliance Code	unknown
Analog Integrated Circuits - Other Types	SINGLE-ENDED MULTIPLEXER
JESD-30 code	R-CDIP-T28
JESD-609 code	e0
Nominal Negative Supply Voltage (Vsup)	-15 V
Number of channels	16
Number of functions	1
Number of terminals	28
Maximum on-state resistance (Ron)	400 Ω
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DIP
Encapsulate equivalent code	DIP28,.6
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	+-15 V
Certification status	Not Qualified
Maximum seat height	7.44 mm
Maximum supply current (Isup)	7 mA
Nominal supply voltage (Vsup)	15 V
surface mount	NO
switch	BREAK-BEFORE-MAKE
technology	CMOS
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	15.24 mm

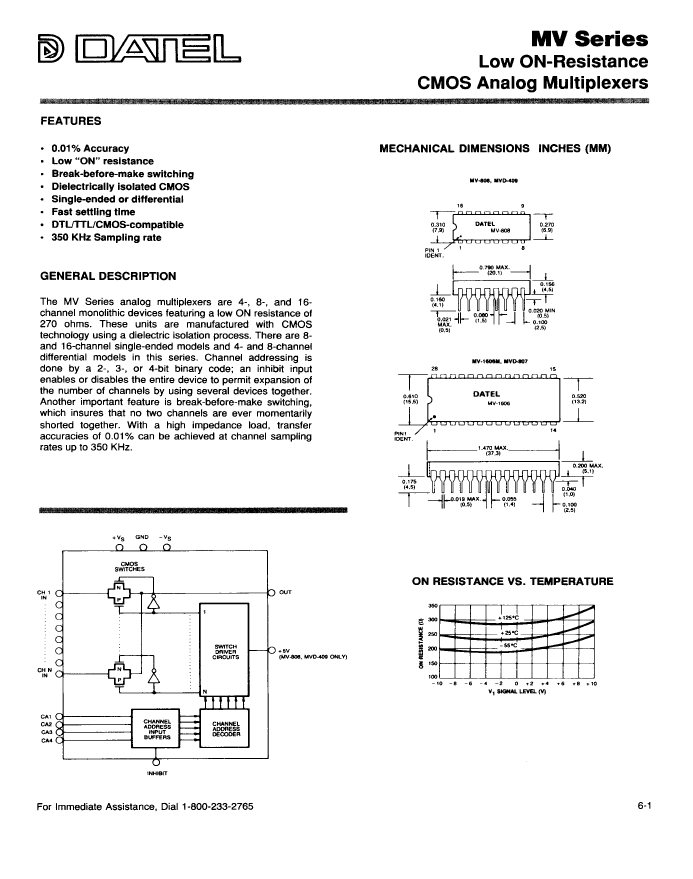

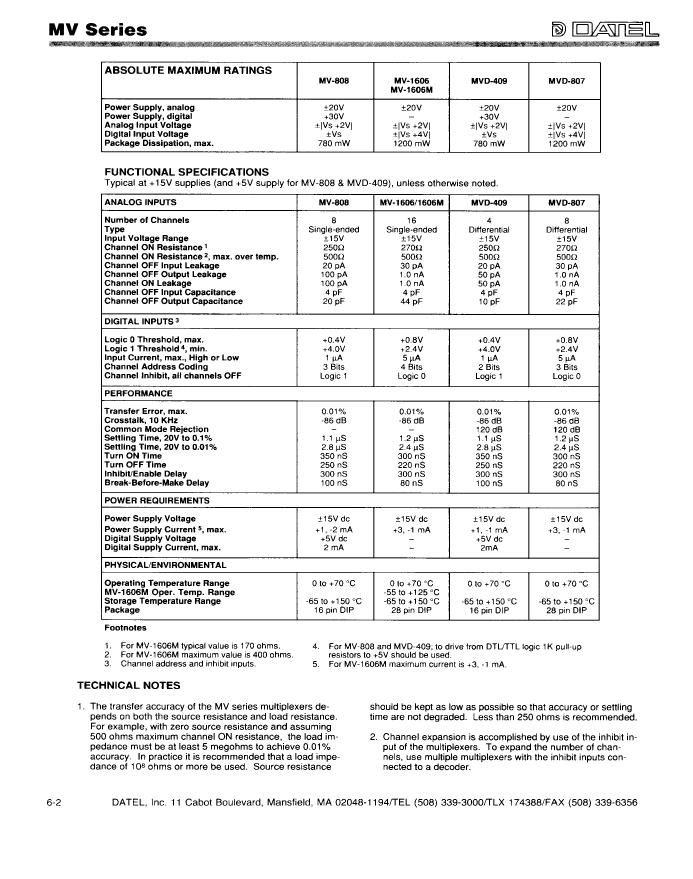

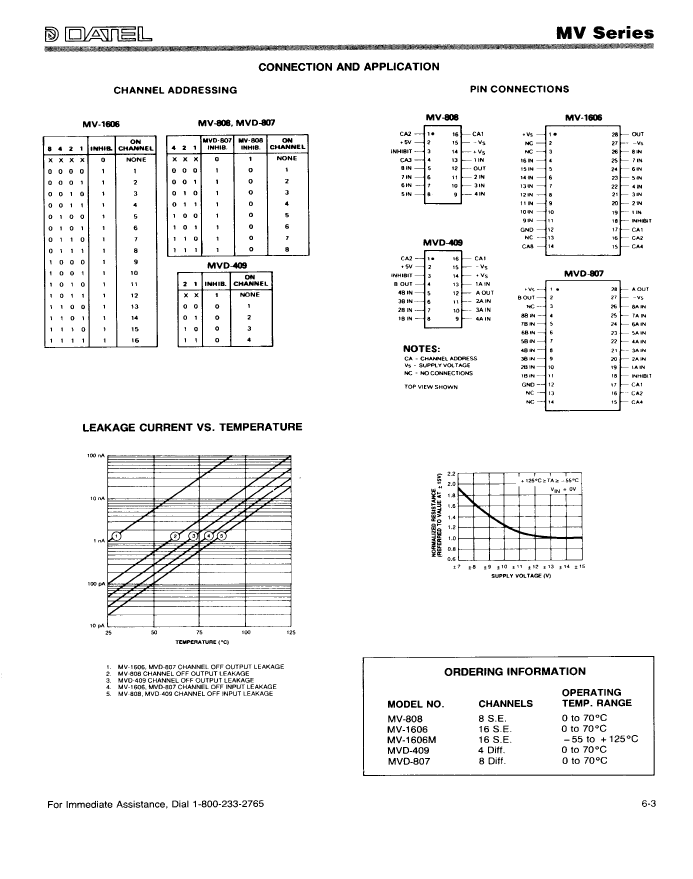

Preview

Download Datasheet

View All

This Material Copyrighted By Its Respective Manufacturer

MV-1606M Related Products

	MV-1606M	MV-1606	MVD-409
Description	Single-Ended Multiplexer, 1 Func, 16 Channel, CMOS, CDIP28, CERAMIC, DIP-28	Single-Ended Multiplexer, 1 Func, 16 Channel, CMOS, CDIP28, CERAMIC, DIP-28	Differential Multiplexer, 1 Func, 4 Channel, CMOS, CDIP16, CERAMIC, DIP-16
Is it Rohs certified?	incompatible	incompatible	incompatible
Parts packaging code	DIP	DIP	DIP
package instruction	DIP, DIP28,.6	DIP, DIP28,.6	DIP, DIP16,.3
Contacts	28	28	16
Reach Compliance Code	unknown	unknown	unknown
Analog Integrated Circuits - Other Types	SINGLE-ENDED MULTIPLEXER	SINGLE-ENDED MULTIPLEXER	DIFFERENTIAL MULTIPLEXER
JESD-30 code	R-CDIP-T28	R-CDIP-T28	R-CDIP-T16
JESD-609 code	e0	e0	e0
Nominal Negative Supply Voltage (Vsup)	-15 V	-15 V	-15 V
Number of channels	16	16	4
Number of functions	1	1	1
Number of terminals	28	28	16
Maximum on-state resistance (Ron)	400 Ω	500 Ω	500 Ω
Maximum operating temperature	125 °C	70 °C	70 °C
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DIP	DIP	DIP
Encapsulate equivalent code	DIP28,.6	DIP28,.6	DIP16,.3
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
power supply	+-15 V	+-15 V	5,+-15 V
Certification status	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	7.44 mm	7.44 mm	6.6 mm
Maximum supply current (Isup)	7 mA	7 mA	5 mA
Nominal supply voltage (Vsup)	15 V	15 V	15 V
surface mount	NO	NO	NO
switch	BREAK-BEFORE-MAKE	BREAK-BEFORE-MAKE	BREAK-BEFORE-MAKE
technology	CMOS	CMOS	CMOS
Temperature level	MILITARY	COMMERCIAL	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
width	15.24 mm	15.24 mm	7.62 mm
Maker	DATEL Inc.	-	DATEL Inc.
