R573.402.925 datasheet, PDF - EEWORLD Datasheet

R573.402.925: DescriptionRF Coaxial Relay, SP9T, Momentary, 0.25A (Coil), 12VDC (Coil), 3000mW (Coil), 18000MHz, DC Input, DC Output, Panel Mount; CategoryMechanical and electronic products relay; File Size145KB，2 Pages; ManufacturerRadiall; Websitehttps://www.radiall.com/

Download Datasheet Parametric Compare View All

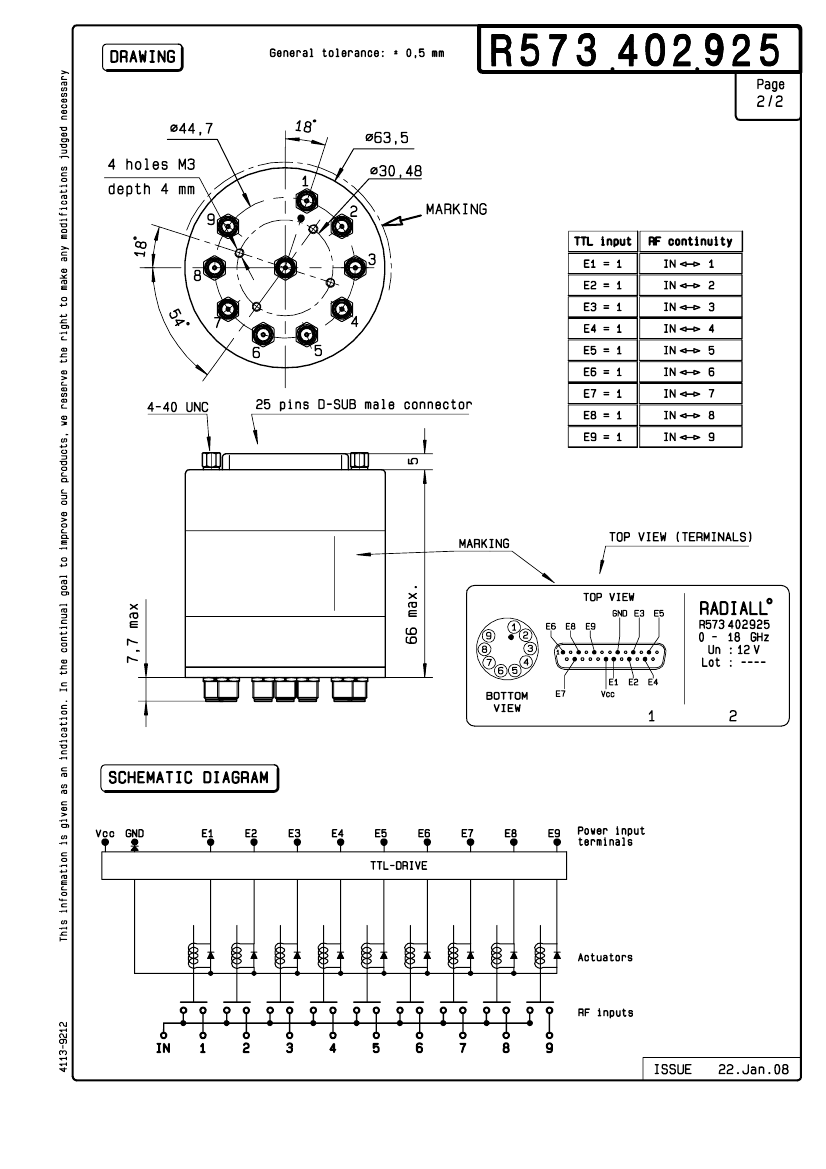

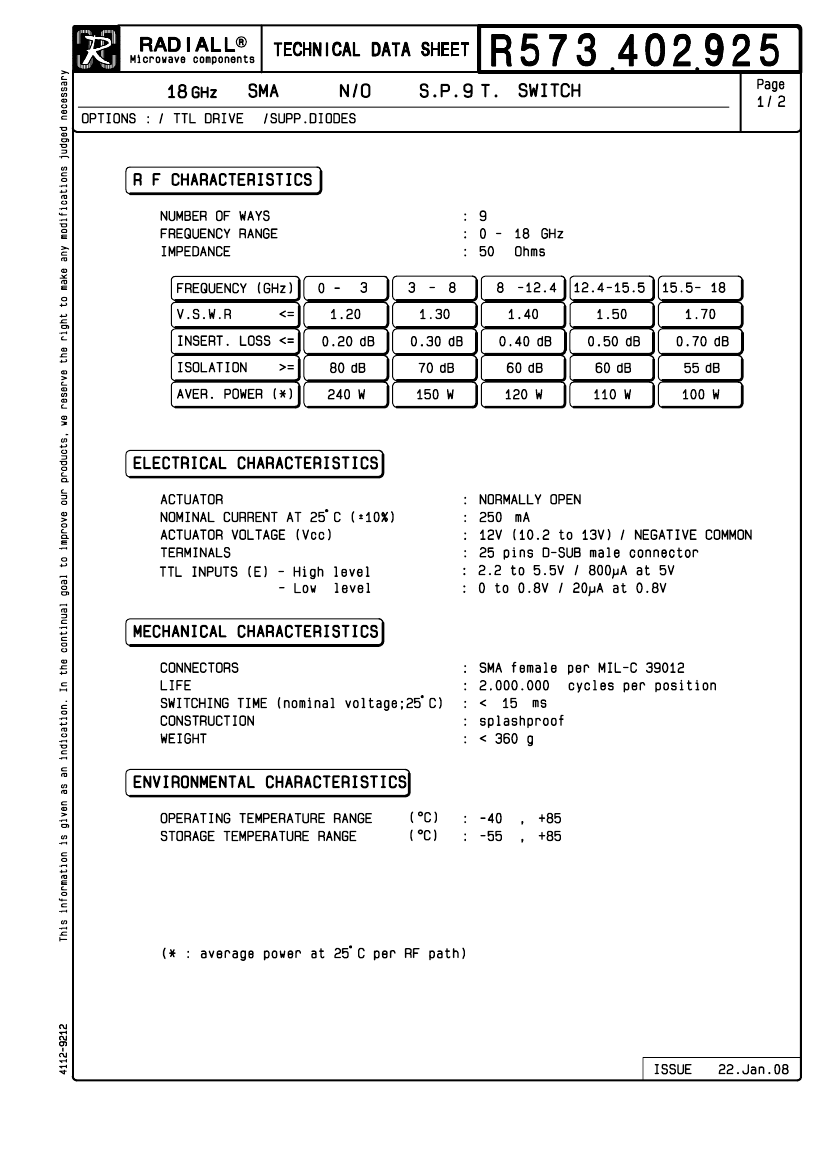

R573.402.925 Overview

RF Coaxial Relay, SP9T, Momentary, 0.25A (Coil), 12VDC (Coil), 3000mW (Coil), 18000MHz, DC Input, DC Output, Panel Mount

Parameter Name	Attribute value
Maker	Radiall
Reach Compliance Code	unknown
ECCN code	EAR99
body height	66 mm
Body length or diameter	63.5 mm
Characteristic impedance	50 Ω
Maximum coil current (DC)	0.25 A
Coil power	3000 mW
Coil resistance	48 Ω
Maximum coil voltage (DC)	12 V
Coil/Input Power Type	DC
Contact/Output Power Type	DC
Maximum insertion loss	0.7 dB
Maximum isolation	60 dB
Manufacturer's serial number	R573.402.925
Installation features	PANEL MOUNT
Maximum operating frequency	18000 MHz
Minimum operating frequency
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Relay action	MOMENTARY
Relay function	SP9T
Relay type	RF COAXIAL RELAY
seal	SPLASH PROOF
surface mount	NO
switching time	15 ms
Termination type	CONNECTOR
voltage standing wave ratio	1.7

	R573.402.925	R573402925
Description	RF Coaxial Relay, SP9T, Momentary, 0.25A (Coil), 12VDC (Coil), 3000mW (Coil), 18000MHz, DC Input, DC Output, Panel Mount	RF Coaxial Relay, SP9T, Momentary, 0.25A (Coil), 12VDC (Coil), 3000mW (Coil), 18000MHz, DC Input, DC Output, Panel Mount
Maker	Radiall	Radiall
Reach Compliance Code	unknown	unknown
ECCN code	EAR99	EAR99
body height	66 mm	66 mm
Body length or diameter	63.5 mm	63.5 mm
Characteristic impedance	50 Ω	50 Ω
Maximum coil current (DC)	0.25 A	0.25 A
Coil power	3000 mW	3000 mW
Coil resistance	48 Ω	48 Ω
Maximum coil voltage (DC)	12 V	12 V
Coil/Input Power Type	DC	DC
Contact/Output Power Type	DC	DC
Maximum insertion loss	0.7 dB	0.7 dB
Maximum isolation	60 dB	60 dB
Manufacturer's serial number	R573.402.925	R573.402.925
Installation features	PANEL MOUNT	PANEL MOUNT
Maximum operating frequency	18000 MHz	18000 MHz
Maximum operating temperature	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C
Relay action	MOMENTARY	MOMENTARY
Relay function	SP9T	SP9T
Relay type	RF COAXIAL RELAY	RF COAXIAL RELAY
seal	SPLASH PROOF	SPLASH PROOF
surface mount	NO	NO
switching time	15 ms	15 ms
Termination type	CONNECTOR	CONNECTOR
voltage standing wave ratio	1.7	1.7
