310-93-119-41-107 datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> 310-93-119-41-107

Preview

310-93-119-41-107: DescriptionBoard Connector, 20 Contact(s), 1 Row(s), Female, Straight, Surface Mount Terminal, Socket,; CategoryThe connector The connector; File Size129KB，1 Pages; ManufacturerMill-Max; Websitehttps://www.mill-max.com

Download Datasheet Parametric View All

310-93-119-41-107 Overview

Board Connector, 20 Contact(s), 1 Row(s), Female, Straight, Surface Mount Terminal, Socket,

310-93-119-41-107 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Mill-Max
Reach Compliance Code	compliant
ECCN code	EAR99
Body/casing type	SOCKET
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD (30) OVER NICKEL (100)
Contact completed and terminated	TIN LEAD (200)
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e0
MIL compliance	NO
Manufacturer's serial number	310
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	1
Options	GENERAL PURPOSE
Terminal pitch	2.54 mm
Termination type	SURFACE MOUNT
Total number of contacts	20

Preview

Download Datasheet

View All

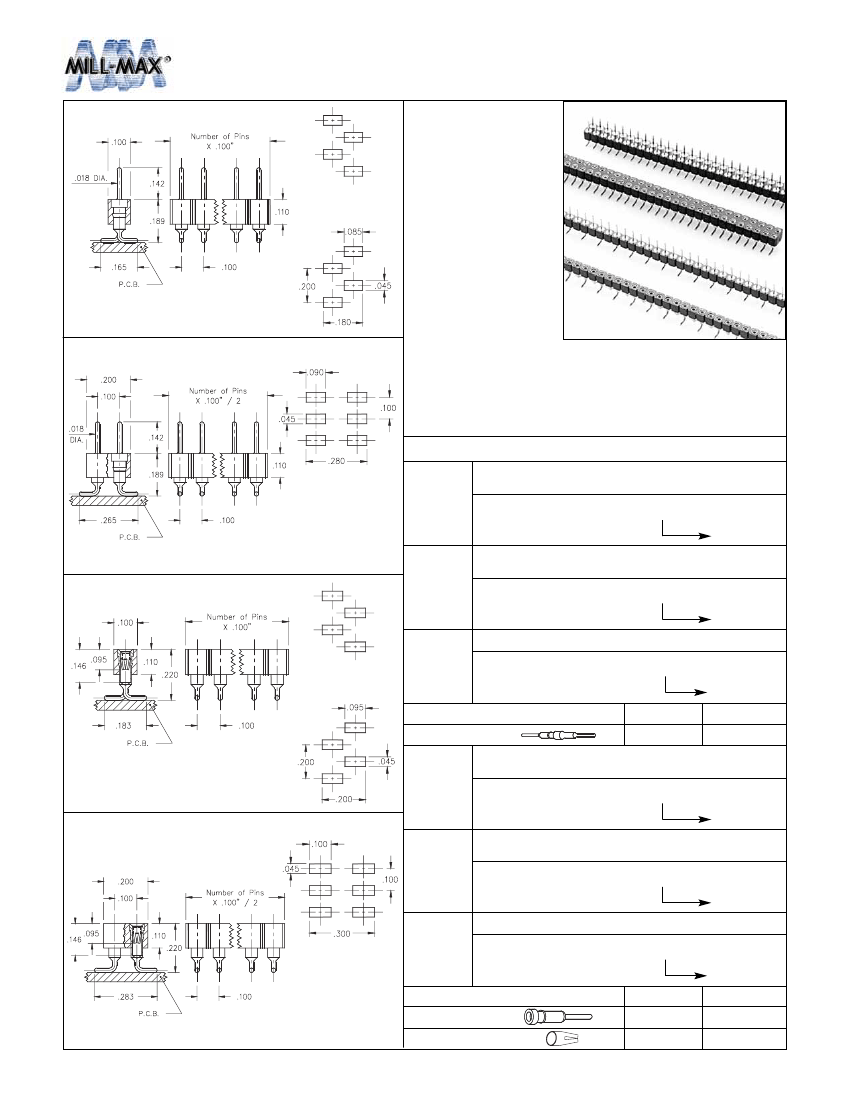

INTERCONNECTS

.018” dia. Pins

Surface Mount Headers and Sockets

Left Hand

Footprint

Series 310, 350

410, 450

•

Series 310 and 350

interconnects are

available in single and

double row form.

•

Single row intercon-

nects having an even

number of pins are

now available with a

left or right hand

footprint.

•

Headers (350 & 450)

use MM# 3404 pins.

(See page 170 for

details)

Right Hand

Footprint

Fig. 1

Footprint

•

Sockets (310 & 410) use MM# 1005 receptacles and

accept pin diameters from .015-.025. (See page 135 for

details)

•

Insulators are high temp. thermoplastic.

Ordering Information

Single Row Header, Left Hand Footprint

Odd or Even # of pins

Fig. 1L

Fig. 2

Left Hand

Footprint

350-XX-1_ _-00-106

Specify # of pins

01-64

Single Row Header, Right Hand Footprint

Even # of pins

Fig. 1R

350-XX-1_ _-00-107

Specify even # of pins

02-64

Double Row Header, Even # of pins

Fig. 2

Right Hand

Footprint

450-XX-2 _ _-00-106

Specify even # of pins

02-72

10

10µ” Au

90

200µ” Sn/Pb

SPECIFY PLATING CODE XX=

Pin Plating

Single Row Socket, Left Hand Footprint

Odd or Even # of pins

Fig. 3

Footprint

Fig. 3L

310-XX-1_ _-41-105

Specify # of pins

01-64

Single Row Socket, Right Hand Footprint

Even # of pins

Fig. 3R

310-XX-1_ _-41-107

Specify even # of pins

02-64

Double Row Socket, Even # of pins

Fig. 4

410-XX-2 _ _-41-105

Specify even # of pins

02-72

93

200µ” Sn/Pb

30µ” Au

99

200µ”Sn/Pb

SPECIFY PLATING CODE XX=

Fig. 4

Sleeve (Pin)

Contact (Clip)

Mill-Max-Mfg.Corp., P.O. Box 300, 190 Pine Hollow Road, Oyster Bay, NY 11771-0300.Tel: 516-922-6000 Fax: 516-922-9253
