TPU1813DHP-330M: DescriptionTPUDHP Wirewound Power Inductors; File Size355KB，4 Pages; ManufacturerToken Electronics Industry Co., Ltd.; Websitehttp://www.token.com.tw/

Download Datasheet View All

TPU1813DHP-330M Overview

TPUDHP Wirewound Power Inductors

Preview

Download Datasheet

View All

TOKEN

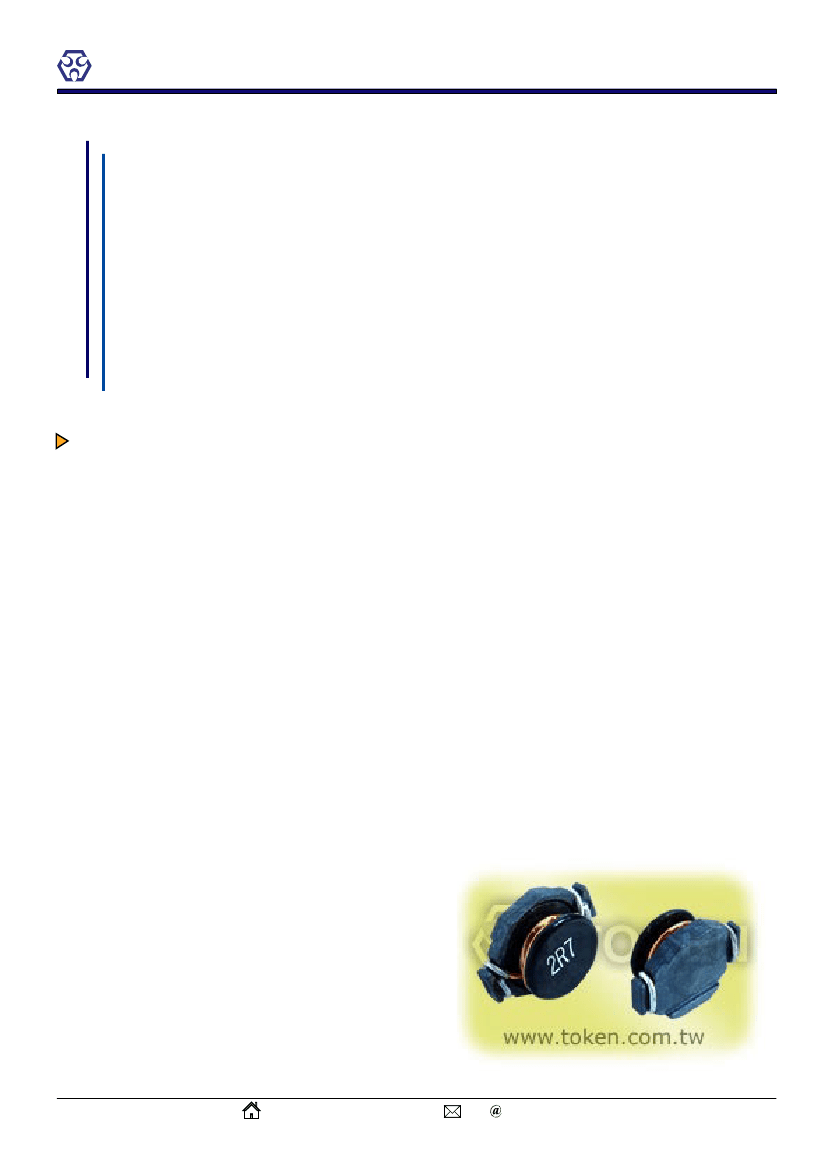

TPU××DHP Wirewound Power Inductors

SMT Unshielded

Wirewound

Power Inductors

Power Inductors Utilize Wire Wound Technology

Enabling Up to 30.00A High Current (TPU××××DHP)

Preview

Token SMT unshielded (TPU××××DHP) series utilize wire wound technology with open magnetic circuit

construction enabling cost-effective in manufacturing high rated current, low ohmic resistance products.

The power inductors are wound around a ferrite core and are particularly suitable for cost-critical mass

applications with their surface-mounting capability. These material saving power inductors are ideal for

applications such as storage chokes in DC/DC convertors as well as in the EMC sector.

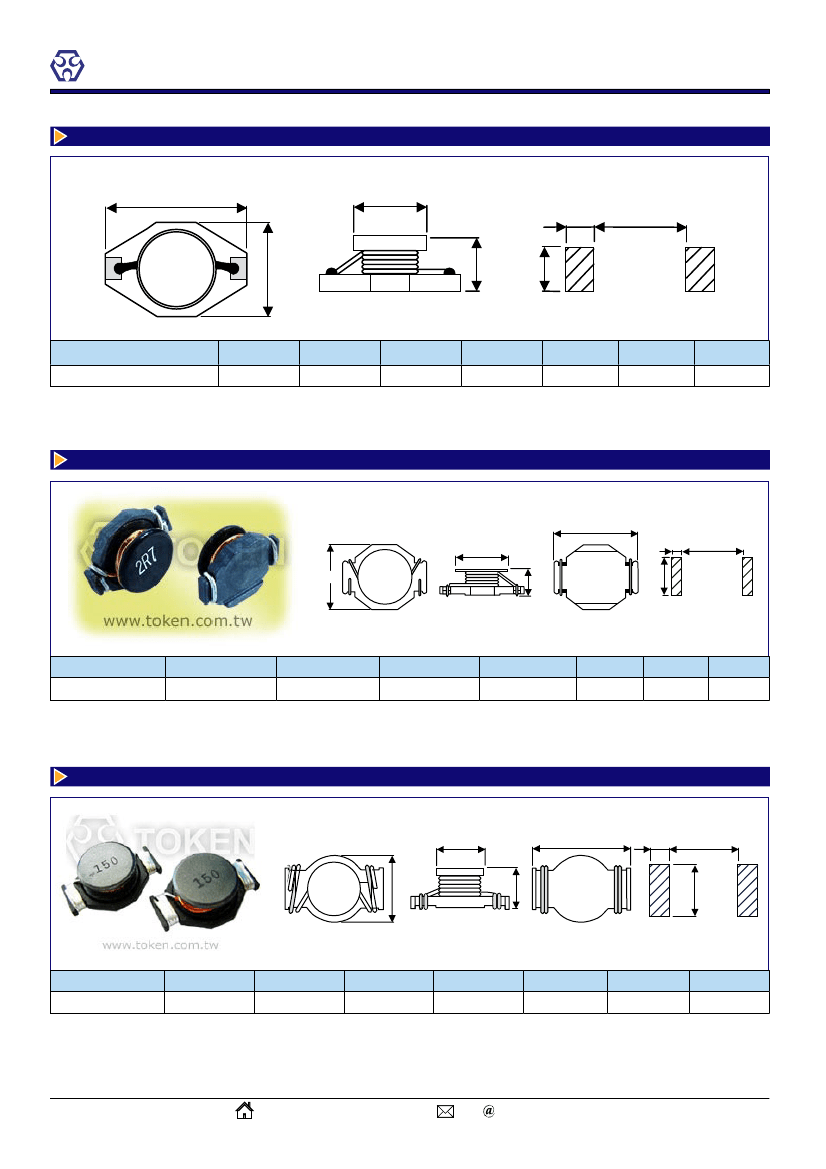

TPU3316DHP wire wound with Mn-Zn material core rugged self-leaded construction composites for low-

voltage and large-current DC-DC converter. Available inductance values for the TPU3316DHP are from 0.33 uH

to 4.70 uH with rated current up to 20.00 A.

TPU1813DHP rugged self-leaded construction with advance wire wound technology enables large current, lower

DCR, and less than 4.7mm height. It is ideal for high power DC-DC applications. Inductance values for the

TPU1813DHP are from 0.56 uH to 47.00 uH with rated current up to 7.70 A.

TPU5022DHP’s self-leaded and open magnetic circuit construction is specified for high current applications with

up to 30.00 A IDC. Inductance range from 0.78 uH to 15.00 uH.

Custom parts are available on request. Token will also produce devices outside these specifications to meet

specific customer requirements,

please contact our sales for more information.

Features :

- Compact size and thin.

- Open magnetic circuit construction.

- Large current and lower DCR.

Applications :

- Notebook, DC-DC applications.

- power supply applications.

Version 2010

http://www.token.com.tw/

rfq token.com.tw

01 of 04
