TPU×××A SMT Power Inductors
SMT Unshielded
Power Inductors
Token has extended range of power inductors
with new series (TPU×××A)
Preview
Miniaturisation of today’s electrical and electronic devices requires component manufacturers to increase the

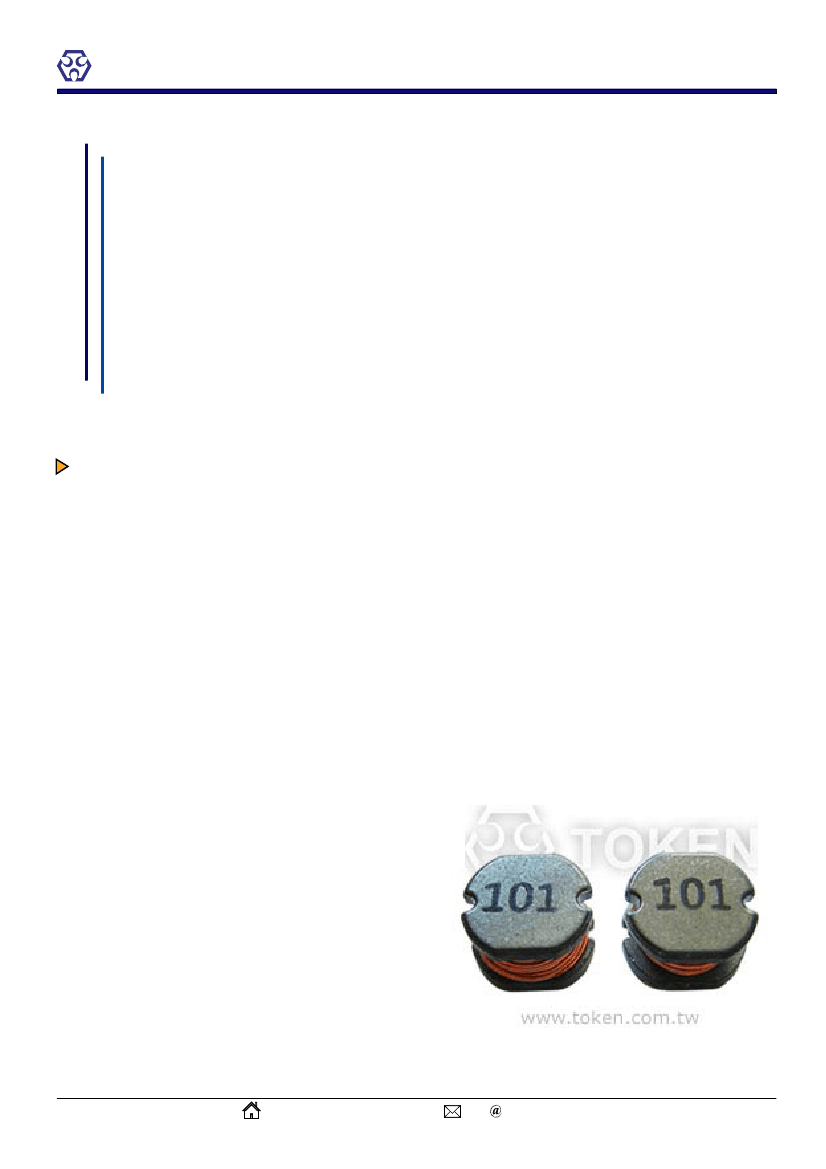

performance of components without increasing footprint. Token’s latest (TPU×××A) wirewound chip inductor
series offers improved performance in the same compact, low-profile case size.
The (TPU×××A) series is designed for DC-DC converter applications and features reduced DC resistance and
increased allowable current. In DC-DC converters and power supplies, the performance of the power components
directly affects the overall efficiency of the supply, so it is of paramount importance.
The TPU31A series of wirewound chip inductors is low profile at 1.1±0.3 mm maximum and is available in 1.0
uH to 120 uH denominations. The series features low DC resistance, down to 0.06 Ω, and high rated current; up
to 1.4A is supported. All parts are low cast with open magnetic circuit construction and good for high mounting
density.
Full (TPU×××A) series conform to the RoHS directive and Lead-free. Custom parts are available on request.
Token will also produce devices outside these specifications to meet specific customer requirements, please
contact our sales for more information.
Features :
- Compact size and thin.
- Open magnetic circuit construction.
- The electrode with ferrite core directly,
good for high mounting density.
Applications :
- VTR, OA equipment, LCD television set, Notebook.
- Portable communication equipments,
DC/DC converters, etc..
Version 2010
http://www.token.com.tw/
rfq token.com.tw
01 of 16
TOKEN
TPU×××A SMT Power Inductors

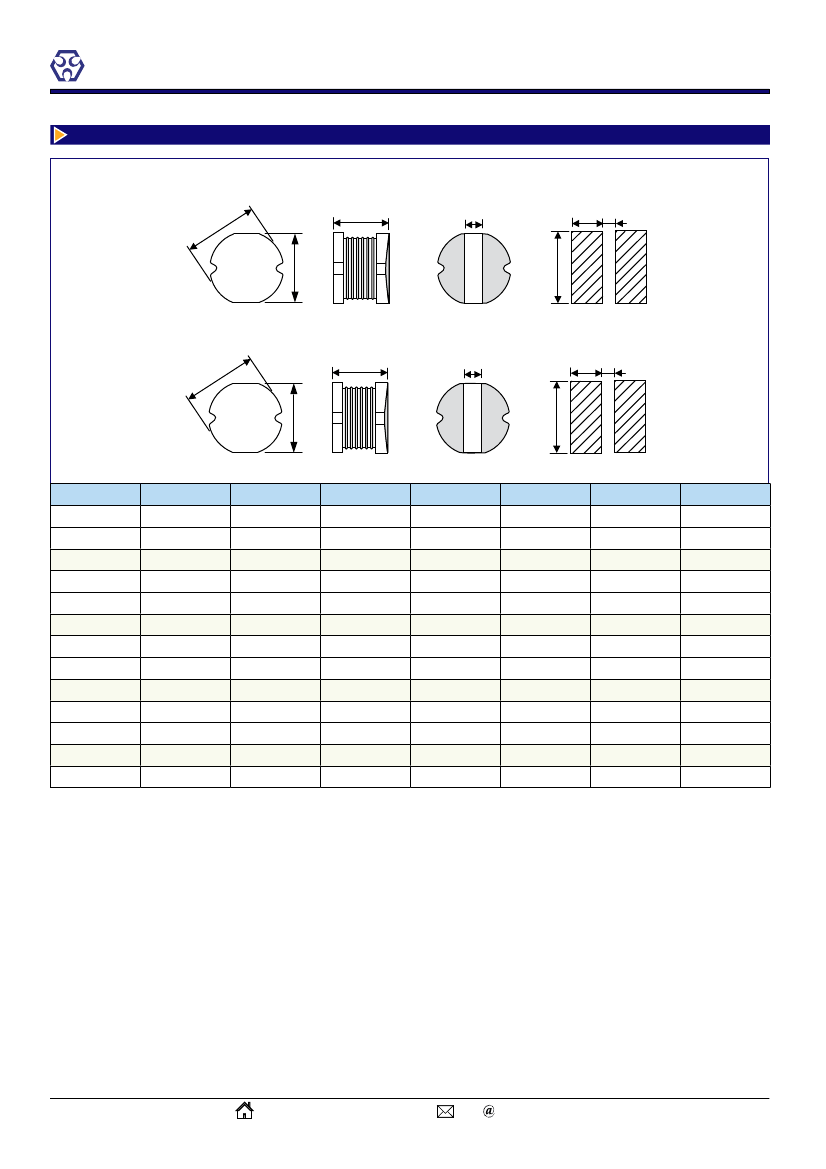

(TPU31A/31/32/42/43/52/53/54/73/75/104/105/106) Dimensions & Configurations
TC31A /TC31 / TC32 / TC42 / TC43
C
A
B
D
Land Pattern
F G
XXX
+
E
TC52 / TC53 / TC54 / TC73 / TC75 / TC104 / TC105 / TC106
Land Pattern
C
B
D
F G
XXX
TC
A
+
E
Type
TPU31A
TPU31
TPU32
TPU42
TPU43
TPU52
TPU53
TPU54
TPU73
TPU75
TPU104
TPU105
TPU106
A ± 0.3
3.0
3.0
3.0
4.0
4.0
5.2
5.2
5.2
7.0
7.0
9.0
9.0
9.0
B
1.1 ± 0.3
1.6 ± 0.3
2.3(max)
2.2 ± 0.3
3.2 ± 0.3
2.5 ± 0.3
3.0 ± 0.3
4.5 ± 0.3
3.5 ± 0.3
5.0 ± 0.3
4.0 ± 0.3
5.4 ± 0.3
6.6 ± 0.5
ΦC ± 0.3
3.5
3.5
3.5
4.5
4.5
5.8
5.8
5.8
7.8
7.8
10.0
10.0
10.0
D(Ref)
1.2
1.2
1.2
1.5
1.5
2.0
2.0
2.0
2.5
2.5
2.9
2.9
3.1
E(Ref)
3.5
3.5
3.5
4.5
4.5
5.5
5.5
5.5
7.5
7.5
9.5
9.5
9.5
F(Ref)
1.10
1.10
1.60
1.75
2.10
2.25
2.25
2.25
3.05
3.05
3.65
3.65
3.75
G(Ref)
1.2
1.2
0.8
1.5
0.8
1.5
1.5
1.5
1.9
1.9
2.5
2.5
2.5
Note: Design as Customer’s Requested Specifications.
02 of 16
http://www.token.com.tw/
rfq token.com.tw
Version 2010
TOKEN
(TPU31A) Electrical Characteristics
Part Number
TPU31A - 1R0M
TPU31A - 2R2M
TPU31A - 3R3M
TPU31A - 4R7M
TPU31A - 5R6M
TPU31A - 6R8M
TPU31A - 8R2M
TPU31A - 100K
TPU31A - 120K
TPU31A - 150K
TPU31A - 180K
TPU31A - 220K
TPU31A - 270K
TPU31A - 330K
TPU31A - 390K
TPU31A - 470K
TPU31A - 560K
TPU31A - 680K
TPU31A - 820K
TPU31A - 101K
TPU31A - 121K
Inductance(µH)
1.00
2.20
3.30
4.70
5.60
6.80
8.20
10.00
12.00
15.00
18.00
22.00
27.00
33.00
39.00
47.00
56.00
68.00
82.00
100.00
120.00
TPU31A SMT Power Inductors
Test Freq.(KHz)
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
1
1
DCR (Ω)(max)
0.06
0.11
0.15
0.21
0.25
0.30
0.38
0.44
0.50
0.61
0.73
0.91
1.15
1.39
1.88
2.26
2.69
3.18
3.67
4.94
5.35
IDC (A)(max)
1.4
1.05
0.80
0.75
0.65
0.56
0.50
0.45
0.43
0.39
0.32
0.28
0.26
0.25
0.23
0.21
0.20
0.18
0.16
0.14
0.12
Note: Test Freq. L: 1.0-82uH at 100KHz / 0.25V. Above in the 100uH at 1KHz / 0.3V.
Operating Temp.: -40°C ~ +85°C.
Inductane Drop=10% typ. at IDC.
Version 2010
http://www.token.com.tw/
rfq token.com.tw
03 of 16
TOKEN
(TPU31) Electrical Characteristics
Part Number
TPU31 - 1R0M
TPU31 - 1R5M
TPU31 - 2R2M
TPU31 - 3R3M
TPU31 - 3R9M
TPU31 - 4R7M
TPU31 - 5R6M
TPU31 - 6R8M
TPU31 - 8R2M
TPU31 - 100K
TPU31 - 120K
TPU31 - 150K
TPU31 - 180K
TPU31 - 220K
TPU31 - 270K
TPU31 - 330K
TPU31 - 390K
TPU31 - 470K
TPU31 - 560K
TPU31 - 680K
TPU31 - 820K
TPU31 - 101K
TPU31 - 121K
TPU31 - 151K
TPU31 - 181K
TPU31 - 221K
Inductance(µH)
1.00
1.50
2.20
3.30
3.90
4.70
5.60
6.80
8.20
10.00
12.00
15.00
18.00
22.00
27.00
33.00
39.00
47.00
56.00
68.00
82.00
100.00
120.00
150.00
180.00
220.00
TPU31 SMT Power Inductors
Test Freq.(KHz)
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
1
1
1
1
1
DCR (Ω)(max)
0.05
0.10
0.08
0.13
0.14
0.16
0.19
0.21
0.24
0.31
0.37
0.47
0.52
0.66
0.77
1.02
1.12
1.51
1.68
1.92
2.64
2.87
4.08
4.77
5.70
9.00
IDC (A)(max)
1.60
1.55
1.47
1.34
1.24
1.22
1.09
0.96
0.84
0.70
0.65
0.59
0.54
0.48
0.43
0.37
0.32
0.26
0.24
0.23
0.21
0.19
0.17
0.16
0.14
0.12
Note: Test Freq. L: 1.0-82uH at 100KHz / 0.25V. Above in the 100uH at 1KHz / 0.3V.
Operating Temp.: -40°C ~ +85°C.
Inductane Drop=10% typ. at IDC.
04 of 16
http://www.token.com.tw/
rfq token.com.tw
Version 2010
TOKEN
(TPU32) Electrical Characteristics
Part Number
TPU32 - 1R0M
TPU32 - 1R2M
TPU32 - 1R5M
TPU32 - 1R8M
TPU32 - 2R2M
TPU32 - 2R7M
TPU32 - 3R3M
TPU32 - 3R9M
TPU32 - 4R7M
TPU32 - 5R6M
TPU32 - 6R8M
TPU32 - 8R2M
TPU32 - 100K
TPU32 - 120K
TPU32 - 150K
TPU32 - 180K
TPU32 - 220K
TPU32 - 270K
TPU32 - 330K
TPU32 - 390K
TPU32 - 470K
TPU32 - 560K
TPU32 - 680K
TPU32 - 820K
TPU32 - 101K
TPU32 - 121K
TPU32 - 151K
TPU32 - 181K
TPU32 - 221K
TPU32 - 271K
TPU32 - 331K
Inductance(µH)
1.00
1.20
1.50
1.80
2.20
2.70
3.30
3.90
4.70
5.60
6.80
8.20
10.00
12.00
15.00
18.00
22.00
27.00
33.00
39.00
47.00
56.00
68.00
82.00
100.00
120.00
150.00
180.00
220.00
270.00
330.00
TPU32 SMT Power Inductors
Test Freq.(KHz)
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
DCR (Ω)(max)
0.045
0.050
0.055
0.070
0.085
0.100
0.120
0.125
0.135
0.145
0.200
0.250
0.320
0.350
0.460
0.520
0.650
0.750
0.920
1.000
1.150
1.500
2.000
2.150
2.500
3.400
4.200
4.500
5.100
8.500
9.500
IDC (A)(max)
2.20
2.10
1.70
1.65
1.60
1.40
1.05
1.00
1.00
0.95
0.95
0.92
0.90
0.85
0.75
0.70
0.60
0.55
0.50
0.48
0.45
0.30
0.26
0.23
0.20
0.18
0.16
0.15
0.14
0.10
0.09
Note: Test Freq. at 100KHz / 0.1V.
Operating Temp.: -40°C ~ +85°C.
Inductane Drop=10% typ. at IDC.
Version 2010
http://www.token.com.tw/
rfq token.com.tw
05 of 16
