3924.42.2418.011: DescriptionRF SMA Connector, Female, Panel Mount, Cable Mount, Crimp Terminal, Jack, ROHS COMPLIANT; CategoryThe connector The connector; File Size154KB，3 Pages; ManufacturerIMS Connector Systems Gmbh; Environmental Compliance

Download Datasheet Parametric View All

3924.42.2418.011 Overview

RF SMA Connector, Female, Panel Mount, Cable Mount, Crimp Terminal, Jack, ROHS COMPLIANT

3924.42.2418.011 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	IMS Connector Systems Gmbh
package instruction	ROHS COMPLIANT
Reach Compliance Code	unknown
Body/casing type	JACK
Connector type	RF SMA CONNECTOR
Contact to complete cooperation	GOLD (31)
Contact completed and terminated	GOLD (31)
Contact point gender	FEMALE
Contact material	COPPER ALLOY
Coupling type	THREADED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
insulator material	POLYTETRAFLUORO ETHYLENE
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	SMA
Installation method	STRAIGHT
Installation type	CABLE
Options	GENERAL PURPOSE
Panel mounting	YES
Termination type	CRIMP

Preview

Download Datasheet

View All

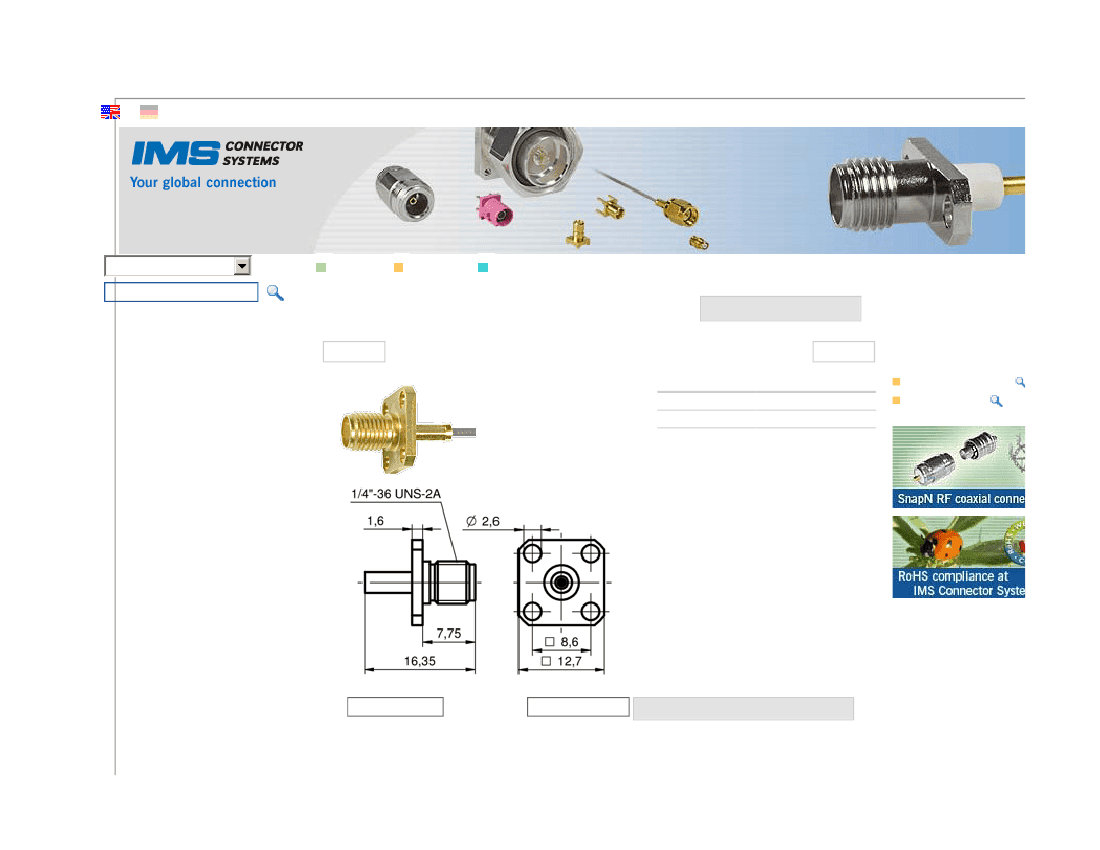

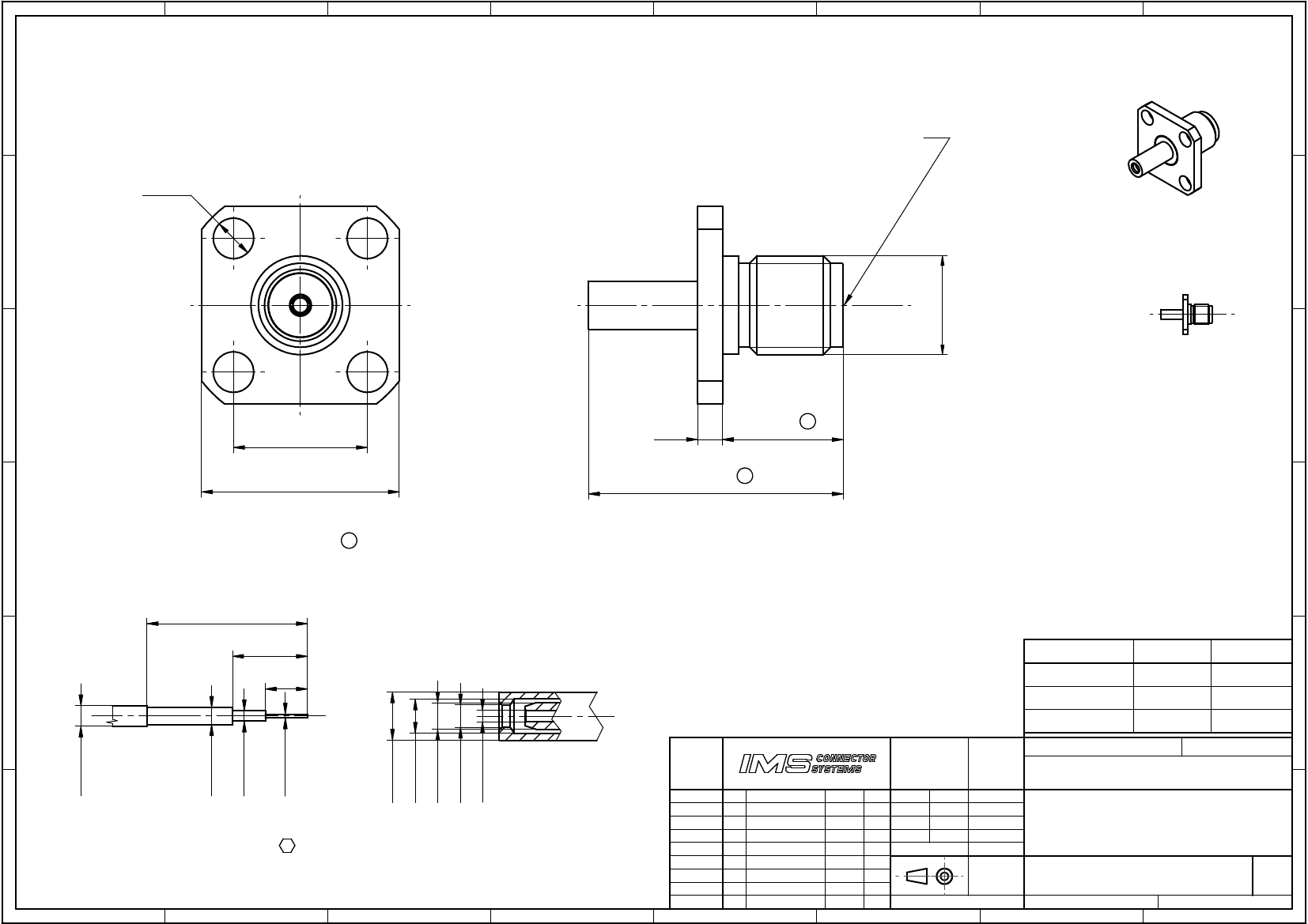

M/scale 2:1

Steckbereich nach IEC 169-15 Grade1

Mating area acc. to IEC 169-15 Grade 1

2,6

M/scale 1:1

1/4"-36 UNS-2A

8,6

12,7

1,6

16,35

a

7,75

a

Kabelzuschnitt / Stripping dimension

Kabel / cabel : Hirose U.FL-LP-066- A300

9,1

3,7

2,4

Part

Housing

Material

brass

Surface

0,2µ Au

0,8µ Au

Centre Contact

copper-berylium

Insulator

PTFE

3,1

2,2

1,7

1,4

0,74

general tolerance

ISO 2768

mH

date

generate 18.01.05

checked

name

Pölz

1,32

0,66

0,24

1,1

scale:

5:1

Assembly instruction: M130

Stripping dimension:

Flanschkabelbuchse

Flange mount cable jack

3924.42.2418.01'

Rev.

Aussen crimpen / out crimp:

2,67

Innen crimpen / in crimp:

löten / solder

design

nr.

a

rev.

Ueberarbeitung

alteration

16.06.05 Pölz

date name

Norm

a
