11KA2C9P Overview

UPR Extra Precision Network Resistors

Preview

Download Datasheet

View All

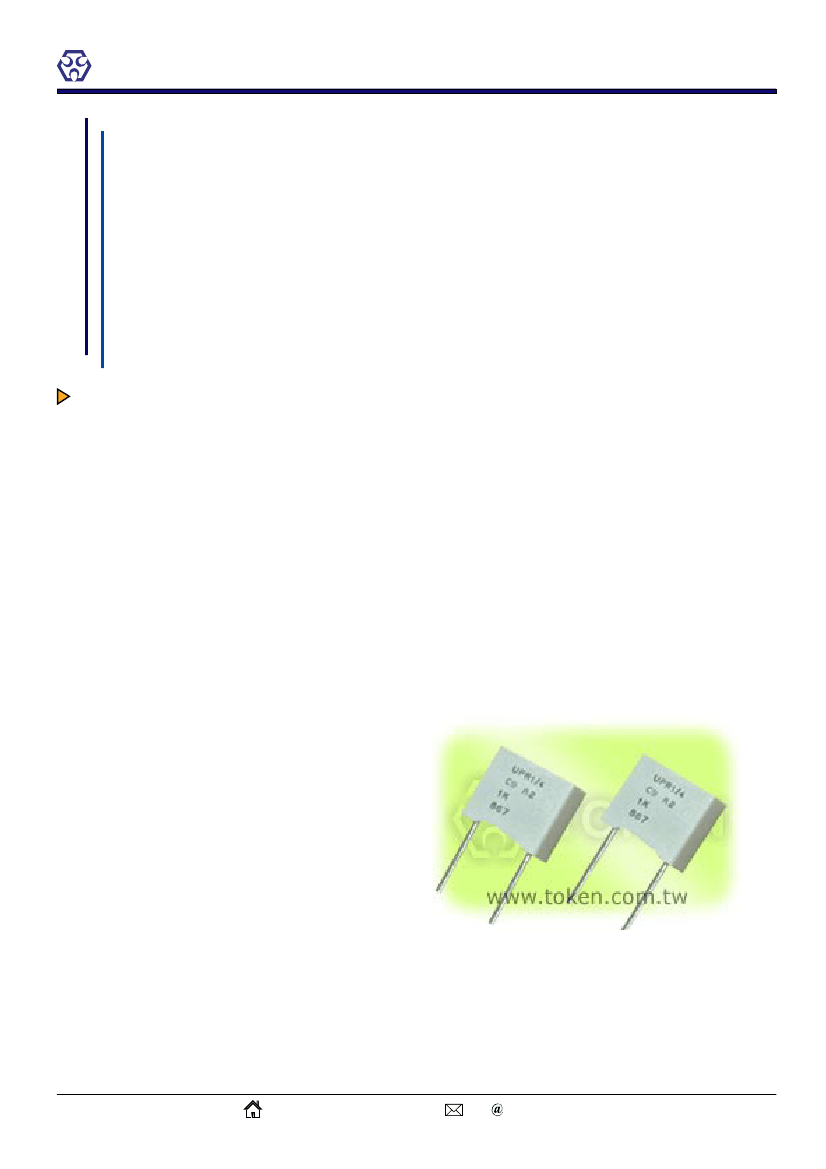

TOKEN

UPR Extra Precision Network Resistors

Extra Precision

Network Resistors

Ultra Precision Networks Take Accuracy Pole Position

Preview

Providing design engineers with an economical means of creating precision voltage dividers and set accurate

amplifier gains for a wide range of applications, Token Electronics is offering its series of precision thin-film

resistor networks.

Constructed with Token EE/RE 1/10 series to form a stable, high precision, and low temperature coefficient

network resistors. The networks are protected from moisture by a proprietary passivation material.

Customer can specify Tolerance and Temperature Coefficient range designed to satisfy challenging and specific

technical requirements. The resistance and TCR range makes these resistor networks ideal for a number of

applications, including test and measurement devices, commercial avionics and medical equipment or devices.

Other applications for the networks are instrumentation amplifiers, measurement bridge circuitry, data convertors

and precision analogue circuits.

The thin-film resistor networks also can be designed with custom schematics to meet individual customer

specifications. The networks provide excellent resistor precision and accuracy with resistor tolerances to ±0.01%.

They have TCR values to ±2ppm/°C, providing superior performance over the military temperature range.

UPR Series equate IRC, EBG Precision Devices with fast delivery and more competitive price. For non-standard

technical requirements and special applications, please contact us.

Applications :

- Bridge Circuitry.

- Precision Amplifiers.

- Test and Measurement.

- Medical, Precision Bypass.

- Simulation Equipment, Divider.

- High Precision Instrumentation.

- Audio (High End Stereo Equipment).

- Commercial Avionics, Data Convertors.

Features :

- Precision tolerance tight to T(±0.01%).

- Superior TCR narrowed to C10 (±2 ppm/°C).

- Metal film precision networks, Lead (Pb)-free and RoHS compliant.

- Any value available within resistance range, excellent stability and reliability.

UPSC Versus UPR Series :

- UPSC Series have the advantage of compact body size.

- The electric characteristics of UPR and UPSC are the same.

- UPR Series have the advantage of wider resistance range 10Ω~5MΩ.

Version 2010

http://www.token.com.tw/

rfq token.com.tw

01 of 03
