R577343037: DescriptionRF Coaxial Relay, DPDT, Latched, 0.125A (Coil), 28VDC (Coil), 3500mW (Coil), 3000MHz, DC Input, Panel Mount, ROHS COMPLIANT; CategoryMechanical and electronic products relay; File Size175KB，2 Pages; ManufacturerRadiall; Websitehttps://www.radiall.com/; Environmental Compliance

Download Datasheet Parametric View All

R577343037 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	R577343037	-	-	View	Buy Now

R577343037 Overview

RF Coaxial Relay, DPDT, Latched, 0.125A (Coil), 28VDC (Coil), 3500mW (Coil), 3000MHz, DC Input, Panel Mount, ROHS COMPLIANT

R577343037 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Radiall
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	SMA, BUILT-IN SUPPRESSION DIODE AND INDICATOR
body width	32.3 mm
body height	50.5 mm
Body length or diameter	32.3 mm
Characteristic impedance	50 Ω
Maximum coil current (DC)	0.125 A
Coil power	3500 mW
Coil resistance	225 Ω
Maximum coil voltage (DC)	28 V
Coil/Input Power Type	DC
Electrical life	2500000 Cycle(s)
Maximum insertion loss	0.2 dB
Maximum isolation	80 dB
Installation features	PANEL MOUNT
Maximum operating frequency	3000 MHz
Minimum operating frequency
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
physical size	32.3mm x 32.3mm x 50.5mm
Relay action	LATCHED
Relay function	DPDT
Relay type	RF COAXIAL RELAY
surface mount	NO
switching time	10 ms
Termination type	CONNECTOR
voltage standing wave ratio	1.2

Preview

Download Datasheet

View All

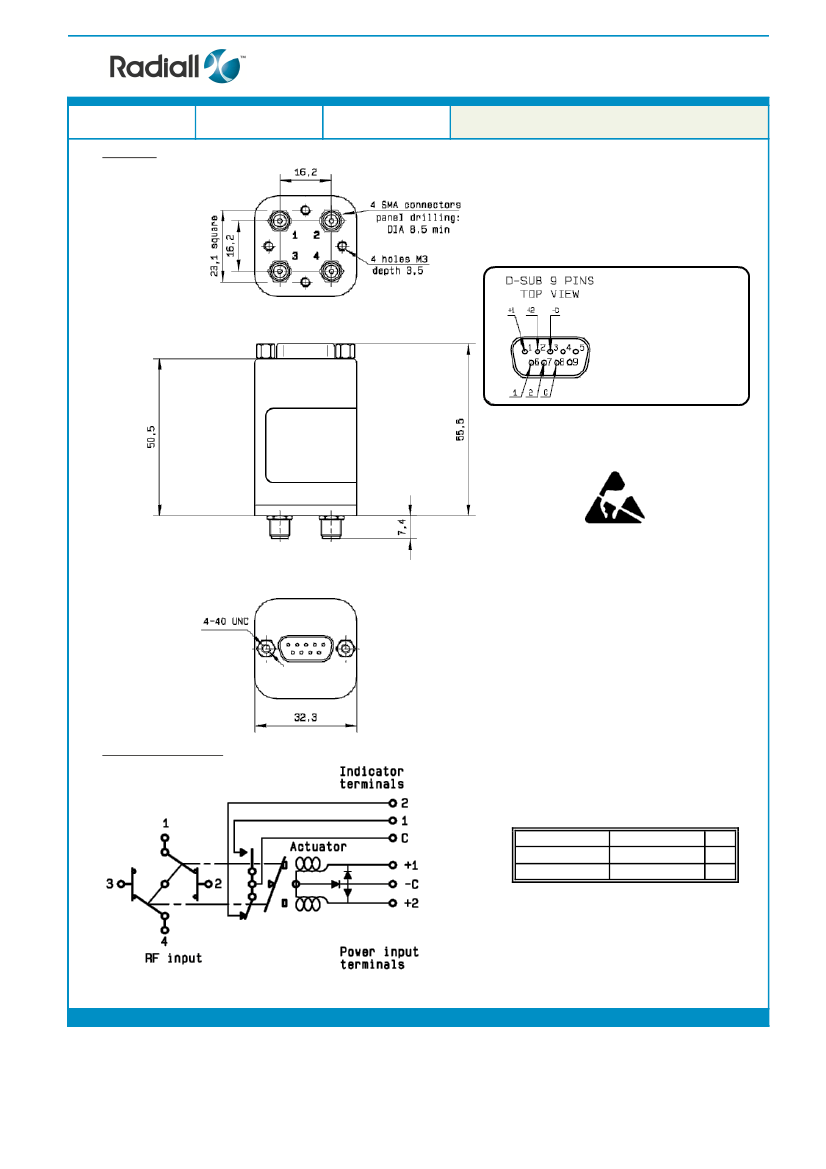

Technical Data Sheet

DPDT Ramses SMA 3GHz Latching Indicators 28Vdc Diodes D-sub connector

PAGE

1/2

ISSUE

13.05.13

SERIE :

DPDT

PART NUMBER :

R577343037

RF CHARACTERISTICS

Frequency range

Impedance

:

0 - 3 GHz

:

50 Ohms

Frequency (GHz)

VSWR max

Insertion loss max

Isolation min

Average power (*)

DC - 3

1.10

0.15 dB

80 dB

240 W

ELECTRICAL CHARACTERISTICS

Actuator

Nominal current **

Actuator voltage (Vcc)

Terminals

Indicator rating

:

LATCHING

:

125 mA

:

28V (24 to 30V) / NEGATIVE COMMON

:

9 pins D-SUB male connector

:

1 W / 30 V / 100 mA

MECHANICAL CHARACTERISTICS

Connectors

Life

Switching Time***

Construction

Weight

:

SMA female per MIL-C 39012

:

2.5 million cycles

:

< 10 ms

:

Splashproof

:

< 45 g

ENVIRONMENTAL CHARACTERISTICS

Operating temperature range

Storage temperature range

:

-40°C to +85°C

:

-55°C to +85°C

(*

(**

(***

Average power at 25°C per RF Path)

At 25° C ±10%)

Nominal voltage ; 25° C)

This document contains proprietary information and such information shall not be disclosed to any third party for any purpose whatsoever or used for manufacturing purposes without prior written

agreement from Radiall. The data defined in this document are given as an indication, in the effort to improve our products; we reserve the right to make any changes judged necessary.
