HLMP-RG10
4 mm Super Oval Precision Optical Performance
AlInGaP and InGaN LEDs
Data Sheet
SunPower Series
HLMP-RG10, HLMP-SG10, HLMP-RL10, HLMP-SL10,
HLMP-RD11, HLMP-SD11, HLMP-RL11, HLMP-SL11,
HLMP-RM11, HLMP-SM11, HLMP-RB11, HLMP-SB11
Description

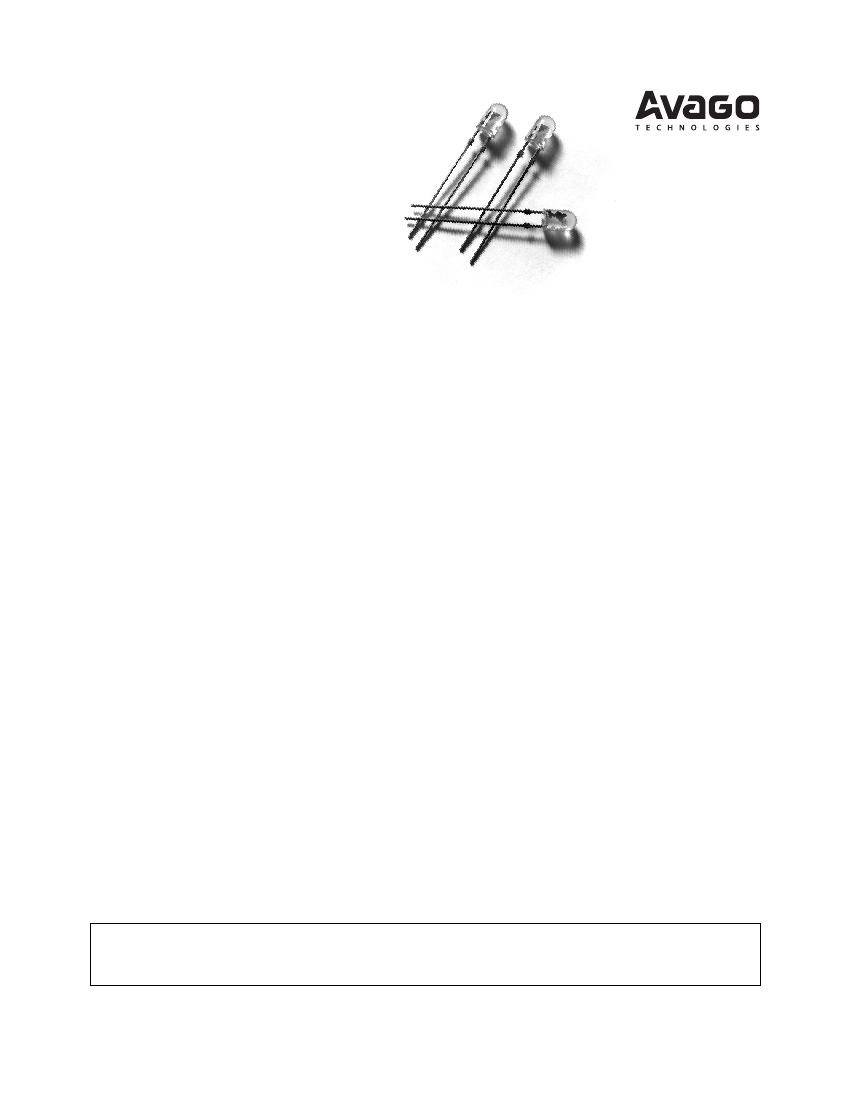

These Precision Optical Performance Oval LEDs are
specifically designed for Full Color/Video and
Passenger Information signs. The oval shaped
radiation pattern (60° x 120°) and high luminous
intensity ensure that these devices are excellent for
wide field of view outdoor applications where a wide
viewing angle and readability in sunlight are essential.
These lamps have very smooth, matched radiation
patterns ensuring consistent color mixing in full color
applications, message uniformity across the viewing
angle of the sign.
High efficiency LED materials are used in these lamps:
Aluminum Indium Gallium Phosphide (AlInGaP) for
Red and Amber color and Indium Gallium Nitride
(InGaN) for Blue and Green. There are two families
of red and amber lamps, AlInGaP and the higher
performance AlInGaP II. Each lamp is made with an
advanced optical grade epoxy offering superior high
temperature and high moisture resistance in outdoor
applications. The package epoxy contains both uv-a
and uv-b inhibitors to reduce the effects of long term
exposure to direct sunlight.
Designers can select parallel (where the axis of the
leads is parallel to the wide axis of the oval radiation
pattern) or perpendicular orientation. Both lamps are
available in tinted version.
Features
• Well defined spatial radiation pattern
• Viewing angle:
major axis 120°
minor axis 60°
• High luminous output
• Two red and amber intensity levels:
AlInGaP (bright) and AlInGaP II (brightest)
• Colors:
626/630 nm red
590/592 nm amber526 nm green
470 nm blue
• Superior resistance to moisture
• UV resistant epoxy
Benefits
• Viewing angle designed for wide field of view
applications
• Superior performance for outdoor environments
• Radiation pattern matched for red, green, and blue for
full color sign
Applications
• Full color signs
CAUTION:
The Blue and Green LEDs are Class 1 ESD sensitive. Please observe appropriate
precautions during handling and processing. Refer to Avago Technologies Application Note AN-1142
for additional details.
Device Selection Guide for AlInGaP II
Color and
Dominant
Wavelength
λ
d
(nm) Typ.
Red 630
Red 630
Red 630
Amber 592
Amber 592
Amber 592
Red 630
Red 630
Red 630
Red 630
Red 630
Amber 592
Amber 592
Amber 592
Amber 592
Amber 592
Luminous
Intensity
I
V
(mcd) at 20 mA
Min.
Max.
240
400
400
180
400
400
240
400
400
520
520
180
180
310
400
400
-
1150
1150
-
1150
1150
-
1150
1150
880
880
-
520
880
1150
1150
Part Number
HLMP-RD11-J0000
HLMP-RD11-LP000
HLMP-RD11-LPT00
HLMP-RL11-H0000
HLMP-RL11-LP000
HLMP-RL11-LPRxx
HLMP-SD11-J0000
HLMP-SD11-LP000
HLMP-SD11-LPT00
HLMP-SD11-MN0xx
HLMP-SD11-MNTxx
HLMP-SL11-H0000
HLMP-SL11-HL0xx
HLMP-SL11-KN0xx
HLMP-SL11-LP0xx
HLMP-SL11-LPRxx
Leads with
Stand-Offs
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Leadframe
Orientation
Parallel
Parallel
Parallel
Parallel
Parallel
Parallel
Perpendicular
Perpendicular
Perpendicular
Perpendicular
Perpendicular
Perpendicular
Perpendicular
Perpendicular
Perpendicular
Perpendicular
Package
Drawing
B
B
B
B
B
B
A
A
A
A
A
A
A
A
A
A
Notes:
1. The luminous intensity is measured on the mechanical axis of the lamp package.
2. The optical axis is closely aligned with the package mechanical axis.
3. The dominant wavelength,
λ
d
, is derived from the CIE Chromaticity Diagram and represents the color of the lamp.
Device Selection Guide for InGaN
Color and
Dominant
Wavelength
λ
d
(nm) Typ.
Green 526
Green 526
Green 526
Blue 470
Blue 470
Blue 470
Luminous
Intensity
I
V
(mcd) at 20 mA
Min.
Max.
400
180
520
180
65
180
1150
-
-
-
-
-
Part Number
HLMP-SM11-LP0xx
HLMP-RM11-H00xx
HLMP-RM11-M00xx
HLMP-SB11-H00xx
HLMP-RB11-D00xx
HLMP-RB11-H00xx
Leads with
Stand-Offs
Yes
Yes
Yes
Yes
Yes
Yes
Leadframe
Orientation
Perpendicular
Parallel
Parallel
Perpendicular
Parallel
Parallel
Package
Drawing
A
B
B
A
B
B
Notes:
4. The luminous intensity is measured on the mechanical axis of the lamp package.
5. The optical axis is closely aligned with the package mechanical axis.
6. The dominant wavelength,
λ
d
, is derived from the CIE Chromaticity Diagram and represents the color of the lamp.
3
Part Numbering System
HLMP - x x xx - x x x xx
Mechanical Options
00: Bulk Packaging
DD: Ammo Pack
YY: Flexi-Bin; Bulk Packaging
ZZ: Flexi-Bin; Ammo Pack
Color Bin & V
F
Selections
0: No Color Bin Limitation
R: Amber Color Bins 1, 2, 4, and 6 with V
F
Maximum of 2.6 V
T: Red Color with V
F
Maximum of 2.6 V
Maximum Intensity Bin
0: No Iv Bin Limitation
Minimum Intensity Bin
Refer to Device Selection Guide
Color
B: 470 nm Blue
D: 630 nm Red
G: 626 nm Red
L: 590/592 nm Amber
M: 526 nm Green
Package
R: 4 mm 60º x 120º Oval, Parallel
S: 4 mm 60º x 120º Oval, Perpendicular
Absolute Maximum Ratings
T
A
= 25°C
Parameter
DC Forward Current
[1]
Peak Pulsed Forward Current
Average Forward Current
Reverse Voltage (I
R
= 100
µA)
Power Dissipation
LED Junction Temperature
Operating Temperature Range
Storage Temperature Range
Note:
1. Derate linearly as shown in Figures 6 and 7.
Blue and Green
30 mA
100 mA
30 mA
5V
120 mW
130°C
–40°C to +80°C
–40°C to +100°C
Amber and Red
50 mA
100 mA
30 mA
5V
120 mW
130°C
–40°C to +100°C
–40°C to +120°C
4
Electrical/Optical Characteristics
T
A
= 25°C
Parameter
Typical Viewing Angle
[1]
Major
Minor
Forward Voltage
Red (λ
d
= 626 nm)
Red (λ
d
= 630 nm)
Amber (λ
d
= 590 nm)
Amber (λ
d
= 592 nm)
Blue (λ
d
= 470 nm)
Green (λ
d
= 526 nm)
Reverse Voltage
Amber and Red
Blue and Green
Peak Wavelength
Red (λ
d
= 626 nm)
Red (λ
d
= 630 nm)
Amber (λ
d
= 590 nm)
Amber (λ
d
= 592 nm)
Symbol
2θ
1/2
Min.
Typ.
120
60
V
F
1.9
2.0
2.02
2.15
3.5
3.5
V
R
5
5
λ
PEAK
635
639
592
594
20
–
nm
Peak of Wavelength of
Spectral Distribution
at I
F
= 20 mA
2.4
2.4
[2]
2.4
2.4
[2]
4.0
4.0
V
I
R
= 100
µA
V
I
F
= 20 mA
Max.
Units
deg
Test Conditions
LED Indicators
Parameter
Blue (λ
d
= 470 nm)
Green (λ
d
= 526 nm)
Spectral Halfwidth
Red (λ
d
= 626/630 nm)
Amber (λ
d
= 590/592 nm)
Blue (λ
d
= 470 nm)
Green (λ
d
= 526 nm)
Capacitance
All Colors
Thermal Resistance
All Colors
Luminous Efficacy
[3]
Red (λ
d
= 626 nm)
Red (λ
d
= 630 nm)
Amber (λ
d
= 590 nm)
Amber (λ
d
= 592 nm)
Blue (λ
d
= 470 nm)
Green (λ
d
= 526 nm)
Symbol
Min.
Typ.
467
524
17
17
20
35
Max.
Units
Test Conditions
∆λ
1/2
nm
Wavelength Width at
Spectral Distribution
1
/
2
Power Point at I = 20 mA
F
C
40
Rθ
J-PIN
240
η
v
150
155
480
500
70
540
pF
°C/W
lm/W
V
F
= 0, F = 1 MHz
LED Junction-to-Cathode
Lead
Emitted Luminous Power/
Emitted Radiant Power
Notes:
1. 2θ
1/2
is the off-axis angle where the luminous intensity is the on-axis intensity.
2. For options -xxRxx, -xxTxx, and -xxVxx, maximum forward voltage, V
F
, is 2.6 V. Please refer to V
F
Bin Table below.
3. The radiant intensity, I
e
, in watts per steradian, may be found from the equation I
e
= I
v
/η
v
, where I
v
is the luminous intensity in candelas and
η
v
is
the luminous efficacy in lumens/watt.
5
