B30-022-0935A Overview

Telecom and Datacom Connector, 22 Contact(s), Female

B30-022-0935A Parametric

Parameter Name	Attribute value
Maker	Mitsumi Electric Co., Ltd.
Reach Compliance Code	unknown
Connector type	TELECOM AND DATACOM CONNECTOR
Contact point gender	FEMALE
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
insulator material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
MIL compliance	NO
Manufacturer's serial number	IAM-B30
Mixed contacts	NO
Installation type	CABLE
Options	GENERAL PURPOSE
Shell material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
Total number of contacts	22

Preview

Download Datasheet

View All

MITSUMI

Rectangular Connectors

IAM-B30, B63, CAM-B31 Series

Connectors

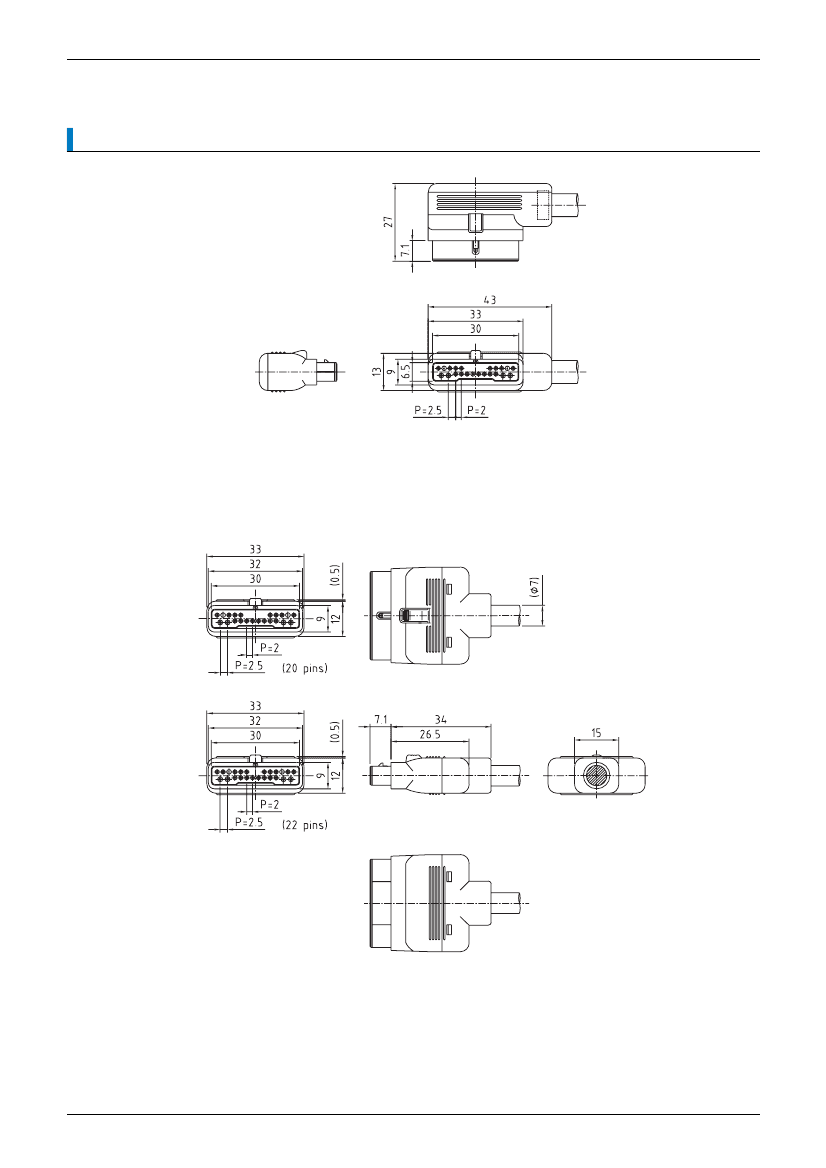

FEATURES

1. IAM-B30 is an angle type rectangular connector,

with 20 pins and 22 pins, IAM-B63 is a straight

connector.

2. Push type with one-touch lock mechanism and

Shield type.

3. Cable assy's type IAM-B30 is applicable to

standard cable diameter ø6, ø7mm, while PCB

mount type CAM-B31 is applicable to the standard

substrate of 1.6mm in thickness.

4. IAM-B63 has a power supply pin. The 20 pin

connectors also have guide pins.

5. Also available with coupling/decoupling cycle life of

up to 5,000 times. (20 pins only)

IAM-B30(20pins)

IAM-B63(20pins)

CAM-B31(20pins)

HOW TO ORDER

1. IAM-B30 Series (Cable Ass'y)

2. IAM-B63 Series (Cable Ass'y)

B30-

B63-

1 Series No. (B30)

2 No. of contacts (020 : 20pins, 022 : 22pins)

3 Product Specifications

(0934A : 20pins, 0935A : 22pins)

1 Series No. (B63)

2 No. of contacts (020 : 20pins, 022 : 22pins)

3 Product Specifications

(1087A : 20pins, 1963A : 22pins)

3. CAM-B31 Series (PCB Mount Type)

B31-

-02 0-IHBAAA-

Series No. (B31)

No. of contacts (020 : 20pins, 022 : 22pins)

Housing Material (02 : PBT resin)

UL Grade (0 : UL 94V-0)

Supplementary symbol

Shield case flange (A : without, B : with)

B30-022-0935A Related Products

	B30-022-0935A	B30-020-0934A	B31-020-022-IHBAAA-A	B31-020-022-IHBAAA-B
Description	Telecom and Datacom Connector, 22 Contact(s), Female	Telecom and Datacom Connector, 20 Contact(s), Female	Telecom and Datacom Connector, 22 Contact(s), Male, Right Angle, Solder Terminal,	Telecom and Datacom Connector, 22 Contact(s), Male, Right Angle, Solder Terminal,
Maker	Mitsumi Electric Co., Ltd.	Mitsumi Electric Co., Ltd.	Mitsumi Electric Co., Ltd.	Mitsumi Electric Co., Ltd.
Reach Compliance Code	unknown	unknown	unknown	unknown
Connector type	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR
Contact point gender	FEMALE	FEMALE	MALE	MALE
DIN compliance	NO	NO	NO	NO
empty shell	NO	NO	NO	NO
Filter function	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO
MIL compliance	NO	NO	NO	NO
Manufacturer's serial number	IAM-B30	IAM-B30	CAM-B31	CAM-B31
Mixed contacts	NO	NO	NO	NO
Installation type	CABLE	CABLE	BOARD	BOARD
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Shell material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
Total number of contacts	22	20	22	22
