RN1710TE85R

Description
TRANSISTOR 100 mA, 50 V, 2 CHANNEL, NPN, Si, SMALL SIGNAL TRANSISTOR, BIP General Purpose Small Signal
CategoryDiscrete semiconductor    The transistor
File Size279KB,6 Pages
ManufacturerToshiba Semiconductor
Websitehttp://toshiba-semicon-storage.com/
Download Datasheet Parametric Compare View All

RN1710TE85R Overview

TRANSISTOR 100 mA, 50 V, 2 CHANNEL, NPN, Si, SMALL SIGNAL TRANSISTOR, BIP General Purpose Small Signal

RN1710TE85R Parametric

Parameter NameAttribute value
MakerToshiba Semiconductor
package instructionSMALL OUTLINE, R-PDSO-G5
Reach Compliance Codeunknown
Maximum collector current (IC)0.1 A
Collector-based maximum capacity6 pF
Collector-emitter maximum voltage50 V
ConfigurationCOMMON EMITTER, 2 ELEMENTS WITH BUILT-IN RESISTOR
Minimum DC current gain (hFE)120
JESD-30 codeR-PDSO-G5
Number of components2
Number of terminals5
Maximum operating temperature150 °C
Package body materialPLASTIC/EPOXY
Package shapeRECTANGULAR
Package formSMALL OUTLINE
Polarity/channel typeNPN
Certification statusNot Qualified
surface mountYES
Terminal formGULL WING
Terminal locationDUAL
transistor applicationsSWITCHING
Transistor component materialsSILICON
Nominal transition frequency (fT)250 MHz
VCEsat-Max0.3 V

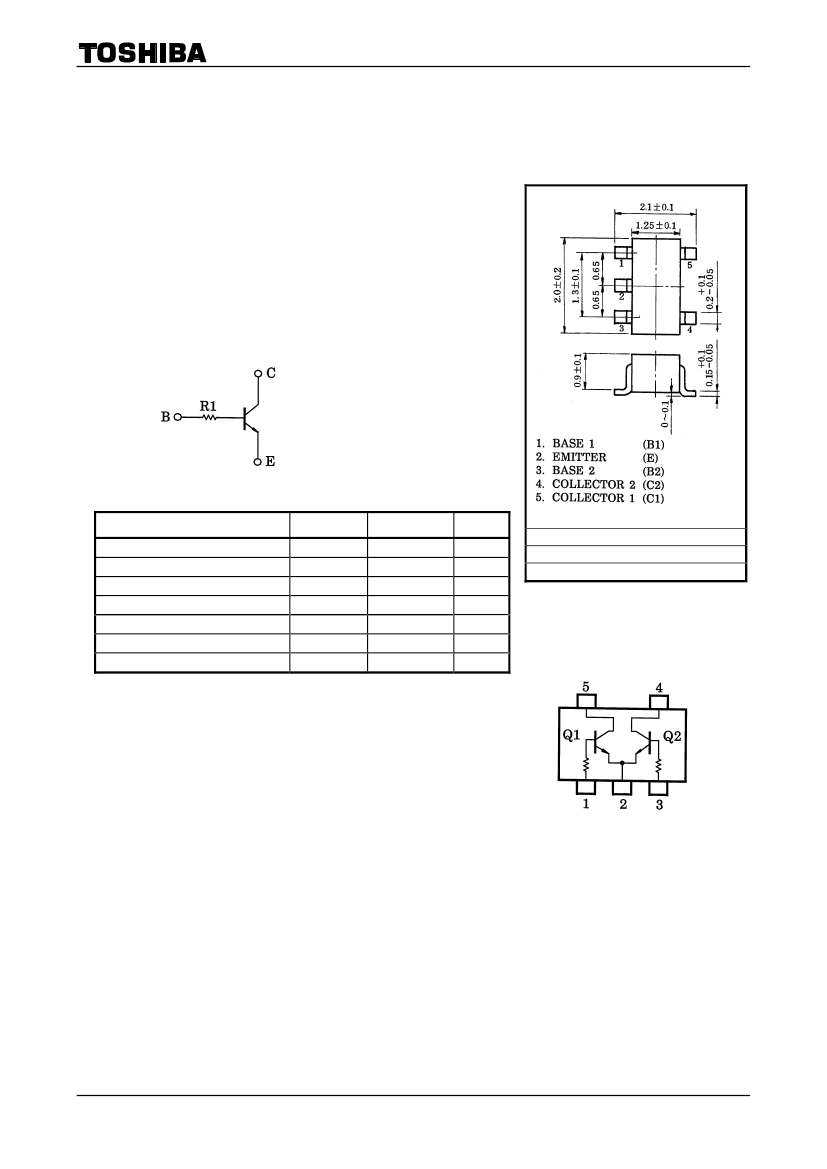

RN1710,RN1711
TOSHIBA Transistor
Silicon NPN Epitaxial Type (PCT Process) (Bias Resistor built-in Transistor)
RN1710,RN1711
Switching, Inverter Circuit, Interface Circuit
and Driver Circuit Applications
Including two devices in USV (ultra super mini type with 5 leads)
With built-in bias resistors
Simplify circuit design
Reduce a quantity of parts and manufacturing process
Complementary to RN2710 and RN2711
Unit: mm
Equivalent Circuit
Absolute Maximum Ratings
(Ta = 25°C) (Q1, Q2 Common)
Characterisstic
Collector-base voltage
Collector-emitter voltage
Emitter-base voltage
Collector current
Collector power dissipation
Junction temperature
Storage temperature range
Symbol
V
CBO
V
CEO
V
EBO
I
C
P
C
*
T
j
T
stg
Rating
50
50
5
100
200
150
−55
to150
Unit
V
V
V
mA
mW
°C
°C
USV
JEDEC
JEITA
TOSHIBA
2−2L1A
Weight: 6.2 mg (typ.)
Equivalent Circuit
(Top View)
Note: Using continuously under heavy loads (e.g. the application of high
temperature/current/voltage and the significant change in temperature,
etc.) may cause this product to decrease in the reliability significantly even
if the operating conditions (i.e. operating temperature/current/voltage, etc.)
are within the absolute maximum ratings.
Please design the appropriate reliability upon reviewing the Toshiba
Semiconductor Reliability Handbook (“Handling Precautions”/“Derating
Concept and Methods”) and individual reliability data (i.e. reliability test
report and estimated failure rate, etc).
*: Total rating
1
2010-05-21

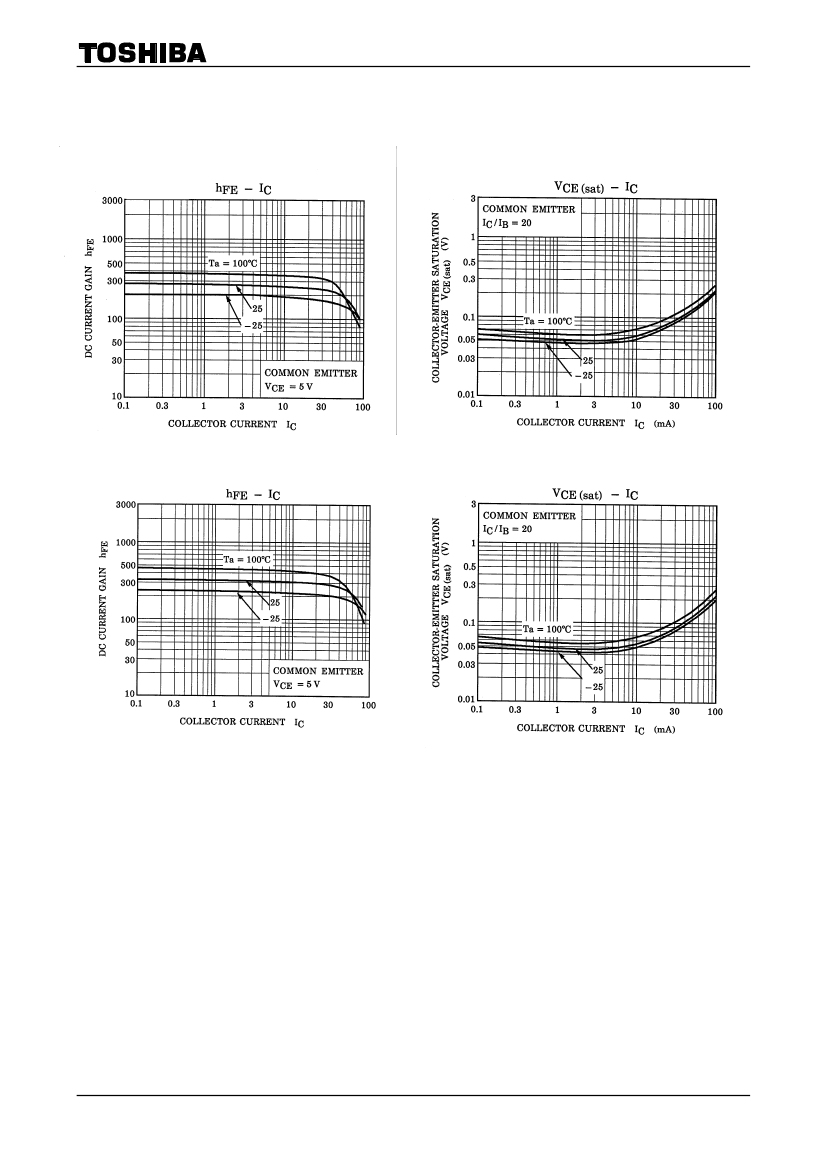

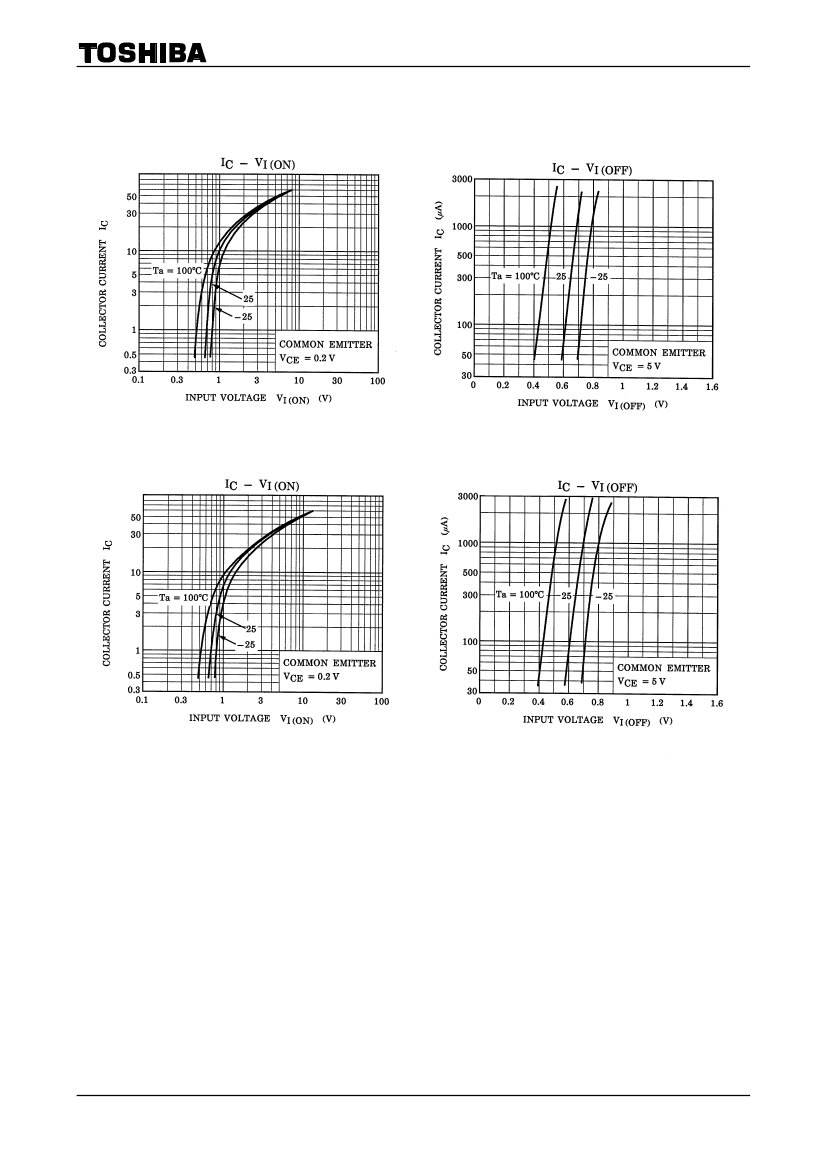

RN1710TE85R Related Products

RN1710TE85R RN1710(TE85L) RN1710TE85L RN1710(TE85R)
Description TRANSISTOR 100 mA, 50 V, 2 CHANNEL, NPN, Si, SMALL SIGNAL TRANSISTOR, BIP General Purpose Small Signal TRANSISTOR 100 mA, 50 V, 2 CHANNEL, NPN, Si, SMALL SIGNAL TRANSISTOR, USV, 2-2L1A, 5 PIN, BIP General Purpose Small Signal TRANSISTOR 100 mA, 50 V, 2 CHANNEL, NPN, Si, SMALL SIGNAL TRANSISTOR, BIP General Purpose Small Signal TRANSISTOR 100 mA, 50 V, 2 CHANNEL, NPN, Si, SMALL SIGNAL TRANSISTOR, USV, 2-2L1A, 5 PIN, BIP General Purpose Small Signal
package instruction SMALL OUTLINE, R-PDSO-G5 SMALL OUTLINE, R-PDSO-G5 SMALL OUTLINE, R-PDSO-G5 SMALL OUTLINE, R-PDSO-G5
Reach Compliance Code unknown unknown unknown unknown
Maximum collector current (IC) 0.1 A 0.1 A 0.1 A 0.1 A
Collector-emitter maximum voltage 50 V 50 V 50 V 50 V
Configuration COMMON EMITTER, 2 ELEMENTS WITH BUILT-IN RESISTOR COMMON EMITTER, 2 ELEMENTS WITH BUILT-IN RESISTOR COMMON EMITTER, 2 ELEMENTS WITH BUILT-IN RESISTOR COMMON EMITTER, 2 ELEMENTS WITH BUILT-IN RESISTOR
Minimum DC current gain (hFE) 120 120 120 120
JESD-30 code R-PDSO-G5 R-PDSO-G5 R-PDSO-G5 R-PDSO-G5
Number of components 2 2 2 2
Number of terminals 5 5 5 5
Package body material PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY
Package shape RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR
Package form SMALL OUTLINE SMALL OUTLINE SMALL OUTLINE SMALL OUTLINE
Polarity/channel type NPN NPN NPN NPN
Certification status Not Qualified Not Qualified Not Qualified Not Qualified
surface mount YES YES YES YES
Terminal form GULL WING GULL WING GULL WING GULL WING
Terminal location DUAL DUAL DUAL DUAL
transistor applications SWITCHING SWITCHING SWITCHING SWITCHING
Transistor component materials SILICON SILICON SILICON SILICON
Nominal transition frequency (fT) 250 MHz 250 MHz 250 MHz 250 MHz
