RN1607(TE85L): DescriptionTRANSISTOR 100 mA, 50 V, 2 CHANNEL, NPN, Si, SMALL SIGNAL TRANSISTOR, SM6, 2-3N1A, 6 PIN, BIP General Purpose Small Signal; CategoryDiscrete semiconductor The transistor; File Size274KB，6 Pages; ManufacturerToshiba Semiconductor; Websitehttp://toshiba-semicon-storage.com/

Download Datasheet Parametric Compare View All

RN1607(TE85L) Overview

TRANSISTOR 100 mA, 50 V, 2 CHANNEL, NPN, Si, SMALL SIGNAL TRANSISTOR, SM6, 2-3N1A, 6 PIN, BIP General Purpose Small Signal

RN1607(TE85L) Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Toshiba Semiconductor
package instruction	SMALL OUTLINE, R-PDSO-G6
Contacts	6
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	BUILT-IN BIAS RESISTOR RATIO IS 0.213
Maximum collector current (IC)	0.1 A
Collector-emitter maximum voltage	50 V
Configuration	SEPARATE, 2 ELEMENTS WITH BUILT-IN RESISTOR
Minimum DC current gain (hFE)	80
JESD-30 code	R-PDSO-G6
Number of components	2
Number of terminals	6
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Polarity/channel type	NPN
Certification status	Not Qualified
surface mount	YES
Terminal form	GULL WING
Terminal location	DUAL
transistor applications	SWITCHING
Transistor component materials	SILICON
Nominal transition frequency (fT)	250 MHz

Preview

Download Datasheet

View All

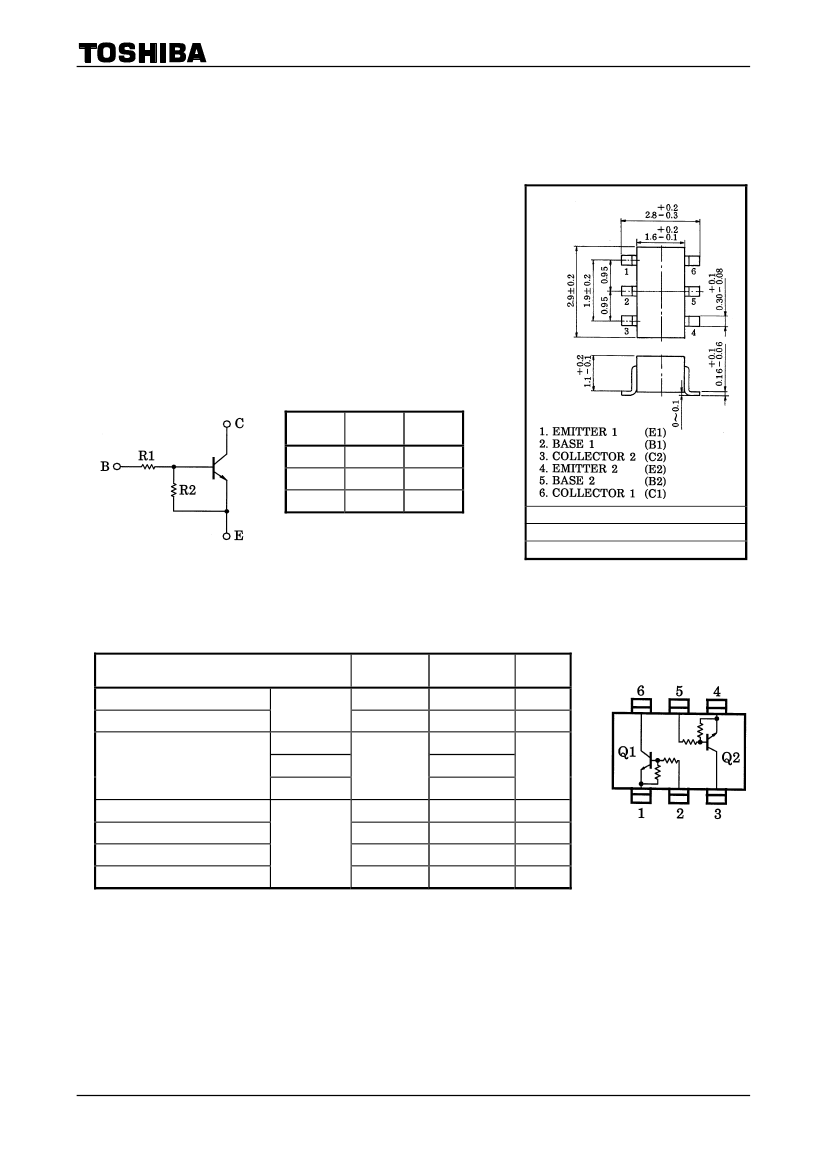

RN1607~RN1609

TOSHIBA Transistor

Silicon NPN Epitaxial Type (PCT Process)

RN1607, RN1608, RN1609

Switching, Inverter Circuit, Interface Circuit

and Driver Circuit Applications

Including two devices in SM6 (super-mini-type with six (6) leads)

With built-in bias resistors.

Simplified circuit design

Reduced number of parts and manufacturing process

Complementary to RN2607~RN2609

Unit: mm

Equivalent Circuit and Bias Resistor Values

Type No.

RN1607

RN1608

RN1609

R1 (kΩ)

R2 (kΩ)

JEDEC

―

JEITA

―

TOSHIBA

2-3N1A

Weight: 0.015 g (typ.)

Absolute Maximum Ratings

(Ta = 25°C) (Q1, Q2 Common)

Characteristic

Collector-base voltage

Collector-emitter voltage

RN1607~1609

RN1607

Emitter-base voltage

RN1608

RN1609

Collector current

Collector power dissipation

Junction temperature

Storage temperature range

RN1607~1609

stg

EBO

Symbol

CBO

CEO

Rating

100

300

150

−55~150

°C

Unit

Equivalent Circuit

(Top View)

Note: Using continuously under heavy loads (e.g. the application of high temperature/current/voltage and the

significant change in temperature, etc.) may cause this product to decrease in the reliability significantly even

if the operating conditions (i.e. operating temperature/current/voltage, etc.) are within the absolute maximum

ratings.

Please design the appropriate reliability upon reviewing the Toshiba Semiconductor Reliability Handbook

(“Handling Precautions”/“Derating Concept and Methods”) and individual reliability data (i.e. reliability test

report and estimated failure rate, etc).

* Total rating

2007-11-01
