BCU87S datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> The transistor> BCU87S

BCU87S: DescriptionSmall Signal Bipolar Transistor, 3A I(C), 50V V(BR)CEO, 1-Element, PNP, Silicon, EXTENDED TO-92, 3 PIN; CategoryDiscrete semiconductor The transistor; File Size127KB，4 Pages; ManufacturerTT Electronics plc; Websitehttp://www.ttelectronics.com/

Download Datasheet Parametric View All

BCU87S Overview

Small Signal Bipolar Transistor, 3A I(C), 50V V(BR)CEO, 1-Element, PNP, Silicon, EXTENDED TO-92, 3 PIN

BCU87S Parametric

Parameter Name	Attribute value
Maker	TT Electronics plc
package instruction	CYLINDRICAL, O-PBCY-T3
Reach Compliance Code	unknown
ECCN code	EAR99
Maximum collector current (IC)	3 A
Collector-emitter maximum voltage	50 V
Configuration	SINGLE
Minimum DC current gain (hFE)	140
JESD-30 code	O-PBCY-T3
Number of components	1
Number of terminals	3
Package body material	PLASTIC/EPOXY
Package shape	ROUND
Package form	CYLINDRICAL
Polarity/channel type	PNP
Certification status	Not Qualified
surface mount	NO
Terminal form	THROUGH-HOLE
Terminal location	BOTTOM
transistor applications	SWITCHING
Transistor component materials	SILICON
Nominal transition frequency (fT)	150 MHz

Preview

Download Datasheet

View All

BCU86

BCU87

MECHANICAL DATA

Dimensions in mm

6 .0

5 .0

NPN/PNP EPITAXIAL PLANAR

SILICON TRANSISTOR

Ideal For High current Switching

Application

8 .5

FEATURES

1 4 .0

• LOW V

CE(SAT)

• HIGH CURRENT CAPACITY AND WIDE ASO

3 .0

1 .4 5 P IT C H

• ADOPTION OF FBET, MBIT PROCESS

0 .5

T Y P

TO92(EXTENDED)

4 .7

APPLICATIONS

• POWER SUPPLIES

• RELAY DRIVERS

• LAMP DRIVERS

• CAR APPLICATIONS

ABSOLUTE MAXIMUM RATINGS

(Tcase = 25°C unless otherwise stated)

CBO

CEO

EBO

stg

Collector – Base voltage

Collector – Emitter voltage (I

= 0)

Emitter – Base voltage

Collector current

Collector Current (Pulse)

Collector Dissipation

(Mounted on Ceramic Board (250mm

2 x 0.8mm)

Junction Temperature

Storage Temperature

Telephone +44(0)1455 554711.

Fax +44(0)1455 558843.

E-mail:

magnatec@semelab.co.uk

Website:

http://www.semelab.co.uk

0 .5

BCU86

60V

50V

1.5W

150°C

BCU87

– 60V

– 50V

– 6V

– 3A

– 6A

–55 to 150°C

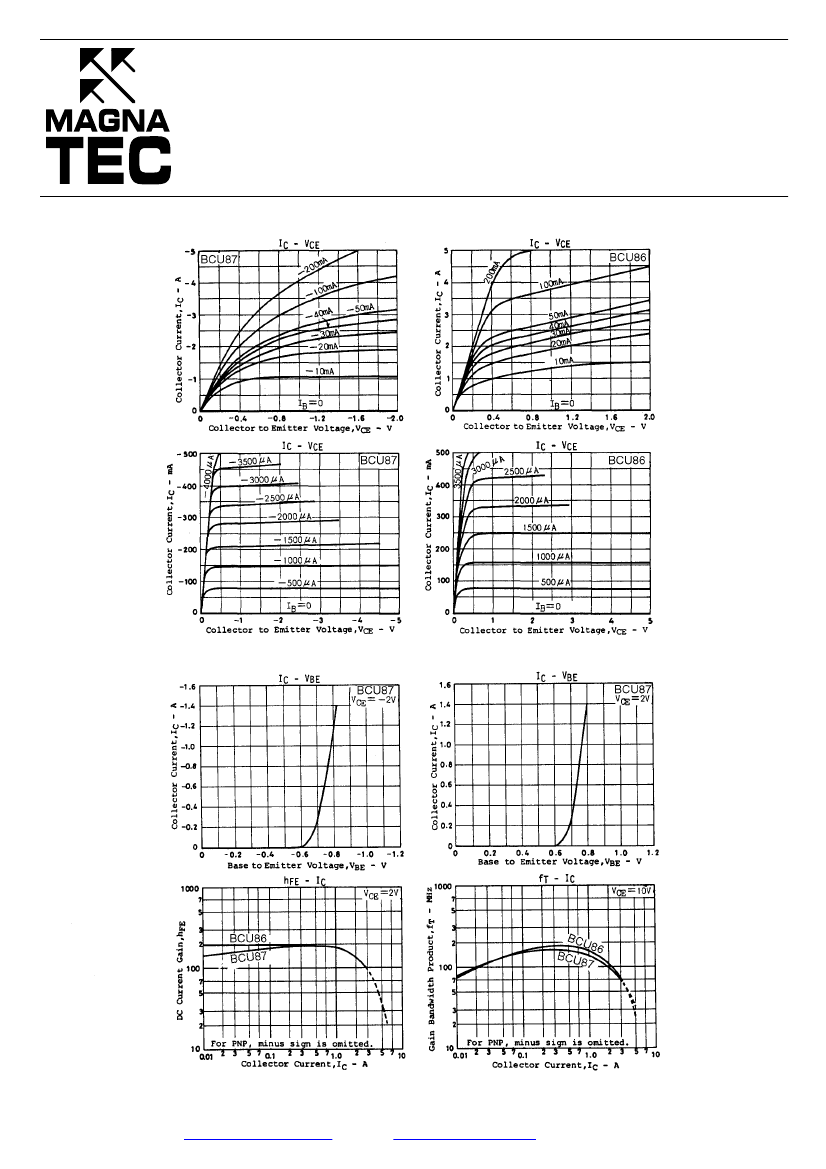

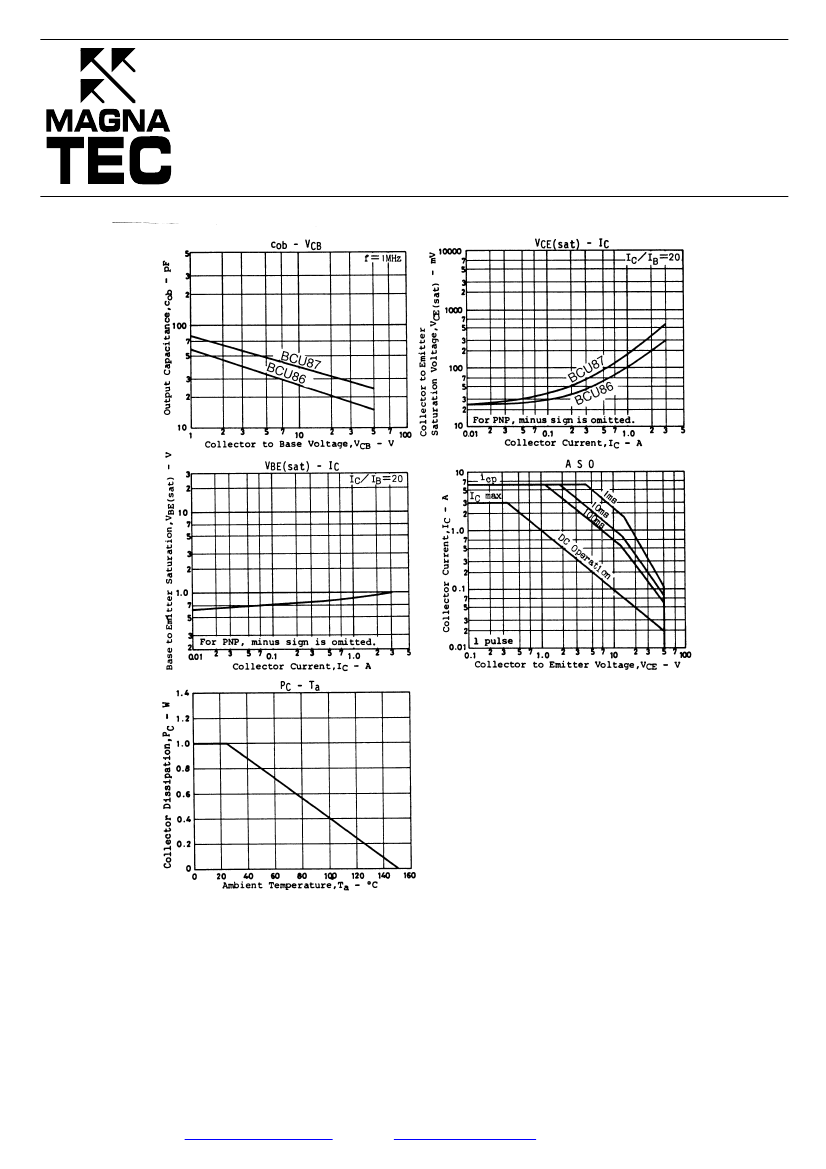

Prelim.7/99

Magnatec.
