RN2424(TE85L2) datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> The transistor> RN2424(TE85L2)

RN2424(TE85L2): DescriptionTRANSISTOR 800 mA, 50 V, PNP, Si, SMALL SIGNAL TRANSISTOR, 2-3F1A, SC-59, 3 PIN, BIP General Purpose Small Signal; CategoryDiscrete semiconductor The transistor; File Size549KB，8 Pages; ManufacturerToshiba Semiconductor; Websitehttp://toshiba-semicon-storage.com/

Download Datasheet Parametric Compare View All

RN2424(TE85L2) Overview

TRANSISTOR 800 mA, 50 V, PNP, Si, SMALL SIGNAL TRANSISTOR, 2-3F1A, SC-59, 3 PIN, BIP General Purpose Small Signal

RN2424(TE85L2) Parametric

Parameter Name	Attribute value
Maker	Toshiba Semiconductor
Parts packaging code	SC-59
package instruction	SMALL OUTLINE, R-PDSO-G3
Contacts	3
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	BUILT-IN BIAS RESISTOR RATIO IS 1
Maximum collector current (IC)	0.8 A
Collector-emitter maximum voltage	50 V
Configuration	SINGLE WITH BUILT-IN RESISTOR
Minimum DC current gain (hFE)	90
JESD-30 code	R-PDSO-G3
Number of components	1
Number of terminals	3
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Polarity/channel type	PNP
Certification status	Not Qualified
surface mount	YES
Terminal form	GULL WING
Terminal location	DUAL
transistor applications	SWITCHING
Transistor component materials	SILICON
Nominal transition frequency (fT)	200 MHz

Preview

Download Datasheet

View All

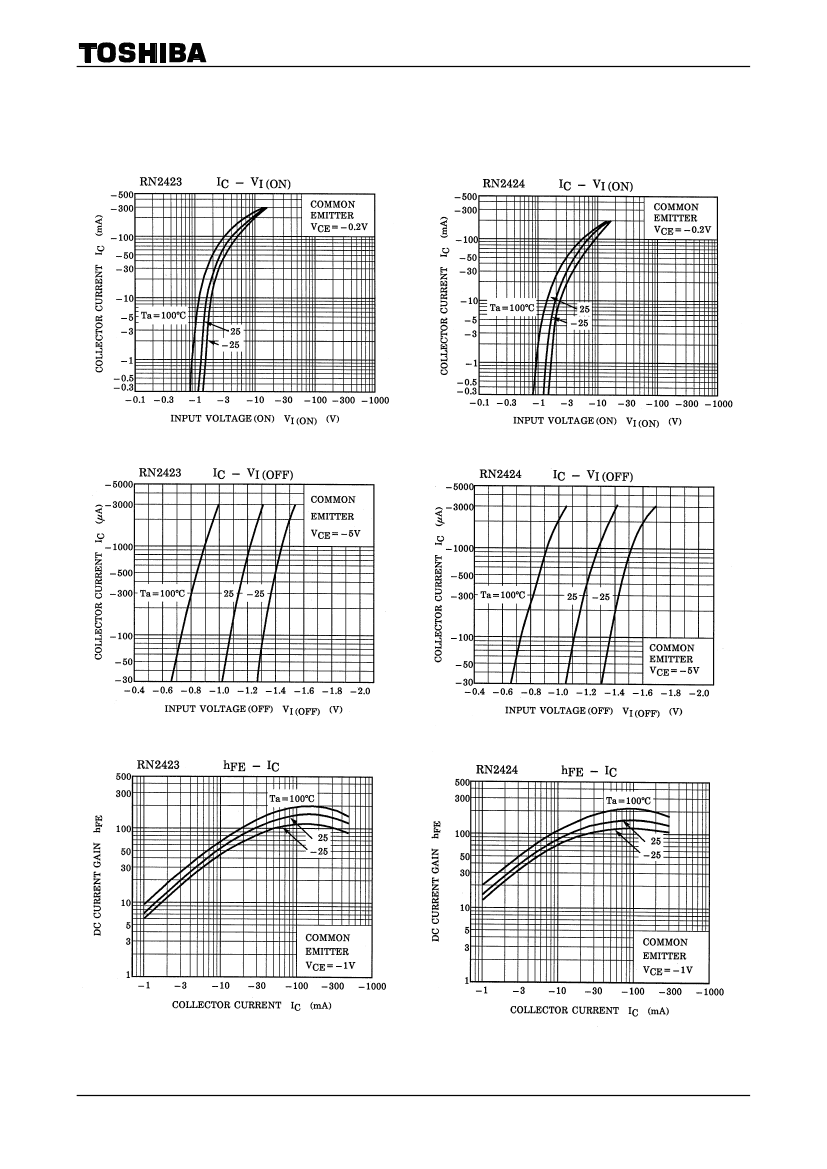

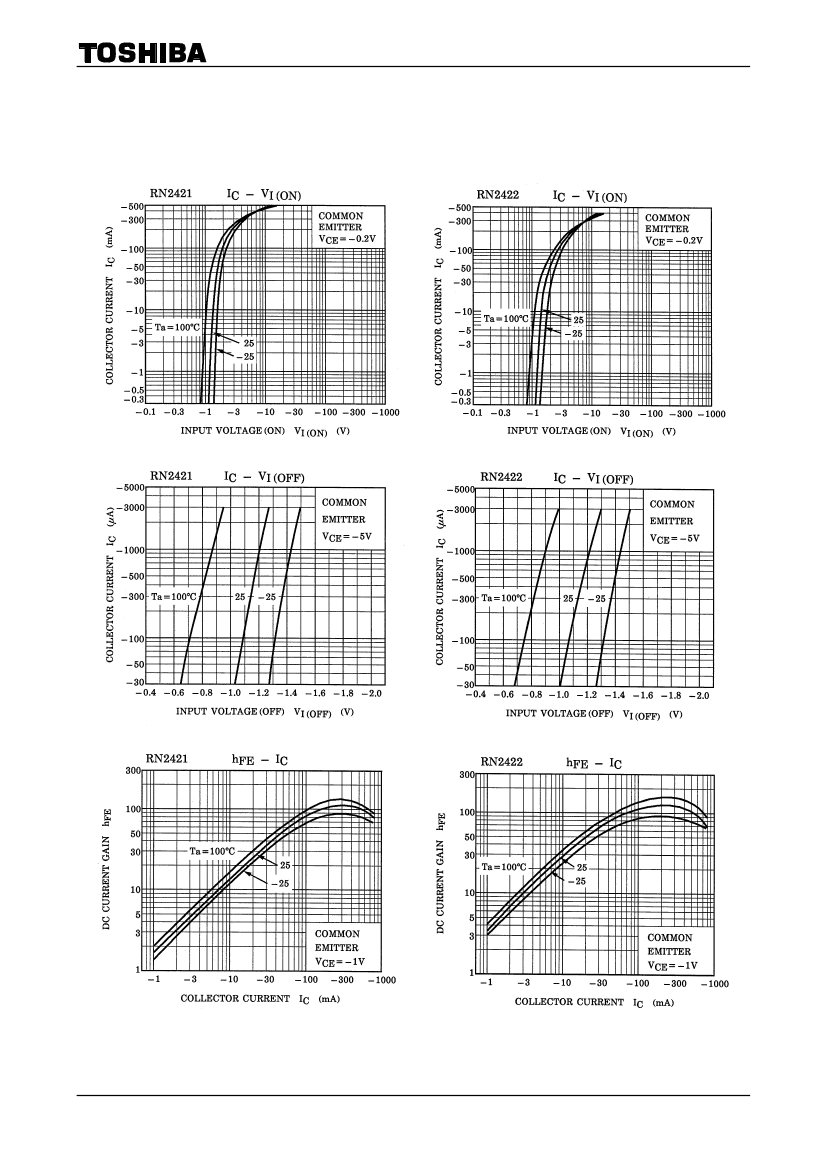

RN2421~RN2427

TOSHIBA Transistor Silicon PNP Epitaxial Type (PCT Process)

RN2421,RN2422,RN2423,RN2424

RN2425,RN2426,RN2427

Switching, Inverter Circuit, Interface Circuit

and Driver Circuit Applications

High current type (I

C(MAX)

−800mA)

With built-in bias resistors

Simplify circuit design

Reduce a quantity of parts and manufacturing process

Low V

CE (sat)

Complementary to RN1421~RN1427

Unit: mm

Equivalent Circuit and Bias Resistor Values

Type No.

RN2421

RN2422

RN2423

RN2424

RN2425

RN2426

RN2427

R1 (kΩ)

2.2

4.7

0.47

2.2

R2 (kΩ)

2.2

4.7

JEDEC

JEITA

TOSHIBA

―

SC-59

2-3F1A

Weight: 0.012 g (typ.)

Absolute Maximum Ratings

(Ta = 25°C)

Characteristics

Collector-Base voltage

Collector-Emitter voltage

RN2421~2427

RN2421~2424

Emitter-Base voltage

RN2425, 2426

RN2427

Collector current

Collector power dissipation

Junction temperature

Storage temperature range

RN2421~2427

stg

EBO

Symbol

CBO

CEO

Rating

−50

−10

−5

−6

−800

200

150

−55~150

°C

Unit

Note: Using continuously under heavy loads (e.g. the application of high temperature/current/voltage and the

significant change in temperature, etc.) may cause this product to decrease in the reliability significantly even

if the operating conditions (i.e. operating temperature/current/voltage, etc.) are within the absolute maximum

ratings.

Please design the appropriate reliability upon reviewing the Toshiba Semiconductor Reliability Handbook

(“Handling Precautions”/“Derating Concept and Methods”) and individual reliability data (i.e. reliability test

report and estimated failure rate, etc).

2007-11-01
