R585352200 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Mechanical and electronic products> relay> R585352200

R585352200: DescriptionRF Coaxial Relay, SPDT, Latched, 0.42A (Coil), 12VDC (Coil), 5040mW (Coil), 3000MHz, DC Input, DC Output, Panel Mount; CategoryMechanical and electronic products relay; File Size98KB，2 Pages; ManufacturerRadiall; Websitehttps://www.radiall.com/

Download Datasheet Parametric View All

R585352200 Overview

RF Coaxial Relay, SPDT, Latched, 0.42A (Coil), 12VDC (Coil), 5040mW (Coil), 3000MHz, DC Input, DC Output, Panel Mount

R585352200 Parametric

Parameter Name	Attribute value
Maker	Radiall
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	BUILT-IN SELF CUT OFF
body width	14.2 mm
body height	47.5 mm
Body length or diameter	55.6 mm
Characteristic impedance	50 Ω
Maximum coil current (DC)	0.42 A
Coil power	5040 mW
Coil resistance	29 Ω
Maximum coil voltage (DC)	12 V
Coil/Input Power Type	DC
Contact/Output Power Type	DC
Electrical life	2000000 Cycle(s)
Maximum insertion loss	0.2 dB
Maximum isolation	80 dB
Manufacturer's serial number	R585
Installation features	PANEL MOUNT
Maximum operating frequency	3000 MHz
Minimum operating frequency
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
physical size	55.6mm X 14.2mm X 47.5mm
Relay action	LATCHED
Relay function	SPDT
Relay type	RF COAXIAL RELAY
surface mount	NO
switching time	10 ms
Termination type	SOLDER/CONNECTOR
voltage standing wave ratio	1.2

Preview

Download Datasheet

View All

COAXIAL

SWITCHES

SMA

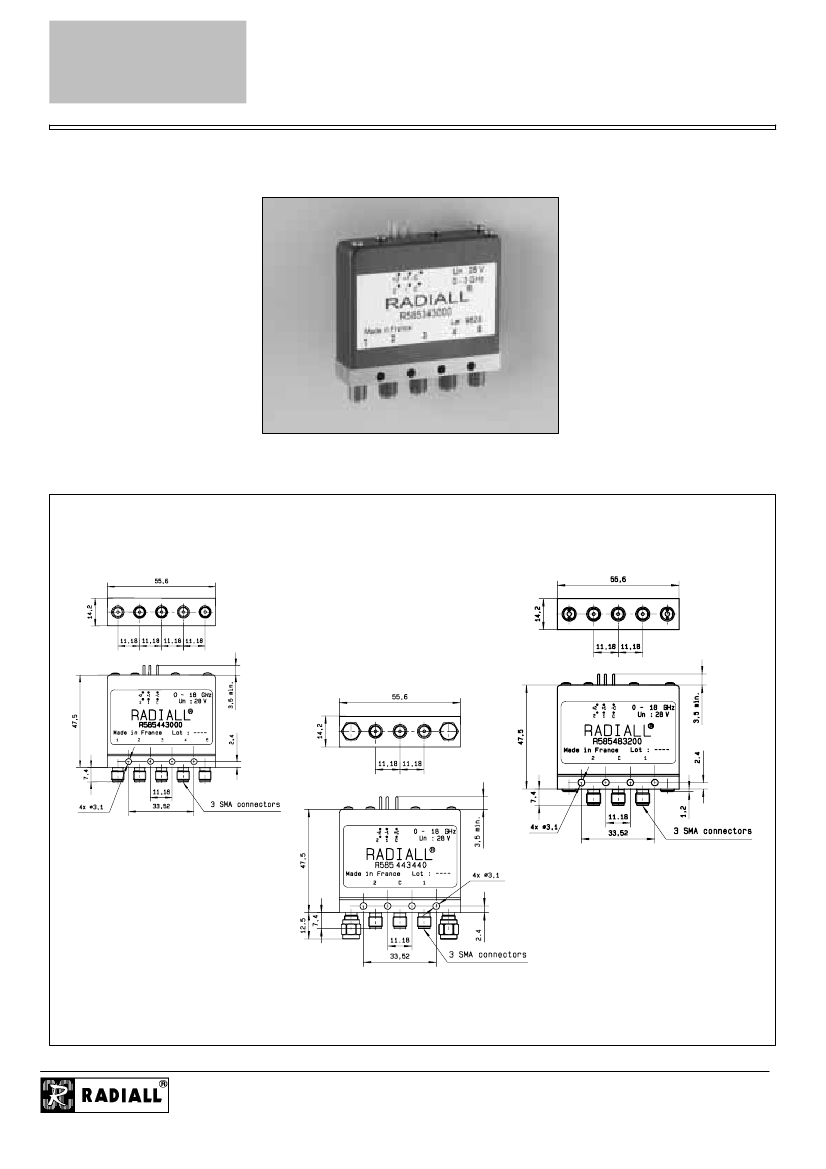

TERMINATED COAXIAL SPDT and DP3T up to 18 GHz --- RAMSES Concept

R585 . . .

Connectors RF

SMA

up to 3 GHz

SMA

up to 18 GHz

. . .

Actuator terminal

: Solder Pins

Options

Without option

Positive common (2)(4)

With suppression diodes (1)

With suppression diodes and

positive common (3)(4)

Type

Failsafe

Failsafe + I.C.

Latching

Latching + I.C.

Latching + S.C.O.(1)

Latching + S.C.O. + I.C.(1)

Normally Open

Normally Open + I.C.

TTL and termination options

(1)

(2)

(3)

(4)

Without TTL driver (DP3T)

With TTL driver (DP3T)

Terminated (internal termination) / Without TTL driver

Terminated (internal termination) / With TTL driver

Terminated (external termination) / Without TTL driver

Terminated (external termination) / With TTL driver

Actuator voltage

: 12 Vdc

: 28 Vdc

I.C.

S.C.O.

Connectors

Frequency range

V.S.W.R. (max)

Insertion Loss (max)

Isolation (min)

Impedance

Switching sequence

GHz

DC - 3

1.20

.20

Indicator contact.

Self Cut Off

Suppression diodes are already included in Self Cut-

-off and TTL

TTL option is not available with this option

Self Cut-

-off and TTL options are not available with this option

: Positive common must be specified only with Type 3, 4, 5 or 6

SMA

DC - 3 / DC - 18

3-8

1.30

.30

Break Before Make

8 - 12.4

1.40

.40

12.4 - 18

1.50

.50

GENERAL SPECIFICATIONS - RF PERFORMANCES

GENERAL SPECIFICATIONS - ADDITIONAL SPECIFICATIONS

Operating mode

Actuator voltage (nominal)

Coil resistance (±10%)

Operating current at 23_C

Average power

TTL INPUT

Peak power

Indicator rating

Switching time (max)

Life

Connectors

Actuator terminals

Operating temperature range

Storage temperature range

cycles

High level

Low level

Vdc

500

Failsafe, Latching or Normally open

Failsafe

138

205

420

2.2 to 5.5 V

0 to 0.8 V

1.5 (1

ms,

1 ‰)

1 W - 30 V - 100 mA

for products with internal terminations

10 10

cycles for all other products

SMA

Solder pins

Latching

175

160

Normally open

47.5

250

275

102

See Power Rating Chart page 9

-40, +85

-55, +85
