B4809GS2U: DescriptionDC-DC Unregulated Power Supply Module, 2 Output, 2W, Hybrid, SIP-7/5; CategoryPower/power management The power supply circuit; File Size44KB，3 Pages; ManufacturerSENSITRON; Websitehttp://www.sensitron.com/

Download Datasheet Parametric View All

B4809GS2U Overview

DC-DC Unregulated Power Supply Module, 2 Output, 2W, Hybrid, SIP-7/5

B4809GS2U Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	SENSITRON
Parts packaging code	MODULE
package instruction	SIP,
Contacts	7/5
Reach Compliance Code	compliant
ECCN code	EAR99
Analog Integrated Circuits - Other Types	DC-DC UNREGULATED POWER SUPPLY MODULE
Maximum input voltage	52.8 V
Minimum input voltage	43.2 V
Nominal input voltage	48 V
JESD-30 code	R-XSIP-T5
length	19.5 mm
Number of functions	1
Output times	2
Number of terminals	5
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Nominal output voltage	9 V
Package body material	UNSPECIFIED
encapsulated code	SIP
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
surface mount	NO
technology	HYBRID
Temperature level	INDUSTRIAL
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	SINGLE
Maximum time at peak reflow temperature	NOT SPECIFIED
Maximum total power output	2 W
Fine-tuning/adjustable output	NO
width	5.842 mm

Preview

Download Datasheet

View All

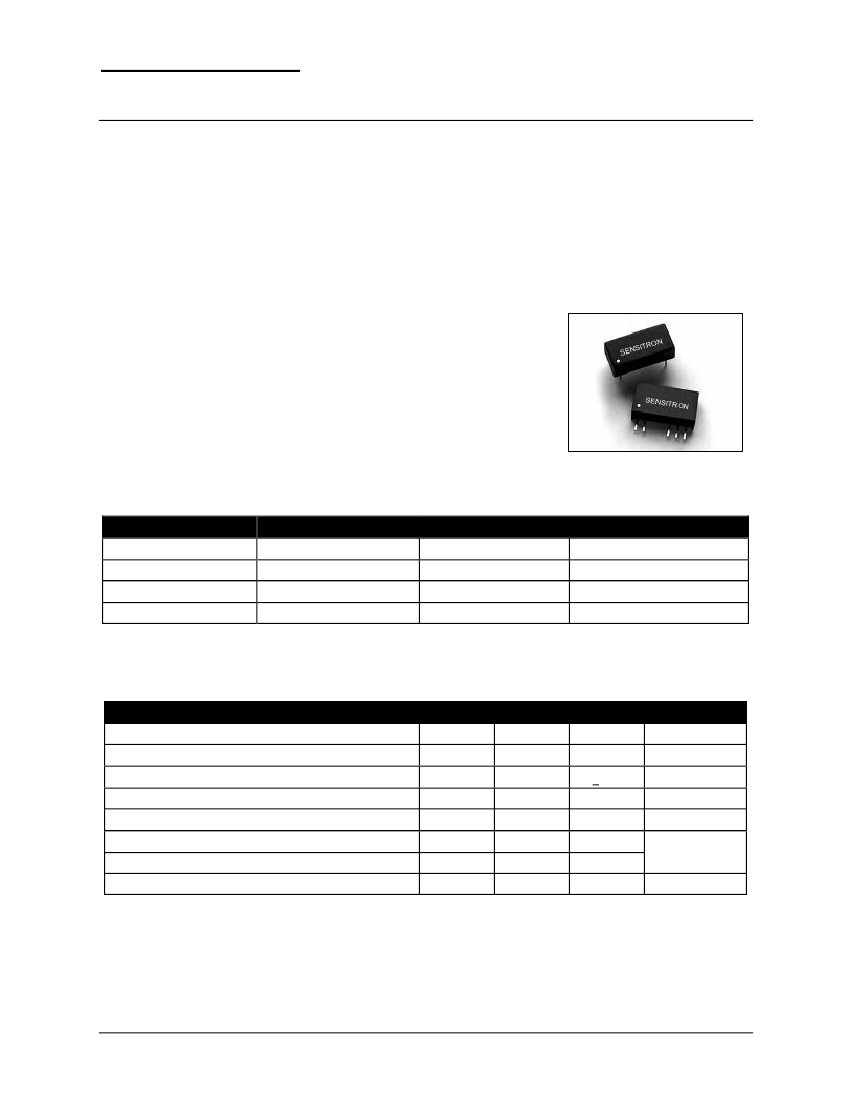

SENSITRON

SEMICONDUCTOR

TECHNICAL DATA

DATA SHEET 1102, REV. -

B - 1W/2W Series

DC-DC Converters

Fixed Input, 3000V Isolation, Unregulated, Dual Output

FEATURES:

•

Isolation Voltage:

Isolation Resistance (1):

Short-Circuit Duration:

Case Temperature Rise:

Cooling Method:

Standby Power Dissipation:

Operating Temp.:

Storage Temp.:

Humidity:

Soldering Temp. (2):

Case Material:

Mean Time Before Failure:

3000Vdc

1000MΩ

1 second

Max. 25°C, Typ. 15°C

Free-Air Cooling

1W (100mW), 2W (200mW)

-40°C ~ + 85°C

-55°C ~ + 125°C

≤

95%

300°C

Non-Flammable Material (UL94-V0)

> 1,000,000 hours (Operating Temp. 25°C)

B Dual Output-1W/2W Series Input Characteristics

Part Number

B05XXGS/D-1W/2W

B12XXGS/D-1W/2W

B24XXGS/D-1W/2W

Nominal Input Voltage

5VDC

12VDC

24VDC

Input Voltage Range

4.5~5.5VDC

10.8~13.2VDC

21.6~26.4VDC

Maximum Input Voltage*

7VDC

15VDC

28VDC

54VDC

B48XXGS/D-1W/2W

48VDC

43.2~52.8VDC

* Voltage above this value may cause permanent damage to the device.

B Dual Output-1W/2W Series Output Characteristics

Parameter

1W Output Power

2W Output Power

Line Regulation

Efficiency at 100% Load

Temperature Coefficient

1W Ripple and Noise

2W Ripple and Noise

Switching Frequency

100

MIN

0.25

0.5

TYP

MAX

+ 1.2

0.03

150

Units

%/°C

mVp-p

KHz

All specifications at TA=25°C, 75% of the humidity, Nominal input voltage, full output load unless otherwise

specified.

Soldering for 10 seconds at 1.5mm away from the edge.

•

221 West Industry Court

•

Deer Park, NY 11729-4681

•

Phone (631) 586-7600

•

Fax (631) 242-9798

•

World Wide Web Site - http://www.sensitron.com

•

E-Mail Address - sales@sensitron.com

•
