BUS505-8 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power/power management> The power supply circuit> BUS505-8

BUS505-8: DescriptionDC-DC Unregulated Power Supply Module, 1 Output, 3W, Hybrid; CategoryPower/power management The power supply circuit; File Size41KB，2 Pages; ManufacturerBel; Websitehttp://www.belfuse.com

Download Datasheet Parametric Compare View All

BUS505-8 Overview

DC-DC Unregulated Power Supply Module, 1 Output, 3W, Hybrid

BUS505-8 Parametric

Parameter Name	Attribute value
Brand Name	Power-One
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Bel
package instruction	,
Reach Compliance Code	compliant
ECCN code	EAR99
Analog Integrated Circuits - Other Types	DC-DC UNREGULATED POWER SUPPLY MODULE
Maximum input voltage	5.5 V
Minimum input voltage	4.65 V
Nominal input voltage	5 V
JESD-30 code	R-XXMA-P
JESD-609 code	e0
Number of functions	1
Output times	1
Nominal output voltage	5 V
Package body material	UNSPECIFIED
Package shape	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
surface mount	NO
technology	HYBRID
Terminal surface	TIN LEAD
Terminal form	PIN/PEG
Terminal location	UNSPECIFIED
Maximum time at peak reflow temperature	NOT SPECIFIED
Maximum total power output	3 W
Fine-tuning/adjustable output	NO

Preview

Download Datasheet

View All

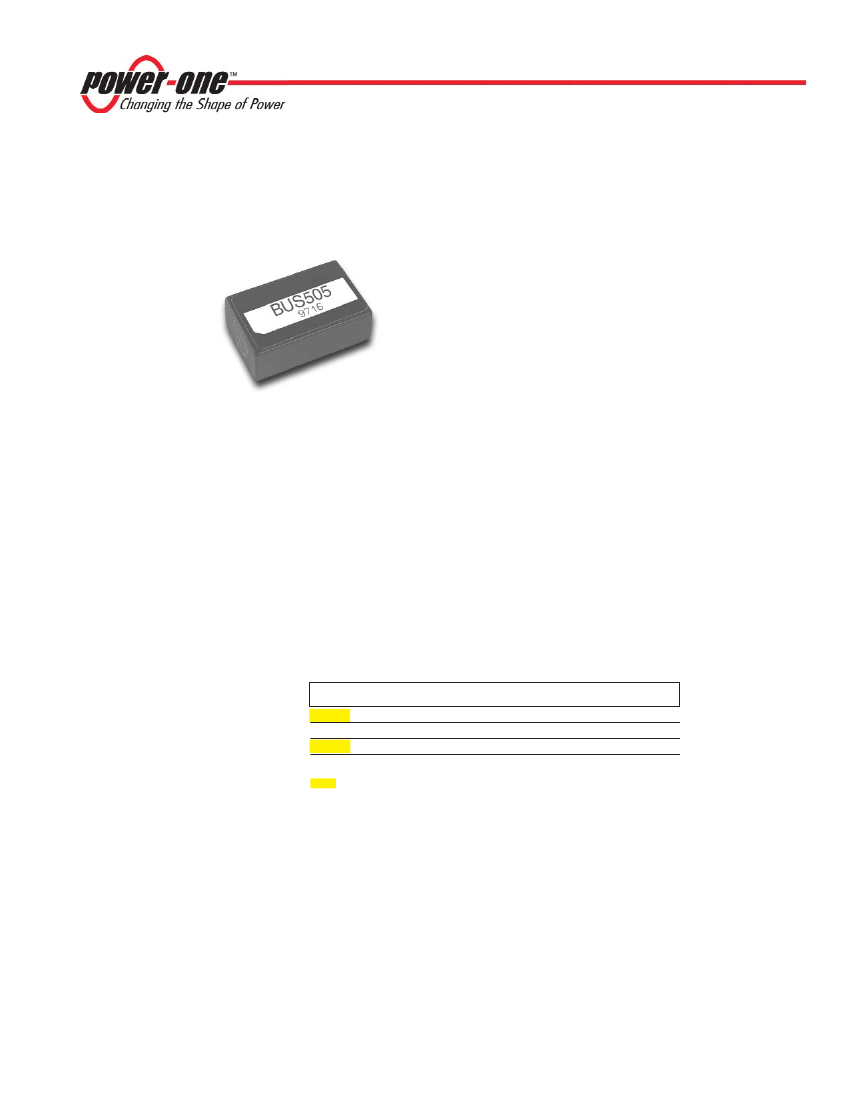

BUS Single-Output DC-DC Series Data Sheet

3 Watts

Features

•

Dimensions: 1.25” (31.8mm) x 0.80” (20.3mm) x 0.40” (10.2mm)

Industry-standard DIP package

Industry-standard pinout

85°C case operation

Short-circuit protection

5V input

Input LC filter

Regulated output

500V isolation

Description

BUS DC-DC converters offer 3 watts of output power

in an industry-standard DIP package. The 5V input

BUS is designed for industrial and EDP applications.

The BUS features short-circuit protection and 500

VDC isolation.

Model Selection

MODEL

INPUT VOLTAGE

RANGE (VDC)

OUTPUT

VOLTAGE (VDC)

OUTPUT

CURRENT (AMPS)

BUS505

BUS512

BUS515

4.65 - 5.5

0.600

0.300

0.240

Model numbers highlighted in yellow or shaded are not recommended for new designs.

REV. JAN 14, 2004

Page 1 of 2

BUS505-8 Related Products

	BUS505-8	BUS515	BUS515-9	BUS515-8	BUS505-9
Description	DC-DC Unregulated Power Supply Module, 1 Output, 3W, Hybrid	DC-DC Unregulated Power Supply Module, 1 Output, 3W, DIP-24	DC-DC Unregulated Power Supply Module, 1 Output, 3W, Hybrid	DC-DC Unregulated Power Supply Module, 1 Output, 3W, Hybrid	DC-DC Unregulated Power Supply Module, 1 Output, 3W, Hybrid
Brand Name	Power-One	Power-One	Power-One	Power-One	Power-One
Is it lead-free?	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible
Maker	Bel	Bel	Bel	Bel	Bel
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99
Analog Integrated Circuits - Other Types	DC-DC UNREGULATED POWER SUPPLY MODULE	DC-DC UNREGULATED POWER SUPPLY MODULE	DC-DC UNREGULATED POWER SUPPLY MODULE	DC-DC UNREGULATED POWER SUPPLY MODULE	DC-DC UNREGULATED POWER SUPPLY MODULE
Maximum input voltage	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum input voltage	4.65 V	4.65 V	4.65 V	4.65 V	4.65 V
Nominal input voltage	5 V	5 V	5 V	5 V	5 V
JESD-30 code	R-XXMA-P	R-XXMA-P	R-XXMA-P	R-XXMA-P	R-XXMA-P
JESD-609 code	e0	e0	e0	e0	e0
Number of functions	1	1	1	1	1
Output times	1	1	1	1	1
Nominal output voltage	5 V	15 V	15 V	15 V	5 V
Package body material	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
surface mount	NO	NO	NO	NO	NO
technology	HYBRID	HYBRID	HYBRID	HYBRID	HYBRID
Terminal surface	TIN LEAD	Tin/Lead (Sn/Pb)	TIN LEAD	TIN LEAD	TIN LEAD
Terminal form	PIN/PEG	PIN/PEG	PIN/PEG	PIN/PEG	PIN/PEG
Terminal location	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Maximum total power output	3 W	3 W	3 W	3 W	3 W
Fine-tuning/adjustable output	NO	NO	NO	NO	NO
