87377-4 datasheet, PDF - EEWORLD Datasheet

87377-4: Description64 MODII HORZ DR CE 100CL/145; CategoryThe connector The connector; File Size75KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric Compare View All

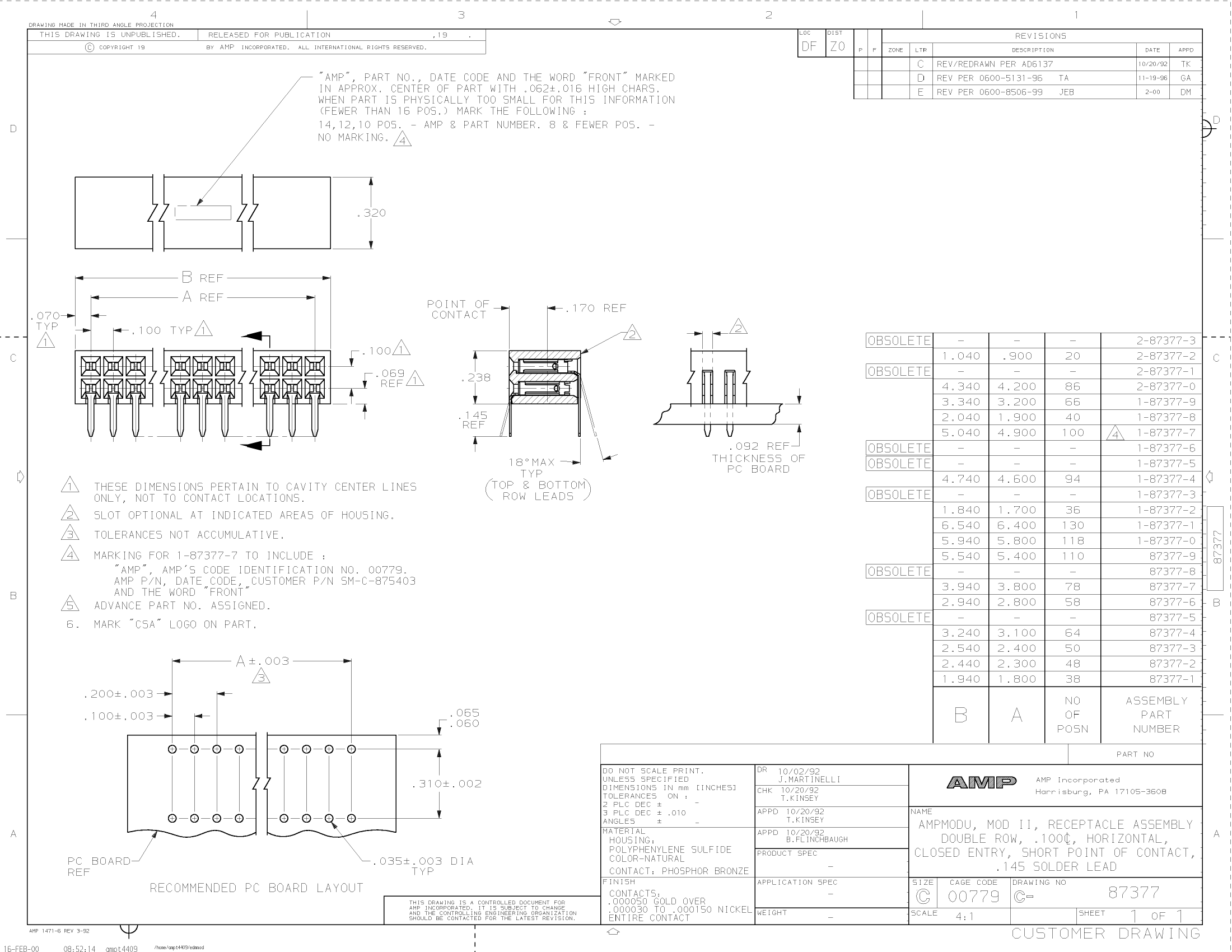

87377-4 Overview

64 MODII HORZ DR CE 100CL/145

Parameter Name	Attribute value
Brand Name	AMP
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	TE Connectivity
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	ROHS COMPLIANT, ELV COMPLIANT
body width	0.238 inch
subject depth	0.32 inch
body length	3.24 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact completed and terminated	Nickel (Ni)
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	12 mΩ
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	1050VAC V
Durability	200 Cycles
Filter function	NO
IEC compliance	NO
maximum insertion force	2.224 N
Insulation resistance	5000000000 Ω
Insulator color	NATURAL
insulator material	POLYPHENYLENE SULPHIDE
MIL compliance	NO
Manufacturer's serial number	87377
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-65 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	7.874 mm
Plating thickness	50u inch
polarization key	POLARIZED HOUSING
Rated current (signal)	3 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal length	0.145 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	64
Evacuation force-minimum value	.278 N

	87377-4	RC422-100-273-42FT	87377-1	87377-2	87377-3
Description	64 MODII HORZ DR CE 100CL/145	Board Stacking Connector	38 CONTACT(S), FEMALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, RECEPTACLE	48 CONTACT(S), FEMALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, SOLDER, RECEPTACLE	50 CONTACT(S), FEMALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, SOLDER, RECEPTACLE
Reach Compliance Code	compliant	compliant	unknown	unknown	unknown
Connector type	BOARD CONNECTOR	BOARD STACKING CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Manufacturer's serial number	87377	RC422	87377	87377-2	87377
Maker	TE Connectivity	-	TE Connectivity	TE Connectivity	TE Connectivity
Other features	ROHS COMPLIANT, ELV COMPLIANT	-	STANDARD PROFILE, AMPMODU, STACKABLE	STACKABLE, STANDARD PROFILE	AMPMODU
Body/casing type	RECEPTACLE	-	RECEPTACLE	RECEPTACLE	RECEPTACLE
Contact point gender	FEMALE	-	FEMALE	FEMALE	FEMALE
DIN compliance	NO	-	NO	NO	NO
Filter function	NO	-	NO	NO	NO
IEC compliance	NO	-	NO	NO	NO
MIL compliance	NO	-	NO	NO	NO
Mixed contacts	NO	-	NO	NO	NO
Installation method	RIGHT ANGLE	-	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	-	BOARD	BOARD	BOARD
Number of rows loaded	2	-	2	2	2
Options	GENERAL PURPOSE	-	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	2.54 mm	-	2.54 mm	2.54 mm	2.54 mm
Termination type	SOLDER	-	-	SOLDER	SOLDER
Total number of contacts	64	-	38	48	50
